| Unit Price: | $ 20 |

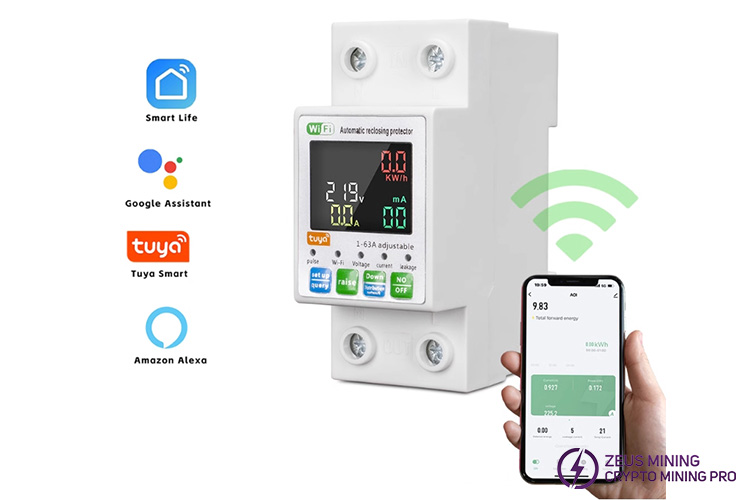

This high-quality Wifi metering intelligent circuit breaker power protector has remote control, voice control, and multi-device sharing functions. When the ASIC mining equipment has overvoltage, undervoltage, overcurrent, or leakage, this product can immediately cut off the power to prevent the electrical equipment from burning. These protection values can be set by yourself and adjusted according to local conditions.
Product parameters:
Rated voltage | AC110/230V |
Operating voltage | AC80V-400V(single phase) |
Operating frequency | 50/60Hz |
Rated current | 1-63A |
Electrical display range | 0-99999.9kw/h |
Operating temperature | -30℃ to 70℃ |
Installation | 35MM rail |
Electrical life | 105 |
Mechanical life | 106 |
Protection level | IP20 |
Pollution level | 3 |
Altitude | <2000m |
Operating humidity | ≤50% at 40℃ (no condensation) |
Backlight time | Continuously lights up for 15 seconds without any operation |
Data synchronization time with the device | Up to 20 seconds (depending on network speed) |
Error | 1% |
>U and <U trip delay | 0.5s |
Reset/start delay | 10s-99s |
Voltage measurement accuracy | 1% (not more than 1% of the total range) |
Rated insulation voltage | 400V |
Output contacts | 1NO |
Setting range:
Overvoltage protection | 120V-300V (adjustable) (default: 275V) |
Undervoltage protection | 80V-210V (adjustable) (default: 175V) |
Current limiting protection | 1A-63A (adjustable) (default: 63A) |
Leakage protection | 10-99mA (adjustable) (default: 50mA), this function can be turned off |
Reclosing time (delay time) | 10s-99s (adjustable) (default: 30s) |
Overcurrent and leakage protection reclosing times | 1-30/off (adjustable) (default: 5), this function can be turned off |
Temperature protection | 10-85℃ (adjustable) (this function can only be set on the APP side) |
Four-speed time switch | Schedule mode / countdown mode / periodic timing / quarter mode |
Product features:
1. Mobile phone APP remote control;
Support mobile phone APP remote real-time monitoring, can control overvoltage, undervoltage, and current through APP, and the APP online to view data.
2. Comprehensive function settings;
With the protection value setting function, overvoltage, undervoltage, overcurrent, and leakage protection values can be set as needed. At the same time, it supports setting power-off time, overcurrent, and leakage times. Supports three timing modes: timing, countdown, and cycle timing.
3. Easy installation;

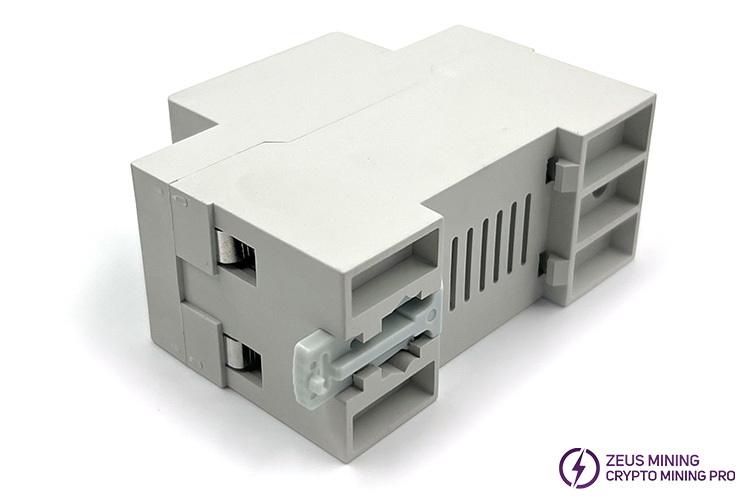

The product is small and suitable for installation in a distribution box or on the wall. DIN rail clip installation, no screws required.
4. Automatic reclosing;
Intelligently identify leakage. When overvoltage or undervoltage occurs, the protector automatically cuts off the power supply. The automatic reclosing will connect the power supply if the fault is eliminated.

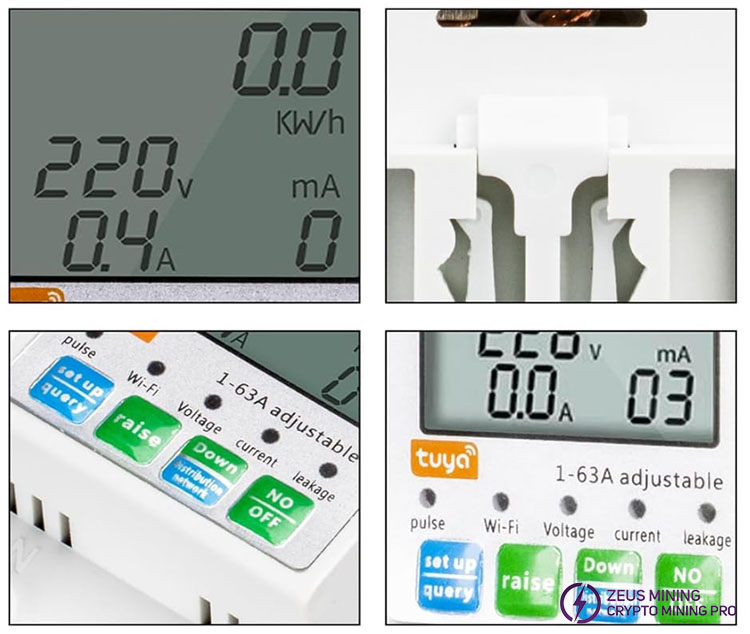

5. Digital LCD display;
LCD digital display can display real-time power, voltage, current, and leakage values on the digital screen simultaneously so that you can see the data at a glance. More accurate and easier to read.

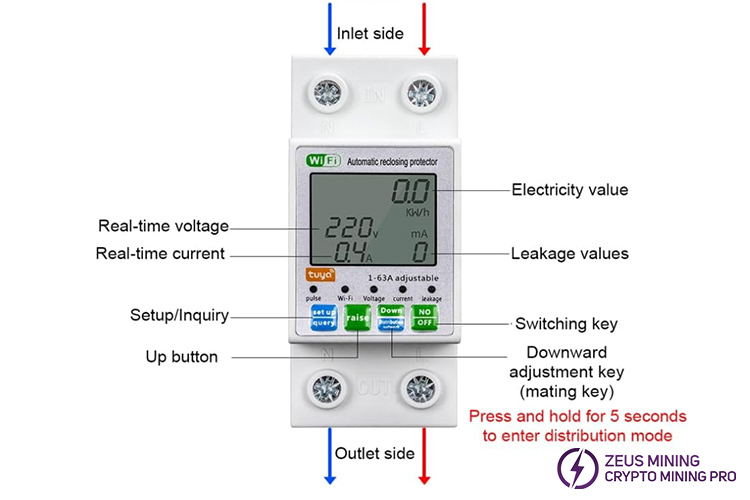

Interface description:

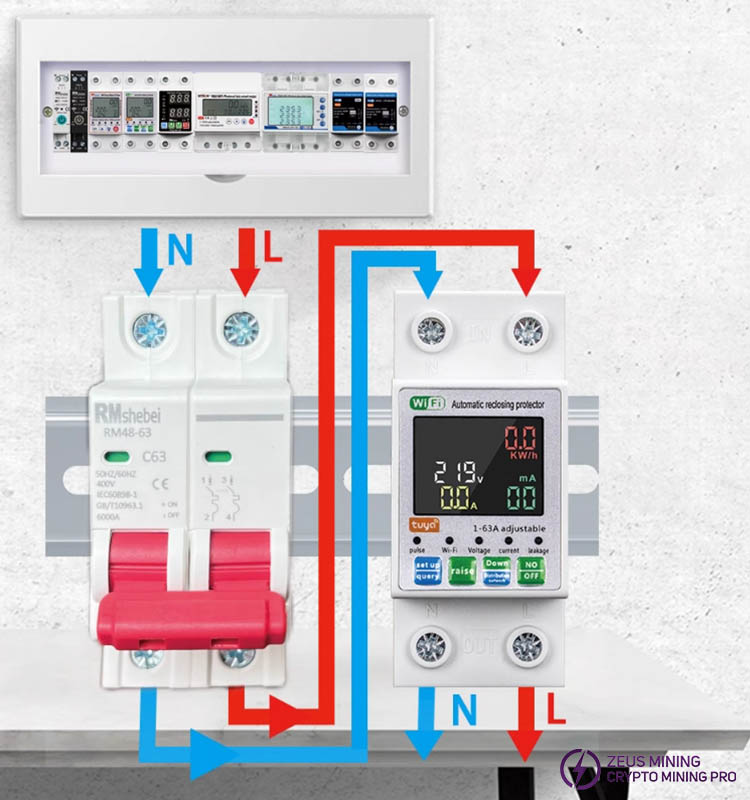

Wiring diagram description:
