| Unit Price: | $ 129 |

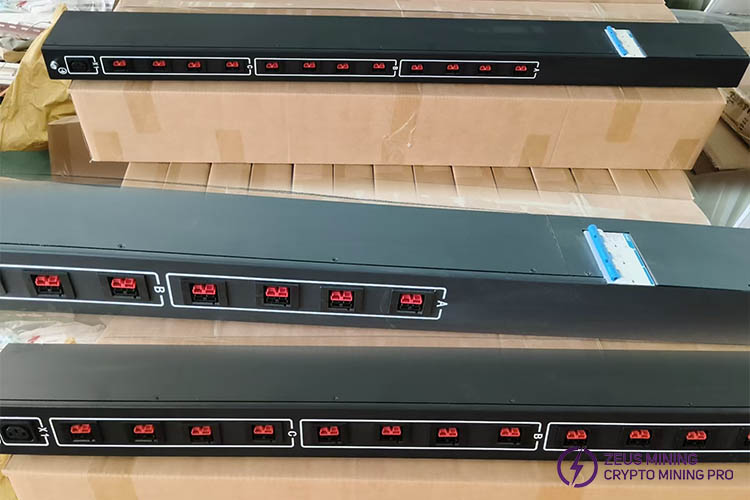

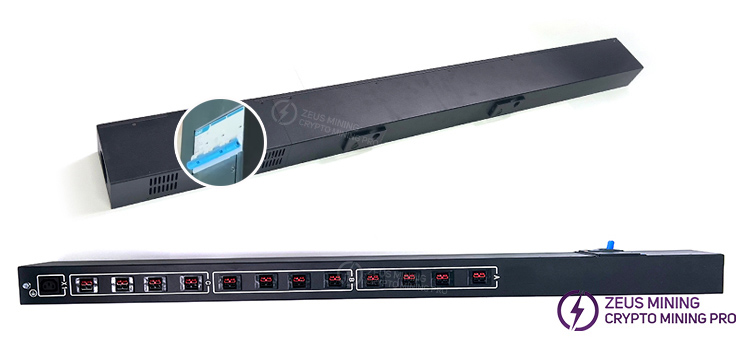

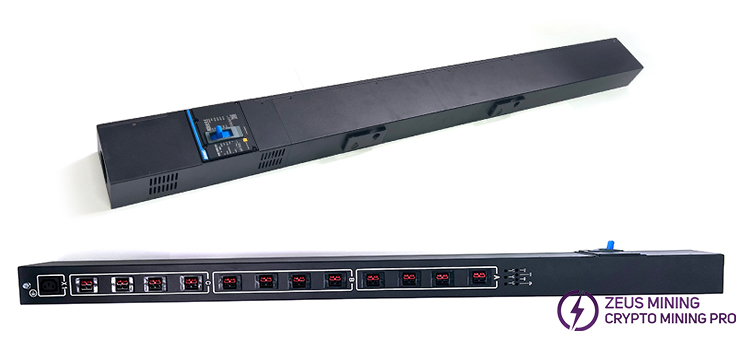

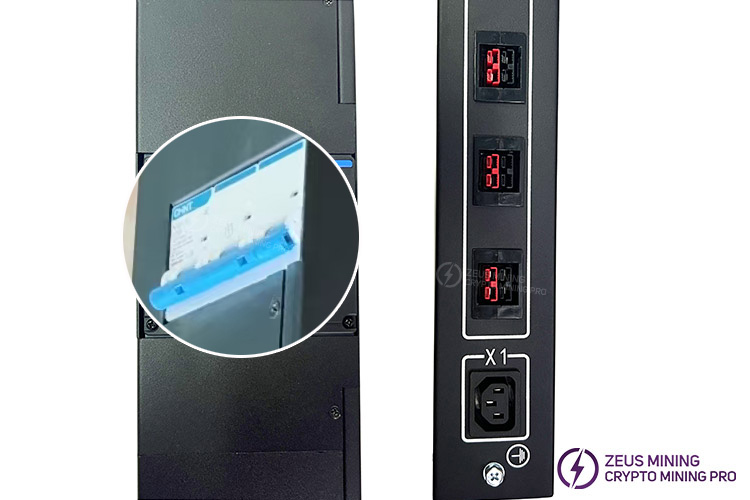

Whatsminer Antminer Hydro ASIC miner power distribution unit PDU
This 125A 346~480VAC PDU is designed for Whatsminer Antminer Hydro miners, it is made of aviation-grade thickened fireproof material and has a grounding design to prevent accidental electric shock. The internal wire is made of 12Awg pure copper to ensure electrical safety. The output end is equipped with 12 output interfaces, which can power 12 miners at the same time. The Antminer Whatsminer Hydro PDU module is also equipped with a 125A air switch circuit breaker, which can achieve comprehensive overload protection, overheating protection, short circuit protection, etc. It is suitable for centralized power in mining farms, water-cooled computer room deployments, etc., and can effectively solve problems such as messy cabling in the computer room, risk of fire due to overcurrent, centralized power supply protection for multiple liquid-cooled mining machines, three-phase voltage fluctuations, mismatched cable selection, and safety hazards due to grounding failure.
If you use this PDU with Antminer Hydro miners, it is recommended to use an Antminer power cable with a Hydro miner PDU plug.
1. High-power PDU power distribution unit specifically designed for Whatsminer and Antminer Hydro liquid-cooled miners.
2. Wide voltage range (346-480VAC), total power 83kW, capable of simultaneously powering 12 liquid-cooled miners.
3. Aviation-grade thickened fireproof shell + grounding design, enhancing the electrical safety level of the mining farm.

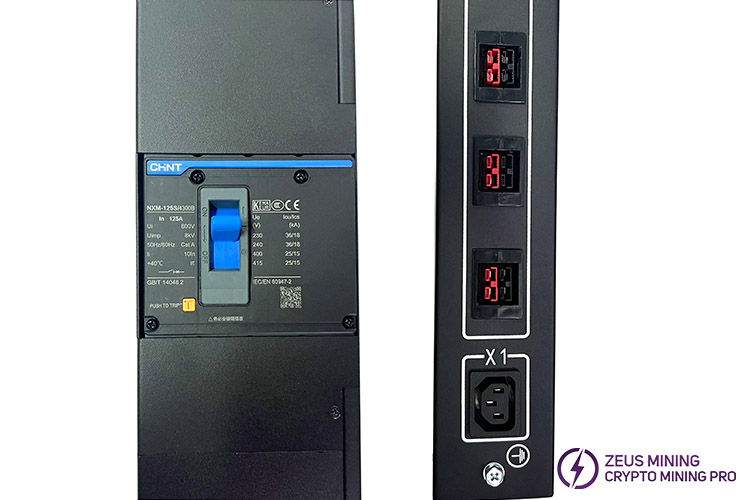

4. Built-in 125A air switch, providing comprehensive protection against overload, overheating, and short circuits.
5. 12AWG pure copper internal wiring, ensuring stable transmission during long-term high-current operation.
6. Centralized power distribution, optimizing cabling in water-cooled data centers and reducing deployment costs.
Whatsminer: M64, M63S+, M63S++, M63S, M63, M53S++, M53, M33S+, M33S++, etc.
Antminer: S21XP Hydro, S21 Hydro, S19 Hydro, T19 Hydro, S19Pro Hydro, S19Pro+ Hydro, S19XP Hydro, etc.
1. Large-scale liquid-cooled mining farms, providing centralized power for multiple Whatsminer/Antminer Hydro miners;
2. New liquid-cooled computer rooms or water-cooling retrofits of existing sites, resolving messy wiring and electrical safety hazards.
Size: 1343x66x106mm
Package size: 1360x210x170mm
Net weight: 6.5kg
Socket holes: 12+1
Input parameter | Input voltage | 346~480VAC |
Frequency | 50/60Hz | |
Input current | 125A | |
Output parameters | Output rating | 83kW |
Output voltage | 346~480VAC | |
Protect grade | IP20 | |
Working environment | Working temperature | -20~40°C |
Working humidity | 5%~90%RH (Non-condensing) | |
Storage environment | Storage temperature | -40~70°C |
Storage humidity | 5%~95%RH (Non-condensing) |
