| Unit Price: | $ 25 |

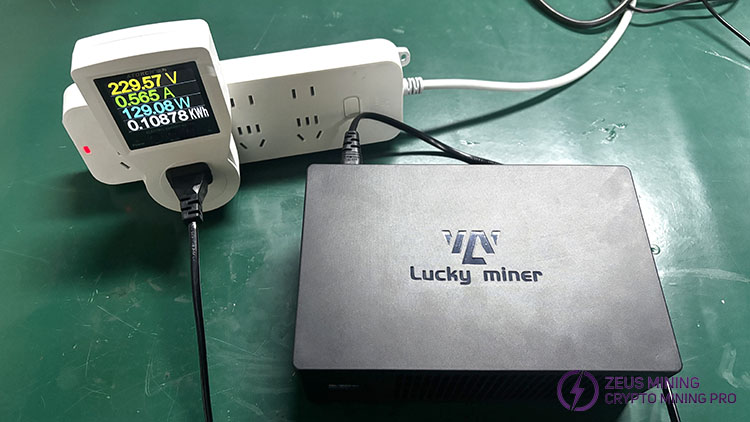

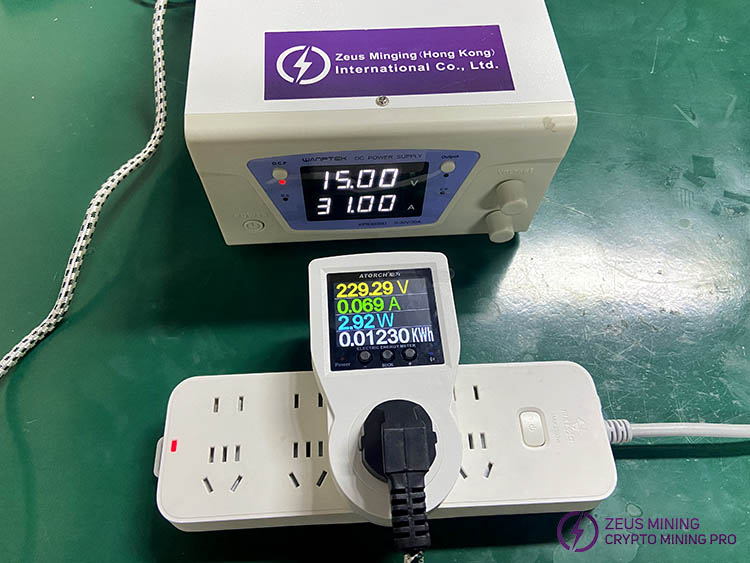

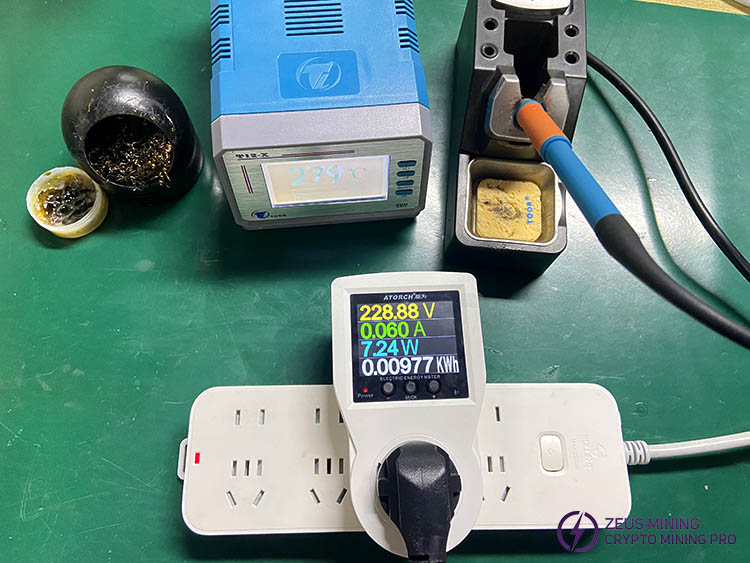

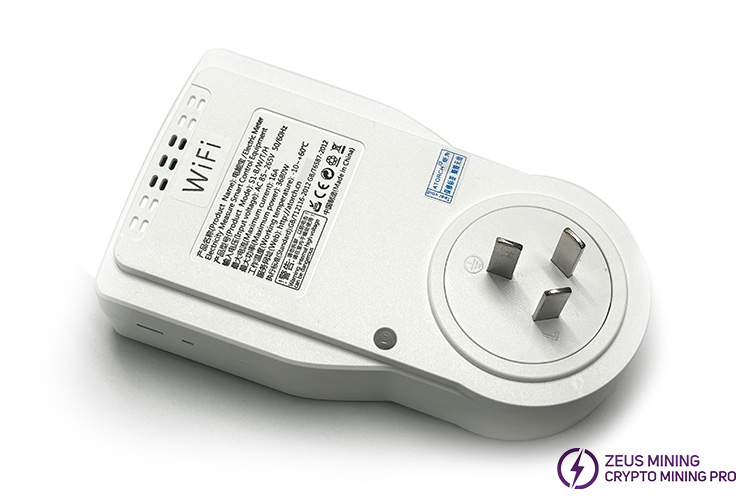

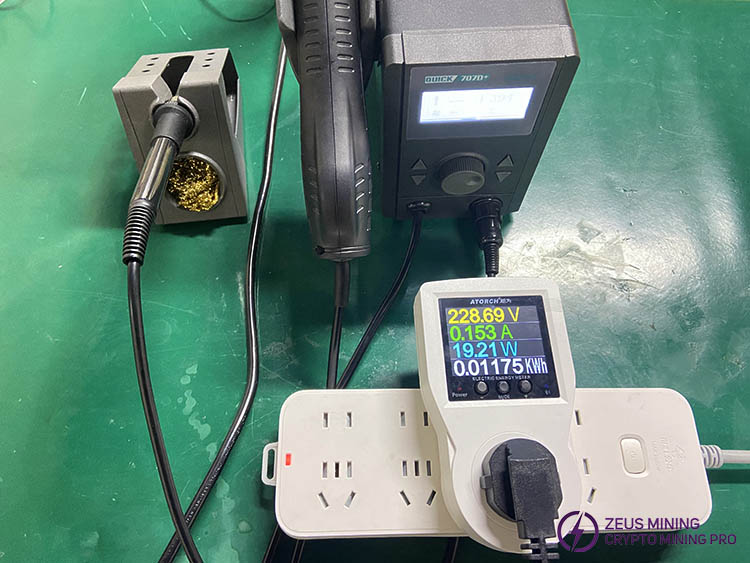

ATORCH S1W power measurement energy meter is used to measure the voltage, current, power and frequency of various ASIC miners, power supplies, and maintenance tools such as desoldering stations, soldering irons, preheat stations, and voltage regulator PSUs with power consumption below 3680W.
Attention: Use your mobile phone to connect to the tester's WIFI to remotely control the opening and closing of ASIC miners, power supplies, and maintenance tools.
Electrical parameters:
Function | WIFI version |

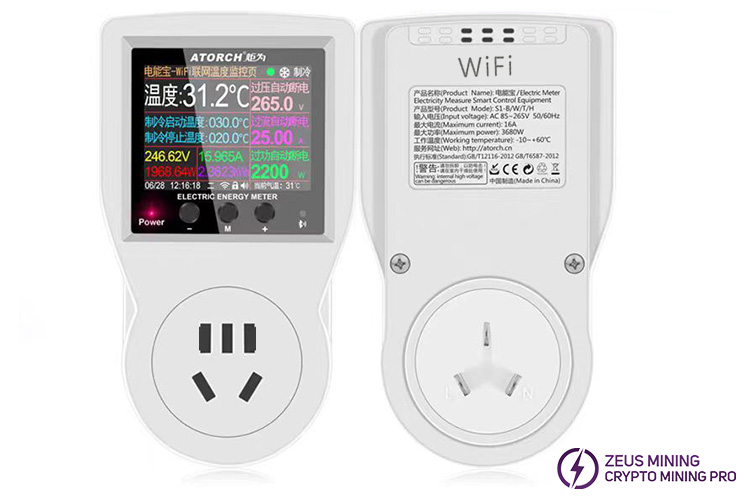

Product name | S1 smart WIFI metering socket |
Product model | S1W |
Measure voltage | AC85-265V / 50-60Hz |

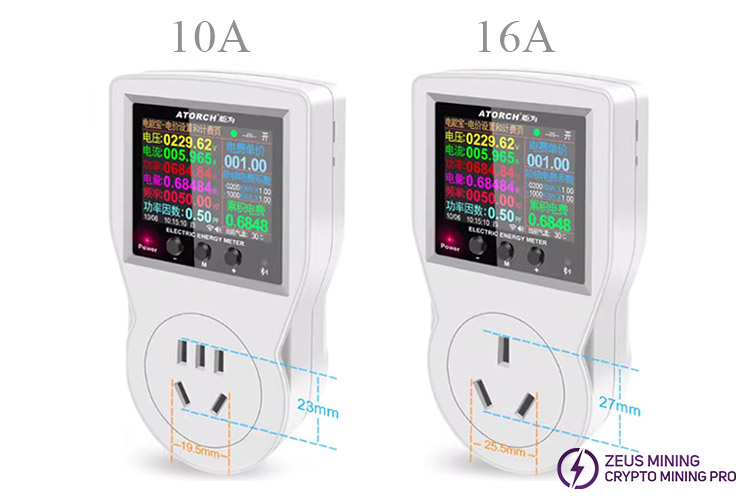

Measure current | 0-10A Max 16A |
Measure power | Max 3680W |
Electricity range | 0-99999Kwh |
Measurement accuracy | ±1% |
Power factor | 0-1.00PF |
Product size | 133x76x73mm |
Operating temperature | -10℃~+60℃ |
Mobile phone control | Tuya or smart life APP |
Firmware upgrade | WIFI remote networking firmware upgrade |
Power failure memory | Support |
Other functions | Get Internet time, calendar and weather data display |
Product functions:
1. Mobile phone APP network remote control and telemetry are unlimited in distance, overvoltage, overcurrent, and overpower display alarm and automatic power off
Mobile phone APP network remote control, unlimited distance, home appliances become smart in seconds. Safe electricity use, real-time detection of electricity data changes, and electricity consumption are clear.
2. Peak and valley ladder electricity fee mode, multiple electricity fee modes to meet different needs
The new intelligent design realizes the division of electricity consumption in multiple periods and calculates different electricity prices each time. 4 ladder electricity prices can be set, and each can freely set the interval electricity price.
3. Visual distribution network electricity fee management
The visual distribution network UI interface design allows users to easily access the Internet by entering the WiFi account and password according to the content and steps displayed on the interface, even if it is used for the first time. After pairing once, the system will remember it and automatically connect to the cloud when it is powered on again. It is simple and easy to use.

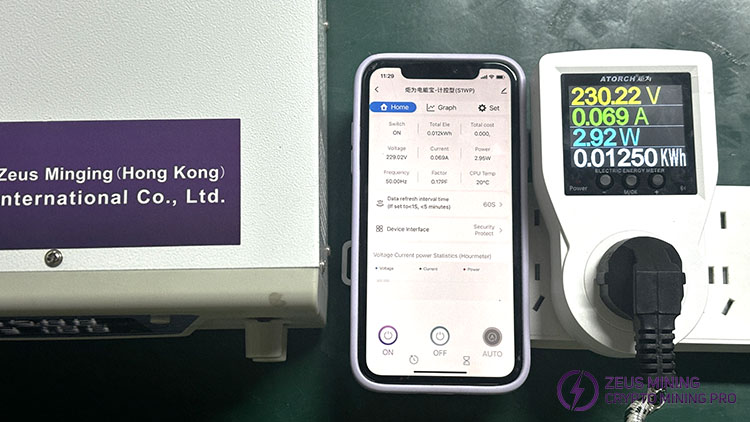

4. Mobile remote control metering, unlimited distance
Scan the code to download and install the smart life APP, and successfully connect to the Internet cloud according to the steps. You can realize remote manual control on the mobile phone Internet, add multiple groups of automatic timing control, countdown automatic control, real-time voltage, current and power data metering display, and daily and monthly reports on the mobile phone. Information such as electricity reports can also be added to the Tmall Genie Xiaodu speaker to realize language intelligence control. The host color screen can also display the calendar time week, current temperature and humidity, air quality, PM2.5 concentration, and other data needed for life. The power treasure is ideal for home electrical control and measurement.
5. Statistics of electricity consumption and record daily power consumption
Manage efficient electricity consumption in real-time, count daily power consumption, know the daily electricity bill expenditure of electrical appliances, and know the electricity consumption.

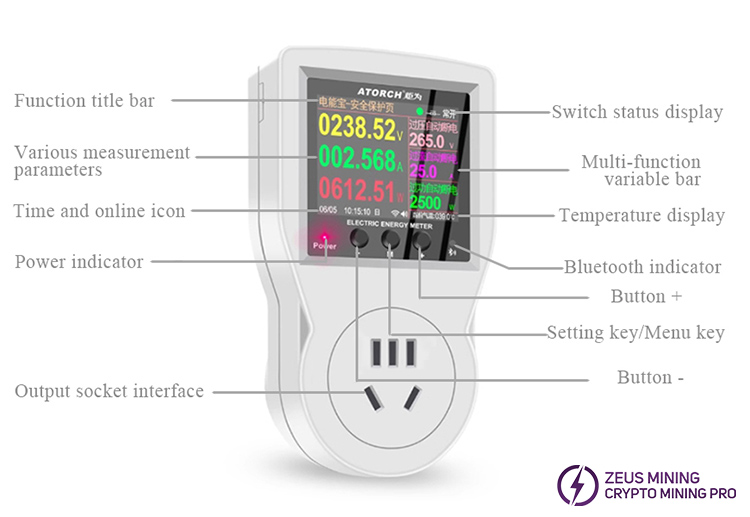

Interface introduction:
In addition, it can also be used to measure the power consumption data of various household appliances and digital devices, such as refrigerators, air conditioners, fans, rice cookers, fish tanks, etc.
