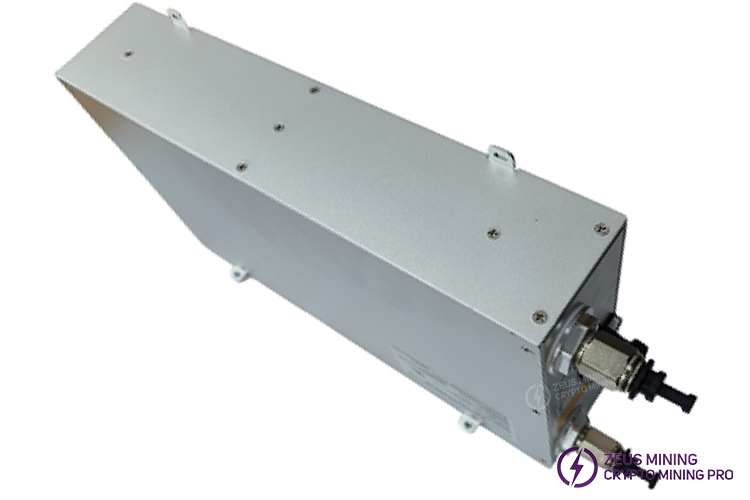

APW11H1721-2a 17V-21.6V V1.0 Power Supply PSU for Antminer U3S21EXPH / 3US21EXPHD / U2L9H
The Bitmain Antminer APW11H1721-2a PSU is specifically designed for the U3S21EXPH, 3US21EXPHD, and U2L9H Hydro miners, providing a stable 17V-21V output voltage. The APW11H1721-2a power supply aims to improve efficiency and enhance miner performance while ensuring reliable power during intensive mining operations. Its metal casing offers excellent strength and heat dissipation, making it suitable for complex environments such as mining farms.
Parameter:
Out1 | DC Voltage | 17V-21.6V |
Rated Current(380V input) | 300A | |
Rated Power(380Vinput) | 6500W | |
Ripple & Noise | <1% | |
Line Regulation | <1% | |
Load Regulation | <1% | |
Setup Time | <5S | |
Short Circuit Protection | >10mS | |
Out2 | DC Voltage | 12.3V |
Rated Current(220 V input) | 1A | |
Ripple & Noise | <1% | |
Voltage Accuracy | 12.2V---12.4V | |
Line Regulation | <1% | |
Load Regulation | <1% | |
Setup Time | <5S | |
Short Circuit Protection | >10mS | |
Input | Voltage Range | 380-415V AC |
Frequency Range | 50~60 Hz | |
Power Factor | >0.99(full load) | |
Leakage Current | <1.5mA（380V 50Hz） | |
Protection | Low-voltage Input | < 304V AC |
Output Short Circuit | Yes | |
Overheat Protection | Yes | |
Over-current Output | 300A-350A | |
Environment | Operating Temperature | -20-45℃ |
Operating Humidity | 20%-90%RH（non--condensing） | |
Altitude | < 2000m | |
Structure | Dimensions | 320mm*179mm*63mm |
Net Weight | 5kg | |
Cooling System | Water cooling | |
Inlet temperature | 20-35 ℃ | |
Water flow rate | 8L/min | |
Water pressure | <3.5 BAR |
PSU model correspondence table | |
APW3 series | Z11 series, S9 series, T9, L3 series |
APW5 | S9 hydro, S9 series, L3 series, Z11 series |
APW7 | S9 hydro, S9 series, L3 series, Z11 series, Z15 series |
APW8 | S15, T15, S11, D5, DR5 |
APW9 | S17 Pro, T17, S17 |
APW9+ | S17e, S17+, T17e, T17+ |
APW111721c | S23 Hydro, S21e XP Hydro, S21XP+ Hydro, S21e Hydro, S21 Hydro, S21+ Hydro, S21XP Hydro, S19 Hydro, T19 Hydro, T19Pro Hydro, S19Pro Hydro, S19Pro+ Hydro, S19XP Hydro, S19e XP Hydro, S19XP+ Hydro |
APW11G0 | S21+ Hydro |
APW12 | S19, S19j, S19Pro, S19jpro, S19i, T19 |
APW121215a | S19, S19j, S19Pro, S19jpro, S19apro, S19a, S19i, T19, D7, E9, E11, E9pro, S19+ |
APW121215b | S19, S19j, S19Pro, S19jpro, S19apro, S19a, S19i, T19, D7, E9, E11, E9pro, S19+, Z15pro |
APW121215c | S19, S19j, S19j+, S19Pro, S19jpro, S19a, T19, D7, E9, E11 |
APW121215d | S19, S19Pro, S19jpro, S19jpro+, S19XP |
APW121215e | S19Pro, S19jpro, S19XP, S19L |
APW121215f | S19Pro, S19j, S19jpro, S19jpro+, S19XP, S19Kpro, S19 Pro++, D9, X5 |
APW121215g | S19 Pro-A |
APW121417a | S19, S19XP, L7, S19JL |
APW121417b | S19, K7, L7, DR7, KA3, KS3, HS3 |
APW12A | S19j pro-A |
APW171215a | S21, S19jxp, KS5, KS5Pro, AL1, AL1Pro, L9 |
APW171215c | S21XP, S21Pro, S21+, KS7, L11 |
APW11A1216-1a | T21 |
APW11I1216-1a | S21 Imm |
APW11H1721-2a | U3S21EXPH, 3US21EXPHD, U2L9H |
APW11M1216-1a | S21XP Imm |
