| Unit Price: | $ 82 |

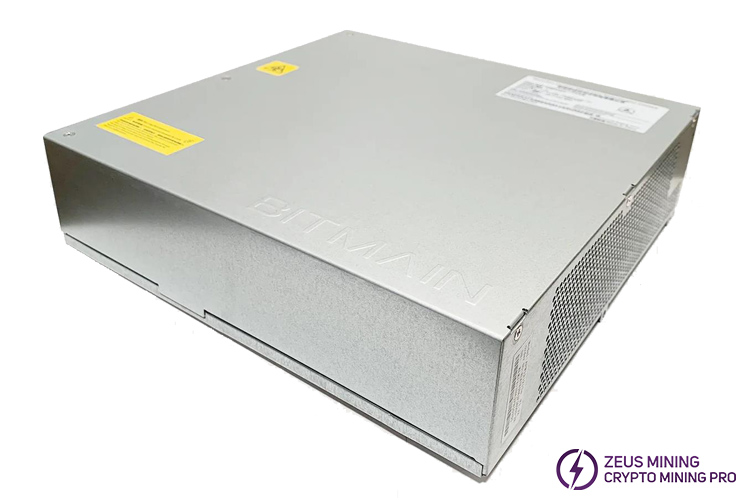

The brand new and original Bitmain APW121417b 14V-17V power supply can be used with Antminer S19, KA3, L7, K7, DR7, KS3, and HS3 air-cooled miners. Its maximum output is 1 14-17V 182A, and its mixed output is 2 12V 18A. If you are a mining farm manager, please prepare more APW12 1417 power supplies for the miner, and replace the damaged ones as soon as possible to minimize the loss.
Brand new original, six months warranty, welcome to buy!
Parameter:
Model: APW121417
Version: b
Input: (200-240V 50/60Hz 10A) X 2
Output 1: 14-17V 182A MAX
Output 2: 12V 18A MAX
Notice:
If the APW12 1417 power supply used by the miner is damaged, please do not use the APW12 power supply to replace it.
Product Glance:
Out1
DC Voltage | 14V - 17V |
Rated Current(220V input) | 182A |
Ripple & Noise | <1% |
Line Regulation | <1% |
Load Regulation | <1% |
Setup Time | <2S |
Short Circuit Protection | >10mS |
Detailed Characteristics:
Out2
DC Voltage | 12.3V |
Rated Current(220 V input) | 18A |
Ripple & Noise | <1% |
Voltage Accuracy | 12.2V - 12.4V |
Line Regulation | <1% |
Load Regulation | <1% |
Setup Time | <2S |
Short Circuit Protection | >10mS |
Input
Voltage Range | 200-240V AC |
Frequency Range | 47 - 63Hz |
Power Factor | >0.99 (full load) |
Leakage Current | <1.5mA (220V 50Hz) |
Protection
Low-voltage Input | 80 - 89V AC |
Output Short Circuit | Yes |
Overheat Protection | Yes |
Over-current Output | 260A - 340A (protection value varies under different voltage) |
Environment
Operating Temperature | -20 - 45℃ |
Operating Humidity | 20% - 90%RH (non-condensing) |
Altitude | < 2000m |
Structure
Dimensions | 254.6mm * 251.6mm * 63mm |
Net Weight | 3.6kg |
Cooling System | Forced‐air cooling |
Noise | 45dBA |
PSU model correspondence table | |
APW3 series | Z11 series, S9 series, T9, L3 series |
APW5 | S9 hydro, S9 series, L3 series, Z11 series |
APW7 | S9 hydro, S9 series, L3 series, Z11 series, Z15 series |
APW8 | S15, T15, S11, D5, DR5 |
APW9 | S17 Pro, T17, S17 |
APW9+ | S17e, S17+, T17e, T17+ |
APW11 | S19Pro+ Hydro, S19Pro Hydro, S19 Hydro, S19XP Hydro, T19 Hydro |
APW111721c | S21 Hydro, S19Pro Hydro |
APW12 | S19, S19j, S19 Pro, S19j Pro, S19i, T19 |
APW121215a | S19, S19j, S19 Pro, S19j Pro, S19a Pro, S19a, S19i, T19, D7, E9, E11, E9 Pro |
APW121215b | S19, S19j, S19 Pro, S19j Pro, S19a Pro, S19a, S19i, T19, D7, E9, E11, E9 Pro |
APW121215c | S19, S19j, S19j+, S19 Pro, S19j Pro, S19a, T19, D7, E9, E11 |
APW121215d | S19, S19 Pro, S19j Pro, S19j Pro+, S19XP |
APW121215e | S19 Pro, S19j Pro, S19XP, S19L |
APW121215f | S19, S19 Pro, S19j Pro, S19j Pro+, S19XP, S19K Pro |
APW121215g | S19 Pro-A |
APW121417a | S19, S19XP, L7, S19JL |
APW121417b | S19, K7, L7, DR7, KA3, KS3, HS3 |
APW12A | S19j Pro-A |
APW171215a | S21, S19j XP, KS5, KS5Pro, AL1, AL1Pro, L9 |
APW171215c | S21XP, S21Pro |
APW11A1216-1a | T21 |
ZeusMining | |
Related product:
Antminer APW12 1417 PSU for L7 D7 S19JL S19L
APW121417b is a replacement power supply for the failed power supply of S19, L7, and HS3 miners. It is cost-effective and has stable performance. Replacing the power supply can help the miner restore stable and normal operation. It can be run after installation without additional operations. The maximum output of this power supply is 182A, which is sufficient power to meet the machine's long-term operation.
Features:
The power supply nameplate information is clear and accurate, and the power supply version parameters are accurate and intuitive;
The operation is stable and can operate on a large scale for a long time without stopping;
It has strong compatibility and supports multiple miner models, but the mining machine model and power supply version need to be determined.
