DC55E-24160S water pump for Lianli 12KW radiator

Product description

High energy efficiency DC55E-24160S low noise brushless DC water pump 24VDC, used to replace the failed water pump of Lian Li 12KW water cooling kit for Hydro ASICs. 80W rated power, head 16 meters, maximum horizontal flow rate 2400L/H. This water pump has the characteristics of a large flow rate and high efficiency. It adopts a three-phase brushless DC design and magnetic isolation drive. It is powered by a 24VDC DC, which is safe and reliable. The pump body is made of safe and environmentally friendly materials that can withstand high temperatures of 100 degrees. The material is stable; the noise is ultra-low and supports Durable operation; it is suitable for ASIC mining machine water cooling cycle and other purposes.

Product features:

1. Small size, high efficiency, long life, and low noise;

2. Ceramic axis and carbon fiber graphite bushing are super wear-resistant;

3. Electronic commutation, no carbon brush friction, and no wear, supporting long-term continuous operation;

4. Three-phase brushless DC design, soft start, made of high-temperature resistant materials, suitable for immersion in 100°C boiling water for continuous operation;

5. Water and electricity isolation, epoxy resin potting, completely waterproof, low voltage DC, no worries about leakage safety.

Product parameters:

Product series model: DC55E-24160S new model

Supported working voltage range: 12VDC-26VDC (maximum should not exceed 26VDC)

Water pump body size: 102mm x 78mm x 80mm

Drive mode: three-phase brushless DC design, magnetic isolation drive (brushless)

Operating temperature range: -20℃ - 100℃

Applicable liquid media: fresh water, seawater, oil, alcohol, weak acid, and alkaline liquids (not corrosive to the pump); liquids containing impurities need to be filtered to avoid wear and blockage of the pump body cavity

Load current and power: approximately 3.3A@24VDC, 80W@24VDC.

Pump body material: PES/SPS/PPS/PA66+30%GF.

Water inlet and outlet diameter: G1/2, quarter male thread, outer diameter is about 20 mm

Maximum horizontal flow: approximately 2300L/H @24VDC

Maximum static head: about 16 meters @24VDC

Noise level: <35dB under normal working conditions

Waterproof level: IP68, completely waterproof, supports full submersible work

Protection functions: water shortage protection, stuck protection, blocked rotor protection, idling protection, etc.

Water pump speed adjustment function: This model is a fixed power model and does not support water pump speed adjustment.

Attention: Please select the DC55E-24160S water pump accurately according to the version of the 12KW radiator, because they are not universal.

Product display

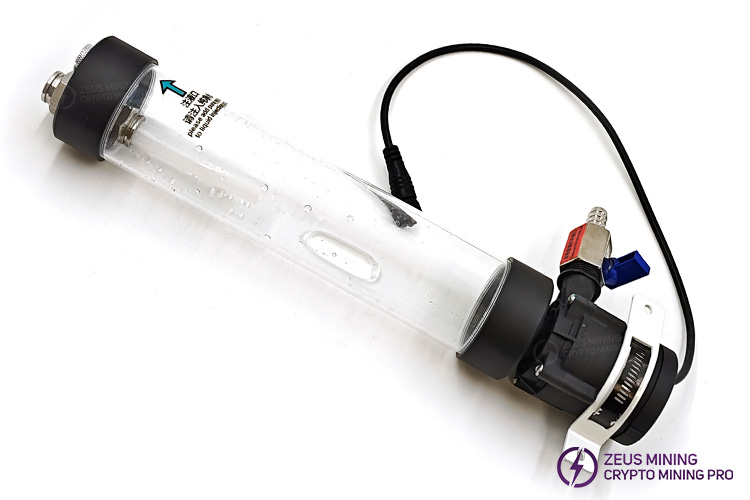

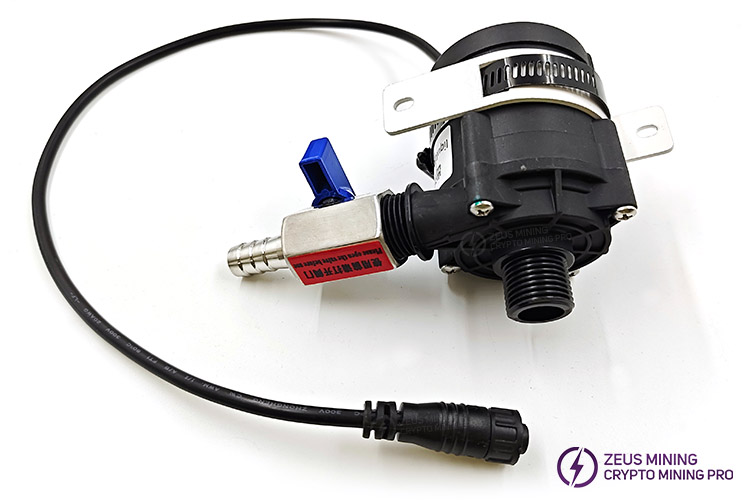

For the latest 12kW radiator pump:

For standard 12kw radiator pump:

For Intelligent temperature control 12kw radiator pump:

Effect display

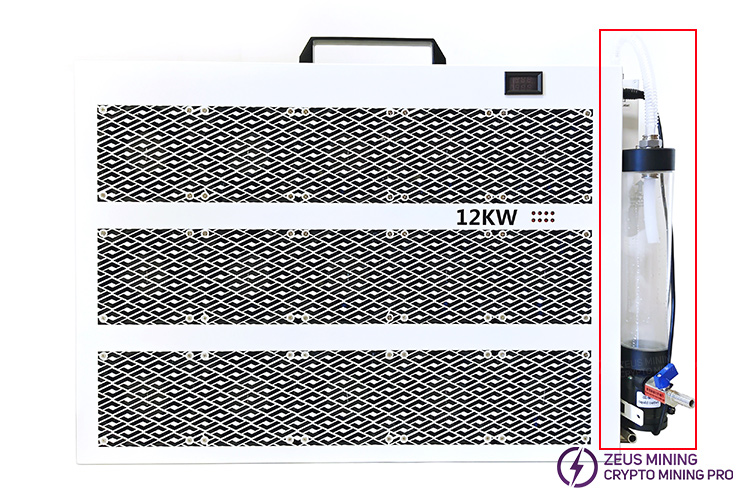

For the latest 12kW radiator:

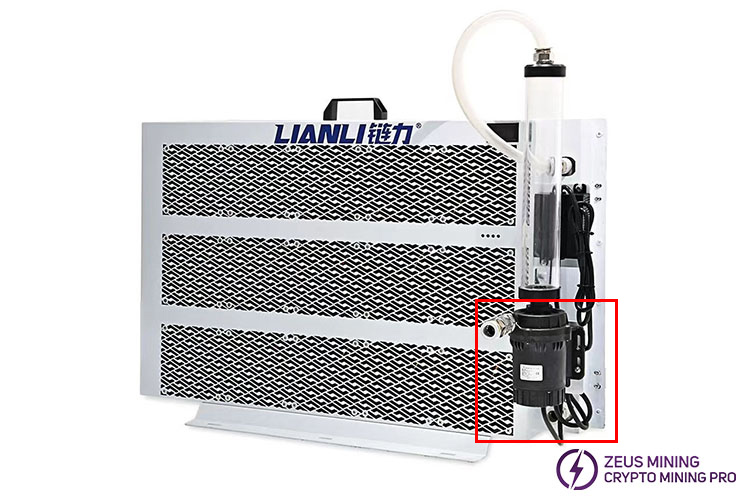

For standard 12kw radiator:

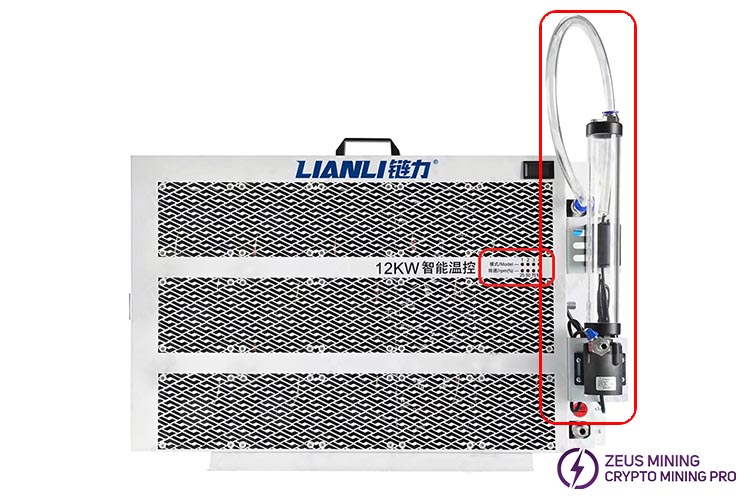

For intelligent temperature control 12kw radiator:

Product list:

With water tank (including water pump, power adapter, acrylic water tank, and ball valve)

Without water tank (including the water pump and power adapter)
