| Unit Price: | $ 0.07 |

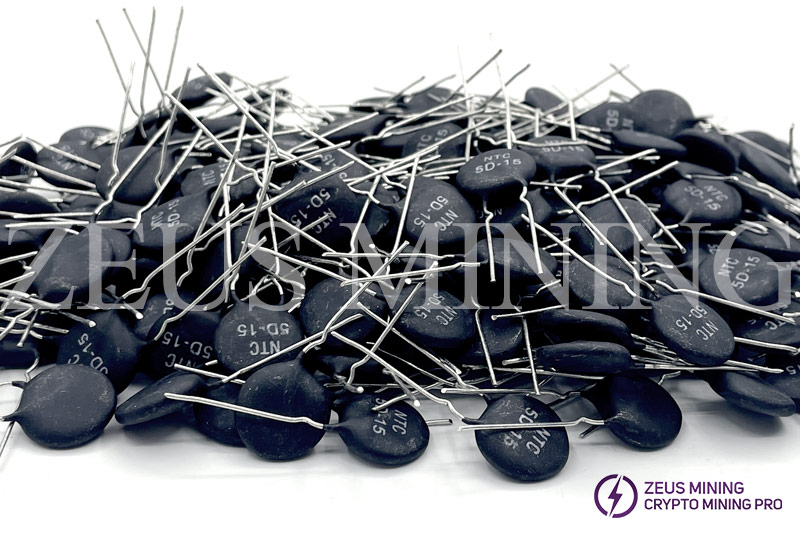

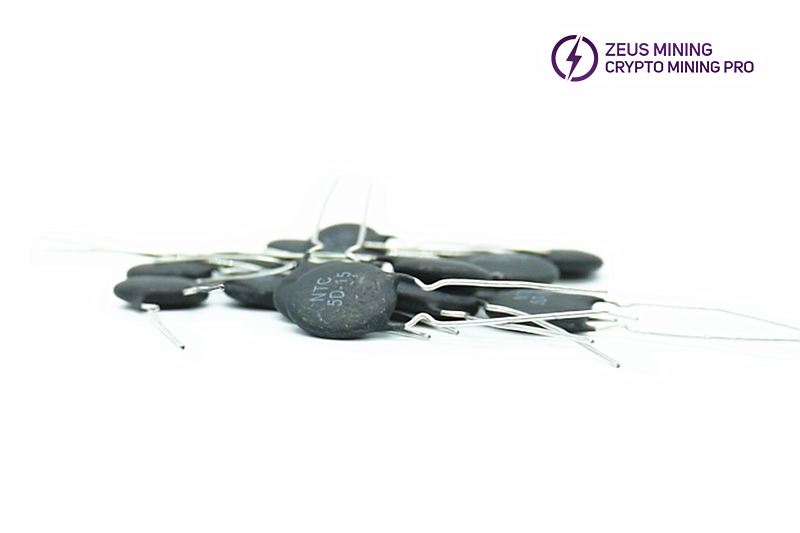

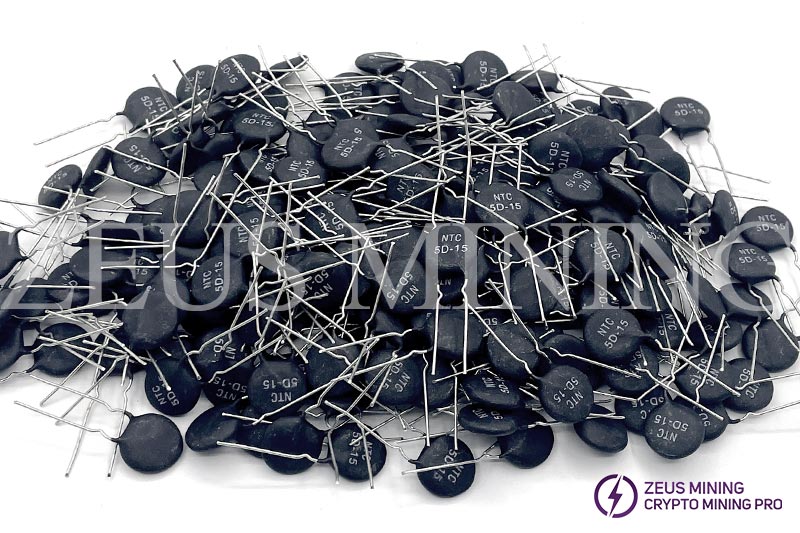

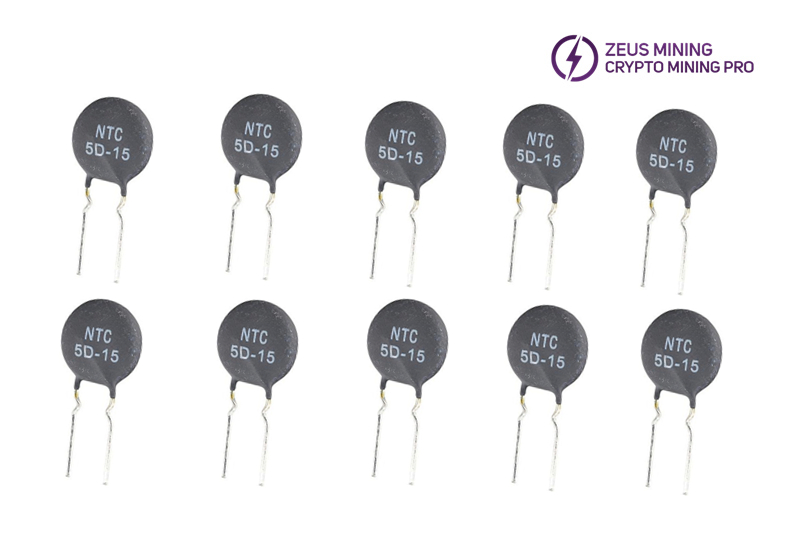

NTC 5D-15 Thermistor for ASIC miner PSU
NTC 5D-15 thermistor is a spare part for repairing PSU power supply. This is a negative temperature coefficient resistor whose resistance decreases with the increase of ambient temperature. This thermistor is made by forming two or four metal oxides of iron, nickel, cobalt, manganese and copper and sintering at high temperature (1200℃~1500℃).
The PT series NTC thermistor must be connected in series with the power circuit to avoid surge current when the electronic circuit is opened. The device can effectively suppress the surge current, and the subsequent continuous action of the current can greatly reduce its resistance and power consumption, so as not to affect the current normal operation. Therefore, Power NTC thermistor is the most convenient and effective tool to suppress surge current and protect electronic equipment from damage.
NTC 5D-15 electrical characteristics:
Model: 5D-15
Zero power resistance at 25°C: 5Ω
Maximum steady-state current at 25°C: 6A
Thermal dissipation constant: 20mW/°C
Thermal time constant: 76 seconds
Operating temperature range: -55°C to +200°C
Feature:
1. Powerful power and strong surge current protection capability.
2. Features fast response and fast response.
3. The material constant is large (B value), and the residual resistance is small.
4. High reliability.
5. The overall series, a wide range of operations.
6. Working temperature -55℃~+200℃
Application:
1. Switching power supply
2. UPS power supply
3. Electric heater
4. Electronic energy-saving lamps
5. Filament protection of color tube
6. Lamps such as incandescent lamps.
7. Electronic ballast
FAQ:
Q: How to judge whether NTC 5D-15 is damaged?
A: The resistance value measured by a multimeter at room temperature is ≈5Ω, and the resistance value drops by ＞30% after heating.
Q: Is welding required? What mining models are supported?
A: Plug and play, compatible with Antminer S9/S17/S19, Whatsminer M20/M30 series.
