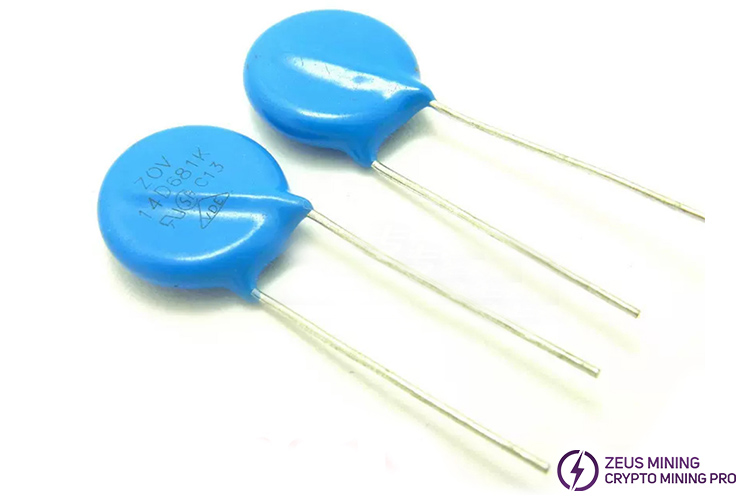

14D681K, a 14mm radial lead varistor device, protects the Avalon PSU3300-03 or AWP11 power supply against overvoltage transients such as lightning strikes, power contact, and power induction. The varistor has a high current handling capability, high energy absorption capability, and fast response time to protect against transient faults up to the rated limit.
When the 14D681K component fails, the miner may become completely unresponsive when powered on, or the component may turn black and crack. In severe cases, the power supply may explode, or the hash board may burn out. If a fault occurs, it is recommended to disconnect the power for testing and replace the faulty component to restore overall system performance.
Model | 14D681K |
Maximum allowable voltage | AC 420V; DC 560V |
Variator voltage | 680V ±10% |
Maximum clamping voltage (8/20 μS) | 1120V |
Maximum clamping current (8/20 μS) | 50A |
Maximum peak current (8/20 μS) | 4500A |
Rated power | 0.6W |
Maximum energy | 130J |
Typical capacitance | 432pF (1kHz) |
1. Fast response to transient overvoltage.
2. Strong ability to absorb transient energy.
3. Low clamping ratio, no follow-up current.
Related product:
Avalon PSU3300-03 power supply
