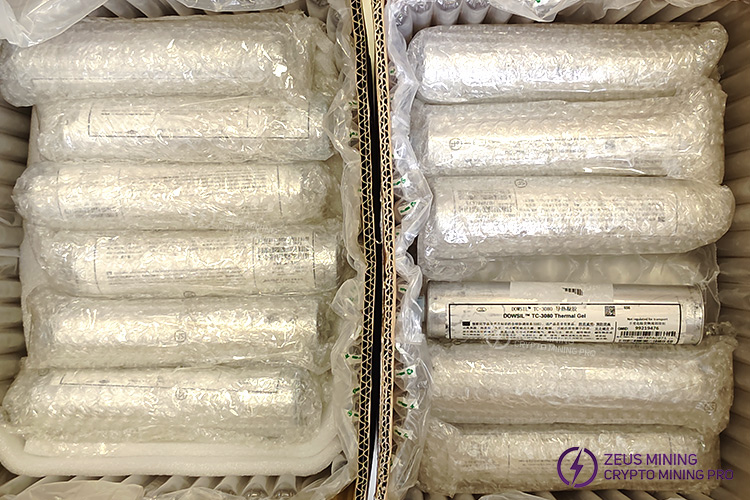

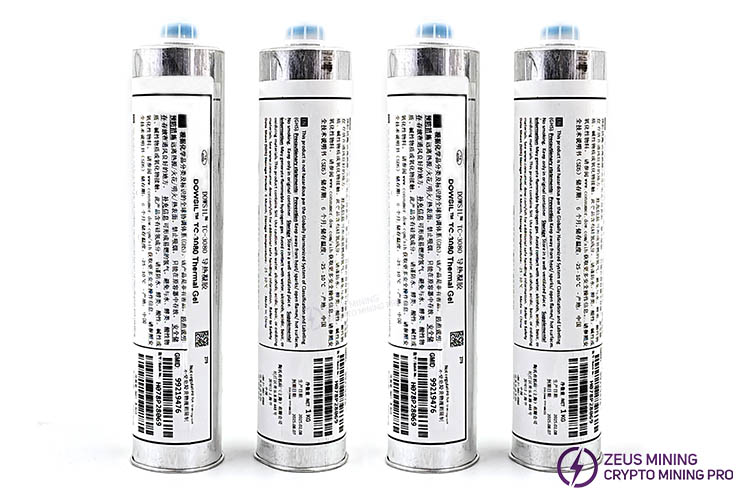

DOWSIL TC-3080 thermal gel 8W/m·K 1kg

Product description:

DOWSIL™ TC-3080 8W/m·K one-component curable thermal conductive silicone gel is a room-temperature curing product, specifically designed for heat dissipation of miner hash board ASIC chips such as Antminer, Whatsminer, Avalon, and Iceriver. It features accelerated thermal curing properties and has an incredibly soft texture.  This high-performance gel boasts enhanced fluidity and wettability, enabling ultra-fast and precise printing directly onto products.   It has a longer working time at room temperature and requires minimal pressure during assembly, thereby eliminating the risk of damage to the application.

Attention: it is recommended to use it with the corresponding model of hash board thermal grease mold.

Parameter:

Model: DOWSIL TC-3080

Material type: Gel

Color: Blue

Thermal conductivity: 8W/m·K

Net weight: 1kg

Hardness: 60 Shore 000

Heat cure @ 80℃: 30min

Specific gravity: 3.4g/ml

Viscosity @10s-1 at 25℃: 200Pa.s

Dielectric strength @1mm: 11Kv/mm

Storage conditions: -25℃ to 10℃

Storage period: 6 month

Product features:

· One-component heat-conducting super-soft gel;

· It features both high thermal conductivity and low thermal resistance, which can help ASIC chips dissipate heat quickly;

· It can be used as a gel for dispensing or printing;

· After curing, it forms an ultra-soft, thermal-conductive gel, which is used for rapid heat dissipation of ASIC chips while also providing functions such as stress release and impact buffering;

· It can be cured at room temperature or accelerated at high temperature, shortening the gel curing time;

· Resistant to harsh environments and highly reliable.

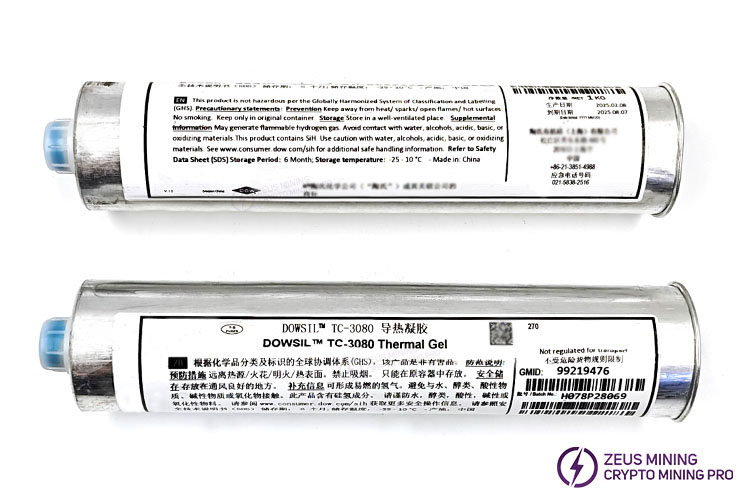

Precautionary statements:

Protection: Keep away from heat/sparks/open flames/hot surfaces. No smoking, and keep only in original container;

Storage: Store in a well-ventilated place.
