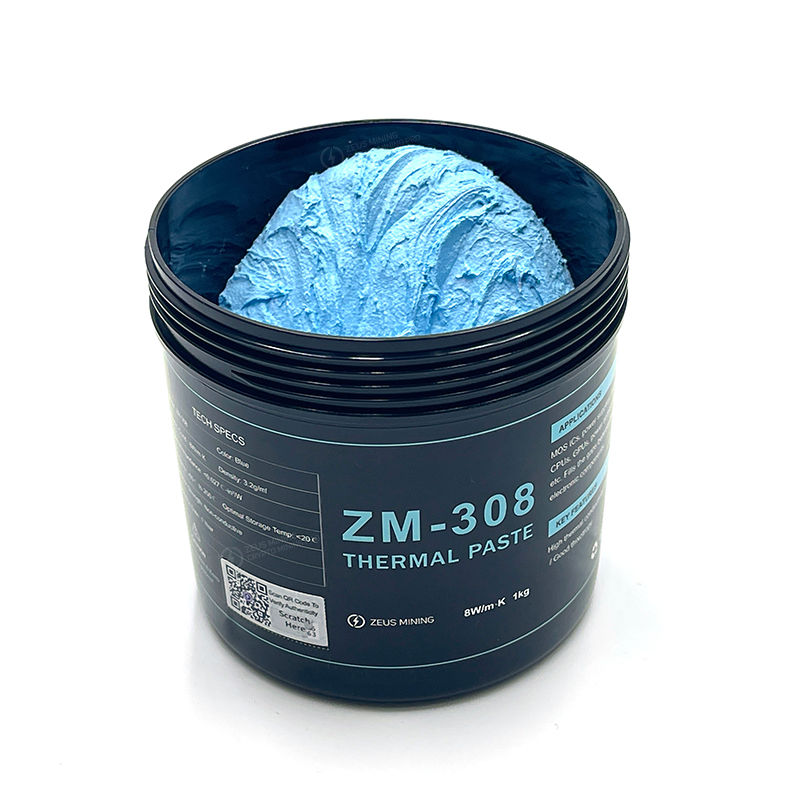

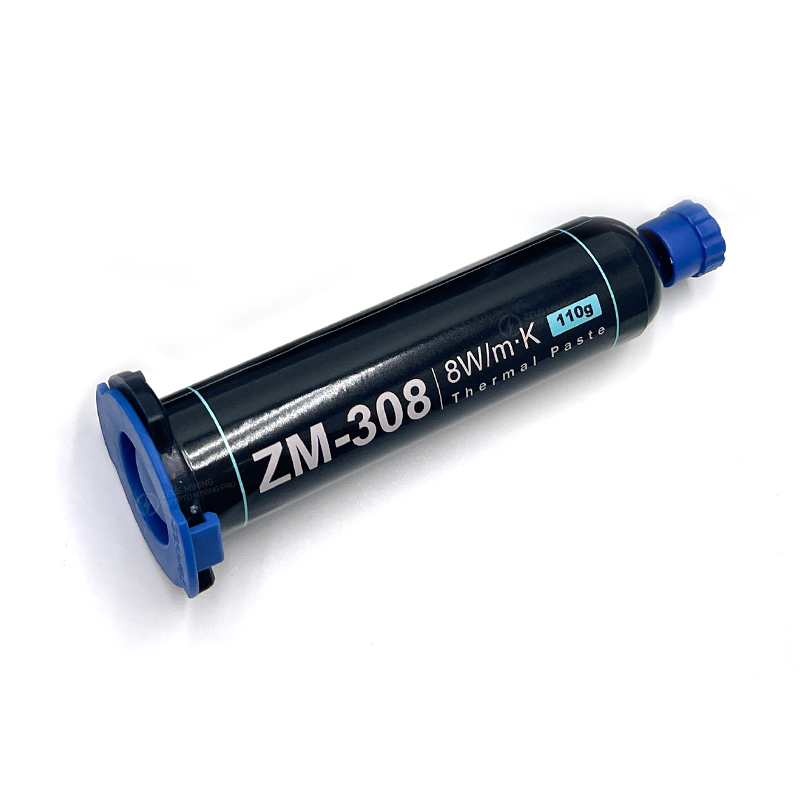

ZM-308 thermally conductive grease 8W/m·k 110g 1kg

Product description

Excellent Thermal Performance ZM-308 8 W/m·K Thermal Paste, Fully Compatible with Mainstream ASIC Miners

ZM-308, with a thermal conductivity of 8W/m·K, is a high-performance thermal grease designed for ASIC miner maintenance. Addressing the extreme conditions of 24/7 full-load operation for miners, it efficiently dissipates heat from ASIC chips, stabilizes the miner's operating temperature, and extends its lifespan.

Why choose ZM-308 thermal paste?

1. Low oil separation and low volatility, reducing oil seepage by 30-40%

Utilizing a compound of methylphenyl silicone oil, alumina, and nano-boron nitride, with a three-stage particle size gradient and silane coupling agent formulation, oil separation rate is reduced by 30-40%, effectively protecting pads and components.

2. No carbonization, avoiding air gaps in thermal insulation

Passed 1000 hours of continuous aging testing, showing no drying or cracking, ensuring no air gaps between the ASIC chip and the heatsink.

3. Anti-pumping displacement, resisting continuous vibration from miners

An anti-pumping formula and optimized thixotropic viscosity prevent the paste from easily flowing away under high-temperature vibration, maintaining a complete silicone grease filling layer and eliminating localized hot spots.

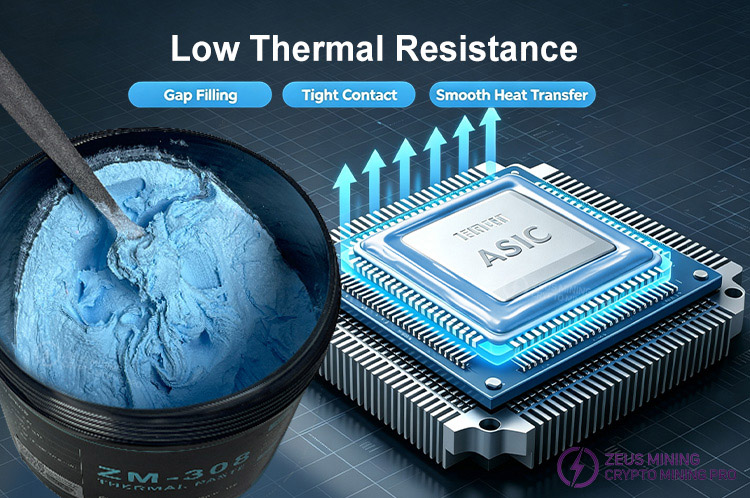

4. Low thermal resistance interface, efficient heat dissipation from the chip

Precisely proportioned composite thermally conductive filler achieves extremely low interface thermal resistance (<0.027 ℃-in²/W), creating an efficient heat conduction path for rapid heat dissipation from the chip.

5. Electrically insulating and corrosion free

Uses a non-conductive (insulating) formula, free of harmful substances such as lead and mercury, posing no risk of corrosion upon contact with chips or aluminum heat sinks, and suitable for dense cabling environments on hash boards.

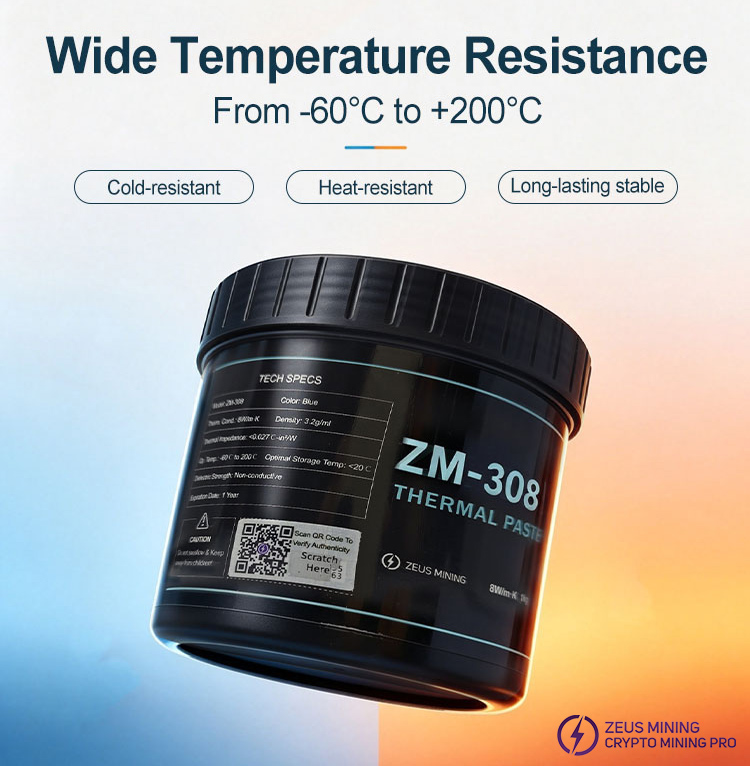

6. High and low temperature resistance, long-lasting and stable performance

* Withstands a wide temperature range of -60℃ to +200℃. The silicone grease maintains its basic shape and stable performance at high temperatures and does not solidify or become brittle at low temperatures.

* Extended service life, reducing the labor costs of repeated disassembly and recoating.

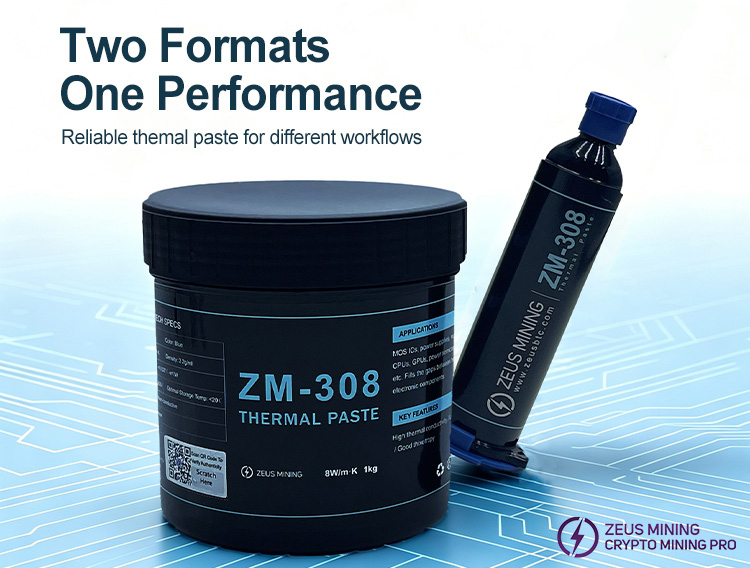

7. User-friendly operation, two sizes available

* Uniform and fine paste, suitable for batch application with a stencil or manual dotting, minimizing air bubble formation and ensuring high-quality interface filling.

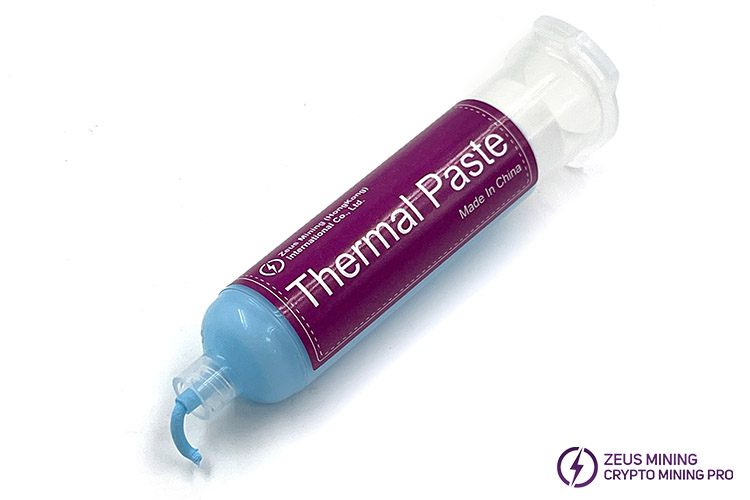

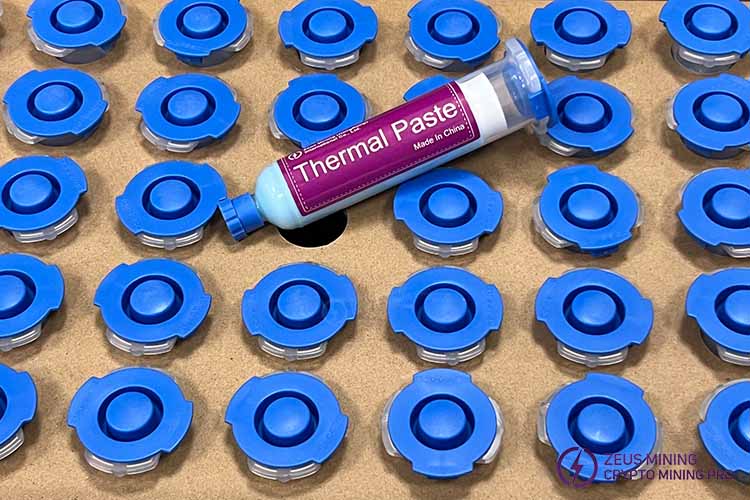

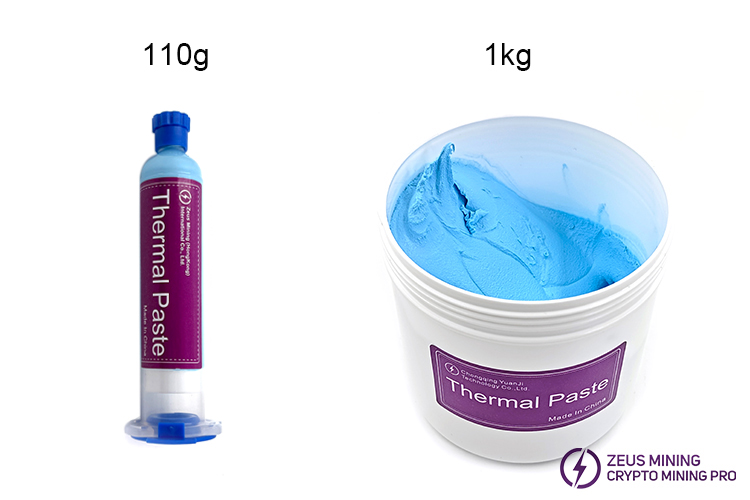

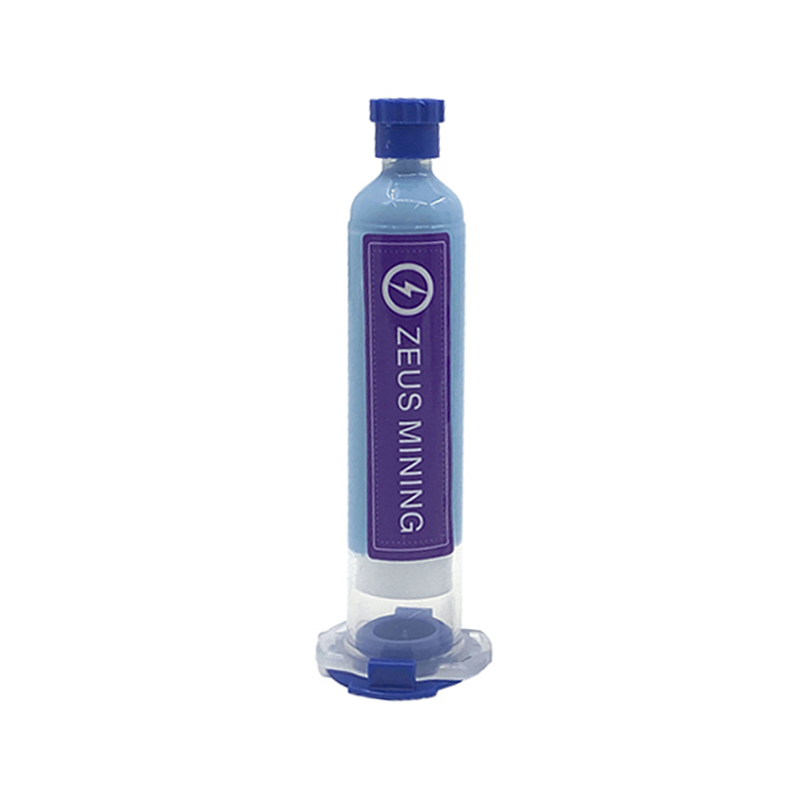

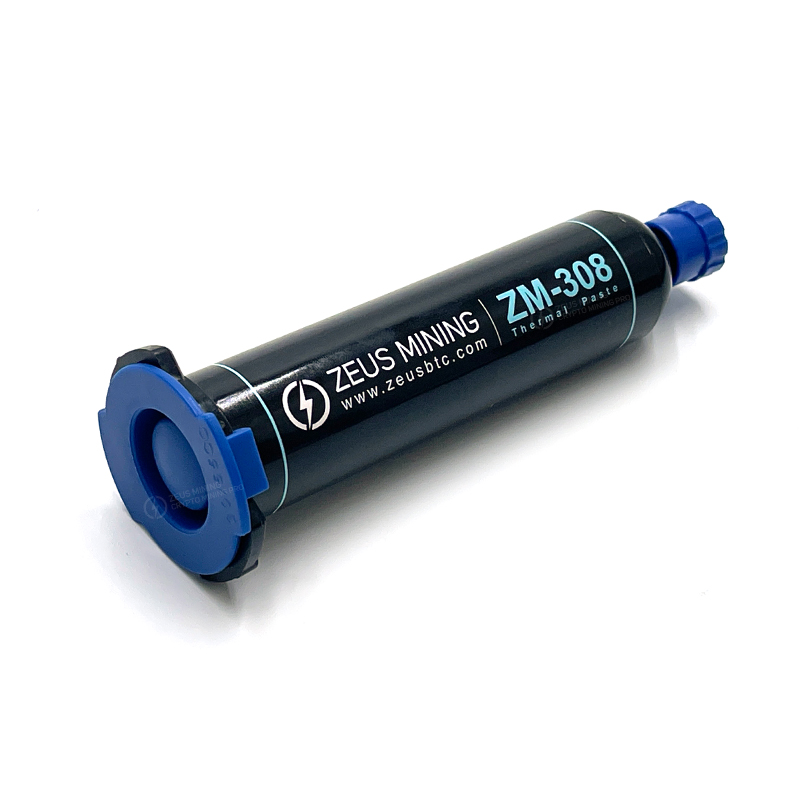

* Available in 110g small syringes (suitable for repair workshops) and 1kg industrial large jars (suitable for large-scale batch maintenance in mining farms).

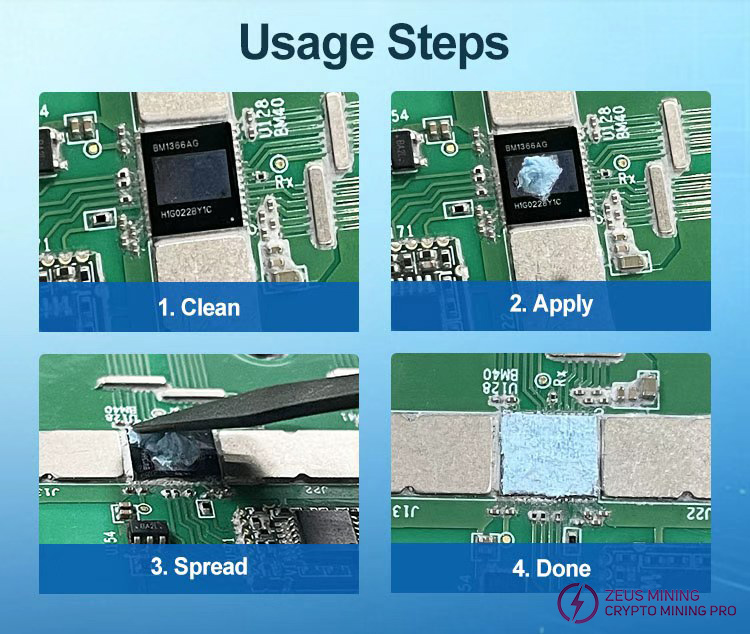

Instructions for Use:

1. Cleaning: Thoroughly remove old thermal paste, corrosion, dust, and oil from the chip surface and the bottom of the heatsink.

2. Application (ASIC chip area is typically 10~20mm²)

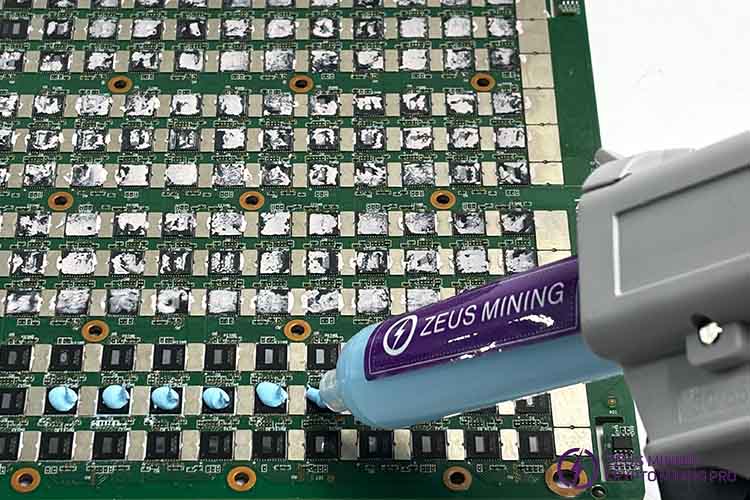

· Recommended "center dotting method": Squeeze a small amount of thermal paste, about the size of a pea, in the center of the chip. After installing the heatsink, the thermal paste will spread evenly on its own.

· Alternatively, use a scraper with a thermal grease mold to apply it evenly, aiming for a thickness similar to A4 paper thickness (~0.1mm).

For detailed operating steps, please refer to the video below:

Applicable Models:

Antminer: L9, S21+/S21 Pro/S21 XP, T21, KS5/KS5 Pro, S19 series, T19 series, S17 Series

Whatsminer: M63/M61/M60/M50/M32/M31/M30/M21/M20 (full series)

Avalon: A1566, A1446, A1366, A1346, A1166Pro, A1146Pro, A1066, etc.

Iceriver: KS5M, KS5L, KS3M, KS3L, KS3, etc.

Wide Applications:

ZM-308 thermal grease is not only used in ASIC miners, but also in electric vehicles, 5G communications, autonomous driving systems, mobile phones, AIoT, HPC clusters, servers, CPUs, MOS integrated circuits, LEDs, motherboards, power supplies, heat sinks, laptops, routers, memory modules, etc., ensuring tight contact between components, reducing thermal resistance, and quickly and effectively lowering the temperature of electronic components.

Parameters:

Precautions:

1. For ASIC miners operating under high load 24/7, it is recommended to replace the thermal grease every 6-12 months. For industrial scale mining farm operations, replacement every six months is recommended.

2. Refrigerated storage (below 20°C) is recommended.

3. After opening, store in a cool, dark place away from light and moisture.

4. Unopened products generally have a shelf life of 1 year.

5. Due to the pastes and liquids are sensitive goods and their transportation is restricted, this product will be shipped separately using sensitive goods channels, and the delivery time will be slightly longer 8 to 20 working days.

Product composition

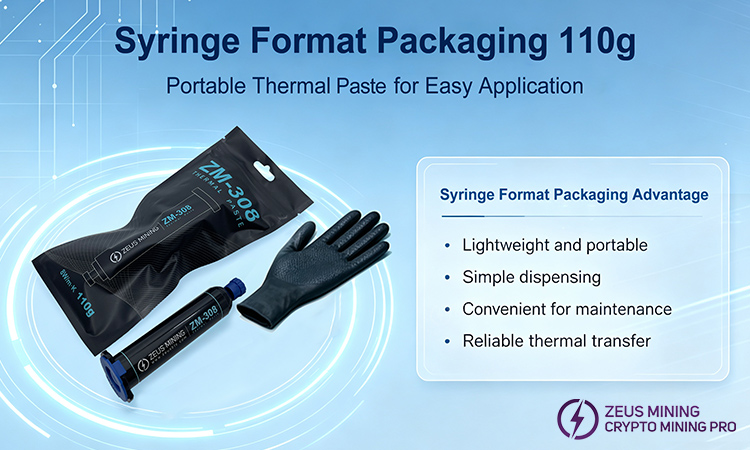

For syringe packaging:

Packaging bag * 1

110g silicone grease * 1

Disposable gloves * 1 (gift)

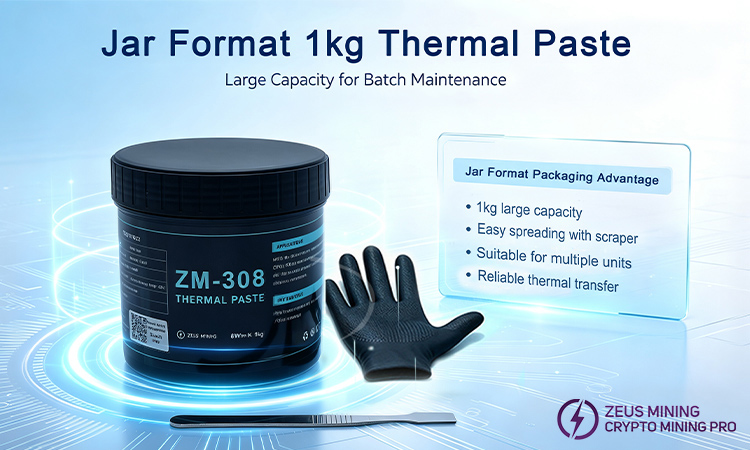

For jar packaging:

1Kg silicone grease * 1

Disposable gloves * 1 (gift)

Scraper * 1

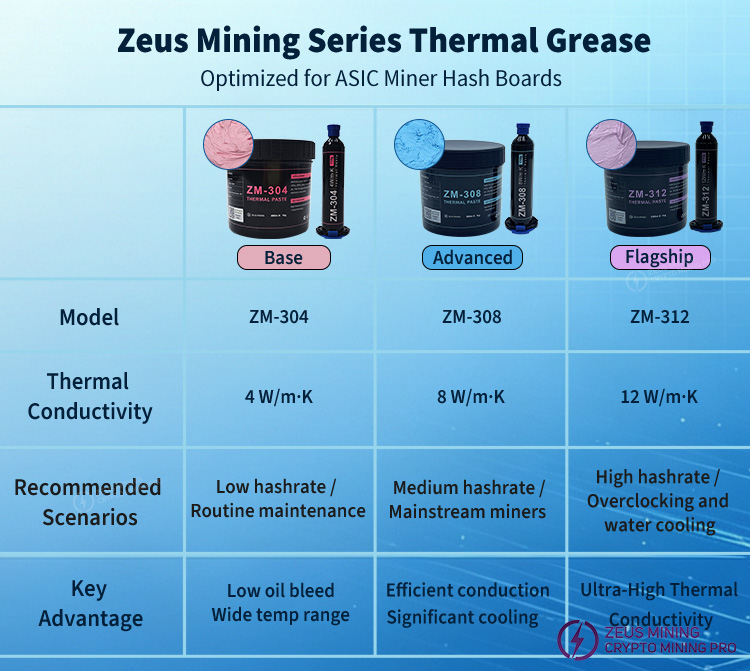

Related products:
