ZM-312 thermal paste 12W/m·k 110g 1kg

Product description

ZM-312 thermal grease paste 12W/m·K for Antminer Whatsminer Avalon IceRiver ASIC miner hash board

ZM-312, with a thermal conductivity of up to 12 W/m·k, is a flagship high-performance thermal grease designed for ASIC miners. Designed for the extreme conditions of 24/7 full-load operation of mining rigs, it achieves a balance between thermal efficiency, thermal stability, and interface adaptability thanks to its superior thermal conductivity and all-around stability, making it suitable for the new generation of high hash rate miners on the market.

Why does ZM-312 thermal grease offer better performance?

1. Ultra-high thermal conductivity of 12 W/m·k, rapidly dissipating chip heat

With a thermal conductivity of up to 12 W/m·k, far exceeding that of conventional mining greases. Precisely formulated with high thermal conductivity composite fillers, it achieves extremely low interface thermal resistance (<0.025 ℃-in²/W), creating an efficient heat conduction path to quickly transfer heat from the ASIC chip to the heatsink, significantly reducing the core temperature of the mining rig and minimizing the risk of overheating, throttling, and system shutdown.

2. Superior anti-carbonization capability, eliminating air gaps in thermal insulation

Having undergone rigorous high-temperature aging testing (over 1000 hours), it is not prone to drying, cracking, or powdering under prolonged high temperatures, ensuring a tight fit between the ASIC chip and the heatsink, eliminating air gaps, and minimizing thermal conductivity degradation.

3. Strong anti-pumping and resistance to continuous high-frequency vibration

Optimized with a thixotropic system for the high-frequency vibration environment of ASIC miners, the paste is not easily lost or displaced under high-temperature vibration, maintaining a complete silicone grease filling layer and avoiding the formation of localized hot spots.

4. Electrical insulation, safe and reliable

Using an insulating and non-conductive formula, even small amounts of spillage during maintenance will not cause a short circuit risk. Suitable for dense wiring environments on hash boards, ensuring the electrical safety of ASIC miners.

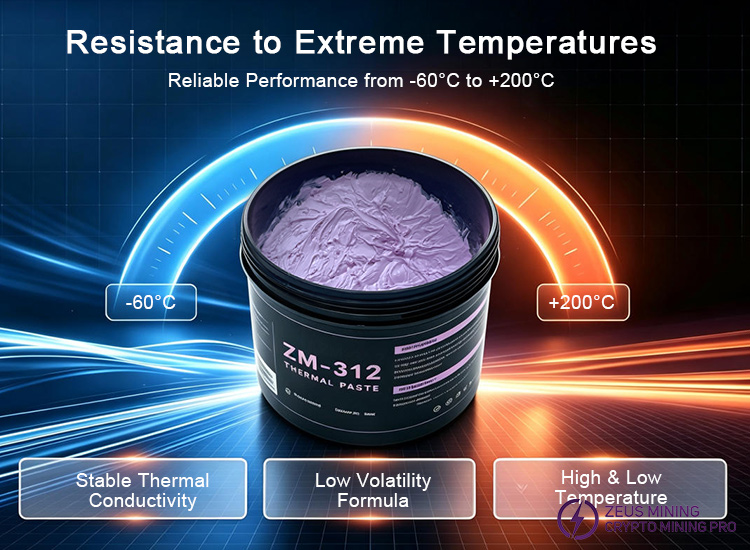

5. Stable performance over an ultra-wide temperature range

Withstands a wide temperature range of -60℃ to +200℃, does not flow at high temperatures, and does not solidify or become brittle at low temperatures. It can effectively extend ASIC miner service life and reduce the labor and downtime costs associated with frequent disassembly and recoating.

6. Low oil segregation design, effectively inhibiting oil leakage and contamination

Utilizing a new polymer thickener and modified silicone oil system, it significantly reduces the oil segregation rate, minimizing the risk of silicone oil leakage. Even under prolonged high-temperature conditions, it effectively protects the solder pads and surrounding components from oil contamination, maintaining electrical cleanliness.

7. User-friendly operation, two specifications available

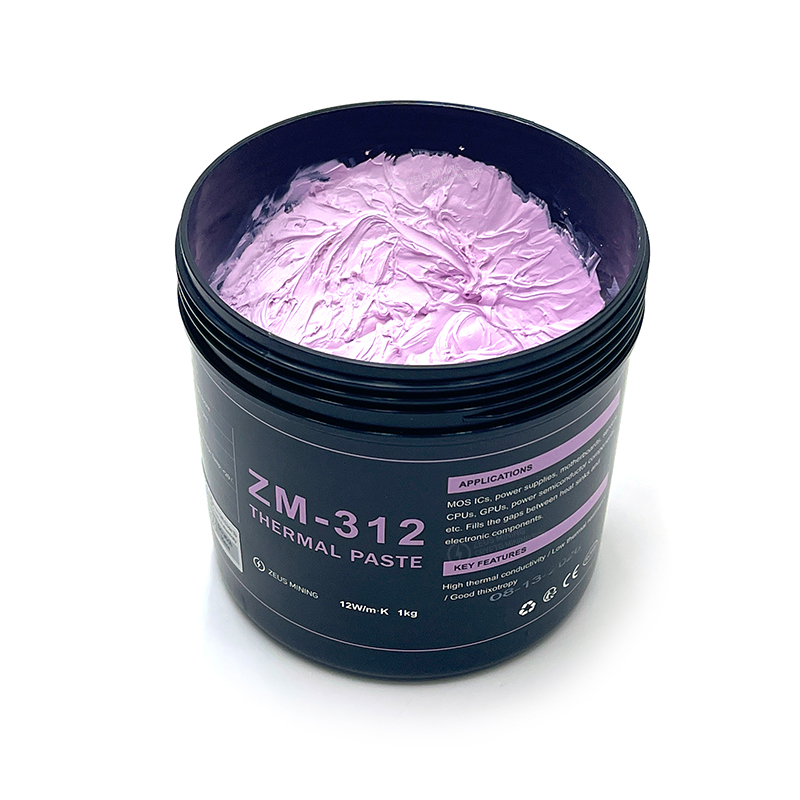

· The paste is light purple, with a fine and uniform texture and moderate consistency. It can be easily applied in batches using a stencil or by hand.

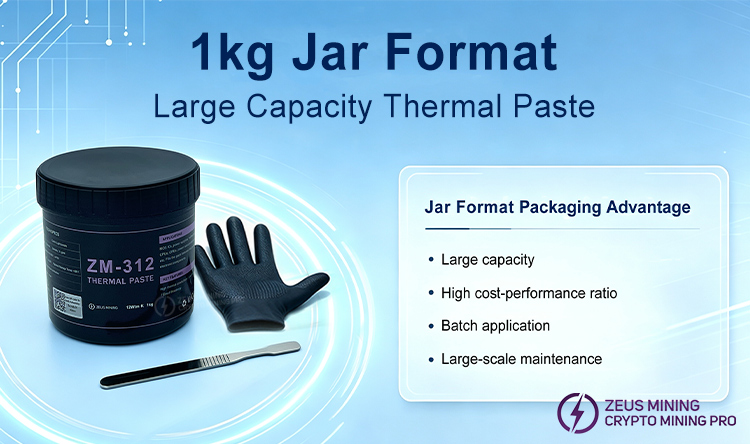

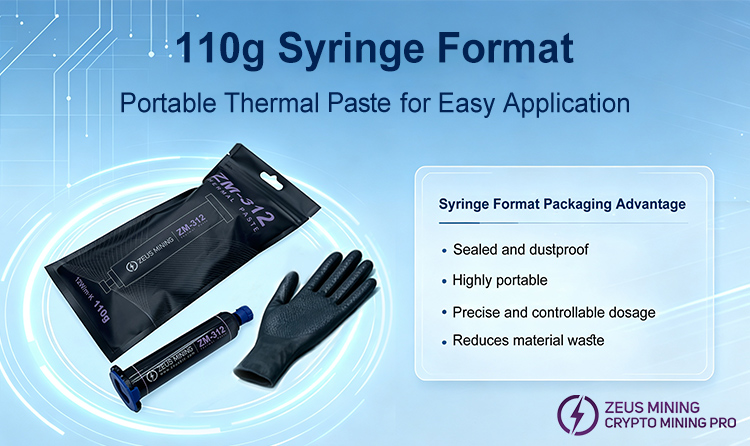

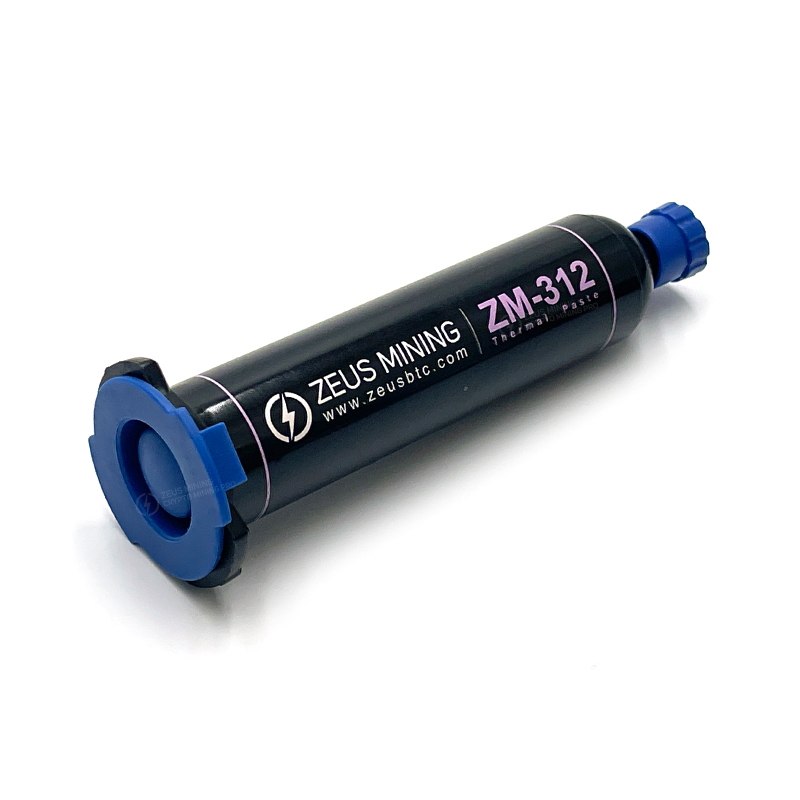

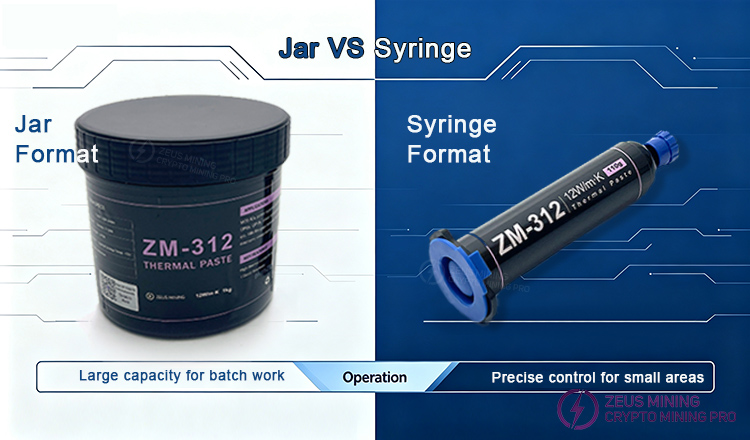

· Available in a 110g small syringe (suitable for repair workshops) and a 1kg industrial large jar (suitable for large-scale operation and maintenance in mining farms).

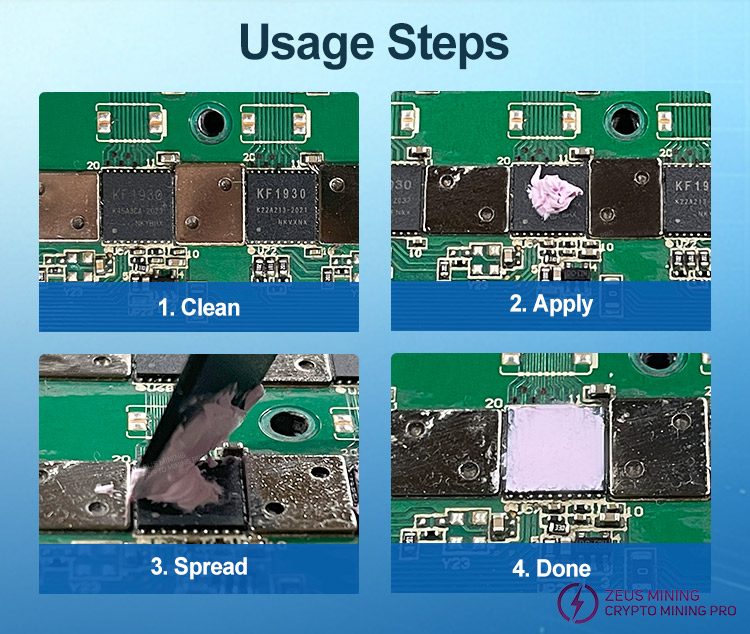

Usage instructions:

1. Cleaning: Thoroughly remove old silicone grease, corrosion, dust, and oil from the chip surface and the bottom of the heatsink.

2. Applying thermal paste (ASIC chip area is typically 10~20mm²)

• Recommended "Center Dot Application Method": Squeeze a small amount of thermal paste, about the size of a pea, in the center of the chip. After installing the heatsink, the paste will spread evenly on its own.

• Alternatively, a scraper can be used with a thermal paste stencil to apply the paste evenly. The thickness should be controlled to the thickness of an A4 sheet of paper (~0.1mm).

For detailed operating steps, please refer to the video below:

Applicable models:

• Antminer: S23 series, S21 series, S19 series, KS5/KS5 Pro, L9, L7, D7, E9, E9 Pro, Z15, Z15 Pro, etc.

• Whatsminer: M60, M50, M32, M31, M30, M21, M20 series

• Avalon: A15, A14, A13, A12 series

Wide applications:

ZM-312 thermal grease is not only used in ASIC miners, but also in electric vehicles, 5G communications, autonomous driving systems, mobile phones, AIoT (Artificial Intelligence of Things), HPC (High-Performance Computing), servers, CPUs, MOS integrated circuits, LEDs, motherboards, power supplies, heat sinks, laptops, routers, memory modules, etc., ensuring tight contact between components, reducing thermal resistance, and quickly and effectively lowering the temperature of electronic components.

Specifications:

Precautions:

1. For miners operating under high load 24/7, it is recommended to replace the thermal grease every 6-12 months. For industrial scale mining farm operations, replacement every six months is recommended.

2. Refrigerated storage (below 20°C) is recommended.

3. After opening, store in a cool, dark place, away from light and moisture.

4. Unopened product generally has a shelf life of 1 year.

5. Due to the sensitive nature of pastes and liquids and the restrictions on their transportation, this product will be shipped separately using sensitive goods channels, and the delivery time will be slightly longer, 8 to 20 working days.

Product composition

For syringe packaging:

Packaging bag *1

110g silicone grease *1

Disposable gloves * 1 (gift)

For jar packaging:

1000g silicone grease * 1

Disposable gloves * 1 (gift)

Scraper * 1
