| Unit Price: | $ 9.9 |

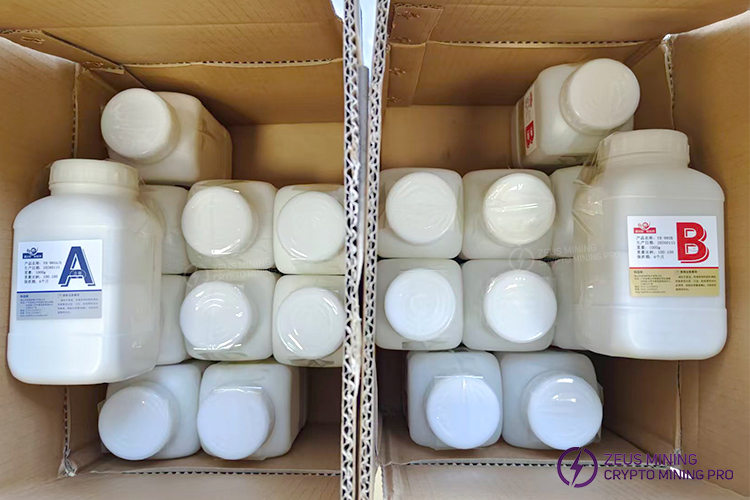

YH-993A YH-993B Circuit board insulation heat conduction waterproof AB glue for Antminer Whatsminer air cooling Hydro cooling or immersion cooling PSU
This is a 1:1 organic silicone for Antminer, Whatsminer, Avalon, Iceriver, etc. air-cooled, water-cooled, and oil-cooled power supplies. It has the characteristics of insulation sealing, high and low-temperature resistance, no bubbles after curing, good fluidity, waterproof and moisture-proof, good thermal conductivity, etc. It can effectively protect the sensitive circuits on the power supply board and provide long-term and effective protection for electronic modules, complex electronic circuits, etc.
Due to the pastes and liquids are sensitive goods and their transportation is restricted, this product will be shipped separately using sensitive goods channels, and the delivery time will be slightly longer 8 to 20 working days.
Net weight: 2kg
Gross weight: 2.5kg
Product features:
1. Protect sensitive circuits and provide long-term and effective protection for electronic modules and equipment, complex structures and shapes, etc.;
2. Sealed insulation does not leak electricity, has insulation characteristics after curing, good sealing, and greatly improves the stability of the equipment;
3. After curing, it can be easily repaired. The sealed components can be easily removed for repair and replacement and then repaired with this potting glue without leaving any traces;
Product parameter:
Performance indicators | Unit | Component A Component B | |

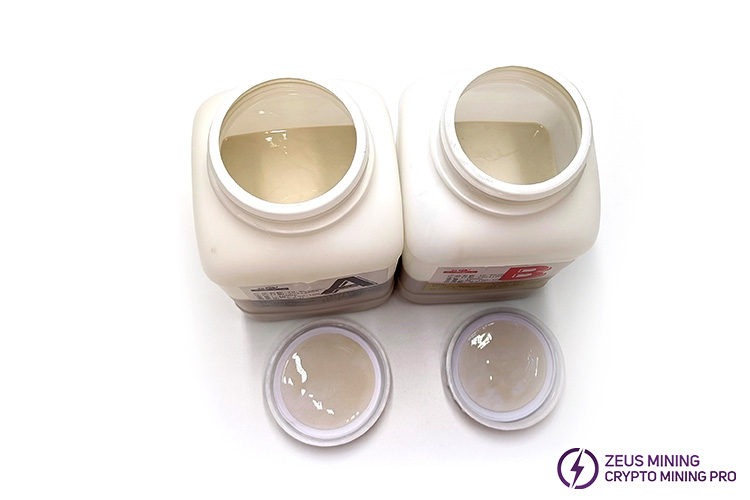

Before curing | Appearance | Visual inspection | A: White viscous liquid B: White viscous liquid |
Viscosity | (cps centipoise) 25°C | 2500±300 | |
Density | g/cm3 | 1.75-1.80 | |
Operational performance | Proportion | Weight ratio | A:B=1:1 |
Viscosity after mixing | cps | 2500±300 | |
Operation time | 25°C/min | 40-50 | |
Initial curing time at room temperature | h | 1.5-2 | |
Complete curing time at room temperature | h | 24 | |
Curing time at 60~80°C | min | 35-40 | |
After curing | Hardness | Shore A | 55-65 |
Thermal conductivity | W/(m.k) | ≥0.8 | |
Dielectric strength | KV/mm | ≥20 | |
Volume resistivity | Ω.cm | ≥1.2*1016 | |
Tensile strength | MPa | ≥1 | |
Elongation | % | ≥50 | |
Temperature range | ℃ | -60~200 | |
How to use:
1. Before mixing, stir components A and B in their respective containers.
2. When mixing, the weight ratio of component A: component B = 1:1 should be followed and stirred evenly.

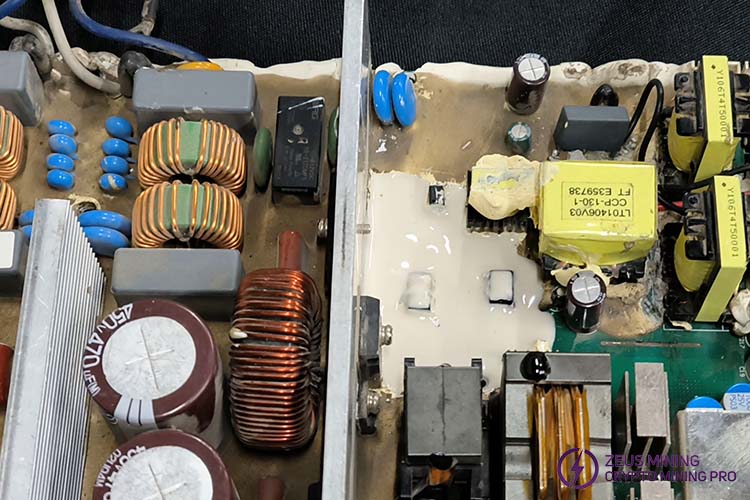

3. Potting and degassing, the mixed glue should be poured into the product as soon as possible to prevent the glue's fluidity from decreasing over time. After pouring into the power supply, the vacuum should degass for 1-3 minutes, and the air pressure should be controlled below -0.08MPa.
4. Curing, it can be cured at room temperature or heated. The higher the temperature, the faster the curing speed. When the temperature is low, the room-temperature curing time will be extended. It is recommended to use heating to cure. When curing by heating, in order to prevent obvious expansion, the glue should be placed at room temperature for more than 1 hour after pouring and gradually heated to cure. After heating to 80°C, it can be cured for 40-50 minutes.
Related products:
YH-925A/B silicone potting compound 3W/m·k 400g 1kg 10kg
Organic high thermal conductivity potting silicone glue for ASIC miner PSU 2W/m·k 10kg
GN7053 high thermal conductivity potting glue AB glue
