| Unit Price: | $ 40 |

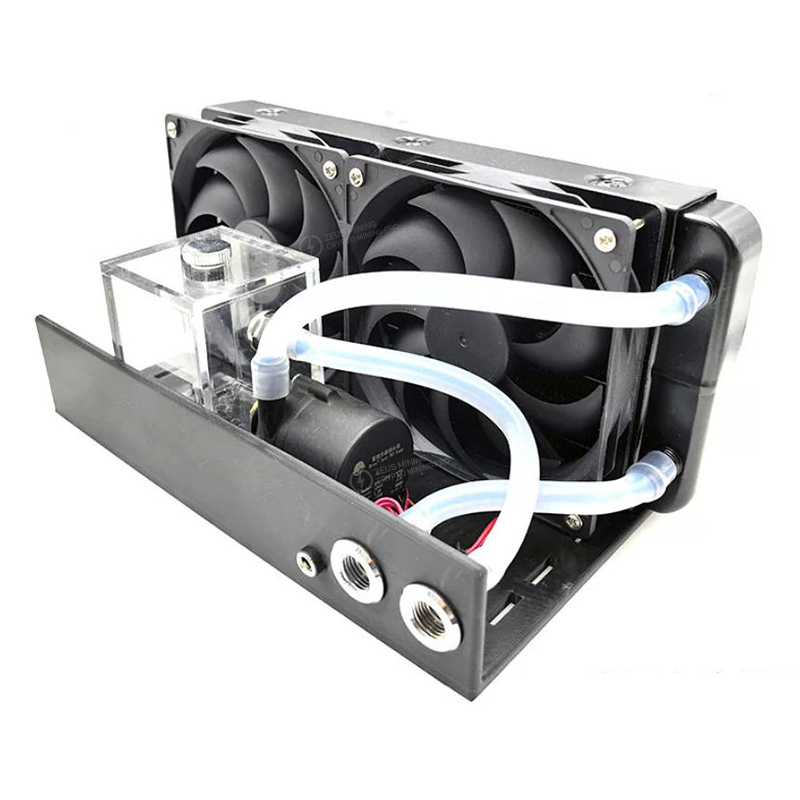

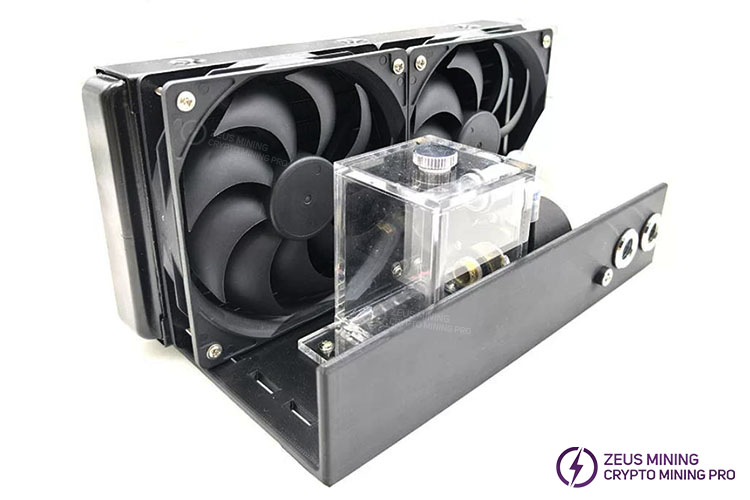

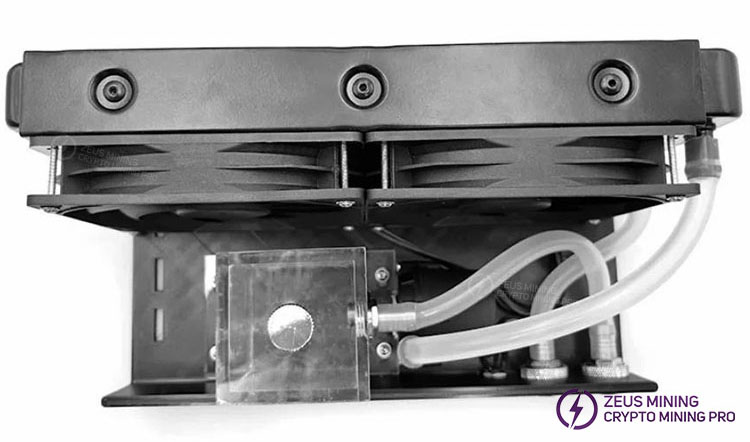

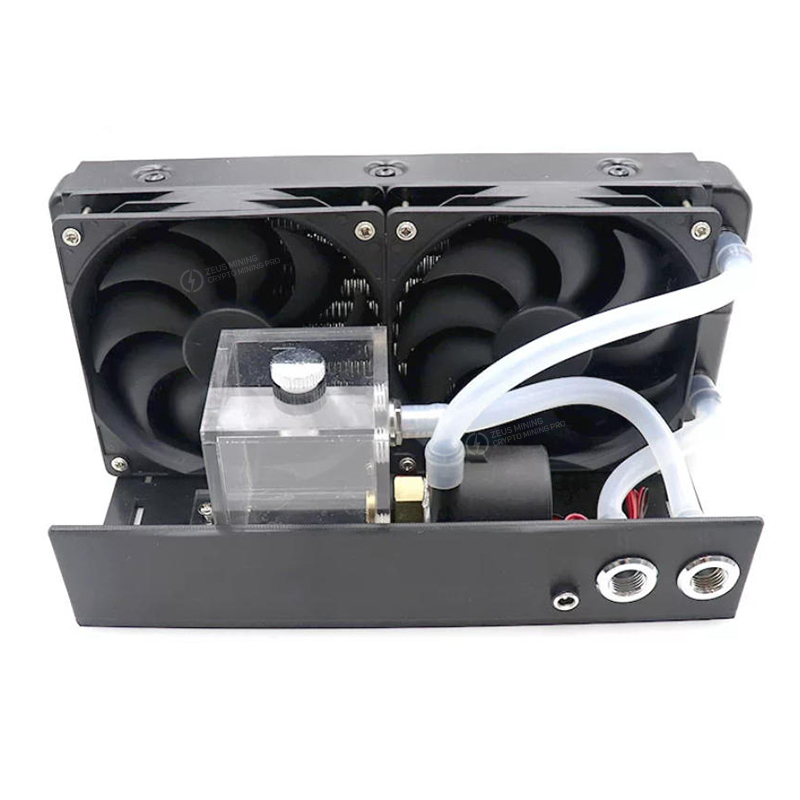

This 240 dual-fan integrated external water-cooling module is designed for repairing and debugging Antminer Whatsminer Hydro series miners. It's a dedicated water-cooling fixture for hash board repair and testing. The unit features two powerful 120mm cooling fans, a transparent acrylic water tank, and a pure copper brushless motor, integrating a complete water-cooling circulation unit. No additional assembly is required; connect a power source, and it's ready for rapid hash board testing, troubleshooting, and repair. It's an efficient cooling tool for repair workshops and laboratories.
Antminer: S23 Hydro, S21e XP Hydro, S21e Hydro, S21XP+ Hydro, S21XP Hydro, S21+ Hydro, S21 Hydro, S19e XP Hydro, S19XP Hydro, S19XP+ Hydro, S19 Hydro, T19 Hydro, S19Pro+ Hydro, S19Pro Hydro, etc.
Whatsminer: M73S+, M73S, M73, M63S++, M63S+, M63S, M63, M53S++, M53S+, M53S, M53, M34S+, M33S++, M33S+, etc.
1. Integrated design, no assembly or debugging required, ready to use.
2. Built-in dual 120mm high-power cooling fans, combined with a radiator to quickly dissipate heat from the circulating coolant, ensuring stable temperature control.
3. Transparent acrylic water tank design allows for direct observation of coolant level and internal air bubble status, providing a clear view of the maintenance process.
4. Pure copper brushless motor water pump: low vibration, low noise, stable circulation flow, and high durability.

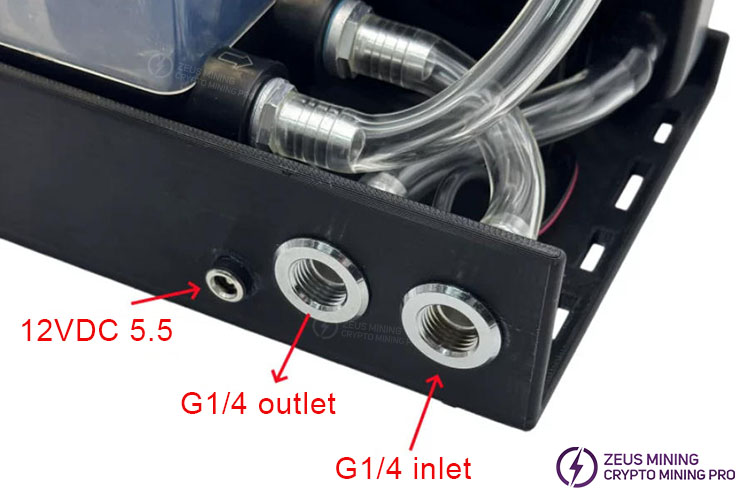

5. The entire unit is powered by a unified DC12V/3A (5.5*2.1 interface), a single power supply can drive the entire module including the fan and water pump.
6. Standard G1/4 threaded water nozzle interface, universal water cooling connector specification, can be directly connected to the water circuit of Hydro water-cooled mining boards.
Product name | 240 all-in-one mini water cooling kit |

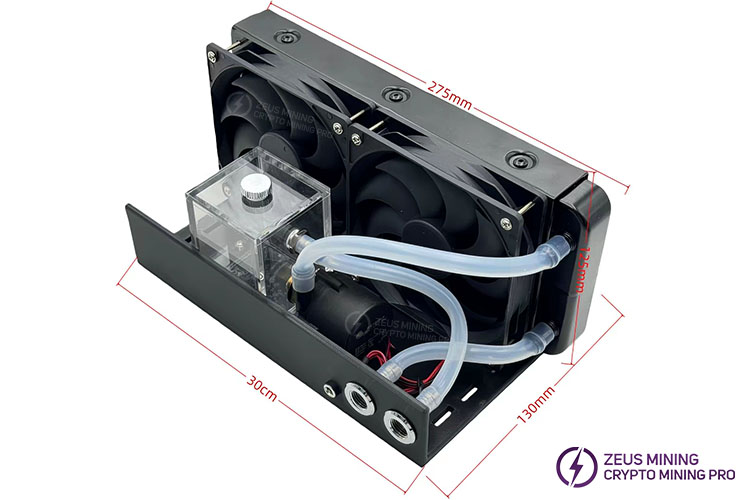

Dimensions | 275x130x125mm |
Interface | DC5.5x2.1mm |
Power | 9.3-15.9W |
Thread | G1/4 |
Capacity | 275ml |
Fan | 12cmx2 |
Pump voltage | 12V |
Rated current | 275-400mA |
Rated power | 3.3-4.9w |
Pump head | 1.5-2m |
Water flow rate | 4.3-4.6L/min |
Bearing | Ceramic centrifugal structure |
Applicable temperature | <65℃ |
1. Repair and testing of Hydro water-cooled mining rig computing boards.
2. Computer hardware heat dissipation debugging.
3. Heat dissipation for semiconductor cooling chips, laser equipment, and small industrial heat sources.
Q: Can this water cooling module directly replace the built-in water cooling system of a mining rig?
A: This product is positioned as an external maintenance and testing fixture, mainly used for the inspection and debugging of the computing board. It is not recommended for direct installation as a long-term replacement for the original water cooling system of the mining machine.
Q: What accessories do I need to provide?
A: You need to provide a DC12V 3A power supply, water cooling hoses, and coolant. G1/4 connectors are directly compatible with this module.
Q: Can it be used continuously for extended periods?
A: The brushless water pump supports continuous operation for extended periods. Ensure the water tank level is sufficient to avoid dry running.
