| Unit Price: | Get Quote |

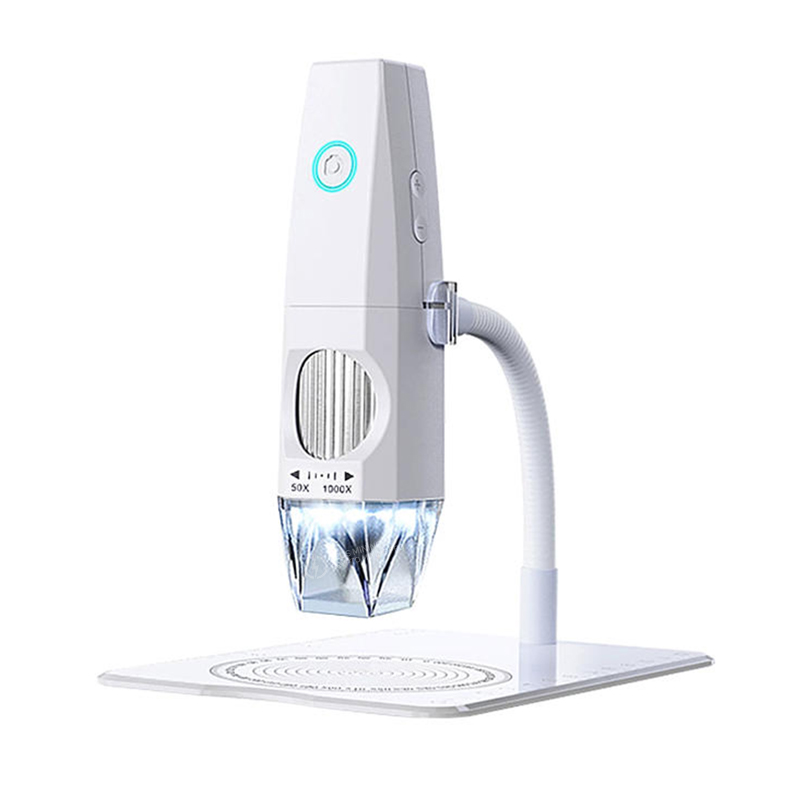

The LEYUE Z05 is a wireless, Wi-Fi-enabled digital microscope featuring a 5MP HD CMOS sensor and continuous magnification from 50x to 1000x. It offers dual-mode functionality: wireless observation via mobile devices and professional-grade measurement when connected to a computer via USB. Equipped with 8 adjustable ring-style LED lights and a flexible stand, the LEYUE Z05 is an ideal portable industrial magnifier for tasks such as circuit board and motherboard repair, chip inspection, authentication of artifacts or jewelry, and educational observation. It is compatible with Android, iOS, and HarmonyOS mobile devices, as well as computers, supporting real-time photo capture, video recording, and precise dimensional measurement.

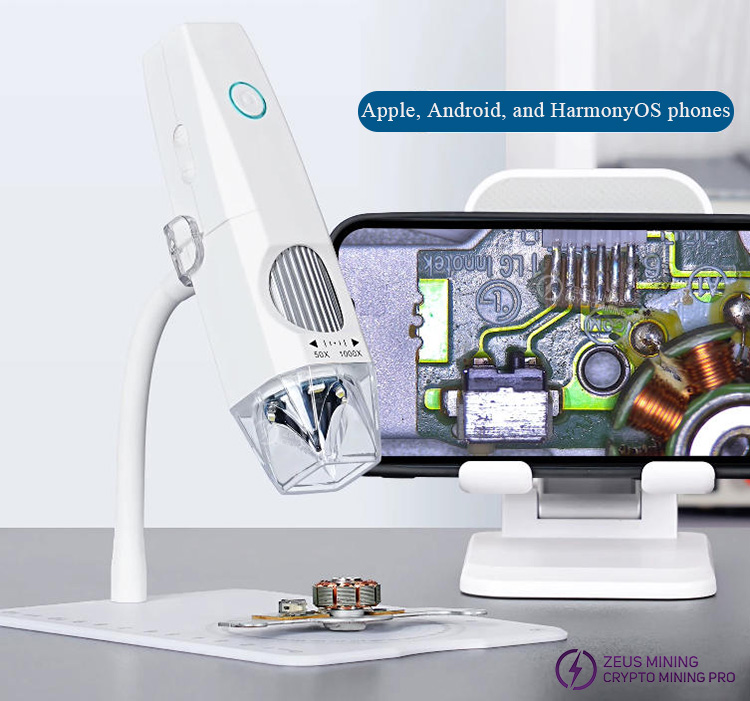

1. Built-in WiFi chip for multi-device connectivity

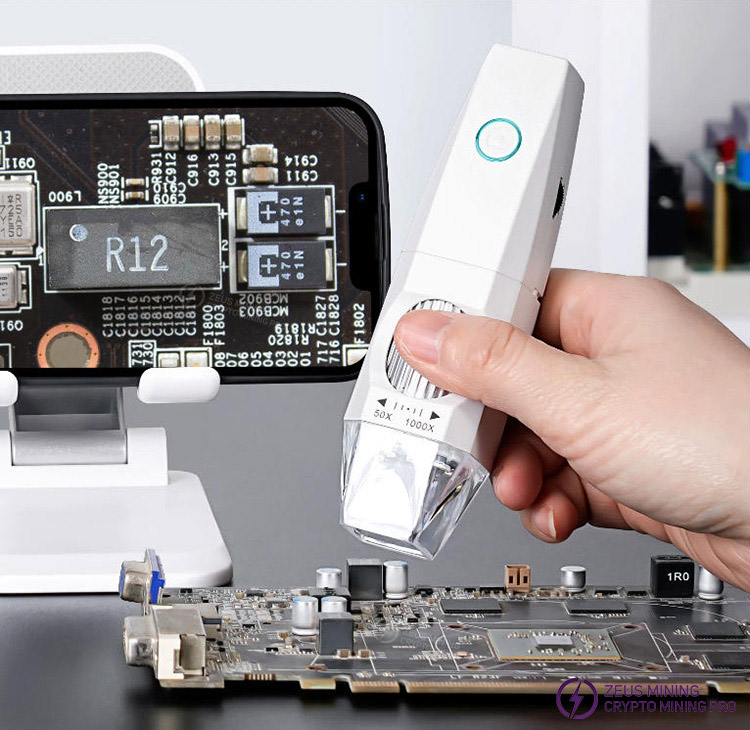

The microscope has a built-in WiFi hotspot, allowing mobile phones and tablets to connect directly and preview the image in real time without a router by opening the APP. It is fully compatible with a wide range of Apple, Android, and HarmonyOS devices, offering flexible, on the go observation for repair work.
2. High-end WiFi chip for stable, uninterrupted transmission
Equipped with a high-performance WiFi chip, the microscope supports wireless transmission over distances of up to 10 meters at 30fps. It connects instantly upon startup, delivering a smooth, high-definition image without lag or motion blur. The connection remains stable even during extended inspection sessions, ensuring reliability whether you are working in the field or at a workbench.

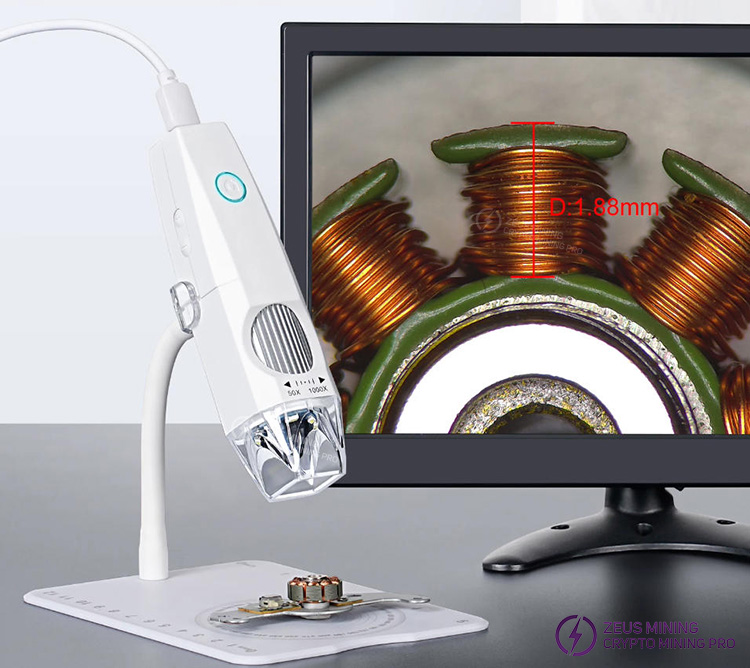

3. USB computer connectivity with professional measurement software
Connect directly to a computer via USB and utilize the included professional measurement software. It features real-time preview and supports various dimensional measurement tools such as length and diameter. It allows for direct data reading during maintenance, quality inspection, and industrial testing, meeting the measurement needs of professional work.

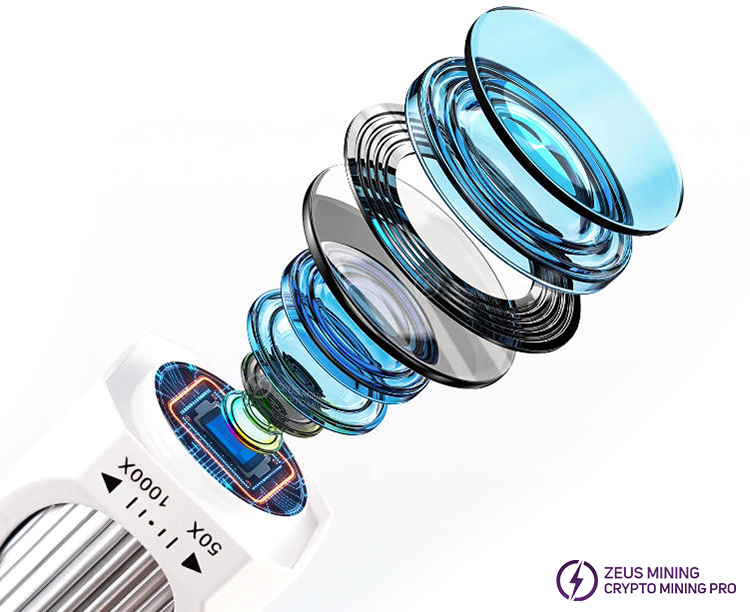

4. 5MP high-definition resolution with premium CMOS sensor

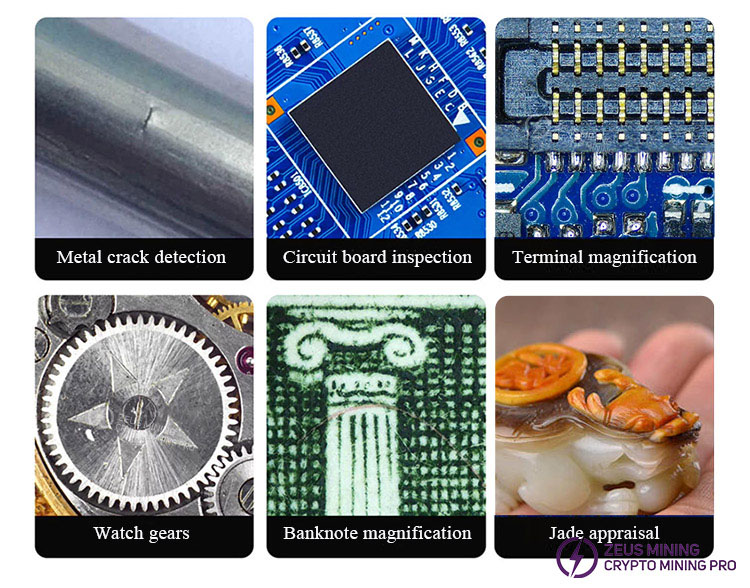

Employing a high-definition CMOS image sensor, combined with a multi-layer optical lens group and advanced photoelectric conversion technology, it restores microscopic details, producing clear and clean images, fully releasing the optical performance of the lens, making even chip pins and tiny metal cracks clearly visible.

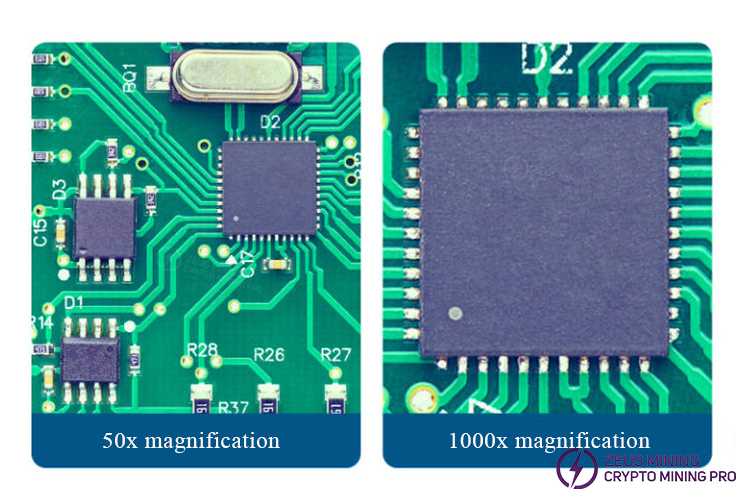

5. 50x–1000x magnification with adjustable focus
Features a smooth, anti-slip focus knob for precise, effortless adjustment. With stepless continuous magnification from 50x to 1000x, the magnification can be freely switched according to the object being observed. It is suitable for viewing large circuit boards or tiny chip pins, and is simple and easy to operate.

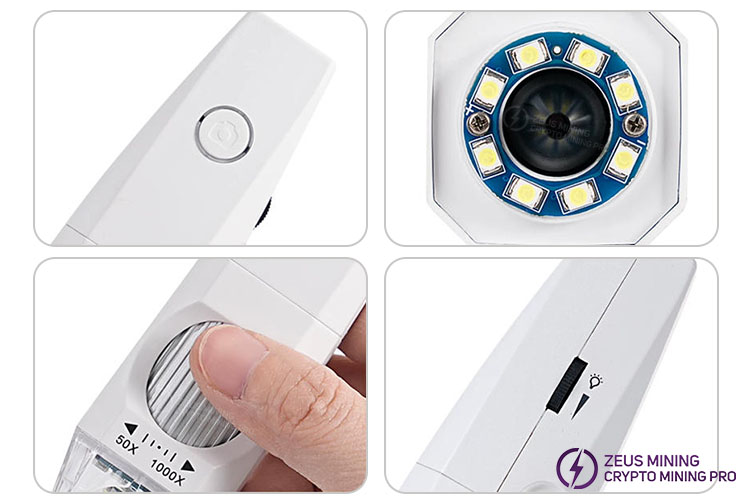

6. High-brightness LED illumination with adjustable intensity
Equipped with a built-in LED ring light; a side-mounted knob allows for easy brightness control. There is no need for external light sources, even when examining textured components or dark-colored circuit boards.

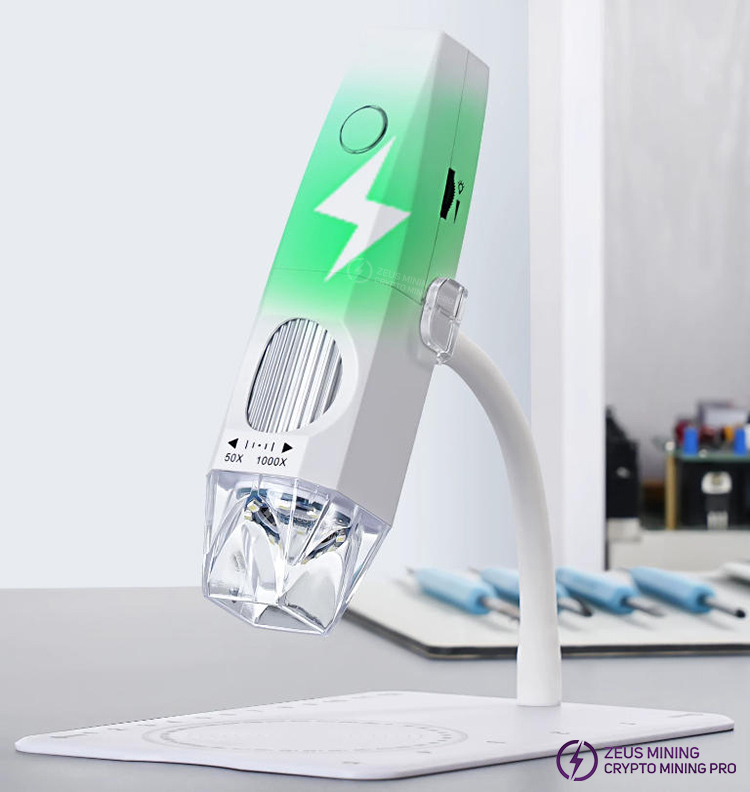

7. Overheat protection and auto-power-off
Equipped with an upgraded conductivity sensor module, the device automatically shuts down after 5 minutes of standby, effectively protecting the built-in core chip, avoiding overheating damage caused by prolonged no-load power-on, reducing component aging, effectively extending the overall battery life and service life, and making long-term maintenance and monitoring more worry-free.

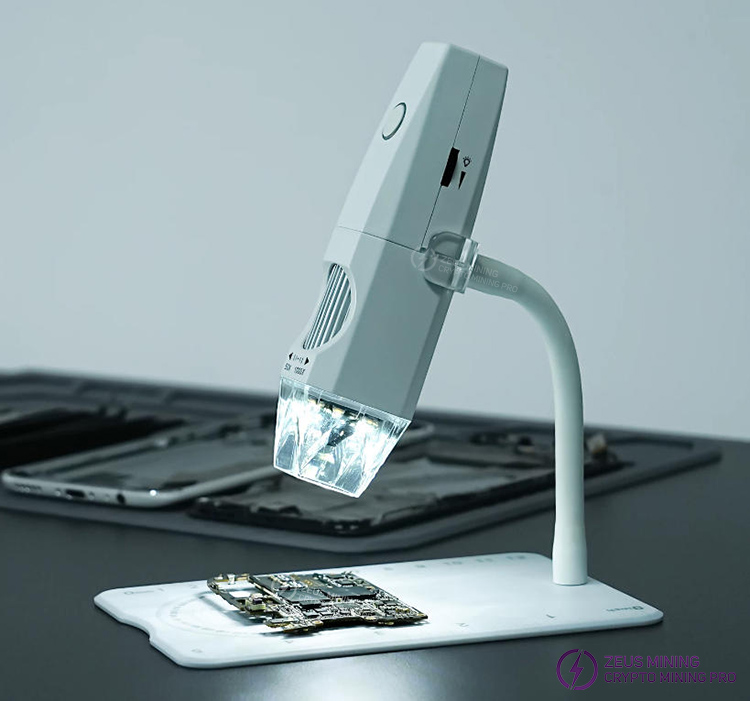

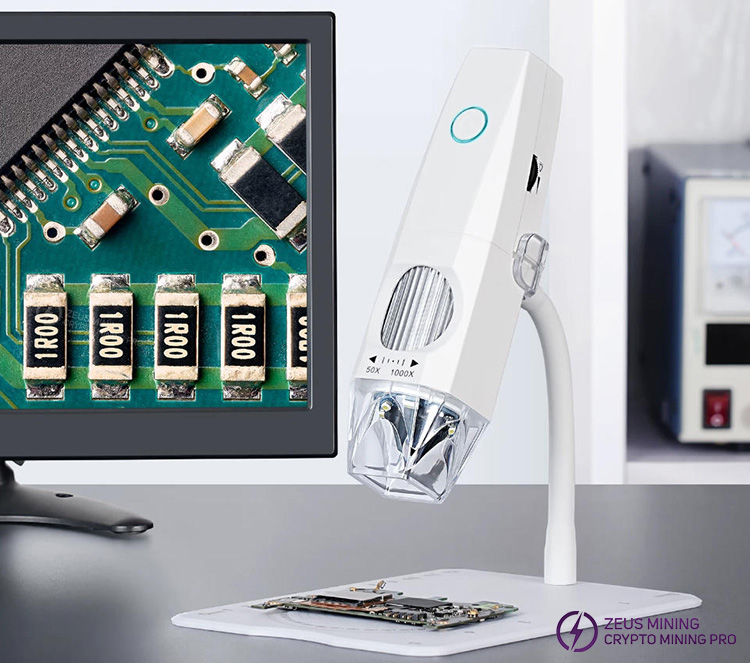

8. Versatile design: stand-mounted or handheld
Supports both stand-mounted and handheld operation. The compact, lightweight body fits comfortably in one hand. With the stand, it can be placed on a workbench for stable, long-term observation of circuit boards; the stand can be removed for handheld use, allowing for detailed inspection anytime, anywhere, without being restricted by the scene, and enabling free and easy switching between maintenance and observation.

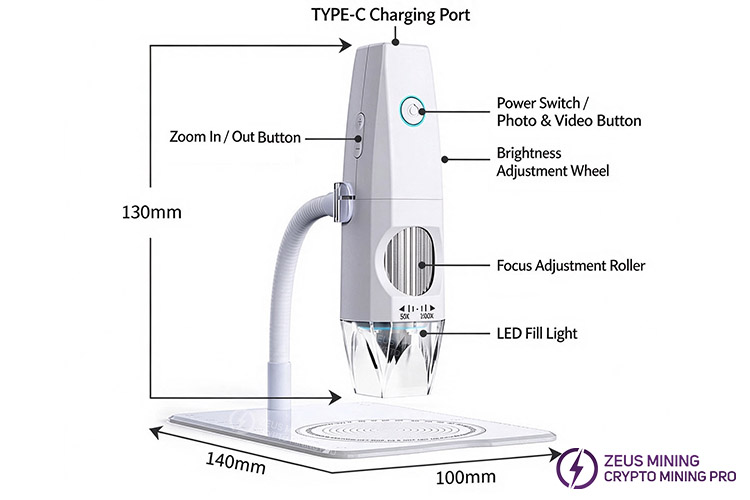

Product Name | WiFi HD Digital Microscope | Model | Z05 |
Magnification | 50x–1000x Magnification | Megapixels | 5 Megapixels |
Image Size | 2592x1944 | Video Size | 1920x1080 |
Frame Rate | 30 FPS | Resolution | 1080P |
LED Type | 8 LED beads with stepless dimming | Stand Type | ABS plastic stand |
WiFi Range | Approx. 10 meters (in an open environment) | Product Weight | Approx. 217g |
Compatible Systems | Windows XP, Win 7/8/10, Mac OS X 10.5 or later | ||
Compatible Mobile Devices | Android 5.0 or later, iOS 8.0 or later | ||
