| Unit Price: | $ 1 |

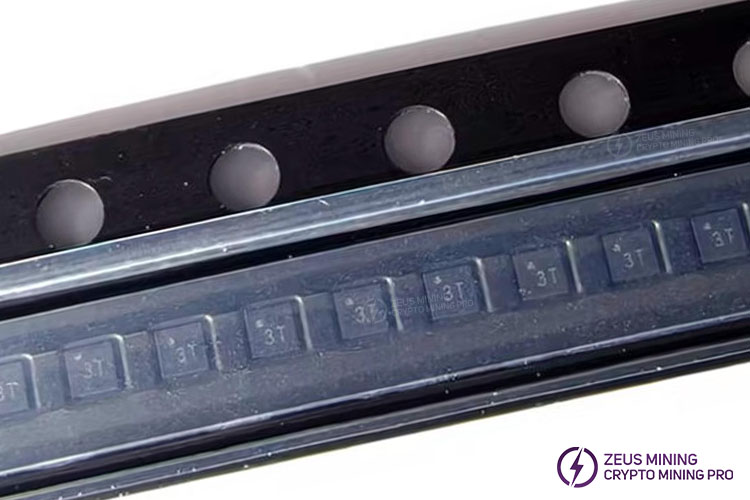

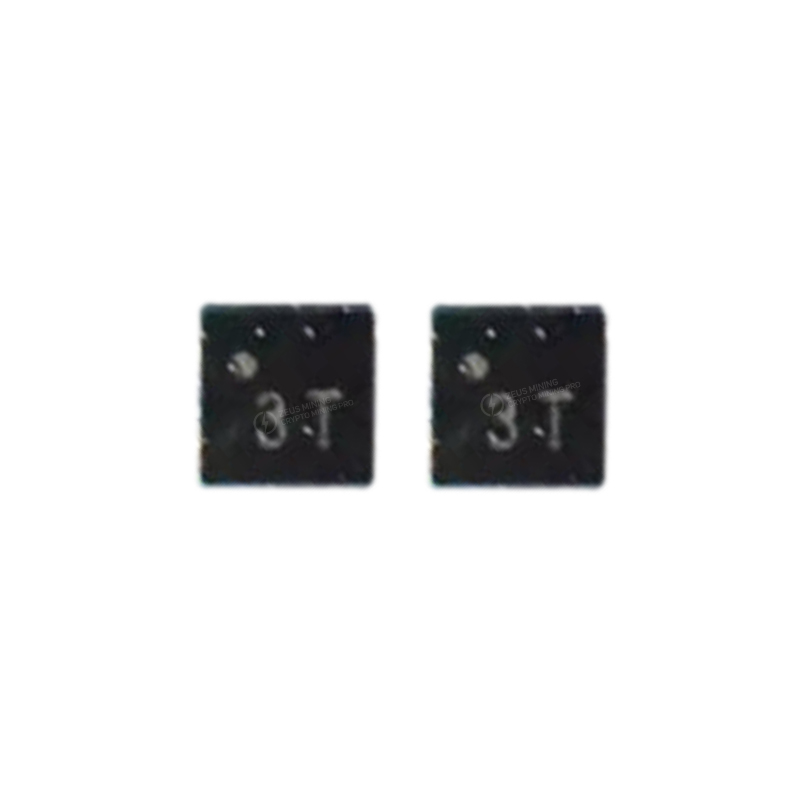

The SGM2036S-1.8XXDH4G/TR is a low-input-voltage, low-noise, and low-power-down-voltage linear regulator located on Avalon 14 series hash boards, silkscreened as 3T. It can output 300mA of current, with a typical power-down voltage of only 190mV and an output voltage of 1.8V. Its features include logic-controlled power-down mode, short-circuit current limits, and thermal shutdown protection. The SGM2036S has an automatic discharge function to quickly release power when disabled.
Feature:
Operating input voltage range: 1.6V to 5.5V
Enable pin accepts voltages higher than the supply voltage, up to 5.5V
Output voltage: 1.8V
300mA output current
Low supply pin current: 30pA (typical)
Low dropout voltage: 190mV (typical) (300mA, Vout = 3.0V)
Shutdown current: 0.05μA (typical)
Current limiting and over-temperature protection
Excellent load and line transient response
Short startup time
Automatic output discharge function
Uses small-size ceramic capacitors for good stability
Operating temperature range: -40℃ to +125℃
