Where are the important chips on the Antminer T17e hash board?

Common chips on the Antminer T17e hash board include ASIC chip, temperature sensor chip, converter chip, MOS chip, EEPROM chip, voltage regulator chip, etc. So where are they all on the hash board, and what do they do? Through this article, let's find out together.

ASIC chip: BM1396AB chips

A single Antminer T17e hash board consists of a total of 78 BM1396AB ASIC chips using the SHA256 algorithm, which is mainly responsible for the hash rate calculation of the entire miner.

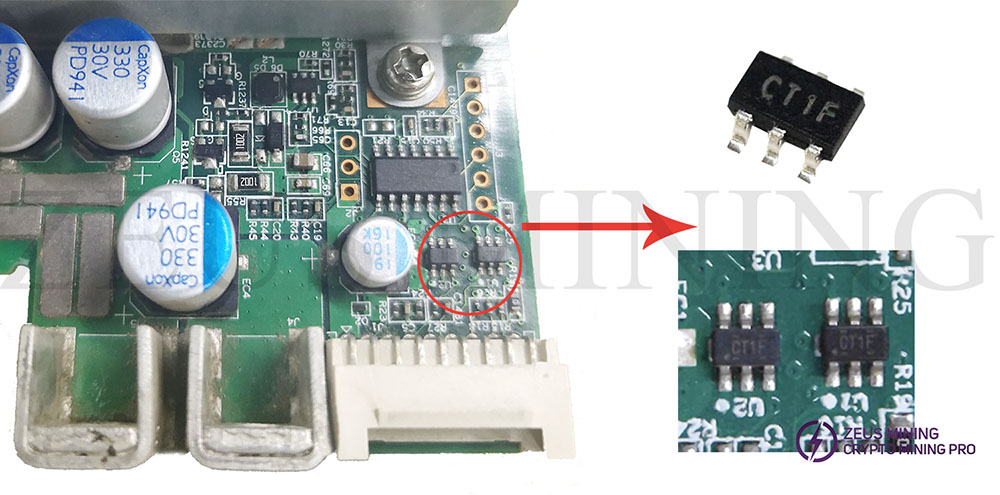

U1: Converter CT1F

SN74LVC1T45DBVR CT1F is a dual power bus transceiver chip IC. The operating temperature range is -40°C to +80°C.

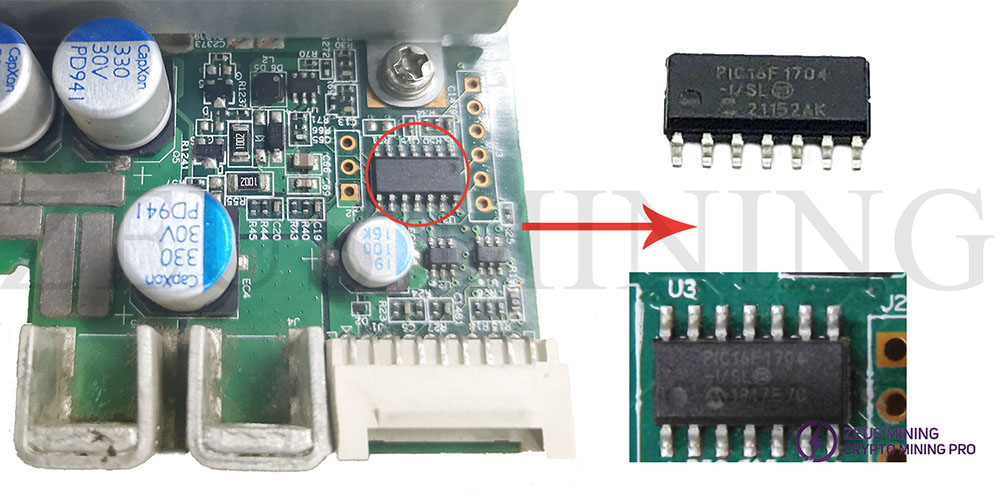

U3: Microcontroller PIC16F1704

The PIC16F1704 is an 8-bit microcontroller processor that combines intelligent analog integration with low cost and very low power consumption. The operating voltage is between 3.3 and 5 V and is often used for repairing hash boards.

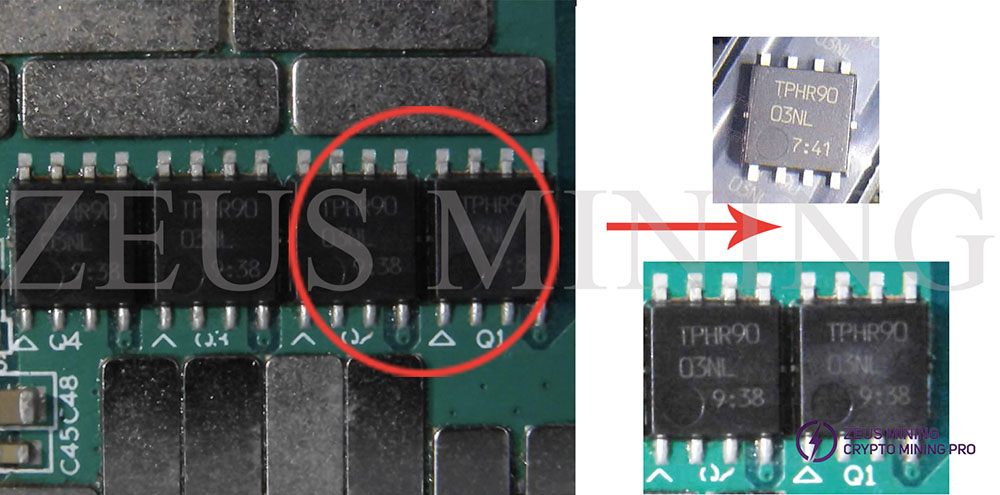

Q1-Q4: MOS Chip TPHR9003NL

When the miner cannot recognize the hash board and the test fixture cannot recognize the hash, you can check whether the voltage of the chip is normal. Under normal circumstances, if the voltage is unstable, the lightning surge will cause damage to the MOS.

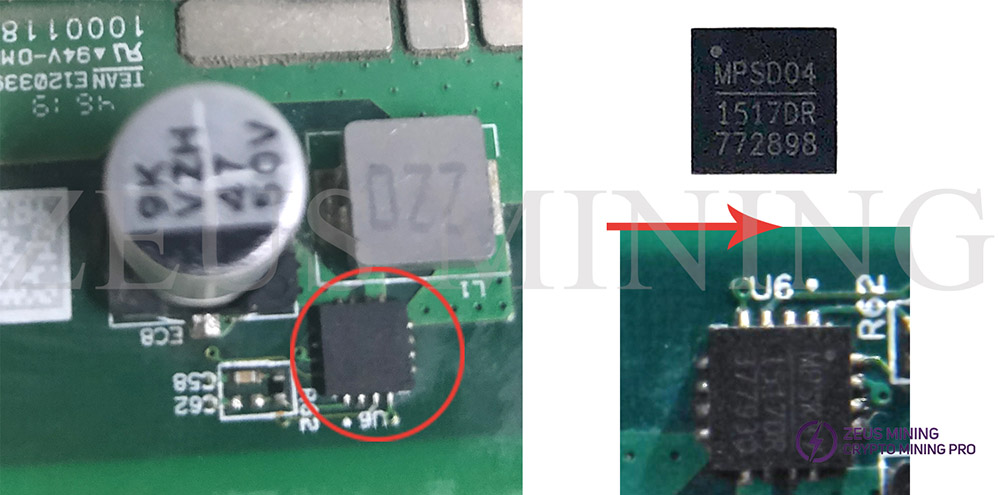

U6: Converter MPSK391517DR

MPSK391517DR 3A, 25V, 1.1MHz boost converter in a tiny 4mm* 4mm 16-pin QFN package with a temperature operating range of -40°C to +85°C.

U7: Power Management IC SY7208

The SY7208 is a high-efficiency, integrated MOSFET current mode and fixed frequency boost converter with over-temperature protection for hash board temperature. The chip temperature range is -40°C to 85°C.

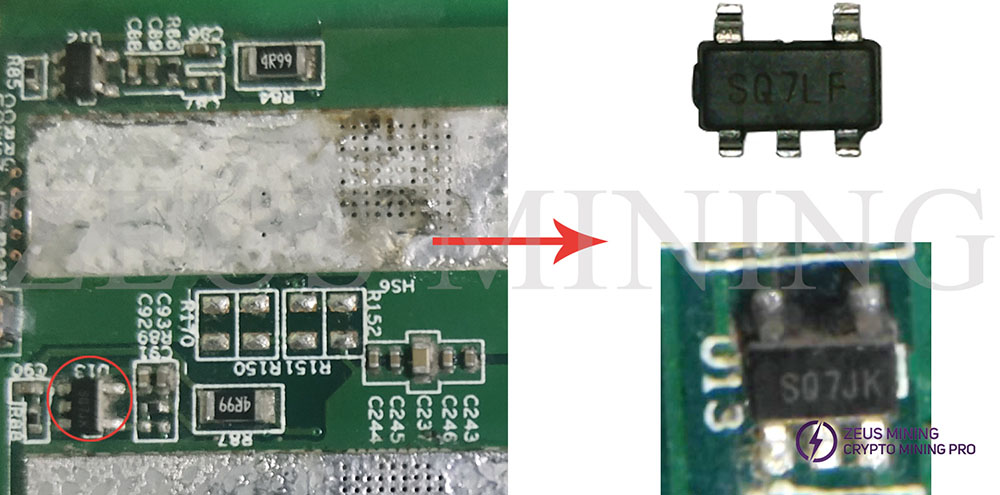

U13: Regulator SQ7JK SGM2036-ADJ

The SGM2036-ADJ low power, low dropout, CMOS linear regulator delivers up to 300mA of output current, making it the perfect choice for low voltage, low power applications. In addition, the low dropout voltage it provides can extend battery life in portable electronics.

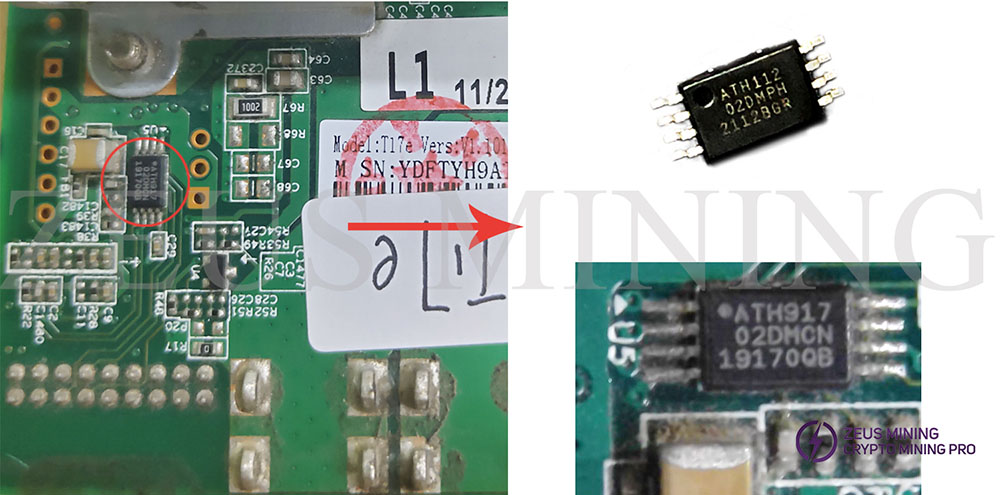

U5: EEPROM ATH91702DMCN8170QC

The AT24C002D provides 2,048 bits of serial electrically erasable and programmable read-only memory (EEPROM) that allows up to eight devices to share a common 2-wire bus.

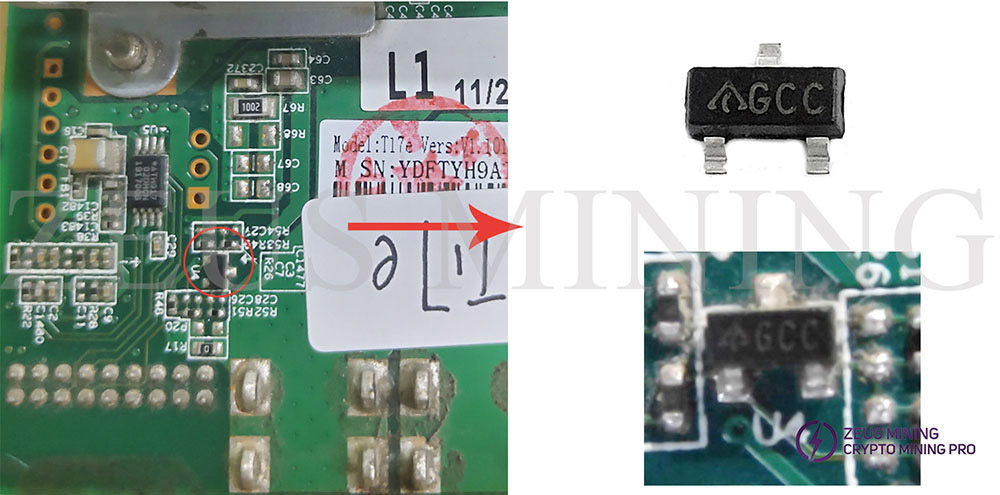

U4: Shunt Regulator GCC AP431SAN1TR-G1

The AP431SAN1TR-G1 is a 3-terminal adjustable shunt regulator with guaranteed thermal stability over the entire operating range. In addition, it has a low minimum cathode current for regulation, and a typical value of 50µA makes this device ideal for very low power applications.

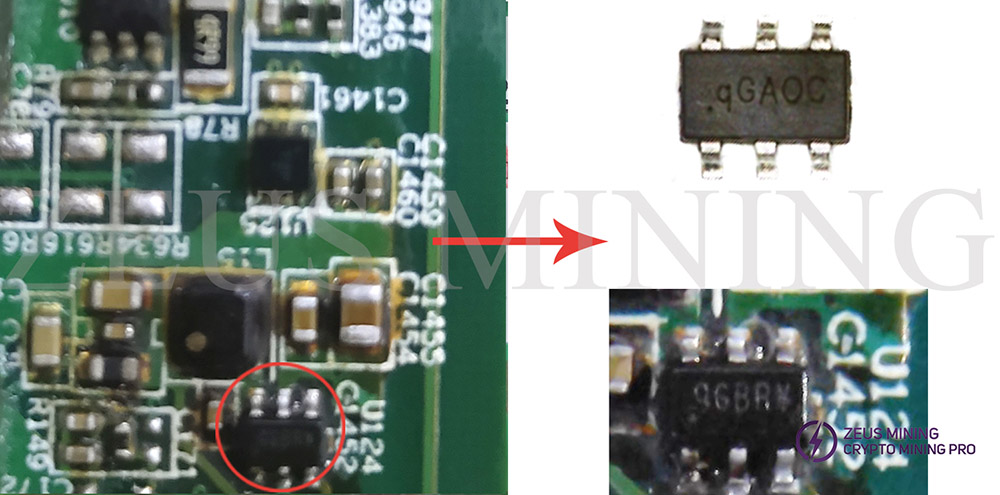

U124: Synchronous Voltage Regulator SY8120I

The SY8120I is a high-efficiency, synchronous step-down DC/DC converter that delivers a 2A load current. Enables fast transient response in high buck applications and high efficiency at light loads.

U125: Temperature sensor chip NCT218

The NCT218 is a dual-channel digital thermometer and under/over temperature alarm designed for thermal management systems requiring low power and size. The device operates over a temperature range of -40°C to +125°C.

U131: voltage regulator chip MP2019 SOP8

MP2019 is a low dropout voltage regulator chip packaged in SOP8, suitable for T17e hash board maintenance.

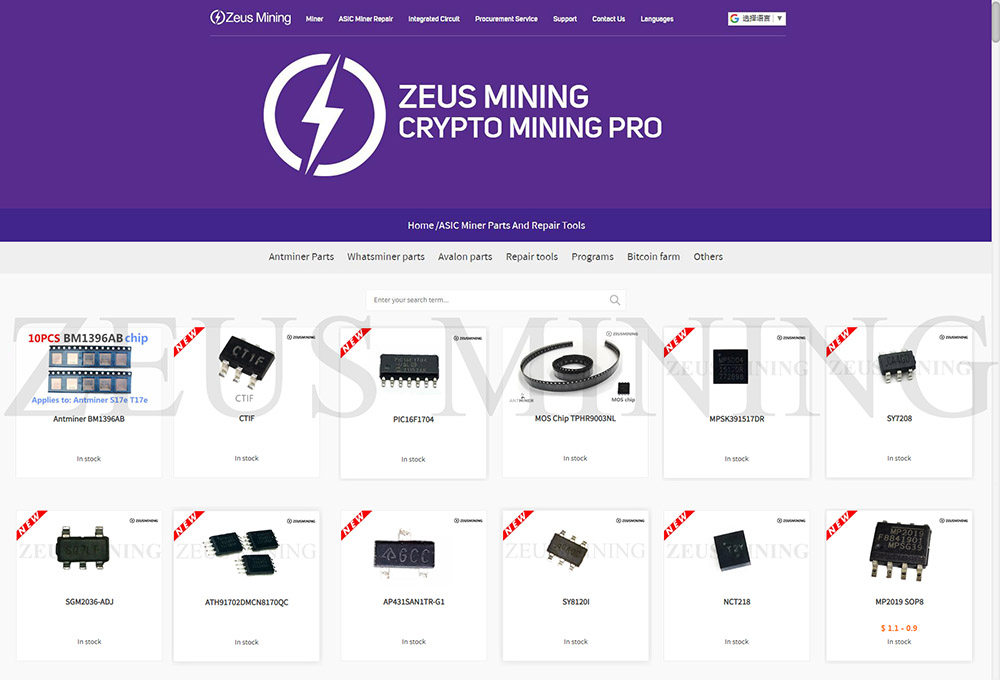

Antminer T17e hash board chip summary:

The above is the description of all the chips on the T17e hash board. For more chip details, please visit the ZEUS MINING official website.
