| Unit Price: | $ 1.2 |

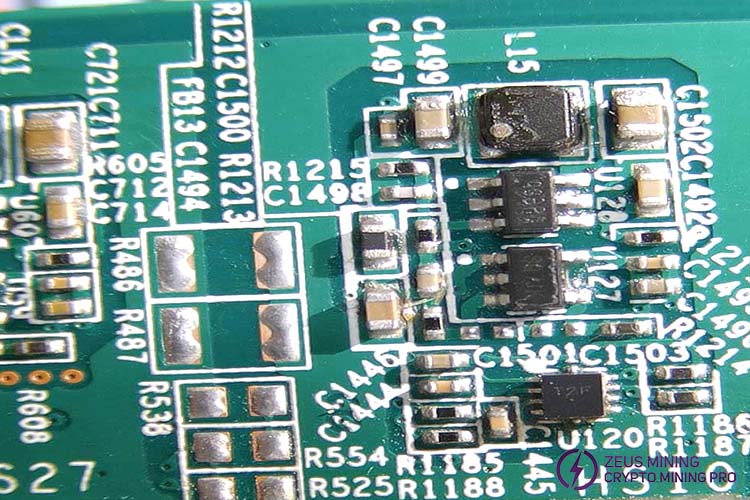

NCT218 is a temperature sensor chip marked T2* by silkscreen. It is mainly used for Antminer S21XP Hydro, S21XP, S21PRO, S19pro Hydro, S19a, T19a, T19 Hydro, S19XP+ Hydro, S19 Hydro, D7, L7, S17+, S17E, S9, etc. hash boards.
The NCT218 is a dual−channel digital thermometer and under temperature / over temperature alarm, intended for use in thermal management systems requiring low power and size. The NCT218 can measure the temperature of a remote thermal diode accurate to ±1°C and the ambient temperature accurate to ±1.75°C. The device operates over a wide temperature range of −40°C to +125°C.
The NCT218 is a dual-channel I²C digital temperature sensor used by the hash board to collect real-time temperature data from the ASIC chip. This data is then uploaded to the control board for temperature-controlled speed regulation, high-temperature frequency throttling, and overheat protection. Chip malfunction can lead to incorrect hash board temperature readings, abnormal temperature control strategies, erratic fan speed adjustments, false triggering of high-temperature frequency throttling, and frequent alarms. Complete chip failure can result in the main controller being unable to read the temperature, triggering a protection lockout, the hash board having no hash rate, and the safety hazard of the ASIC chip burning out due to overheating.
The common silkscreen is T2F, T2Y, T2H, etc.
Small DFN Package
On−Chip and Remote Temperature Sensor
Low Voltage Operation: 1.4 V to 2.75 V
Low Quiescent Current:
44 A Normal Mode (max)
20 A Shutdown (max)
Power Saving Shutdown Mode
Operating Temperature Range of −40°C to 125°C
Series Resistance Cancellation up to 500
Low D− bias for Operation with Low Voltage Processors
2−wire I2C Serial Interface
Programmable Over/Undertemperature Limits
Applications:
Smart Phones, Tablet PCs, Satellite Navigation, Smart Batteries
s9 temperature control chip IC
