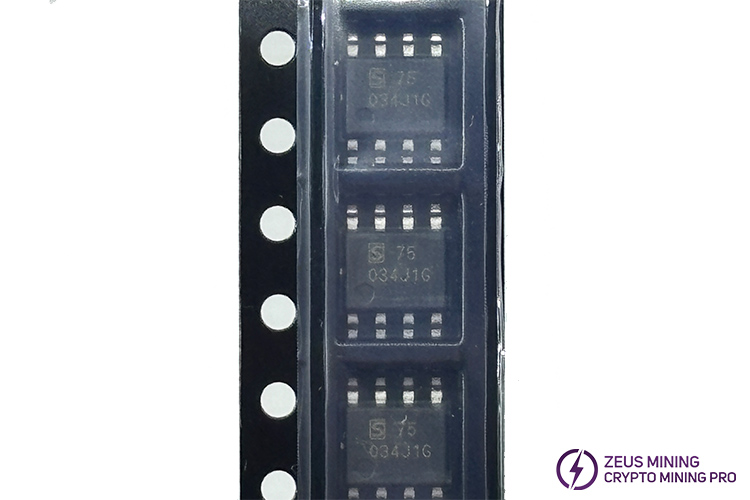

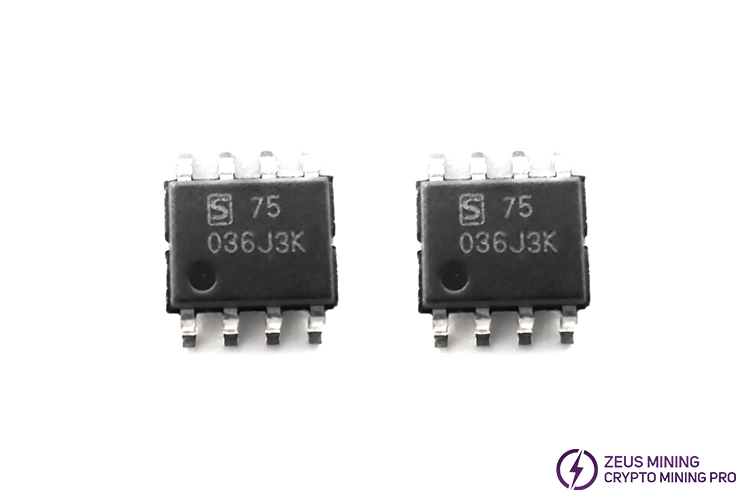

The CT75MMR S75 digital temperature sensor chip is suitable for the Antminer series, Whatsminer series (can be purchased according to the original silkscreen on the original Hash board). LM75A/TMP75 can replace CT75MMR. It uses SOP8 packaging technology.

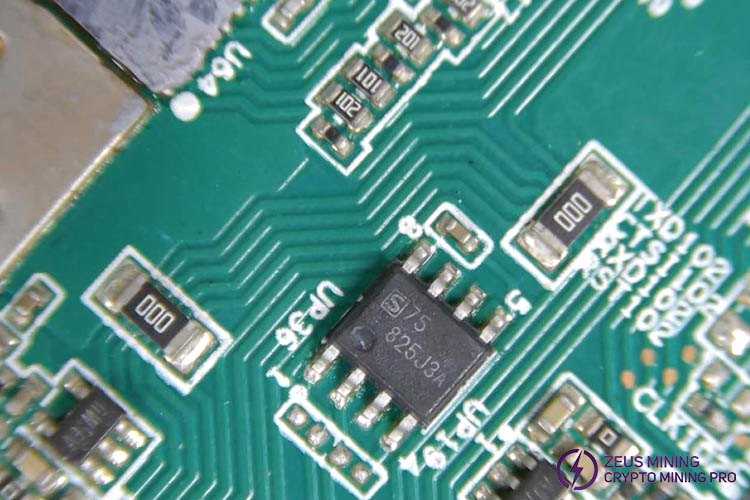

The S75 temperature sensor chip is suitable for Antminer S21, T21, S21+, S21XP Hydro, S21 IMM, S19XP+ Hydro, S19e XP Hydro, S19XP Hydro, S19PRO Hydro, S19kpro, S19 Hydro, S19XP, D7, L7 and Whatsminer M50, M32, M31s, M30S, M21s, M20s, etc. miner hash boards.
CT75MMR I2C interface digital temperature sensor, SOT-23-6 package, compatible with LM75 protocol, collects multi-point temperature data of the computing board in real time through the I2C bus, providing core temperature basis for miner temperature control protection, fan speed regulation, and frequency reduction protection; after device degradation, temperature drift and sampling accuracy decrease, resulting in temperature readings that are too high/too low, data jumps and distortions, causing miners to misjudge temperature, frequently reduce frequency, abnormal fan speed, and fluctuate hash rate, etc.
VCC: 1.75V to 5.5V
±0.5 °C(Max.) over 0 °C to 50 °C
±1.0 °C(Max.) over -20 °Cto 85 °C
±1.0 °C(Max.) over -20 °C to 85 °C
Average current consumption: 7.0uA (Typ.), 10uA (Max.) (1 measurement per second):
Standby Current: 1.5uA (Typ.), 3.0 uA (Max.)
Temperature conversion time: 30ms
12-bit ADC with 0.0625 °C resolution
Compatible with I2C, SMBus, 2-wire interface
Generate 32 different slave addresses by setting A0/A1/A2 PIN
Support SMBus ALERT Response Address (ARA)
LM75A/TMP75 can replace CT75MMR
Click here to learn how to replace it.
