| Unit Price: | $ 0.5 |

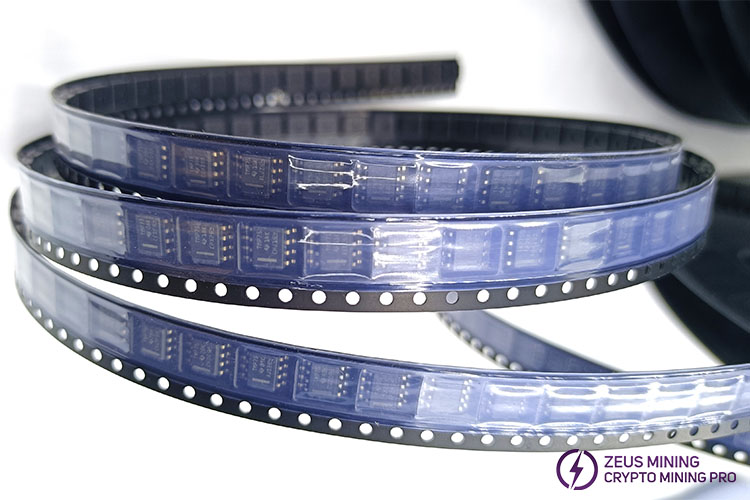

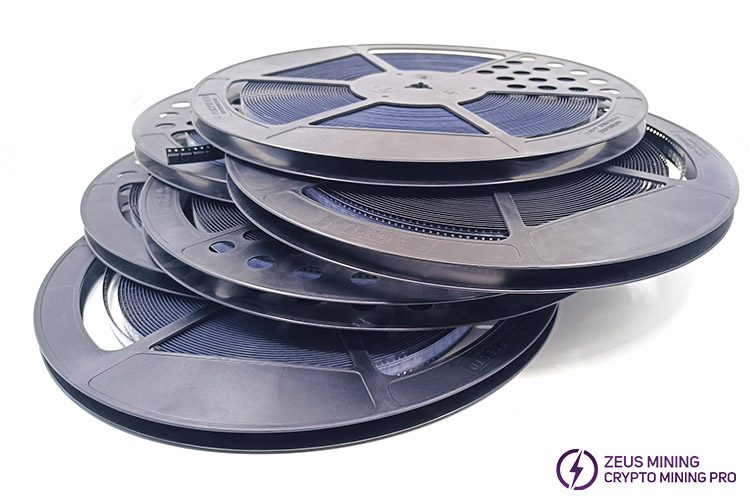

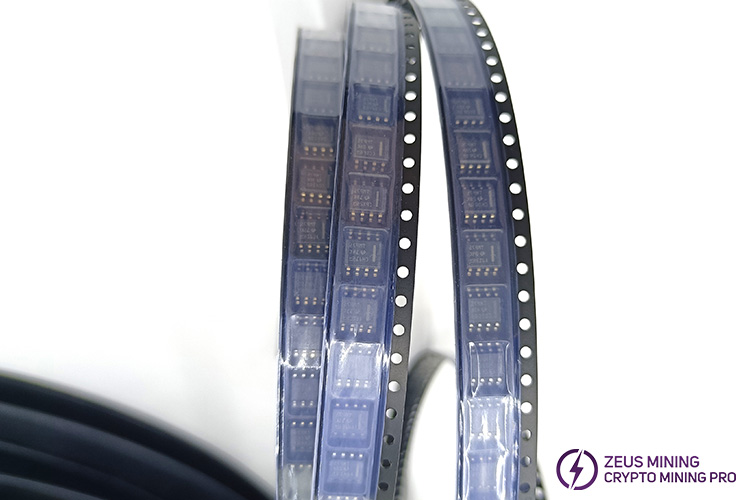

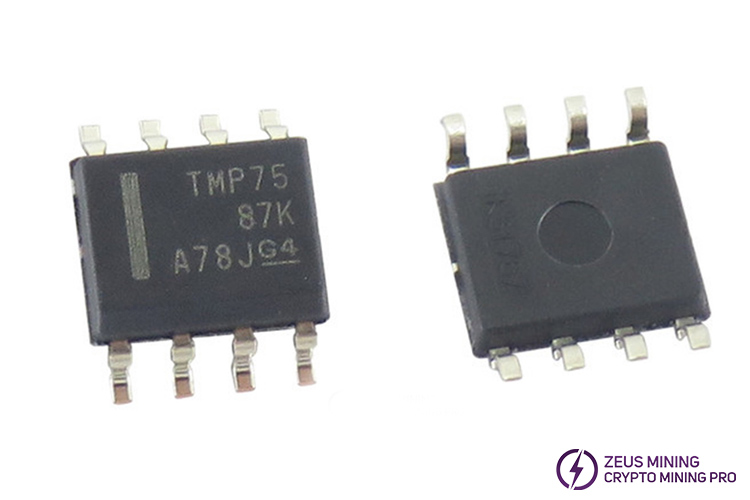

TMP75AIDR SOP-8 Miniature temperature sensor chip
TMP75 temperature sensor chip is suitable for Antminer S21 Hydro, KS5, KS5PRO, S19jpro, S19pro, D7, L7, K7, S19+, S19, T17+, KA3, KS3, T9+, S9se, Whatsminer M50, M32, M31s, M30S, M21s, M20s, Iceriver KS3L, KS5L, etc.
Tip: Due to different production times and batches, the same type of Hash board may also use different types of temperature sensors. Therefore, please be sure to check the model of your hash board temperature sensor in order to purchase spare parts accurately.
The TMP75 is a TI-manufactured I2C digital temperature sensor compatible with the LM75 protocol. It is widely used in Antminer S21 and S19 series hash boards, accurately collecting real-time temperature data from multiple points on the board. Relying on the I2C bus, it transmits the temperature data to the main controller. With programmable temperature control thresholds and alarm pins, it manages fan speed adjustment, high-temperature frequency throttling, and over-temperature board lockout protection, ensuring stable operation of the ASIC chip. When the chip malfunctions, symptoms may include erratic temperature readings, persistently high or low readings, accidental high-temperature frequency throttling by the miner, fluctuating hash rates, the hash board failing to recognize the temperature sensor, and frequent temperature control error messages.
• TMP75: 8 addresses, traceable to NIST

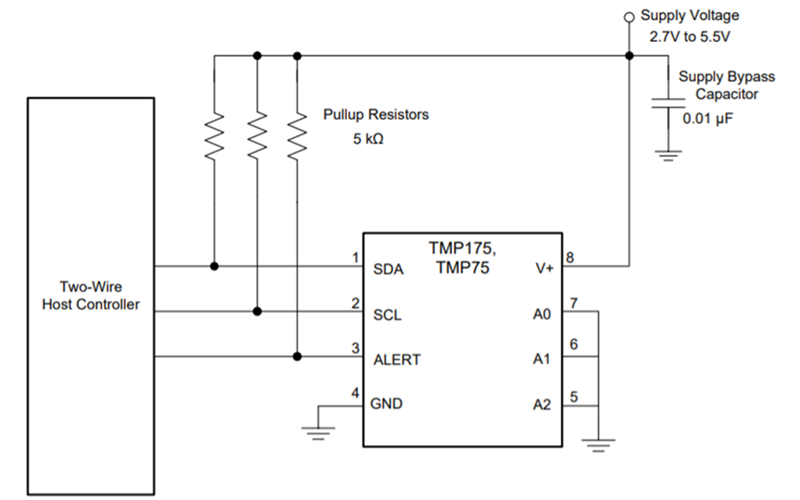

• Digital output: SMBus™, two-wire system and I2C interface compatibility.
• Resolution: 9 to 12 bits, user selectable
• Accuracy:
– ±1°C (typical value), −40°C to + 125°C
– ±2°C (maximum) from −2°C to +125°C
• Low quiescent current: 50μA, 0.1μA standby
• Wide power supply range: 2.7 V to 5.5 V
• Small 8-pin MSOP and 8-pin SOIC packages
• Power temperature monitoring
• Computer peripheral thermal protection
• Laptop
• Mobile phone
• Battery management
• Office machines
• Thermostat control
• Environmental monitoring and HVAC
• Mechanical and electrical equipment temperature

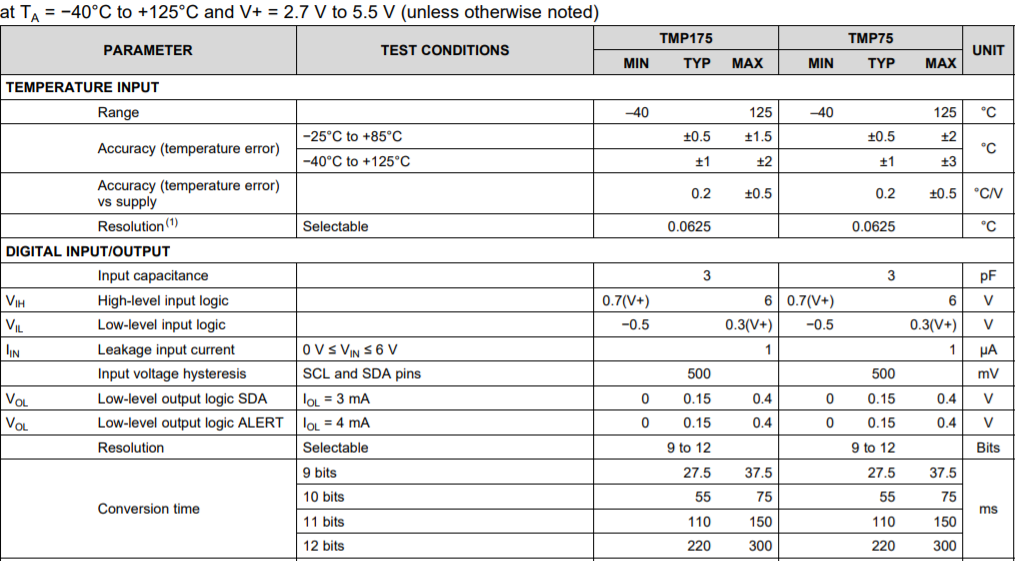

Electrical Characteristics
For chip soldering tutorials, please click Replacement method for IceRiver KS3M temperature sensor chip TMP75 to view.
