| Unit Price: | $ 4.8 |

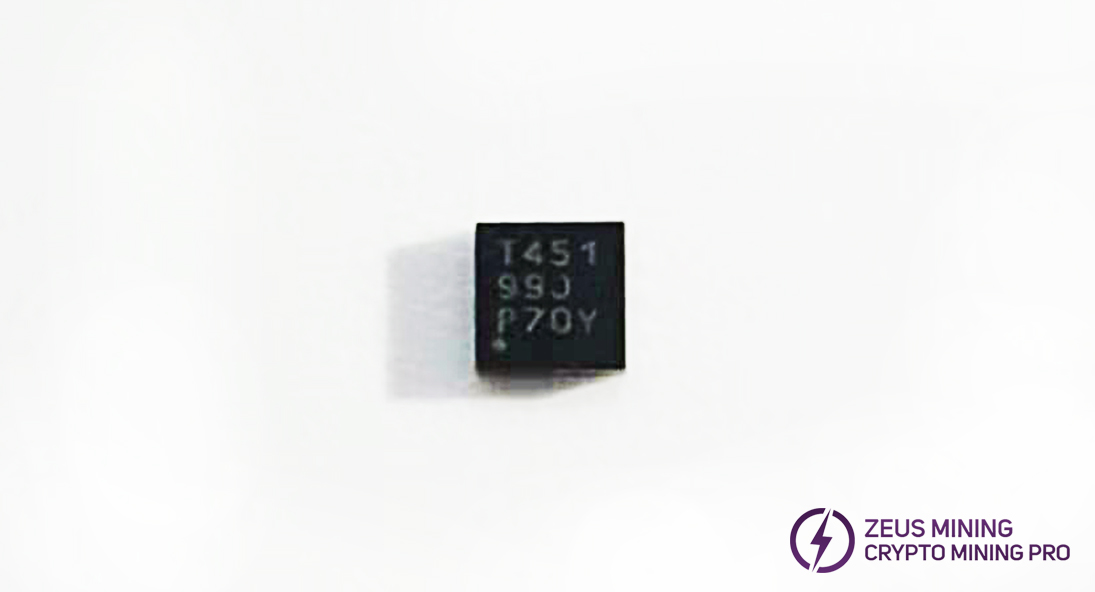

Hash board temperature sensor temperature chip
Chip code: T451
Applicable model: Antminer (Please refer to your Hash board for specific supported series)
Buy T451AIDQFR T451 Temperature Sensor from Zeusbtc.com with affordable price and top guarantee.
We offer a wide variety of similar Replacement Parts & Accessories items, so you can discover just what you’re looking for. We also have thousands of cheap TMP451AIDQFR T451 Temperature Sensor Promotion at zeusbtc.com, always with a reasonable price and super quality.
(Available for Antminer Z15, S9, T9, S11, S17, S17pro, T17+, L3+, L7)

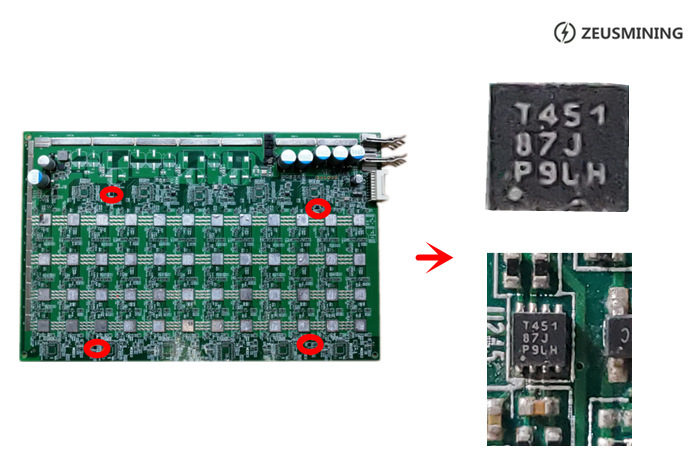

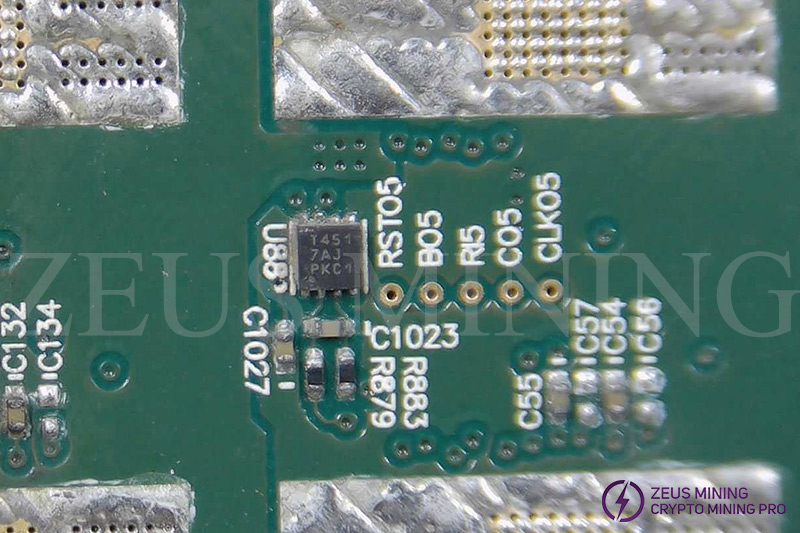

The T451 is a WSON-8 packaged I2C/SMBus local + remote dual-channel digital temperature sensor, widely used in Antminer S17, T17, L7, and Z15 series ASIC hash boards. It can collect the PN junction temperature of the hash board and ASIC chip, and upload the temperature data to the main controller via the I2C bus. It relies on the ALERT alarm pin to perform fan speed control, high-temperature frequency reduction, and over-temperature board lockout protection, ensuring the safe operation of the computing chip. When it malfunctions, the following faults may occur: erratic temperature readings, falsely high or low values, false high-temperature reports from the miner, frequent frequency reduction, and I2C communication failures causing the control board to fail to recognize the temperature sensor, continuously displaying temperature control errors, and intermittent offline status of the hash board.
Related maintenance tools:
View more temperature sensing chips for Antminer hash board
Click to view the article for tutorial on replacing the T451 temperature sensor chip:
How to replace T451 temperature sensor chip for Antminer L7?
