Electronic magnifier
Electronic magnifier
1-10 pcs $ 56
10-20 pcs $ 53
>20 pcs $ 50

MOQ: 1 pcs Weight: 1.5 KG

+ Add To Cart
If you dont know how to place an order please check our FAQs

WhatsApp : +8618623251355
Product description:

Maintenance tools: 1000 times Electronic digital magnifier, 4.3-inch screen

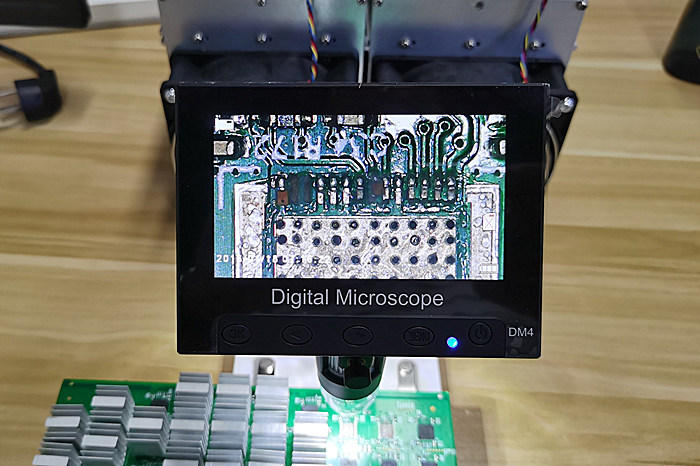

The electronic magnifying glass is a repair tool for repairing small circuit boards, such as mobile phone motherboards, miner hash boards, control boards, etc. It is a digital microscope with a 4.3-inch LCD screen of 1000 times, zero vision distance, convenient carrying, and 1080P high-definition display The screen is enlarged, and the LED light can be adjusted. Economical and cost-effective.


This product is integrated with a screen and a high-definition large screen, allowing you to more intuitively observe the items you need to inspect. The high-definition picture, worry-free measurement, and strong light adaptability.



Features:

1. 8 bright white LED soft light supplement light, easy to deal with various scenes, can be used day and night;

2. Adjustable 0x-1000x focus, making one-handed operation more convenient;

3. The universal rotating base makes observation more stable, even if your hands are shaking;

4. USB interface charging, get rid of the troubles of the data line, making observation more convenient;

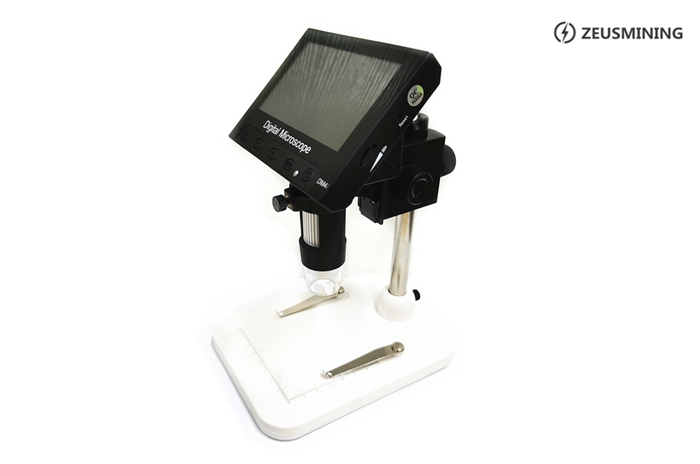

Electronic digital magnifier

The product uses a high-definition camera and high-definition screen.

Many products on the market with similar appearance use inferior cameras and screens, please pay attention to distinguish.

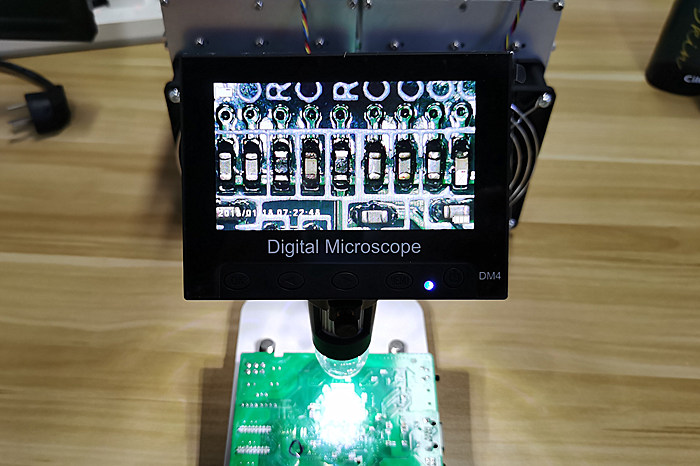

magnifying glass for electronic repair

Product parameter

Product magnification50X-1000X
Lens structure2G+1R
Field of view16°(Specific according to the lens)
Number of LEDs8 SMD3528 high-brightness white lights (brightness adjustable)
Focus mode and focus rangeManual adjustment: 0~40mm
Imaging distance3mm to infinity
Sensor size1/7.5''
Signal to noise ratio45db
Sensitivity3V/lux-sec
Video recording formatAVI
Video resolution640*360
Working range0-10m (open scenes, occluded scenes will affect the working range)
Working hours≥90 minutes (full power state, battery life also affects working hours)
Power supply650mah built-in lithium battery
Charging requirementDC-5V/1A
Working current~270mA
Working temperature0°C~40°C
Storage temperature-10°C~60°C

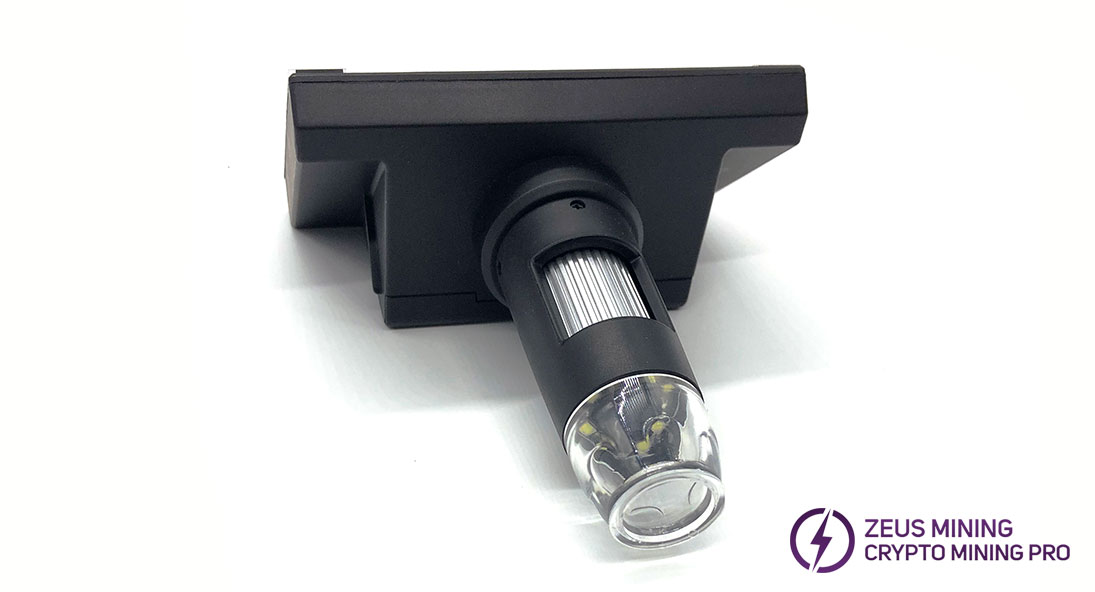

portable electronic magnifier

Related maintenance tools:

Antminer New version of multi-function test fixture

Official thermoset gel 220g

BM1387 tin tool, high temperature resistant composite material
