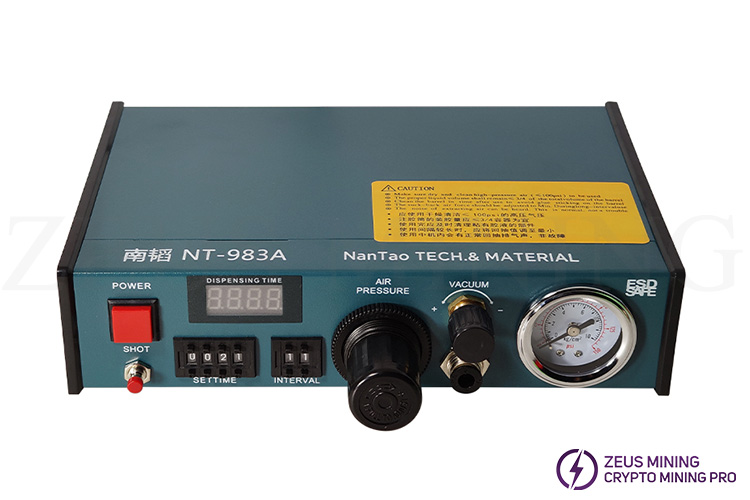

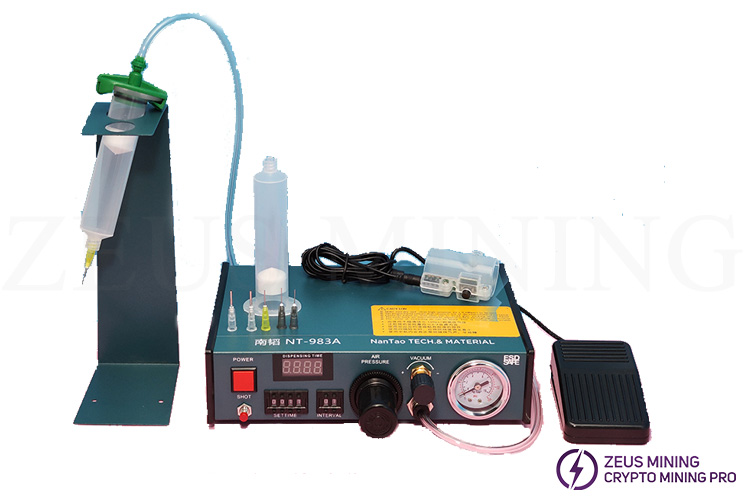

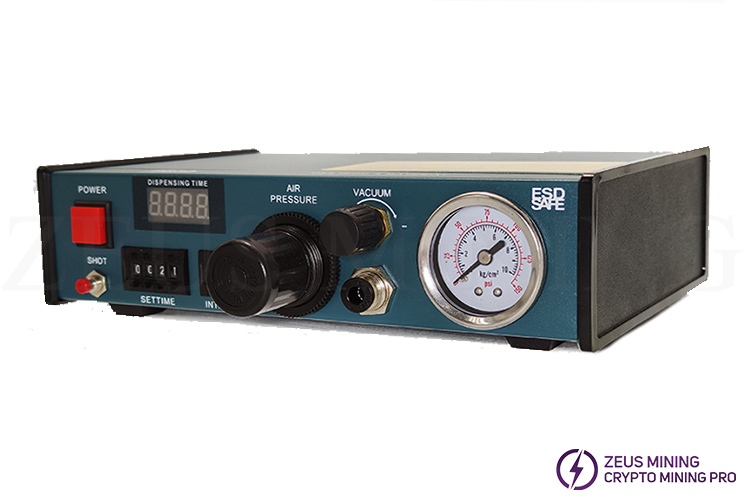

NT-983A automatic digital display glue dispenser

The NT-983A automatic high-frequency dispensing machine not only has a semi-automatic dispensing mode but also adds a fully automatic mode, which shows excellent performance in high-frequency micro-dispensing work; with the automation platform, the performance can be greatly improved. It uses a high-end all-copper coil transformer with a 3032 high-strength motherboard, which has high accuracy, reduces waste caused by uneven glue production, and greatly improves work efficiency. It can be widely used in various liquids or fluids such as AB glue, epoxy glue, solder resist, silicone, grease, ink, etc.

Product basic parameters:

Automatic timing: 00.01s~99.99s

Dispensing mode: 16 free setting modes, with dispensing time display

Manual timing: continuous spit-out coating, marking

Dimensions: 235*235*63mm

Body weight: <2.2kg

Input voltage: 220V±10% 50Hz

Internal voltage: 12V DC

Input air pressure: 10~100 psi

Output air pressure: 1~80psi

Minimum throughput: 0.0001ml

Spit interval time: 0.1~9.9s (automatic timing function)

Product features:

1) Fully automatic dispensing, high speed, and high efficiency: The fully automatic dispensing mode of the fully automatic machine is controlled by the cycle time controller. After setting the dispensing interval, the machine will automatically pause after the first dispensing. When the interval is reached, the machine will start The next time the glue is released, and it will continue to pause, so it will continue to cycle without repeated settings.

2) Quick response and precise control; 3032 high-strength main board is used, with a built-in time chip, and the rapid response is 0.1s without lagging, and it can be dealt with calmly.

3) Sixteen glue-out modes are optional; the SETUP four-digit spit-out time programmer dial switch on the back can be used for 16 glue-out modes by toggling it. Select the mode combination settings as follows:

 4) Sophisticated solenoid valve, fast response, precise glue dispensing; Compared with other dispensing machines using ordinary solenoid valves, NT-983A uses sophisticated solenoid valves, which can instantly open and close diaphragm valves, respond quickly to action commands, and improve work efficiency by 80% More than %, suitable for all kinds of high-viscosity, high-precision, large-capacity glue.

5) Precise quantification to eliminate waste, the repeat accuracy rate is ±0.3%; after the machine is set to quantify, the glue can be repeated according to the set glue output, the repeat accuracy is high, the error rate is reduced, and the glue output each time is within the error, to reduce waste caused by uneven glue output.

6) All-copper transformer: high-end all-copper coil transformer is used to stabilize the voltage and increase the service life. It is not afraid of high-frequency and high-intensity work scenarios, improves operation safety, and is highly efficient and energy-saving.

7) Dual-control mode, free to switch; equipped with dual-mode signal input ports, users can adjust the working mode according to the required working scene. The pedal/hand control mode has passed the life test of millions of presses, and the signal error rate is less than 0.01%.

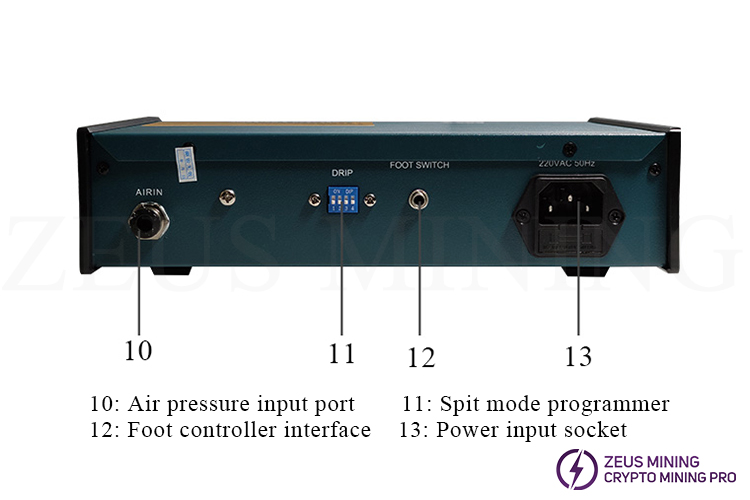

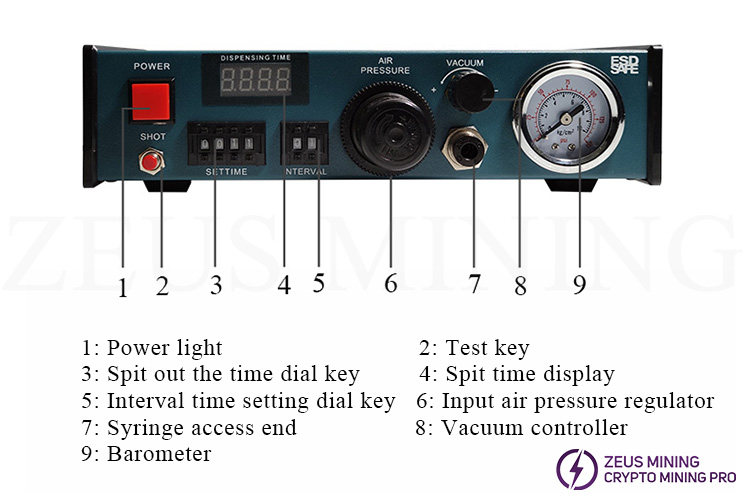

NT-983A fully automatic high-frequency dispensing machine interface description:

Application:

It is suitable for electronic components, the inductance industry, substrate production, instrumentation, mechanical hardware, electrical components, jewelry, mobile phones 3C digital, etc.
