| Unit Price: | $ 29 |

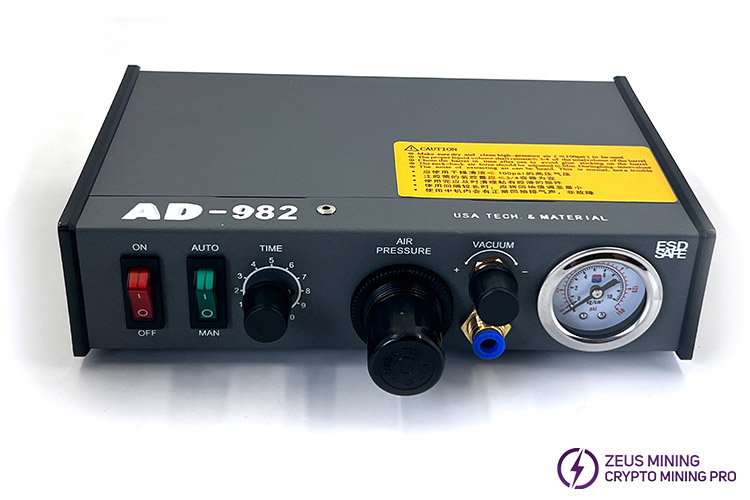

AD-982 precision semi-automatic glue dispensing machine dispenses glue accurately and refuse waste. Its products use precision barometers, increased air pressure regulators, fuse box tail plugs, safety vent valves, etc., which are safe, efficient, durable, and improve gluing efficiency. It can be widely used in 90% of the glue on the market, such as quick-drying glue, red glue, yellow glue, silicone glue, epoxy resin, lubricating oil, screw-locking glue, flux, tin paste, etc.
1. Fast solenoid valve, fast response, accurate glue; Compared with other dispensing machines that use ordinary solenoid valves, AD-982 uses imported solenoid valves, which can instantly open and close diaphragm valves, respond quickly to action commands, and improve work efficiency by 80% More than %, suitable for all kinds of high-viscosity, high-precision, large-capacity glue.
2. All-copper transformer, no fear of high frequency and strength; AD-982 adopts a high-end all-copper coil transformer, stable voltage transformation, and long service life. It is not afraid of high-frequency and high-intensity work scenarios, improves operation safety, and is highly efficient and energy-saving.
3. Pedal and manual control, dual control mode, free switching; AD-982 is equipped with dual-mode signal input ports so that users can adjust the working mode according to the required work scene; the pedal/manual control mode has passed the life test of millions of presses, the signal error rate is less than 0.01%.
Automatic timing | 0.01~1s, 0.1~10s, 0.2-20s, 0.3-30s can be set |
Manual timing | continuous pedal or one-touch pedal |
Dimensions | 235x225x63mm |
Body weight | 2.20kg |
Internal voltage | 12~24V DC |
Input air pressure | 2.5~7 bar (35~100 psi) |
Air pressure output | 0.1~5.5 bar (1~78 psi) |
Repeatability | ±0.5% |
Minimum injection volume | 0.01ml |
Input power supply voltage | 220~240V 50HZ AC |
Electronic components, inductance industry, substrate production, instrumentation, mechanical hardware, electrical components, Zubao jewelry, etc.

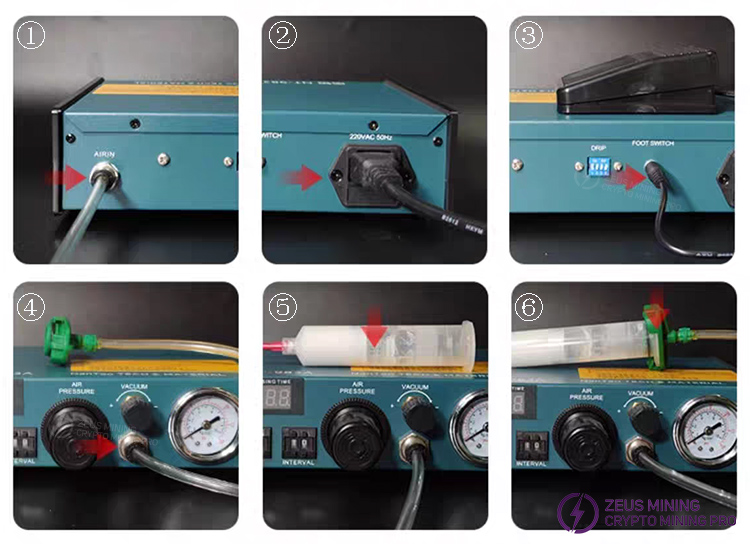

1. Connect the air supply;
2. Connect the power supply;
3. Connect the manual or foot controller;
4. Connect the adapter air hose;
5. Load the adhesive into the syringe;
6. Install the adapter.
Button and interface description:

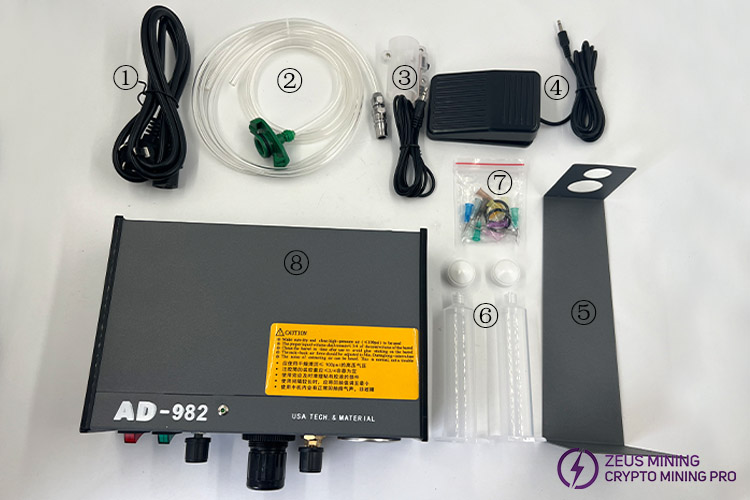

①: Power cord
②: Adapter, air inlet pipe
③: Manual switch
④: Foot switch
⑤: Glue dispensing bracket
⑥: Glue dispensing syringe
⑦: Glue dispensing needle, sealing ring
⑧: Host
