APW121417a 14V-17V V1.00 EMC
Function: Applied to Bitmain Antminer L7, S19XP and S19(240-Ch) air cooling miner.
Unit Price: $ 193 $ 135
MOQ: 1　　Unit Weight: 4 KG　　Availability: In Stock
- +
+ Add to cart

Warranty: 160 days
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Download the BOM for one-stop delivery
Product description:

Brand new Antminer APW12 1417 a (version) PSU for Bitmain Antminer L7, S19XP and S19 (240-Ch). The brand new and original Antminer APW12 1417a power supply is a part of the Antminer L7. The AC output voltage of the power supply is 200-240V, the AC input current is 20Amp, and the AC input frequency range is 47-63Hz.

Brand new original, six months warranty, welcome to buy!

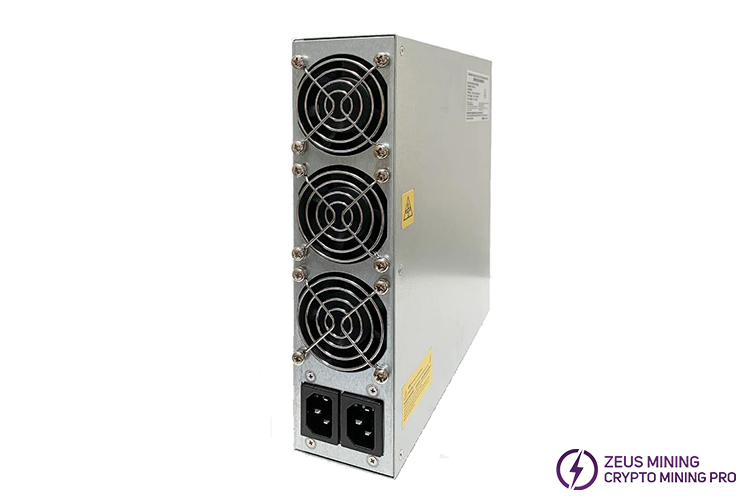

APW12 1417a PSU for S19

To ensure the normal use of the miner, please do not use other versions of the APW12 power supply to replace it. If you are unsure about your power supply model, please inform the sales of the miner model, and we will recommend the power supply version for you.

Antminer Power Supply APW121417a

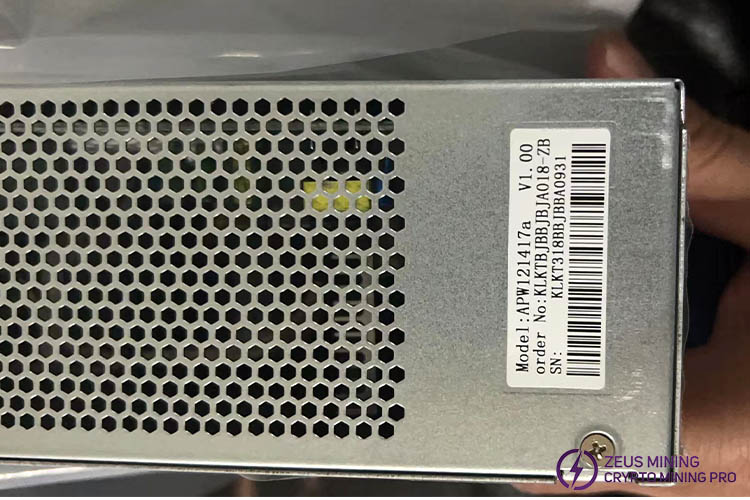

Bitmain APW12 14v 17v PSU

Product Glance:

Out1

DC Voltage

14V - 17V

Rated Current (220V input)

182A

Ripple & Noise

<1%

Line Regulation

<1%

Load Regulation

<1%

Setup Time

<2S

Short Circuit Protection

>10mS

Detailed Characteristics:

Out2

DC Voltage

12.3V

Rated Current (220V input)

18A

Ripple & Noise

<1%

Voltage Accuracy

12.2V - 12.4V

Line Regulation

<1%

Load Regulation

<1%

Setup Time

<2S

Short Circuit Protection

>10mS

Input

Voltage Range

200 - 240V AC

Frequency Range

47 - 63Hz

Power Factor

>0.99 (full load)

Leakage Current

<1.5mA (220V 50Hz)

Protection

Low-voltage Input

80 - 89V AC

Output Short Circuit

Yes

Overheat Protection

Yes

Over-current Output

260A-340A (protection value varies under different voltage)

Environment

Operating Temperature

-20 - 45℃

Operating Humidity

20% - 90%RH (non--condensing)

Altitude

< 2000m

Structure

Dimensions

254.6mm * 251.6mm * 63mm

Net Weight

3.6kg

Cooling System

Forced‐air cooling

Noise

45dBA
