| Unit Price: | $ 389 |

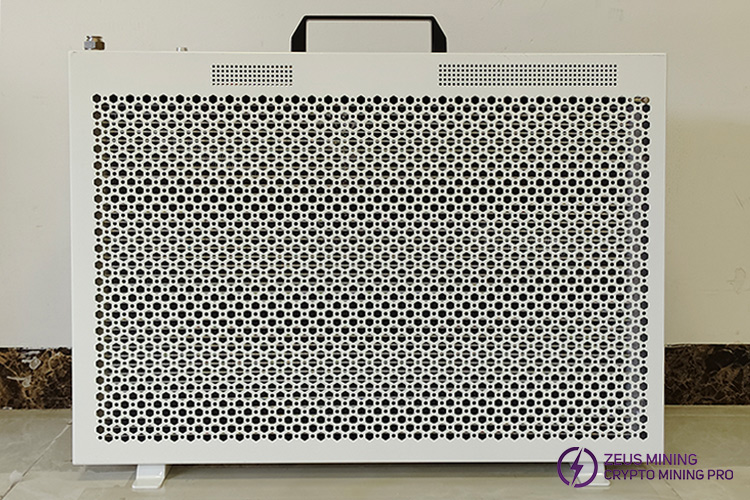

Lian Li 12KW intelligent temperature control water cooling kit water cooling radiator for Hydro ASICs adopts the integrated application of pump and exhaust, has no environmental restrictions, and supports 12KW high-power heat dissipation, silent operation, and water-cooled heat dissipation. Built-in adjustable speed fan from 500 to 6000 rpm. Manual integrated pressure-reducing valve and strong power water pump, excellent cooling effect, large flow, high-temperature resistance, widely used in various water cooling systems. The water-cooled row has a built-in 220V power supply, which can be turned on with one button, and no external power supply is required to avoid repeated plugging and unplugging. It is suitable for original Hydro miners such as M33S+ / M33S++ / M53 / M53S / S19+Hyd / S19PRO+Hyd, and it is also suitable for water cooled modification of most miners.
Oil filling capacity: ≈ 8L pure water or coolant
Power interface type: C14 female socket * 1; requires C13 power cord / 220V
Water-cooled row power consumption: 0.5KW
Net weight: 21KG
Weight including packaging: 24KG
Pipe diameter: Inlet and outlet diameter 12MM (standard silicone tube with an inner diameter of 12MM)
Product size: 750x220x580mm
Packing size: 820x710x240mm
Test ambient temperature: 33℃
Working power consumption: 11KW
Working noise: 20-75DB
Radiator heat dissipation temperature: 46.6℃
Water flow rate: 11L/MIN
Speed range: 0-6000 rpm
1. When using it on two water-cooled miners simultaneously, the total hashrate of the miners cannot exceed 500T.
2. When using it on one water-cooled miner, the hashrate of the miner cannot exceed 400T.
3. The 12KW radiator can be used for 2 original water-cooled miners of the latest Antminer and Whatsminer; or 2 air-cooled miners of all brands converted to water-cooled miners, with the ambient temperature below 25℃.
4. It is recommended that the water inlet pipe be inserted completely into the water pump to reduce the generation of bubbles and damage to the air pump.
5. The 12kW radiator has been upgraded, and the latest model will be shipped by default.

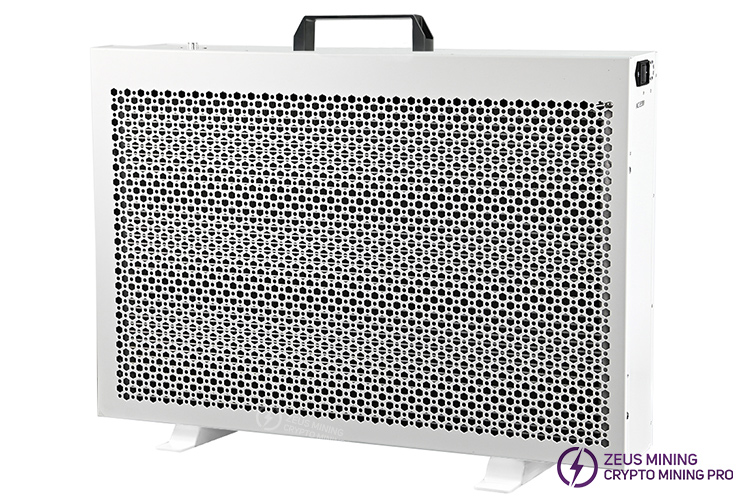

Before:

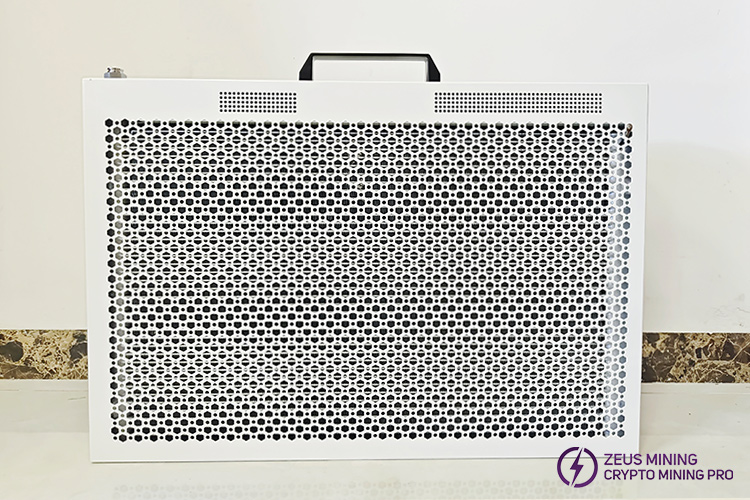

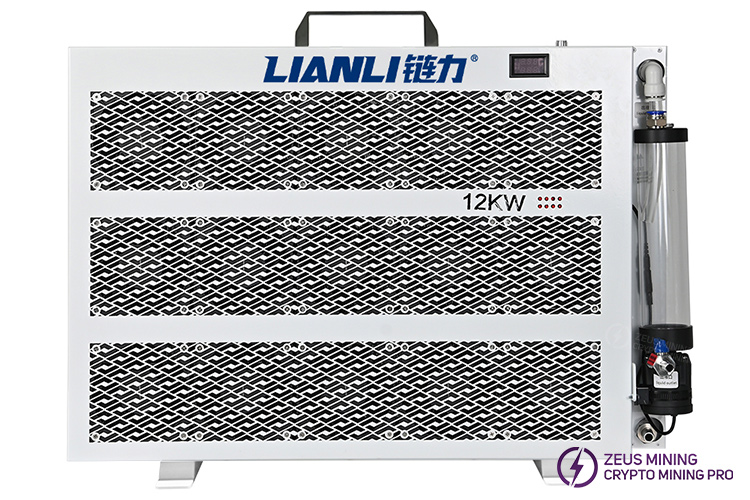

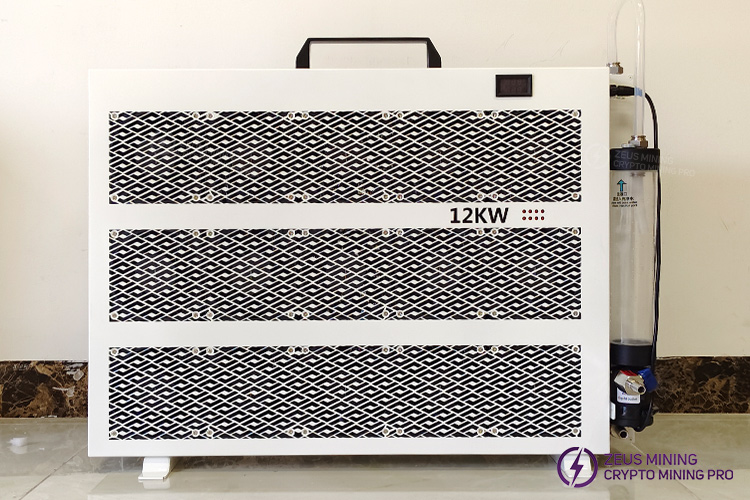

Now:

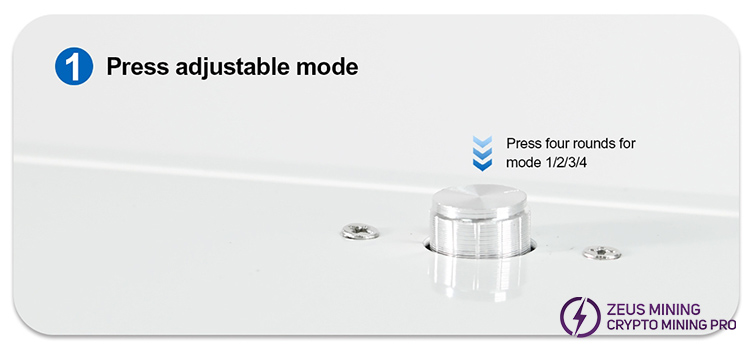

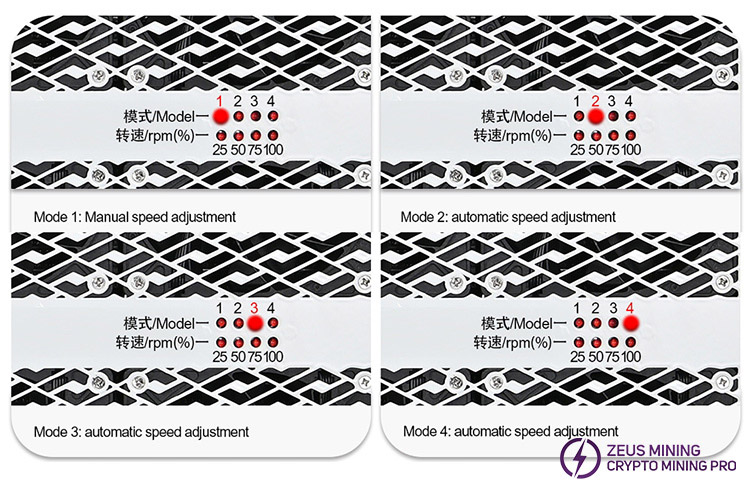

Product speed adjustment gear description:

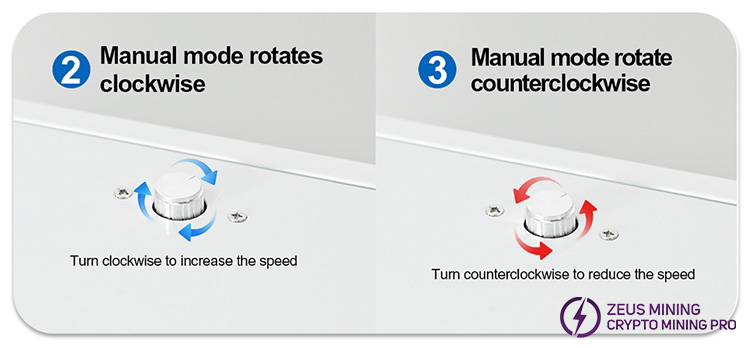

Mode 1: Manual speed adjustment
Mode 2: Automatic speed adjustment (water temperature below 25℃, fan speed 0%, 25-30℃ fan speed 25%, 30-35℃ fan speed 50%, 35-40℃ fan speed 75%, 40-42℃ fan speed 100%)
Mode 3: Automatic speed adjustment (water temperature below 25℃, fan speed 0%, 25-35℃ fan speed 25%, 35-45℃ fan speed 50%, 45-55℃ fan speed 75%, 55-65℃ fan speed 100%)
Mode 4: Automatic speed adjustment (water temperature remains at 35℃; the fan does not start when the temperature is below 35℃; the fan starts when the temperature is above 35℃)
The LIANLI 12KW water cooling radiator with intelligent temperature control can automatically adjust the cooling effect according to the ambient and chip temperatures, so the water inlet temperature is always maintained between 20-40℃. Whether in the hot summer or the cold winter, you no longer need to worry about the Antminer being unable to start up due to temperature reasons and having no hash rate!

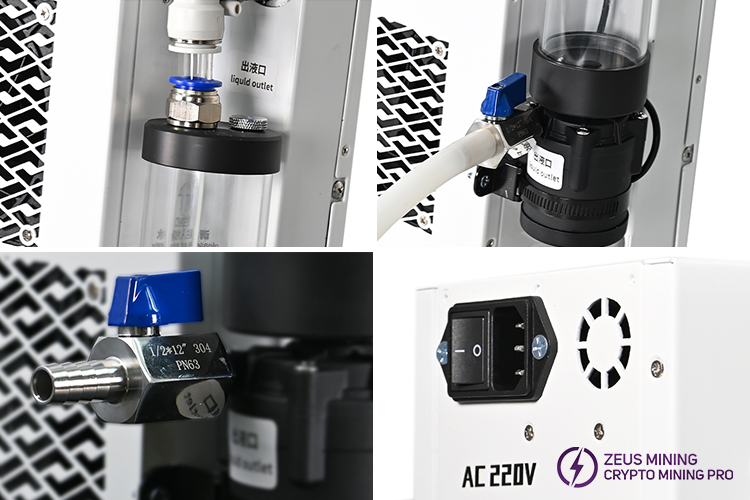

Product details display:
1. The tank is optimally connected to the radiator without the need for a separate water pipe.
2. 3M wall thickness stainless steel pagoda, strong and durable, prevents liquid leakage, anti-pressure corrosion, and rust.
3. The 220V power supply is powered on with one click, no external power supply is required to avoid repeated removal and insertion.
4. Customized high-density fin water cooling plate, 36 cooling channels, and more powerful heat dissipation.
Product connection diagram:

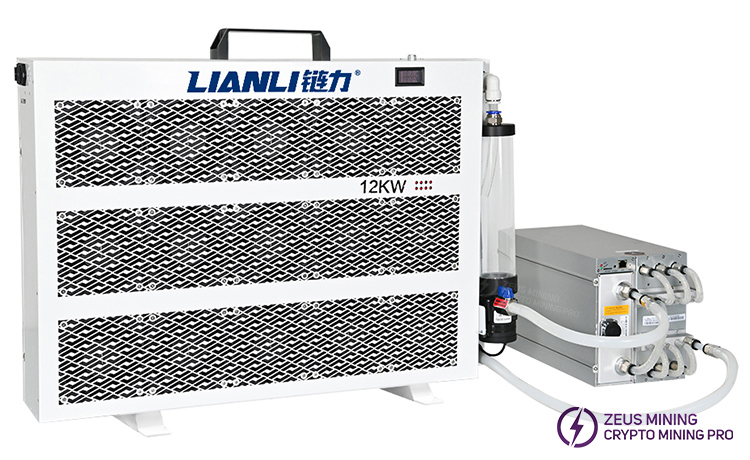

For 1 original Hydro ASIC miner:

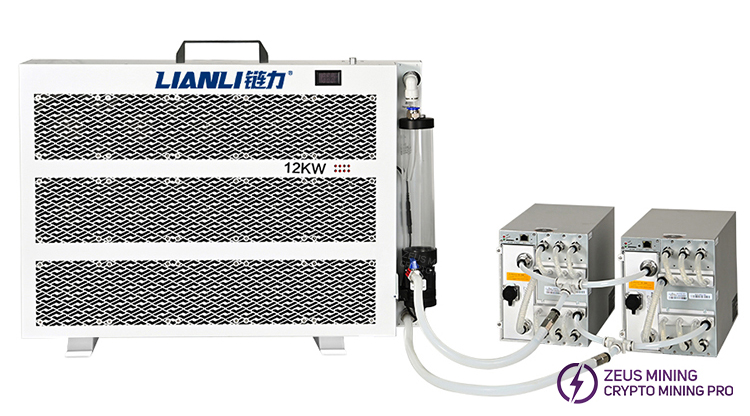

For 2 original Hydro ASIC miners:

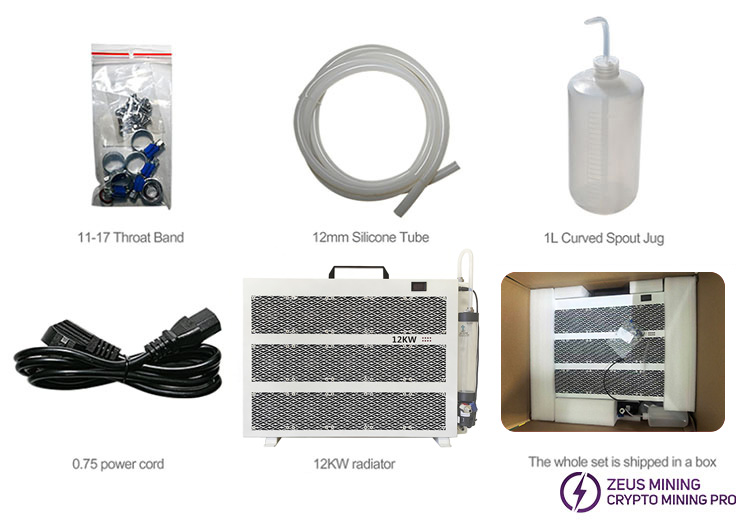

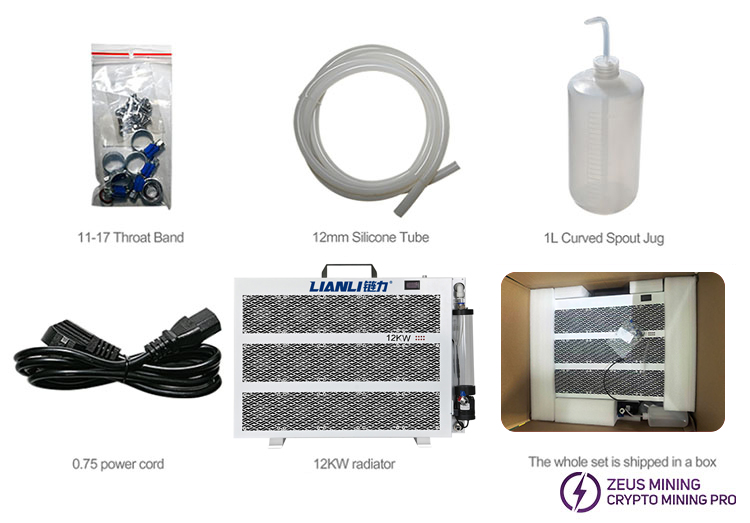

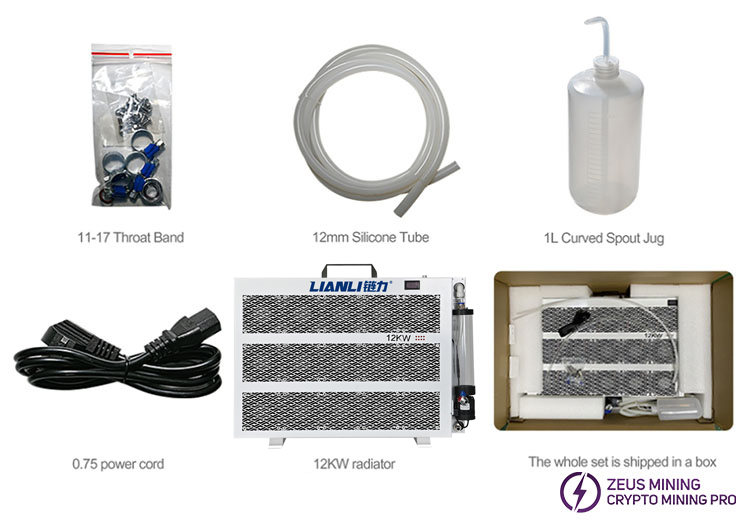

For the 12kw radiator:

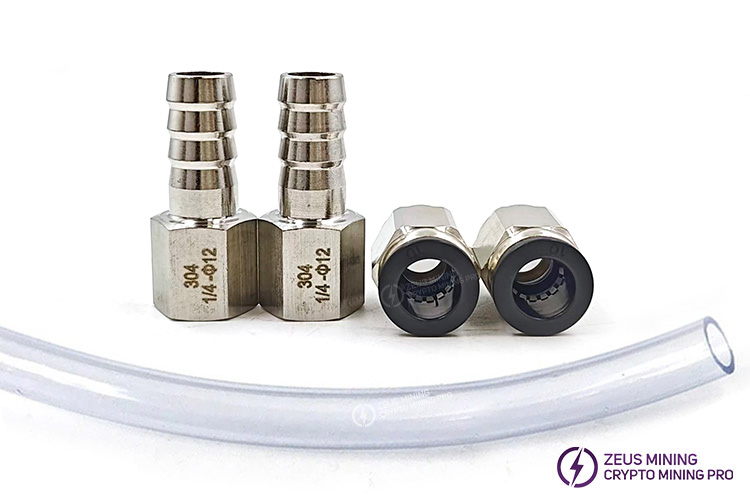

Among them, the 10mm water cooling kit is suitable for miners with a 10mm inlet and outlet of the water cooling plate manifold.

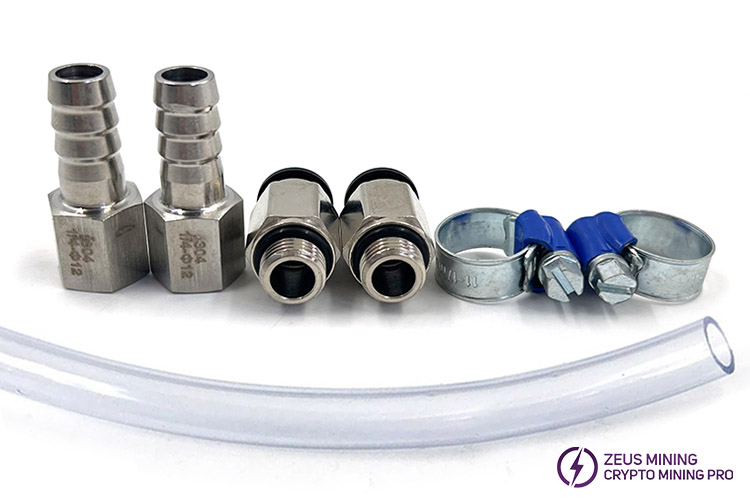

Accessories for 1 miner, including:
1M transparent tube * 1
Threaded pagoda straight-through fittings * 2
Quick connectors 10mm * 2

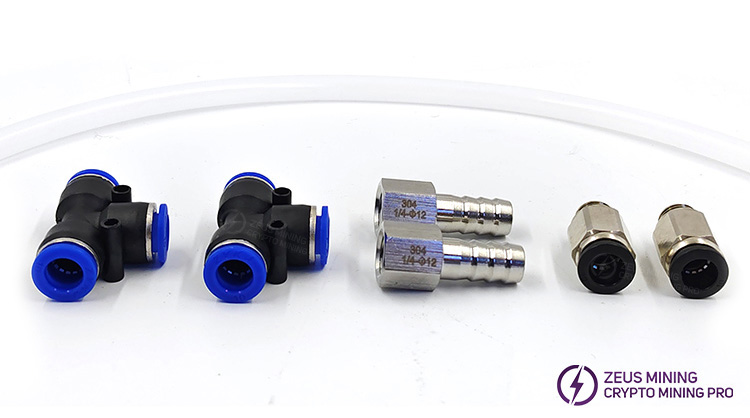

Accessories for 2 miners, including:
1M transparent tube * 1
3 way quick fitting connector PE10 * 2
Threaded pagoda straight-through fittings * 2
Quick connectors 10mm * 2

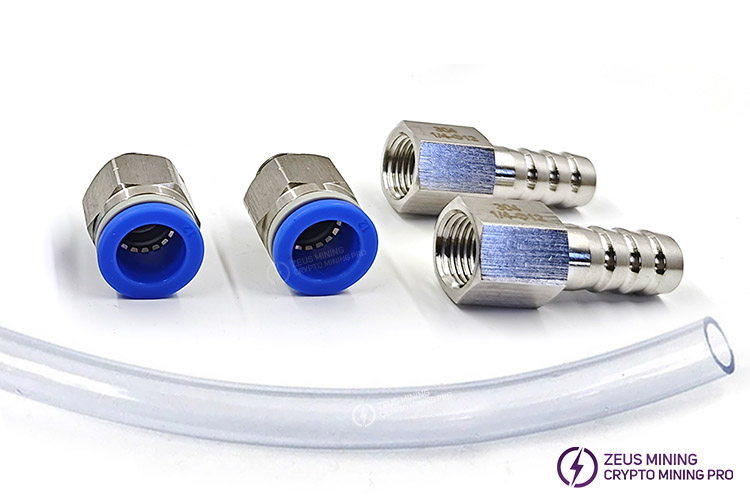

The 12mm water cooling kit is suitable for miners with a 12mm inlet and outlet of the water cooling plate manifold.

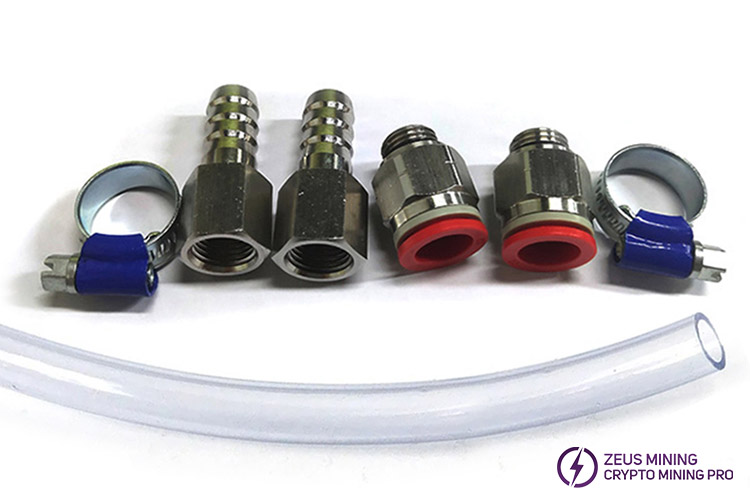

Accessories for 1 miner, including:
1M transparent tube * 1
Threaded pagoda straight-through fittings * 2
Quick connectors 12mm * 2

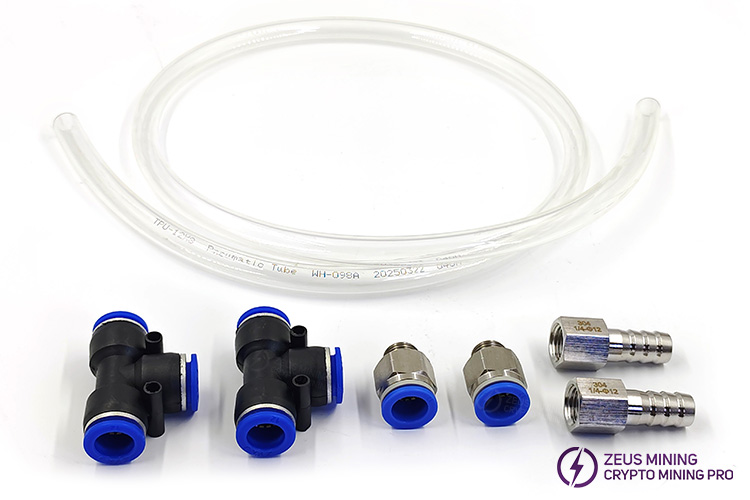

Accessories for 2 miners, including:
1M transparent tube * 1
3 way quick fitting connector PE12 * 2
Threaded pagoda straight-through fittings * 2
Quick connectors 12mm * 2
For installation details of the water cooling kit, please refer to the article: Lian Li 12KW Hydro ASIC water cooling kit installation tutorial.
