OC-TFD-B06 digital display temperature flowmeter
OCOCOO digital flow meter thermometer water cooler display DIY system real-time monitor OLED screen water cooling modding fitting OC-TFD-B06.

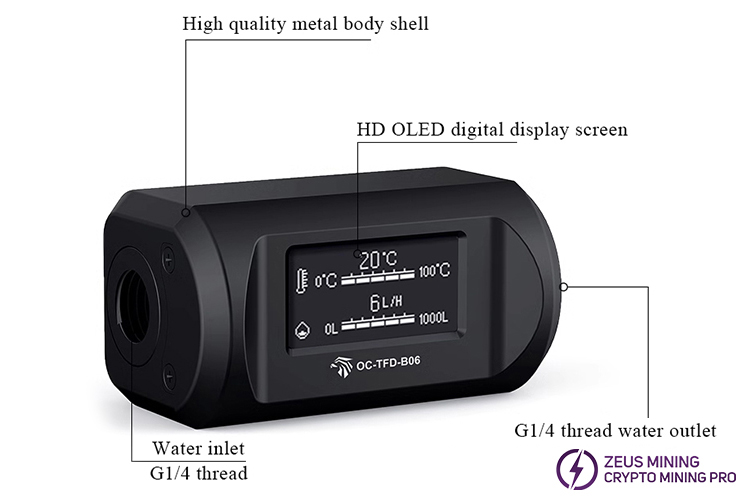

OC-TFD-B06 digital flow meter thermometer uses a high-definition OLED display to perform real-time temperature and flow detection. The sleek appearance is matched with high-quality metal shell material, which doubles the texture. The G1/4 threaded interface provides a better operation guarantee for water-cooling equipment.
Product parameters:
Brand: OCOCOO
Product model: OC-TFD-B06
Shell material: metal
Interface form: G1/4 thread
Color: black
Screen type: OLED digital display screen

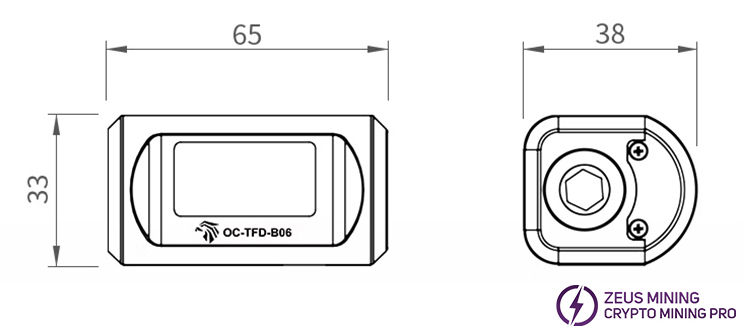

Size: 65x33x38mm
Weight: 146g

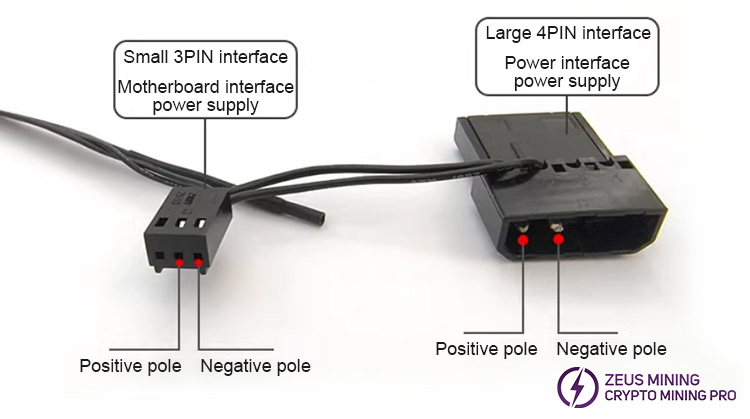

Powering method description:
This device uses two power supply ports, and you only need to select one to complete the power supply. Note: Do not connect to two power supply interfaces at the same time, otherwise it will cause the device to burn.

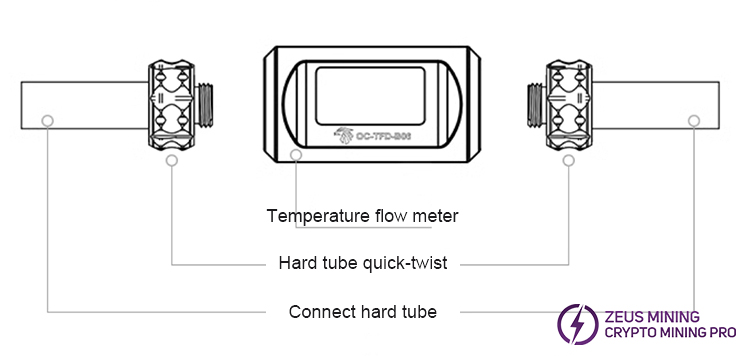

Connection diagram:
How to use:
One end connects the water-cold miner, and the other is connected to the radiator; it is used to detect the water temperature and flow of water-cold miners and radiators.

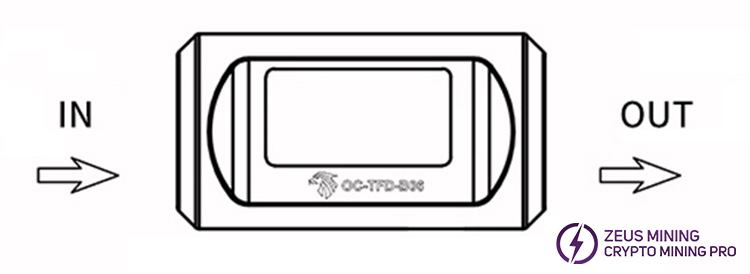

Schematic diagram of IN or OUT:

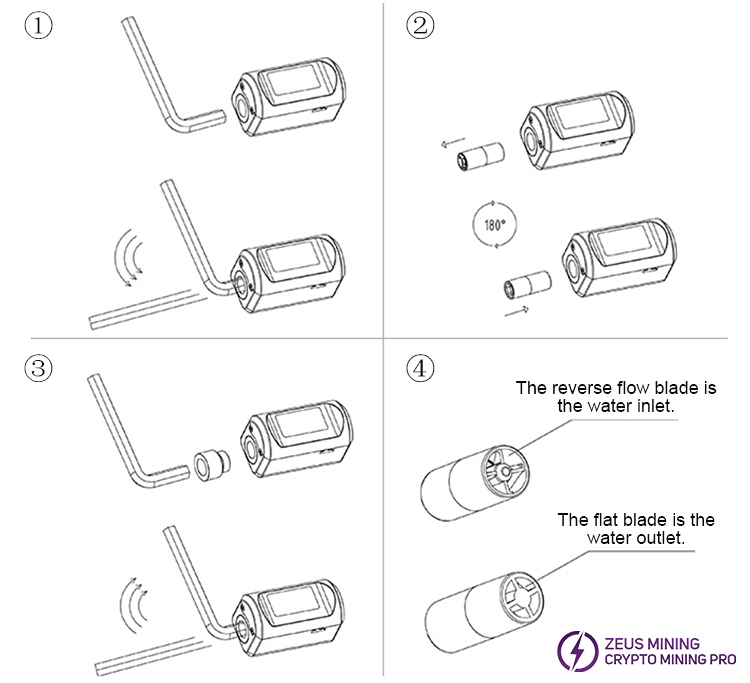

As shown in the figure above, the product defaults to the left water inlet and right water outlet; if it is opposite to your water layout, please change the inlet/outlet direction according to the steps shown in the figure below.
1. Use an 8mm hexagonal wrench to loosen the left nut of the temperature flow meter counterclockwise;
2. Take out the internal rotor, turn it 180° and reinstall it;
3. Install the nut and tighten it evenly.
4. Note: If you accidentally mix up the direction of the rotor, you can determine the direction of the rotor as shown in the figure above.

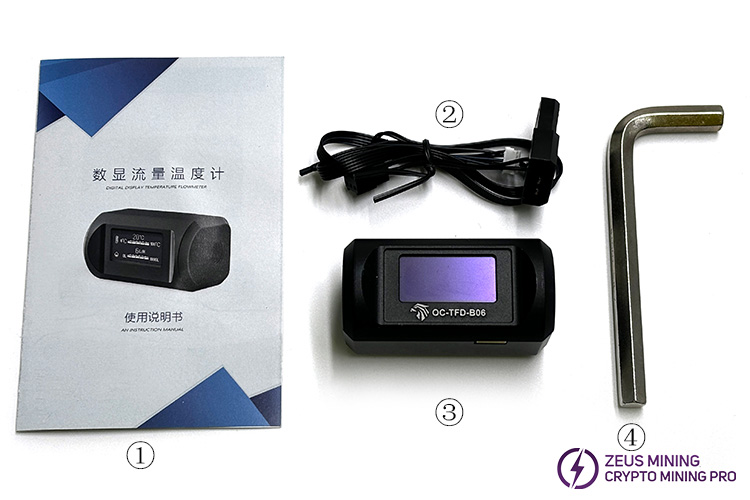

①: User manual
②: Power cord
③: Thermometer host
④: Hexagonal wrench

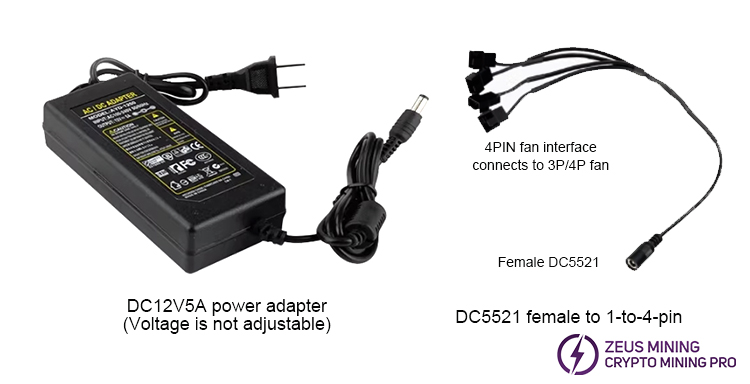

In addition, we also configured an additional 12V 5A power supply to help power the OC-TFD-B06 digital flow thermometer.
