| Unit Price: | $ 309 |

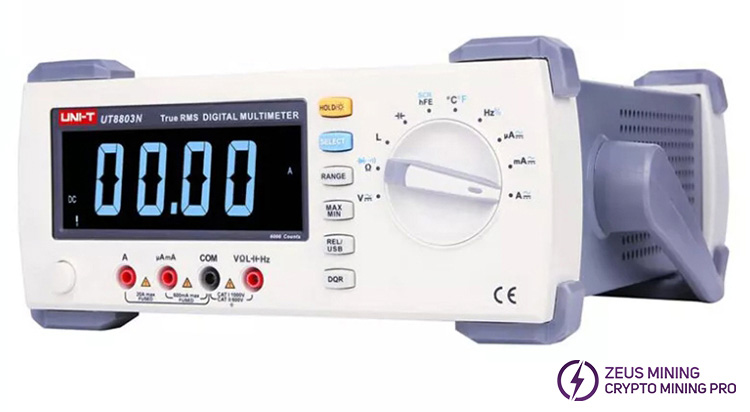

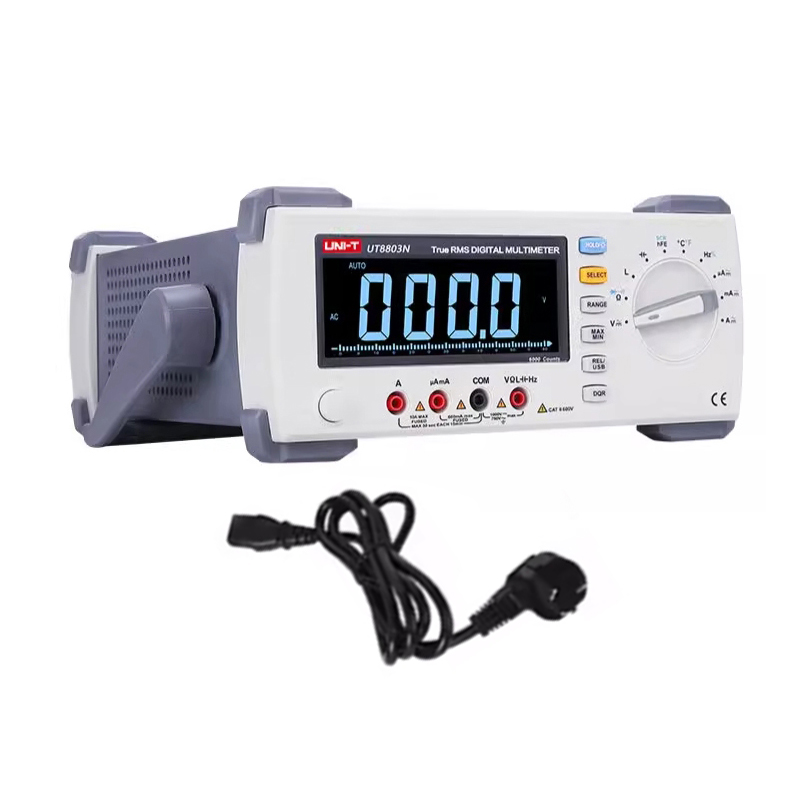

UT8803N benchtop digital multimeter is a 5999 count, 3 5/6 digit auto-range true RMS benchtop digital multimeter. It has a large screen with a backlight, an extraordinarily large character display, full function, complete range overload protection, and a unique design, making it an excellent electrical measuring instrument. This meter can measure AC and DC voltage, AC and DC, resistance, frequency, capacitance, inductance, transistor hFE, diode (LED), thyristor (SCR), and buzzer circuits on and off. It is an essential experimental tool for major miners to repair.
UT8804N is a 59999 count, 4 5/6 digit automatic range, true RMS benchtop digital multimeter with a 100kHz frequency response, providing a multi-level, all-round clear display of measurement results and graphical display with both readings and trend charts so that the measurement results can be seen at a glance. The circuit design of the whole machine adopts large-scale integrated circuit A/D analog-to-digital conversion technology, microprocessor technology, multi-function measurement technology, and high-stability thin film resistor manufacturing technology, making it a digital multimeter with superior performance. It can be used to measure parameters such as AC and DC voltage, AC and DC, resistance, conductivity, diode, circuit on/off, capacitance, temperature, frequency, pulse width, etc., and has data retention, maximum/minimum/average measurement, comparison function measurement, relative value measurement, peak detection, trend chart capture, and up to 20,000 data records/readback functions.
Warning: When the measured voltage exceeds 600V, do not use this product in a CAT Ⅱ, CAT Ⅲ & CAT Ⅳ measurement environment.
Attention: When placing an order, if you choose a US, UK, EU, or AU power cord plug, we will give you an extra all-in-one universal travel adapter to ensure the normal power of the product.
Product parameters:
Basic functions | UT8803N | Basic accuracy | UT8804N | Basic accuracy |
DC voltage | 600mV / 6V / 60V / 600V / 1000V | ±(0.3%+2) | 60mV / 600mv / 6V / 60V / 600V / 1000V | ±(0.025%+5) |
AC voltage | 600mV / 6V / 60V / 600V / 750V | ±(0.6%+5) | 60mV / 600mV / 6V / 60V / 600V / 1000V | ±(0.3%+30) |
DC current | 600μA / 6000μA / 60mA / 600mA / 20A | ±(0.8%+3) | 600μA / 6000μA / 60mA / 600mA / 20A | ±(0.08%+10) |
AC current | 600μA / 6000μA / 60mA / 600mA / 20A | ±(1%+5) | 600μA / 60004A / 60mA / 600mA / 20A | ±(0.6%+20) |
Resistance | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ | ±(1%+5) | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6000kΩ / 6MΩ / 60MΩ | ±(0.05%+2) |
Capacitance | 6nF / 60nF / 600nF / 6μF / 60μF / 600μF / 6mF / 60mF | ±(1.5%+5) | 6nF / 60nF / 600nF / 6μF / 60μF / 600μF / 6mF / 60mF | ±(2%+5) |
Inductance | 600μH / 6mH / 60mH / 600mH / 6H / 60H / 100H | ±(1.5%+5) | 60ns | ±(2%6+10) |
Frequency | 600Hz / 6kHz / 60kHz / 600kHz / 6MHz / 20MHz | ±(0.1%+10) | 60Hz~60MHz | ±(0.01%+5) |
Duty cycle | 10%-90% | ±(1.2%+30) | ||
Temperature | -40°F~1832°F | ±(1%+5°F) | -40℃-1000℃ | ±(1.0%+30) |
-40℉-1832℉ | ±(1.5%+50) | |||
Special functions | ||||
Maximum display | 5999 | 59999 | ||
Auto range | √ | √ | ||
True RMS | √ | √ | ||
Frequency response | 100kHz | 100kHz | ||
Diode | √ | √ | ||
On / off buzzer | √ | √ | ||
Digital hold | √ | √ | ||
Maximum / minimum value | √ | Minimum, maximum, average, peak value; data filtering | ||
USB data transfer | √ | √ | ||
Voltage and current | AC+DC | |||
Input impedance | ≥10MΩ | ≥10MΩ | ||
Standard interface | USB Device | |||
General specifications | ||||
Power supply | 100V / 120V / 220V / 240V ± 10%, 47HZ~63HZ | 100V / 120V / 220V / 240V ± 10%, 47Hz~63Hz | ||
Display | LCD display | 4.3-inch TFT LCD, WVGA (480x272) | ||
Body color | Ivory white + gray | Ivory white + gray | ||
Body weight | 2.4kg | 2.5kg | ||
Body size | 265x110x320mm | 239x109x344mm | ||
For UT8803N multimeter:
Panel introduction:
1. Power switch
2. A current input jack
3. μA and mA input jacks
4. COM input terminal
5. Voltage, resistance, inductance, capacitance, frequency, on/off, diode and duty cycle measurement input terminals
6. LCD display
7. Function buttons
8. Knob selection switch
9. Grounding
10. Fuse knob (F2 600mA)
11. USB interface
12. AC voltage selection switch
13. Socket
For UT8804N multimeter:

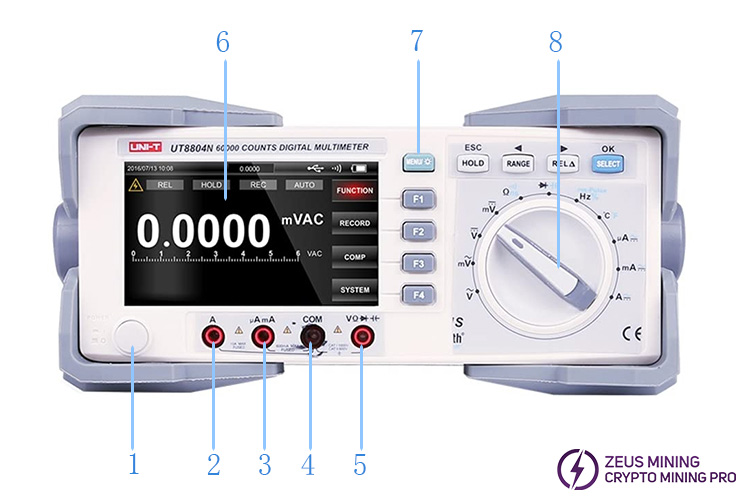

Panel introduction:
1. Power switch
2. A current input jack
3. μA and mA input jacks
4. COM input terminal
5. Other measurement input terminals
6. FTF display
7. Function buttons
8. Knob selection switch
9. Grounding
10. Fuse knob (F1 600mA)
11. USB interface
12. AC voltage selection switch
13. Socket

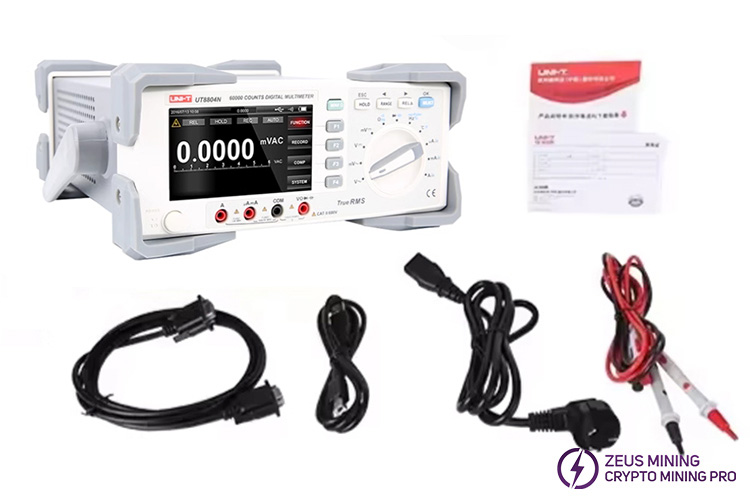

UT8803N / UT8804N multimeter * 1
Power cord * 1
Test probe * 1
USB data cable * 1
RS-232 connection cable * 1
Download guide, certificate of conformity, warranty card * 1
