APW17 overclocking power supply

Product description

APW17 air cooling immersion oil cooling overclocking PSU APW1215X 5000W 7000W for Antminer S21pro S21XP S19jXP KS5PRO AL1 L9

Bitmain Antminer APW17 overclocking power supply APW1215X is used to replace the original miner PSU when overclocking Antminer S21, S21pro, S21XP, S19jXP, KS5, KS5PRO, AL1, L9, etc. to help miners improve mining efficiency.

The APW17 7000W overclocking power supply adopts a new opening design to enhance the liquid flow inside the power supply while ensuring normal heat dissipation. The internal structure is highly integrated and precise, equipped with EMI filter capacitors, which can easily adapt to a wide voltage range, reduce the impact of current on the circuit, and make the circuit more stable.

APW17 5000W overclocking PSU parameters:

Model: APW1215X

Version: Universal encoder version

Wall power consumption: 5KW MAX

Voltage (AC): 200V-277V

Vout1: 12.2V 20A Max

Vout2: 12V-15V 330A Max

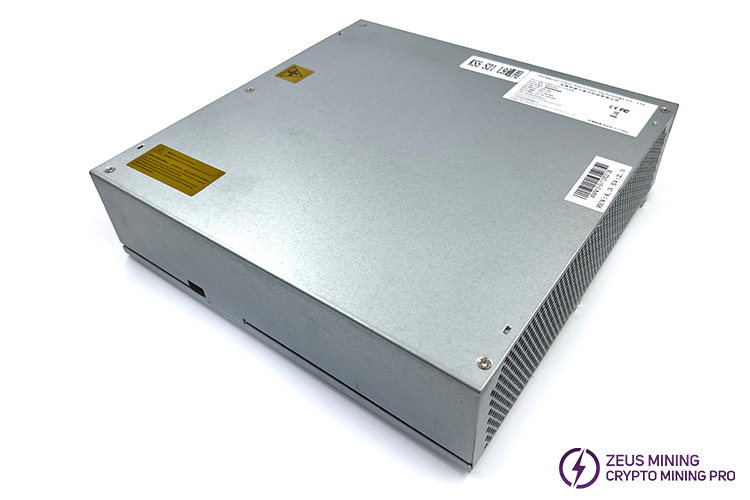

APW17 5000W overclocking air cooled PSU:

Used for original air-cooled miners or air-cooled miners converted to water-cooled miners.

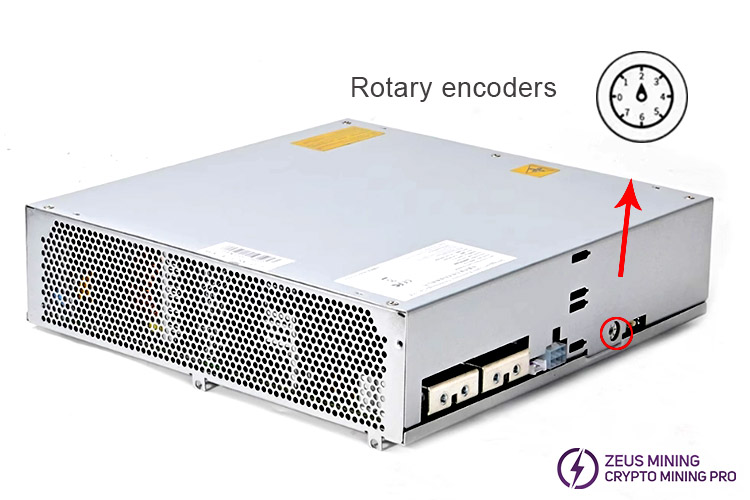

Note: When the rotary encoder arrow of the APW17 air-cooled overclocking power supply is adjusted to 0, the power supply version is APW171215a; when the arrow is adjusted to 4, the power supply version is APW171215c. The corresponding versions of the encoder adjustment are as follows:

0=APW171215A

1=APW121215A/B

2=APW121215C

3=APW121215D/E

4=APW171215C

5=APW121215F

6=APW121215G

7=APW121215H

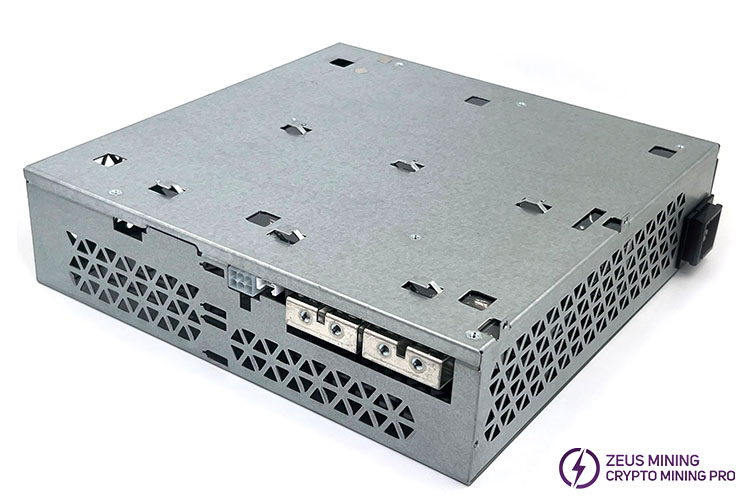

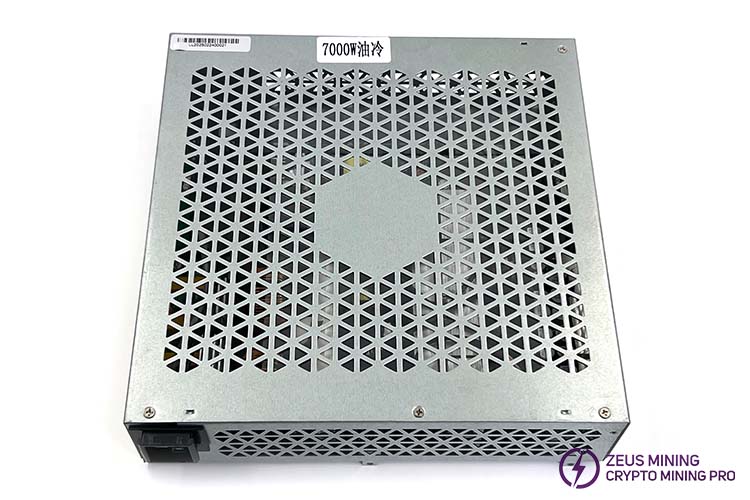

APW17 7000W overclocking oil immersion cooled PSU:

Used for air-cooled miners converted to immersion oil-cooled miners.
