| Unit Price: | $ 0.5 |

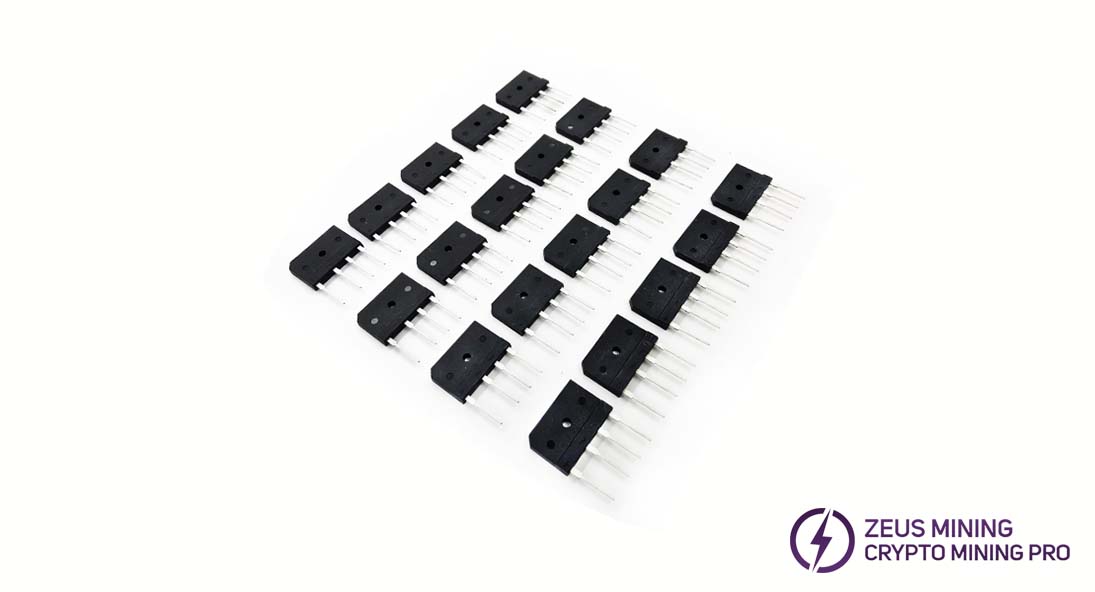

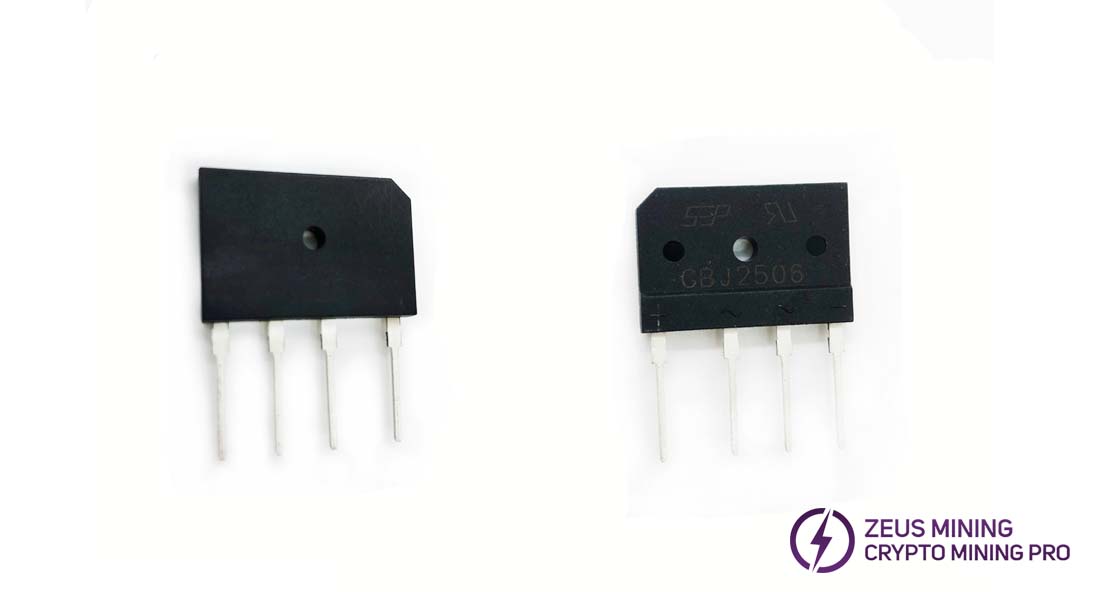

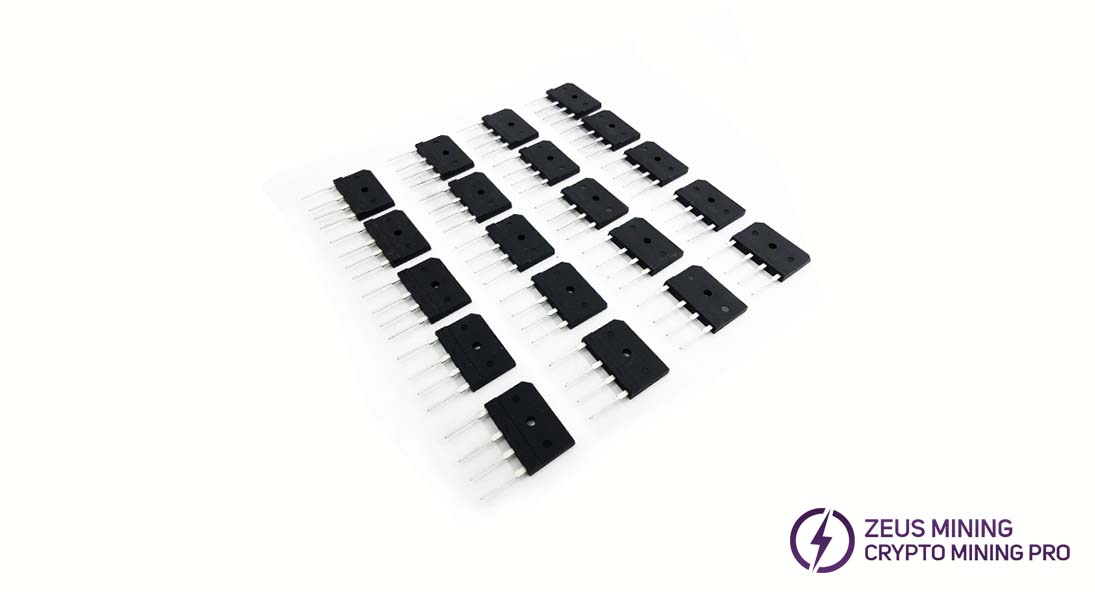

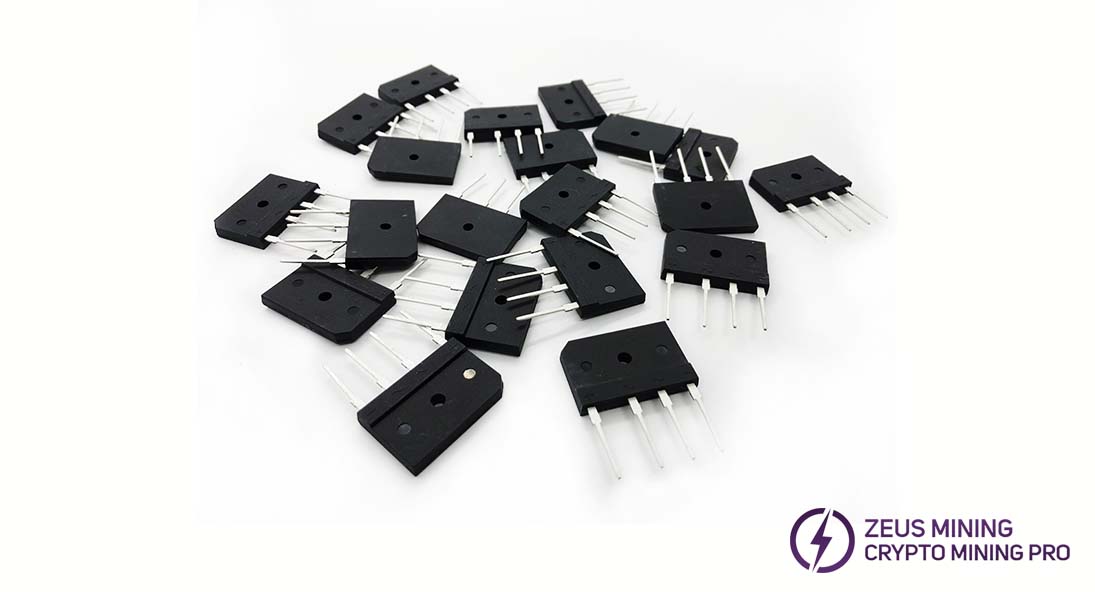

GBJ 2506 power rectifier chip 50 -1000v 25A
GBJ2506 Bridge Stack KBJ2506 KBJ25J 25A 600V
GBJ 2506 is a single-row plug-in flat bridge produced by ASEMI, its full name is "25A Single-Phase Bridge Rectifier" (25A single-phase bridge rectifier), so it is still a rectifier bridge, used for rectifying components in single-phase circuits.
The GBJ2506 is a 25A 600V single-phase rectifier bridge, the core of the ASIC miner's power input rectification. It converts 220V AC to 300V DC, providing basic power to the PFC and LLC circuits and handling the large input current of the entire machine.
When the GBJ2506 rectifier bridge fails, the entire machine overheats, input ripple increases, bus voltage fluctuates, the miner's hashrate becomes unstable, and it frequently throttles and restarts. Internal bridge arm breakdown and short circuits will blow the input fuse, damaging the PFC power transistors and driver chips. Without a high-voltage bus and 12V output, the entire machine cannot be powered on.
This is a brand-new original product, and the price may be more expensive than the substitute product, but the quality is guaranteed; welcome to buy.
Glass Passivated Die Construction
1. High Case Dielectric Strength of 1500VRMS
2. Low Reverse Leakage Current
3. Surge Overload Rating to 350A Peak
4. Ideal for Printed Circuit Board Applications
5. Plastic Material - UL Flammability
