| Unit Price: | $ 0.27 |

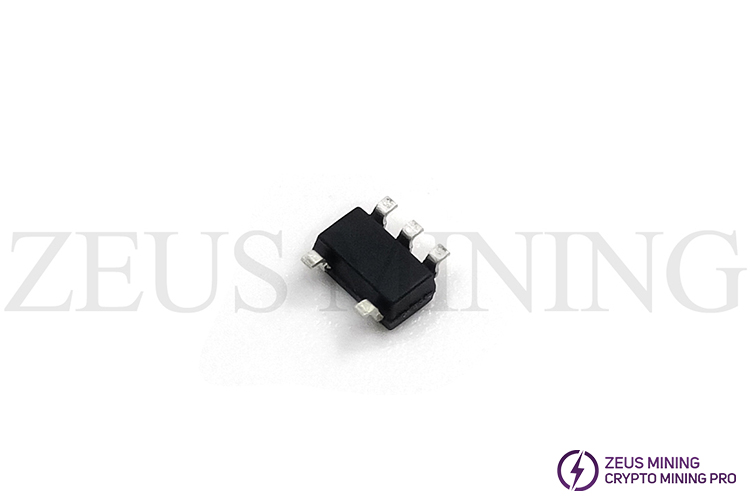

WL2836E CMOS LDO
The WL2836E series is a high precision, low noise, high speed, high PSRR, and low dropout CMOS linear regulator with high ripple rejection. The WL2836E30-5/TR has a foldback maximum output current that depends on the output voltage. Therefore, the current limit can be used both as short circuit protection and as an output current limiter. The WL2836E is available in a standard SOT-23-5L package. These devices provide new levels of cost-effective performance in cellular phones, laptops and notebooks, and other portable devices.
The top of the chip is marked 2836 EH**.
The WL2836E18-5/TR 1.8V LDO linear regulator chip is widely used in Antminer S19j and S19jpro hash boards. It has a rated output of 300mA and primarily provides a clean and stable 1.8V low-voltage power supply for the onboard communication bus, logic control unit, and sampling reference conditioning circuit. When this chip malfunctions, symptoms include abnormal overheating, frequent fluctuations in output voltage, a significant increase in power supply ripple, a slow decay of the hash rate, incomplete ASIC chip enumeration, frequent communication drops, and inability to recognize hash board components, a hash rate dropping directly to zero, intermittent restarts of the miner, and continuous frequency reduction under full load.
MP3 / MP4 Players
Cell phones, radio phone, digital cameras
Bluetooth,wireless handsets
Others portable electronics device
