| Unit Price: | $ 0.5 |
AP431SAN1TR-G1 Adjustable Precision Shunt Regulators
The AP431SAN1TR-G1 is a 3-terminal adjustable shunt regulator with guaranteed thermal stability over the entire operating range. Its sharp turn-on characteristics, low temperature coefficient, and low output impedance make it an ideal replacement for Zener diodes in applications such as switching power supplies, chargers, and other adjustable regulators. The AP431SAN1TR has a low minimum cathode current for regulation, and a typical value of 50µA makes the device ideal for applications with very low power consumption. The output voltage of the AP431SAN1TR-G1 can be set to any value between VREF (2.5V) and the corresponding maximum cathode voltage (36V). Two levels of initial voltage tolerance are available at +25°C, 0.5% and 1%. This IC is available in package SOT23. Usually used as a repair spare for the Antminer T17 hash board.

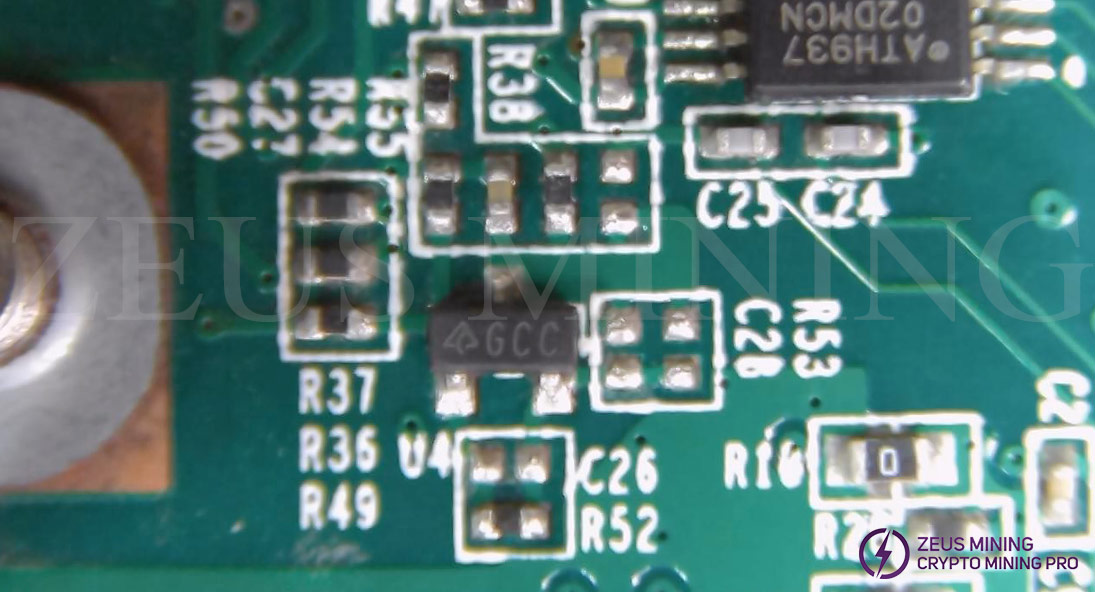

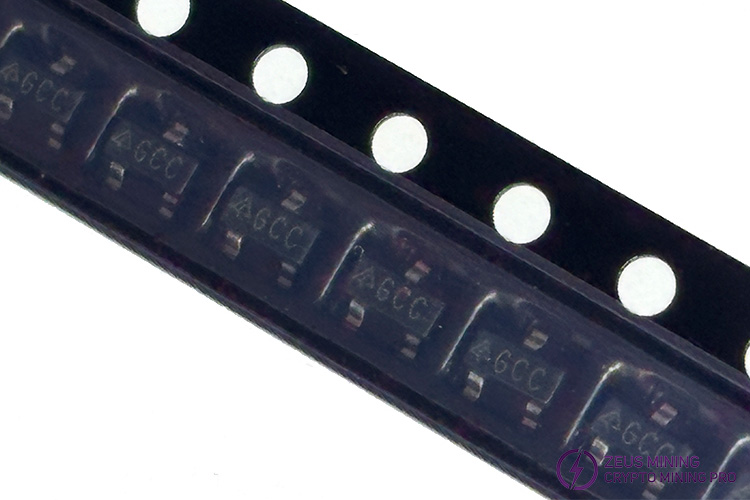

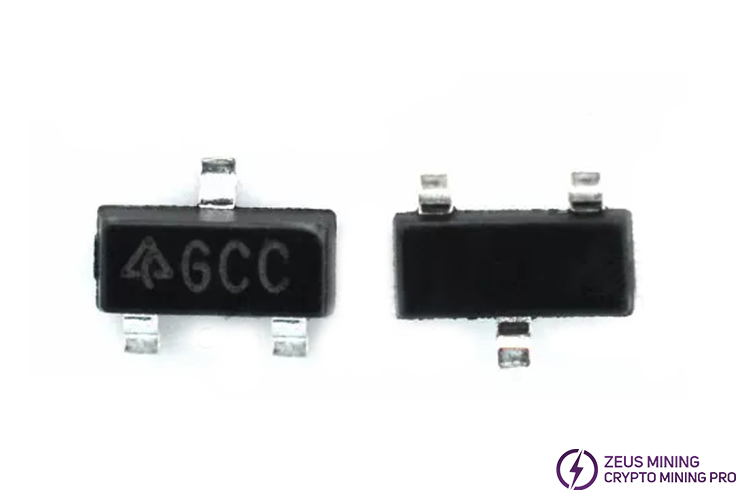

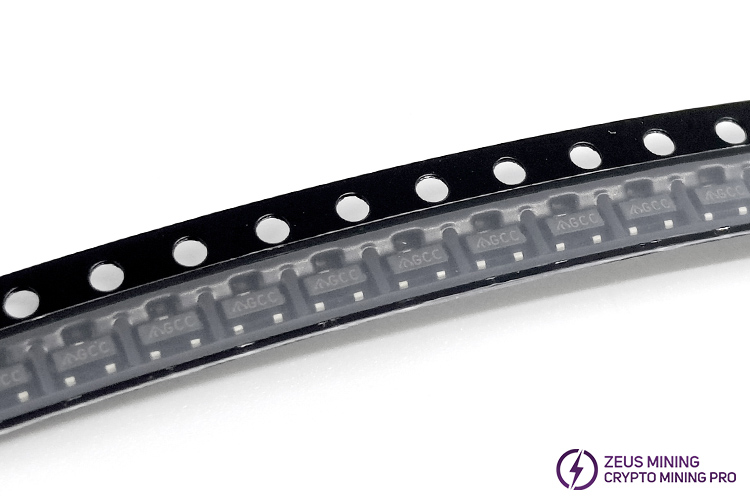

The AP431SAN1TR-G1, silkscreened with GCC, is a high-precision three-terminal adjustable parallel voltage regulator reference chip in an SOT-23-3 package. It is widely used in the DC-DC feedback loop of the Antminer S17 series hash board, working with voltage divider resistors to stabilize and lock the 12V main output voltage and various low-voltage power supplies. When it fails, it causes the power feedback loop to become uncontrolled, resulting in a continuous surge in output voltage, overvoltage, chip open-circuit failure, a significant drop in output voltage, a collapse in power supply load capacity, repeated restarts of the miner, inability of the hash board to power on and recognize data, and overall power supply disorder.
Low Minimum Cathode Current for Regulation: 50μA (Typ.),100μA (Max.)
Programmable Precise Output Voltage from 2.5V to 36V
High Stability Under Capacitive Load
Low Deviation of Reference Voltage Over Full Temperature Range: 11mV Typical
Sink Current Capacity from 100µA to 100mA
Low Dynamic Impedance: 0.1Ω (Typ.)
Wide Operating Temperature Range: -40°C to +125°C
ASIC miner hash board, charger, voltage adapter, switching power supply, graphic card, precision voltage reference.
