| Unit Price: | $ 168 |

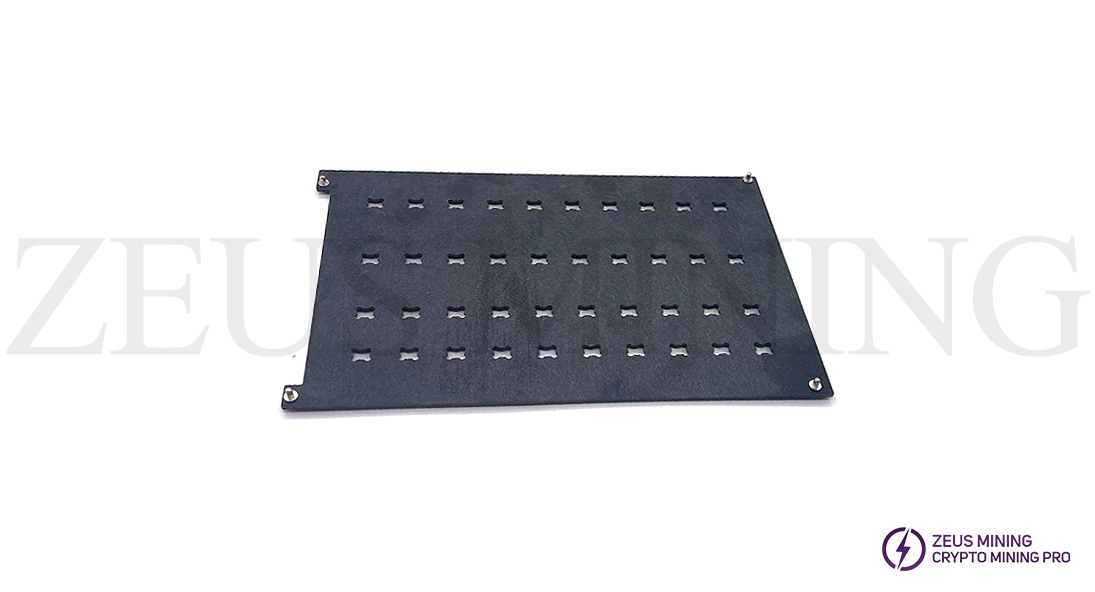

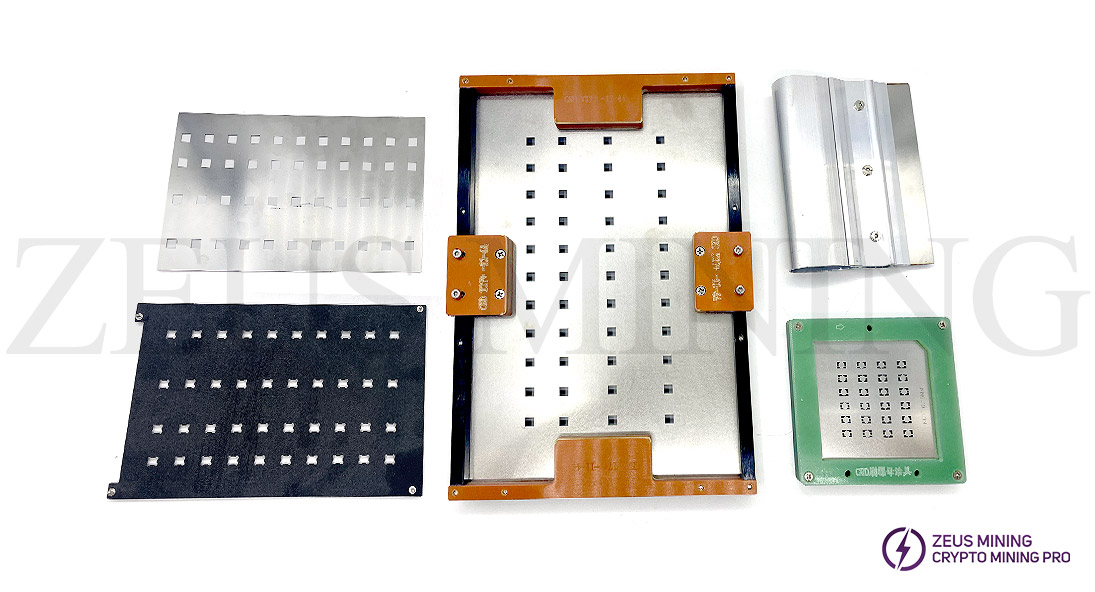

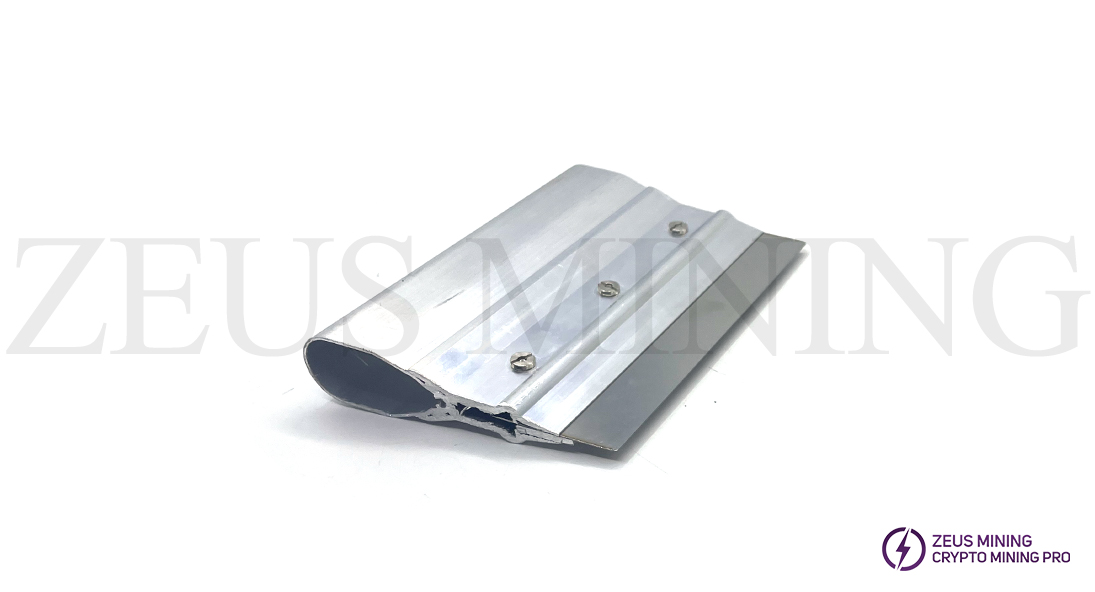

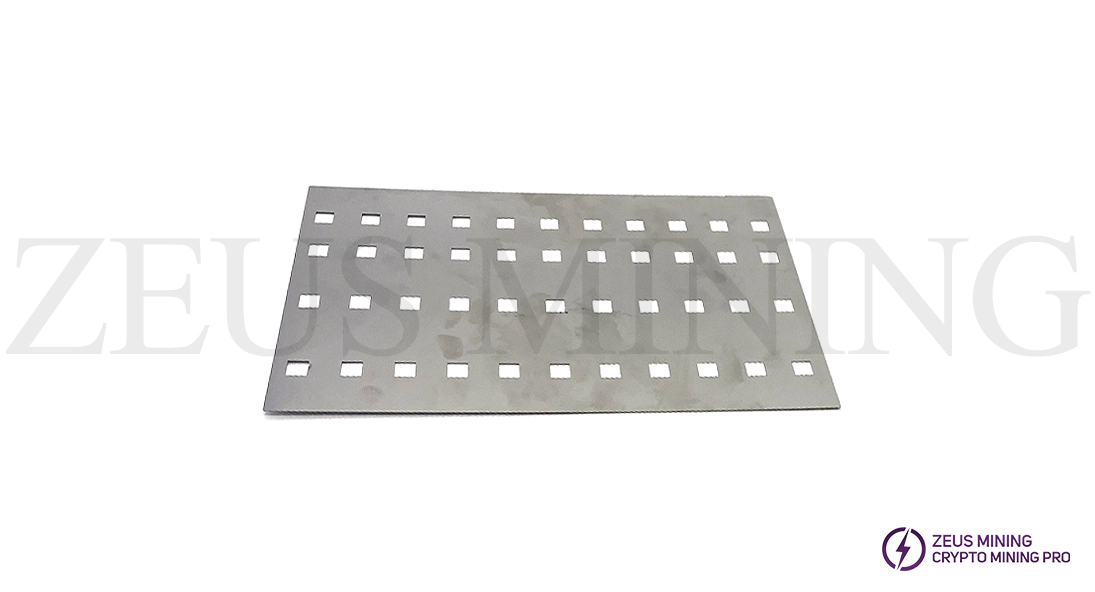

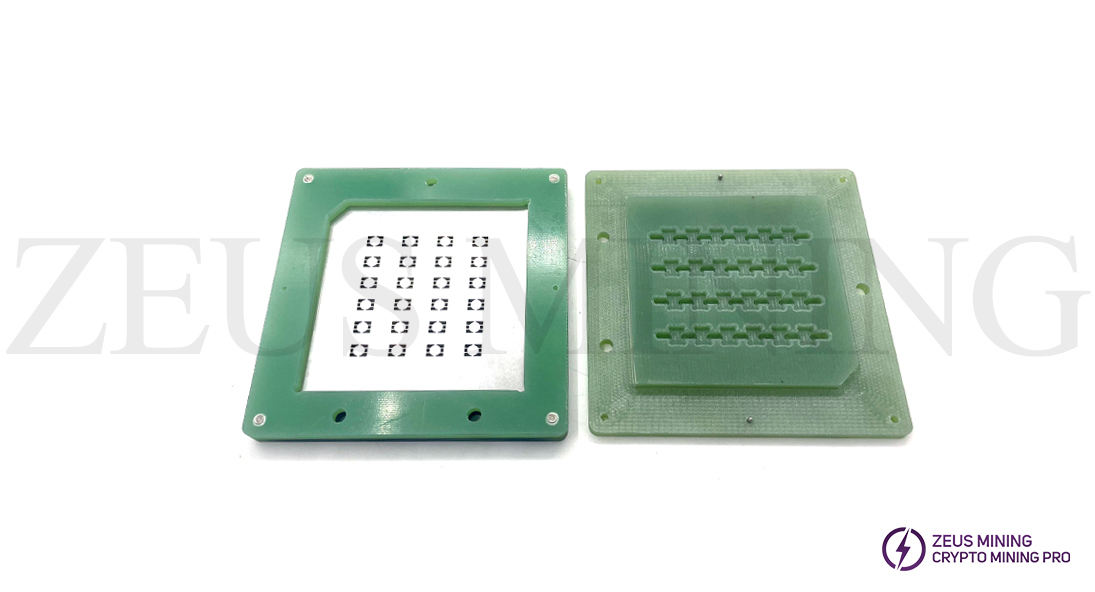

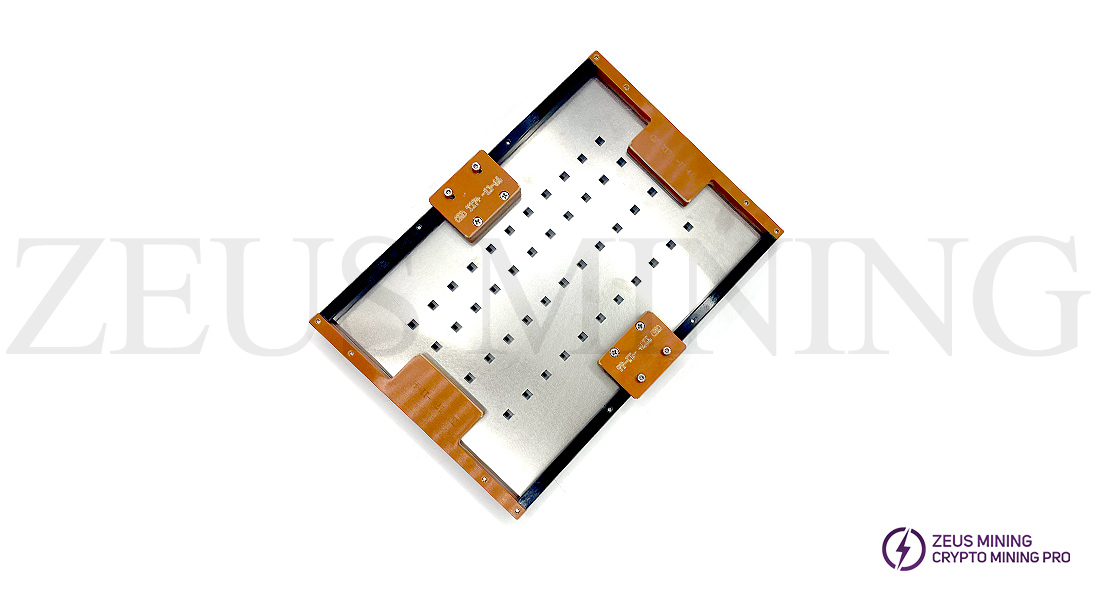

The Antminer T17+ Modified Radiator Kit is a modification and upgrade of the traditional radiator of the T17+ hash board, which enhances the heat dissipation function of the t17+ hash board. It is stronger than the ordinary radiator and is not easily damaged. Solved the short circuit caused by missing heat sink, Burning board is scrapped, and chips have frequently replaced the question. T17+ Modified Radiator Kit, including grinding tin steel mesh (used to protect other components during tin slag grinding); nut welding fixture (used to fix the tinned nut to the Hash board); Heatsink fixing fixture (used to fix the heatsink and apply thermal grease to the heatsink); Thermally conductive silicone grease scraper (used to scrape solder paste, suitable for large-scale modification and upgrade of heatsink); tinned nut fixture.
Operating steps:
1. Remove the original heat sink on the T17+ hash board
2. Fix the grinding tin steel mesh to the chip
3. Use sandpaper to polish the tin dross on the surface of the ASIC chip
4. Wash the hash plate with plate washing water and a brush
5. Remove the original wind protection steel plate from the Hash board
6. Fasten the nut welding jig to the hash board
7. Tin the nut using a nut jig and low temperature solder paste
8. Use a heat gun to secure the tinned nuts to the hash board
9. Stick the insulating film to the fixed position of the upgrade heat sink, respectively
10. Use the heat sink fixing jig to apply thermal conductive Silicone grease to the heat sink
11. Remove the nut welding jig and make sure the nut is firmly welded
12. Reinstall the steel plate
13. According to the nut hole position, fasten the upgrade heat sink to the hash board
14. Install the screws to complete the Retrofit and upgrade the heat sink.
Tools used: screwdrivers, tweezers, brushes for cleaning hash boards, board washing water, low temperature solder paste, thermal grease, sandpaper for grinding tin slag on the surface of ASIC chips, 862D hot air gun.
