| Unit Price: | $ 0.78 |

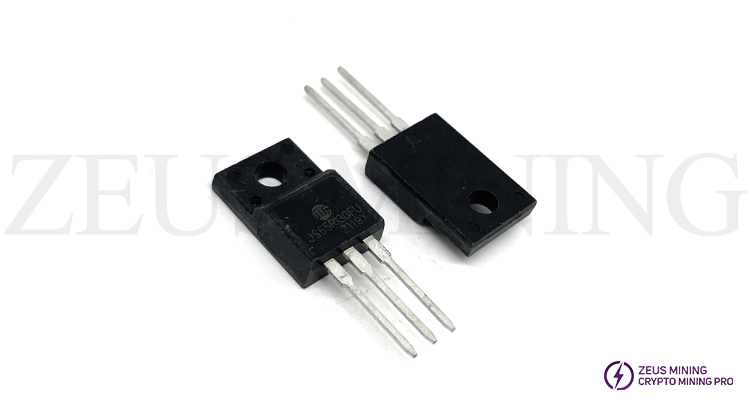

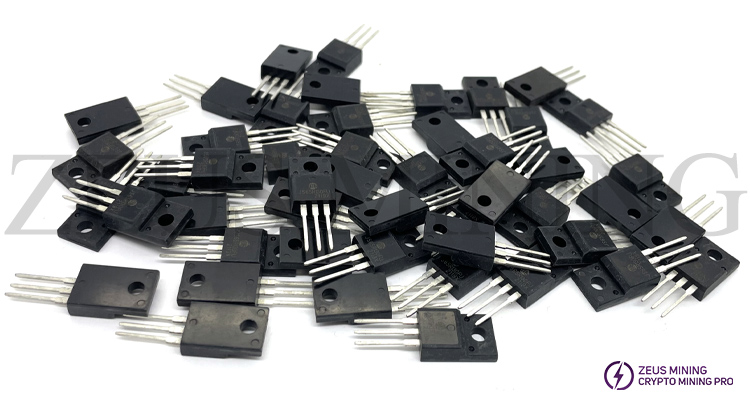

JS65R130FU N-channel enhancement mode MOSFET
JS65R130FU N-channel FET has low gate charge and low Crss (typical value 4.5pF), fast switching speed, suitable for power supply repair and chip replacement of ASIC miners.
The JS65R130FU is a 650V low-resistance PFC boost MOSFET, a core switching element in the power factor correction circuit of the Whatsminer P21D power supply. By reducing conduction losses and improving the power factor, it provides a stable high-voltage input to the subsequent inverter circuit, ensuring the stable output of the Whatsminer ASIC miner at full load and its rated hashrate.
When the JS65R130FU power MOSFET fails, the miner power supply is highly susceptible to burning out the input fuse, resulting in no output, short-term overheating under full load leading to shutdown, frequent restarts, and in severe cases, burnt-out drive resistors and drive chips, carbonization and blackening of the power area on the power PCB, and a noticeable burnt odor.
This is a brand-new original product, and the price may be more expensive than the substitute product, but the quality is guaranteed; welcome to buy.
Continuous drain current: 11A
Maximum drain-source DC voltage: 650V
Rdson-typ (@Vgs=10V): 360mΩ
Qg-typ: 25nC
Package: TO-220MF-K2
High frequency switching power supply
Electronic ballast
LED power
High power field effect transistor
TO-220F 650V/30A
Applicable miner power supply

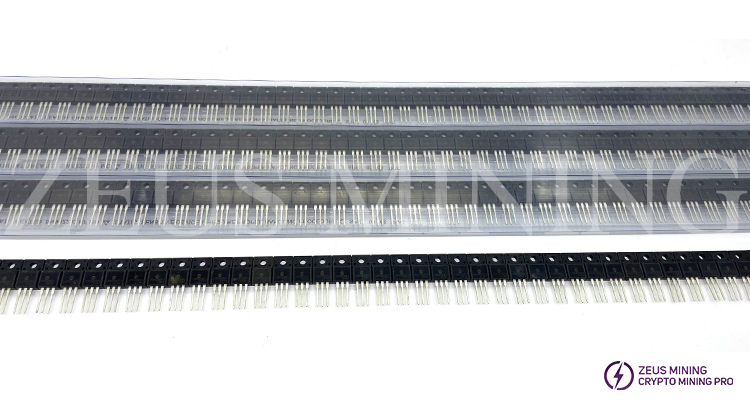

Original brand new authentic, quality assurance, PVC strip packaging.
Due to the large number of spare parts, some products cannot be fully displayed. If you need to purchase other types of components, please inform the salesman, we will modify the purchase order according to your requirements.
