| Unit Price: | $ 40.5 |

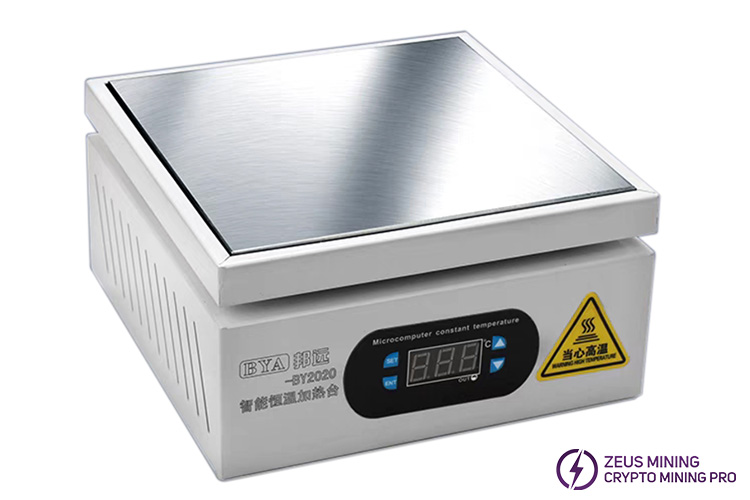

BY2020 BY3030 Digital Constant‑Temperature Heating Table for ASIC Miner Hash‑Board Rework & Preheating
BY2020 BY3030 constant temperature digital display heating table, adjustable ASIC miner hash board maintenance electric heating board, using microcomputer chips, intelligent and precise temperature control, fast heating, stable performance, and easy operation. The heat insulation and anti-scald wrapping design are adopted around the heating table, effectively preventing accidental injury during work. The heating plate is made of aviation aluminum, which has the characteristics of high thermal conductivity, uniform heating, fast heating, and no deformation under high temperatures. The three-dimensional heat dissipation louvers adopt a fanless design, and the left and right louvers behind the chassis have air convection to dissipate heat. The inside is left blank to improve the service life of the chip heating core. The socket adopts a three-core power cord design, insulating material, leakage current, and a fuse tube next to the socket to prevent burning, protect the heating core of the circuit, and be easy to replace.
This preheating table is used for chip welding of the aluminum substrate hash board of the Antminer, Iceriver, Whatsminer, and Avalon miner.
Attention: Please select the power cord plug when purchasing this product. We will give you an International universal socket adapter for free according to your choice.
1. Micro‑computer digital precise temperature control.
2. Aviation‑aluminum heating plate, high thermal conductivity, uniform heating, anti‑deformation under high‑temp.
3. Fan‑less passive convection cooling structure, extends heating‑core lifespan.
4. Surrounding heat‑insulation anti‑scald protective housing.

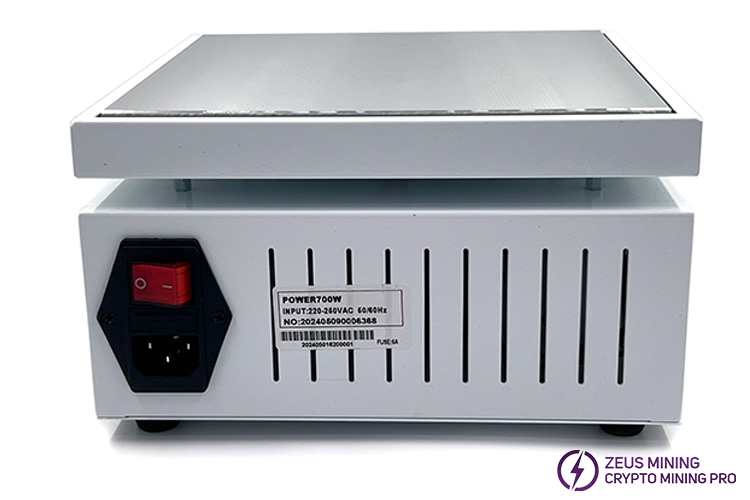

5. 3‑core insulated power input, built‑in replaceable fuse for over‑burn protection.
6. Dedicated for ASIC hash‑board aluminum‑substrate pre‑heat & chip rework.
Operating instructions for temperature setting:

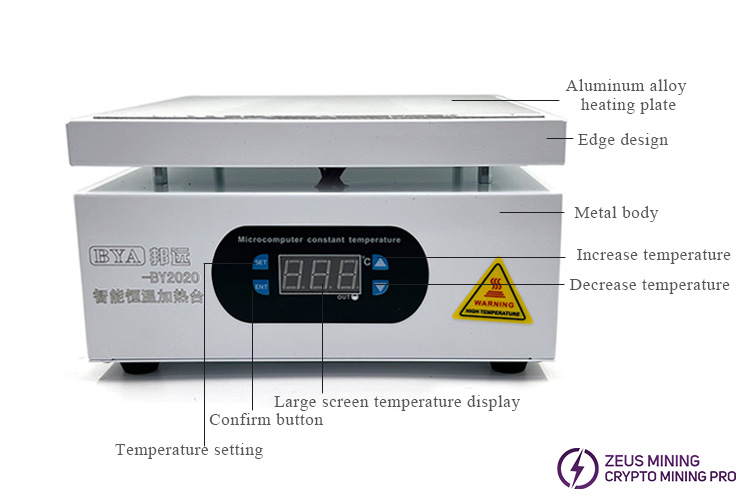

Press the SET key for 1 second, release it, and set the temperature using the up and down keys on the right. After setting the required temperature, press the ENT key to save the temperature.
Click on article "Usage tutorial for BY2020 digital display heating table" to view more information about this product.
Internal menu function introduction:
Press and hold the SET key for 5 seconds without moving, release it, and the display is as follows: AL1 press again; SET key: display 030=, no effect, each press END= the digital tube displays the menu function symbol.
Menu symbol | Data function | Description | |
LCK | Menu function lock | Value = 1 | Only the temperature can be set, and other menus cannot be set. When the value = 0, all menus can be set. |
SC | Temperature correction value | Value = 0 | If the actual temperature is 2 degrees higher, press the menu minus key to set it to -02. If the temperature is lower, press the plus key = 002. |
RT | Self-tuning function | Value = 000 | = 1 is to turn on the self-tuning temperature control. This is no longer used because in a normal working state, long press the plus key for 5 seconds = to turn on the self-tuning, which allows users to control the temperature automatically. |
Model | BY2020 | BY3030 |
Power | 800W | 1500W |
Temperature range | room temperature ~ 400℃ | room temperature ~ 400℃ |
Heating aluminum plate size | 200x200mm | 300x300mm |

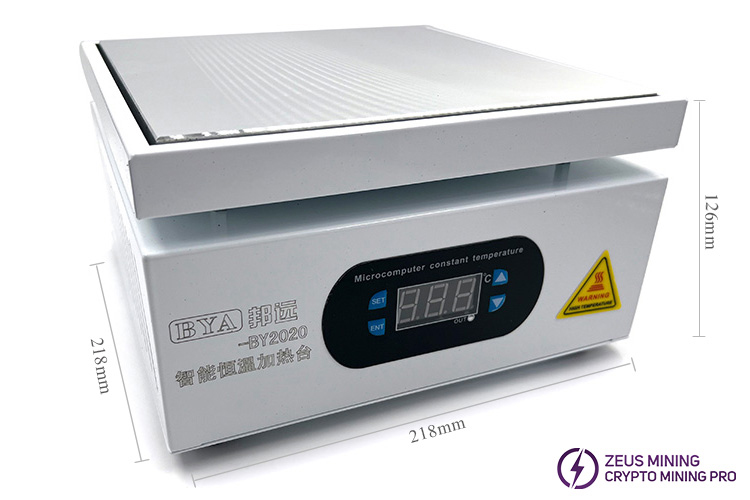

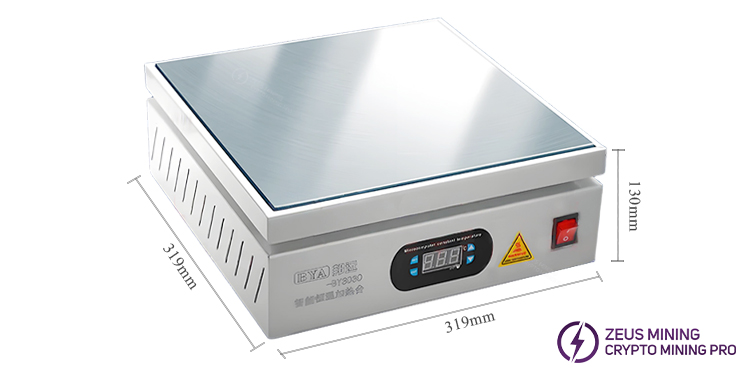

Overall size | 218x218x126mm | 319x319x130mm |
Table load | 7kg | 10kg |
Product weight | about 2.4kg | about 5.2kg |
Important reminders:
1. The working surface will reach high temperatures during operation. Always use a heat shield; avoid direct skin contact with the heating plate.
2. An internal fuse provides overheat protection. If there is no heating output, first check if the internal fuse has blown.
3. During use, ensure proper airflow and do not block the ventilation openings.
