| Unit Price: | $ 309 |

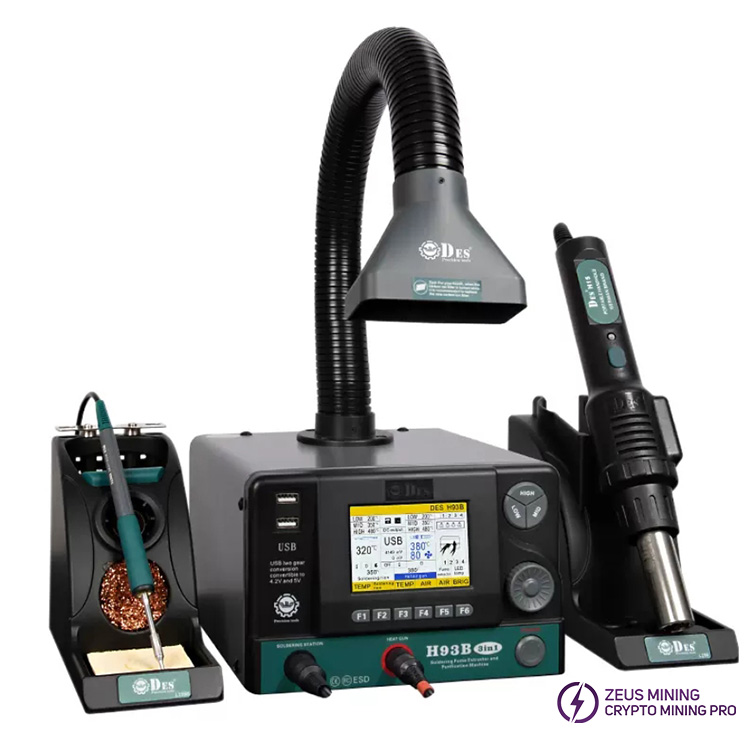

DES H93B is a 3-in-1 intelligent hot air gun soldering station with an adjustable temperature that includes an electromechanical soldering iron, a hot air gun, and a smoke purifier. It has 8 levels of suction adjustment, which can meet the welding needs of different scenarios, purify the maintenance station's air, and filter smoke, making our hash board / control board / power supply maintenance work safer and cleaner.
Product features:

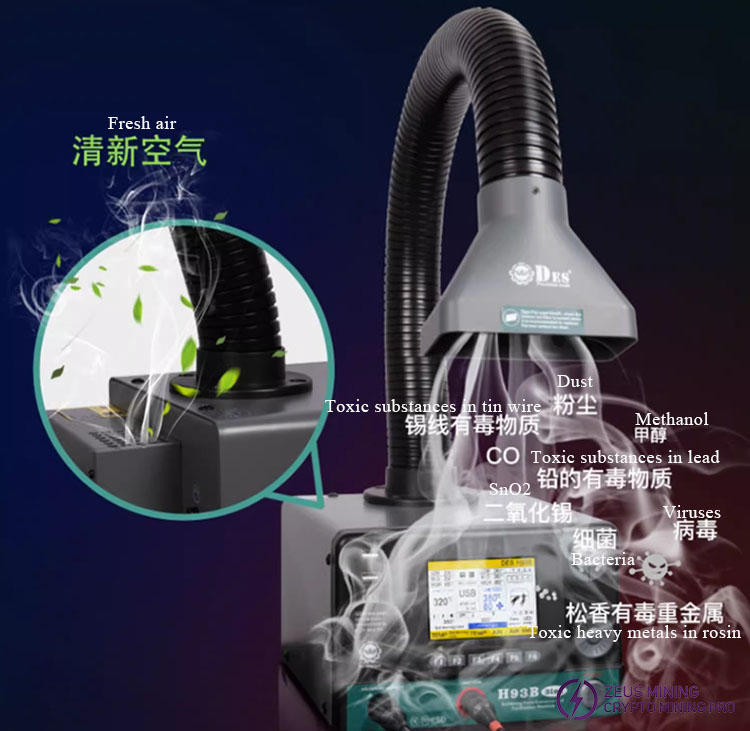

1. It can easily filter toxic substances such as dust, CO, methanol, tin wire, etc.;
2. Multiple filtration, layer-by-layer purification, filter and decompose harmful gases such as tin smoke;
3. LED strong light illumination, four-speed adjustable brightness, welding is smoother;
4. Intelligent large-screen display, microcomputer control, smooth operating system, large-screen real-time display of working status;

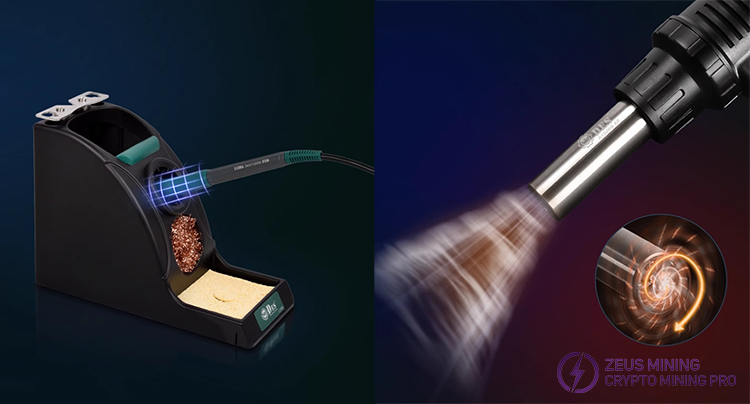

5. High-precision soldering iron tip, precise maintenance, no damage to components;

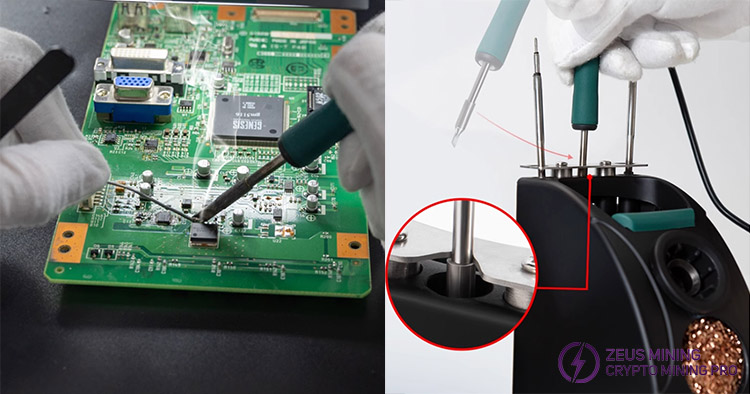

6. Plug-in integrated soldering iron tip. Replacement is more convenient and quick;
7. The handle automatically enters the dormant state after being idle for 30 seconds and instantly restores the working temperature after picking it up. The automatic shutdown time can be set at will from 1 to 90 minutes;
8. Turbocharged, built-in temperature sensor, stable air supply temperature, higher efficiency;
9. Intelligent cooling, automatic air supply cooling after stopping use, preventing hidden dangers and safer;
10. Equipped with nozzles of different specifications, precise desoldering, and no damage to components.
Please click "What is the DES H93B air purifier soldering station and how to use it?" for the detailed usage method.

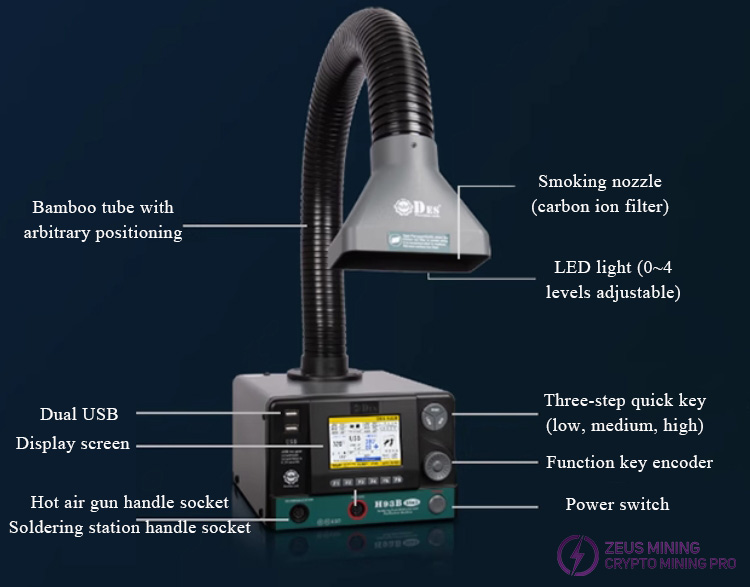

Product parameters:
Host | Model | H93B |
Display | TFT true color LCD display | |
Peak power | 1650W | |
Voltage | AC220V/50Hz AC110V/60Hz | |
Host size | 280(L) x 197(W) x 140(H) mm | |
Body weight | 2.7Kg | |
Soldering iron handle | Model | S120A handle |
Power consumption | 120W(S120A) | |
Temperature control range | 80~500°C | |
Impedance between soldering tip and ground | 2Ω or less | |
Potential between soldering tip and ground | 2Mv or less | |
Tip/tip model | TE series | |
Output voltage | 24V | |
High-temperature sleeve | GT06 | |
Wire length | 1.5m | |
Handle weight | 100g | |

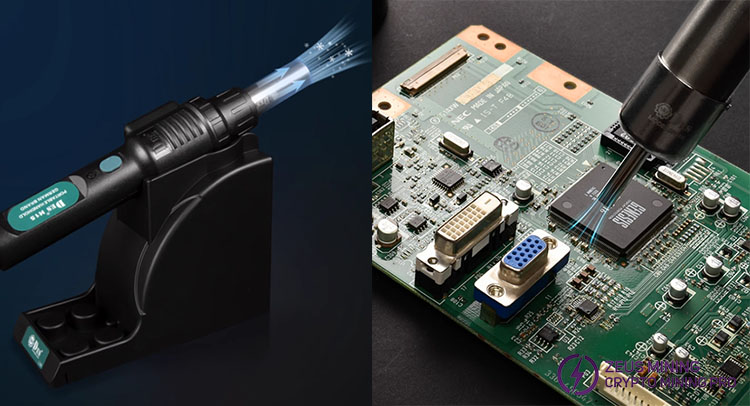

Heat gun handle | Model | H15A touch-sensitive hot air gun |
Peak power | 1500W | |
Temperature control range | 80~500℃ | |
Temperature stability | ±5℃ | |
Air volume | 10~80 levels | |
DC turbine fan | 24V/8300rpm | |
High temperature sleeve | GP5/GP6 (purchased separately) | |
Heating element | 220V/A1526B 110V/A1525B | |
Output voltage | AC220V/50Hz AC110V/60Hz | |
Handle cable length | 1.2m | |
Weight | 252g | |
Smoke purifier | Power consumption | 30W |
Suction | 0~4 levels adjustable | |
Display | 3.5" TFT-LCD screen display | |
Smoke purification tube (mm) | Smoke purification tube: 800(L)x41(inner diameter); tube mouth: 118(L) x 68(W) | |
LED light | 0~4 levels adjustable (12V/2W) | |
Carbon ion filter | 52 (W) x115(L) x10 (H) mm | |
Turbine air supply | 24V/8500rpm | |
Decibel | ≤60dB | |

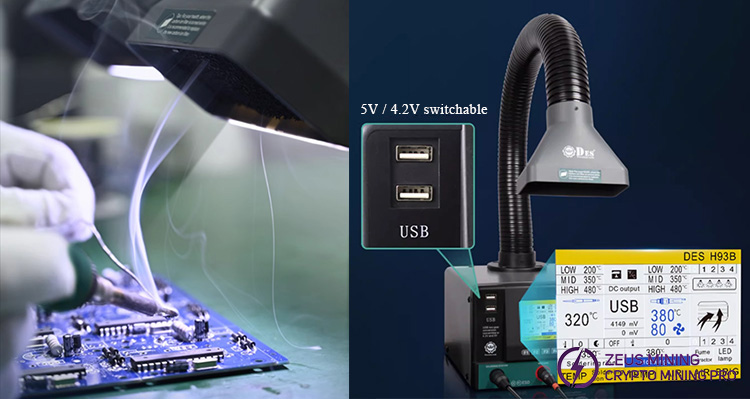

USB | Current output | 2A |
Output voltage | 5V/4.2V (interchangeable) | |
Applicable | Mobile phone charging/mobile phone repair | |
Ground resistance | ≤2Ω | |
Ground voltage | ≤2Mv |

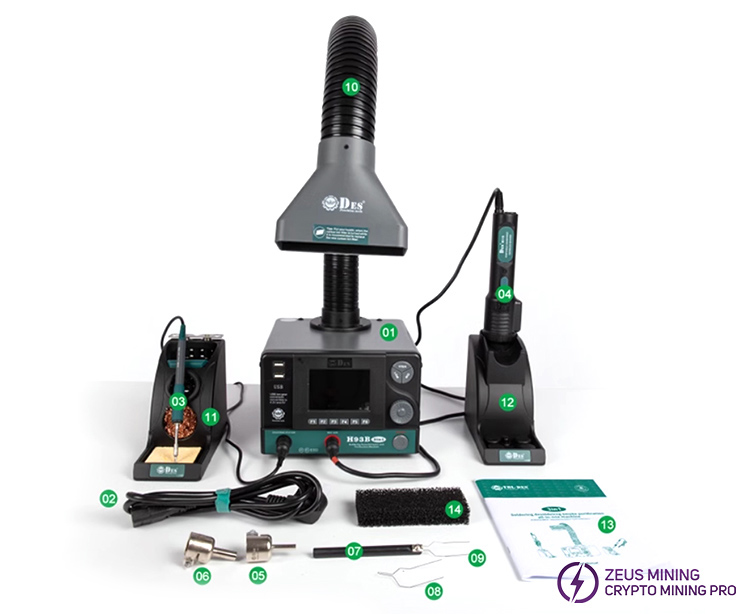

① Host
② Power cord
③ Soldering station handle
④ Spray gun handle
⑤ Nozzle ф5mm
⑥ Nozzle ф8mm
⑦ Puller
⑧ Large wire puller (L)
⑨ Small wire puller (S)
⑩ Smoke purification tube
⑪ Soldering iron holder
⑫ Hot air gun holder
⑬ Instruction manual
⑭ Carbon ion filter
