| Unit Price: | $ 22 |

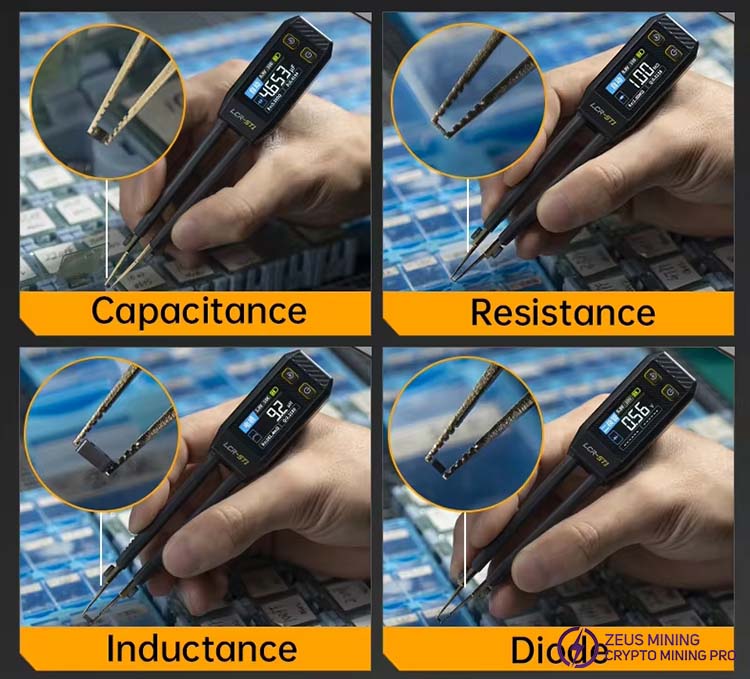

FNIRSI CR-ST1 is a multifunctional and portable test instrument that supports precision measuring resistors, capacitors, inductors, and diodes. The product adopts advanced measurement technology to ensure high accuracy and high stability. Its 1.14-inch color screen display and magnetic suction function increase its convenience. The built-in 250mAh lithium battery provides long-lasting use time and supports three frequencies of 100Hz, 1kHz and 10kHz. The unique tweezer-shaped design makes it particularly suitable for satisfactory operation in a small space; rapid testing of electronic components and its light and portable characteristics make it an indispensable and efficient tool for miners to repair hash boards, power supplies, and other components.
Product features:
1. Supports three test frequencies of 100Hz, 1KHz, and 10KHz, and 0.3V and 0.6Vrms effective value test levels, making the test results comprehensive and accurate;
2. Automatically identify components, and display the main and auxiliary parameters at the same time;
3. LCR-ST1 is suitable for imported chips, with advanced measurement algorithms, and has excellent stability;
4. Equipped with a 1.14-inch high-definition color display, the interface is clear and intuitive, and data reading is easy, making the test work more unimpeded;
5. Supports data retention, automatically records data to generate EXCEL tables, and views the recorded data on the computer;

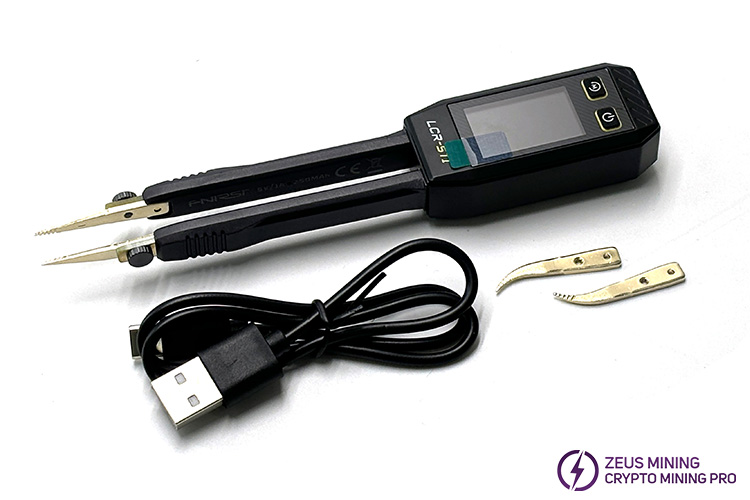

6. Made of gold-plated brass, the straight and curved tweezer heads are interchangeable, with high hardness and durability, meeting the application of different scenarios and providing more accurate measurement stability.
Product parameters:
Product model | LCR-ST1 |

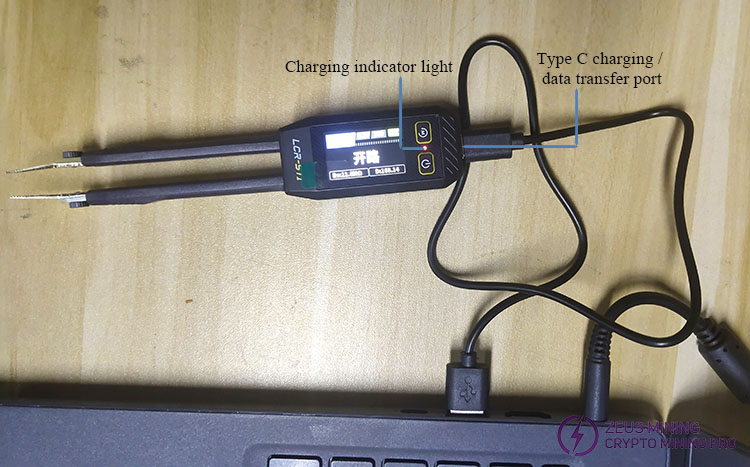

Charging specifications | USB Type-C, 5V/1A |
Screen | 1.14 inches |
Dimensions | 28x19x150mm |
Power voltage | 250mAh rechargeable lithium battery |
Weight | 41g |
Type | Range | 10Hz | 1KHz | 10KHz |
Capacitance | 1mF-22mF | 5% reading ± 3 | 5% reading ± 3 | --- |
1uF-1mF | 2% reading ± 3 | 2% reading ± 3 | 2% reading ± 3 | |
1nF-1uF | 2% reading ± 3 | 0.5% reading ± 3 | 0.5% reading ± 3 | |
1pF-1nF | --- | 0.5% reading ± 3 | 2% reading ± 3 | |
Inductance | 1H-10H | 5% reading ± 3 | 5% reading ± 3 | --- |
1mH-1H | 2% reading ± 3 | 2% reading ± 3 | 2% reading ± 3 | |
10uH-1mH | 2% reading ± 3 | 0.5% reading ± 3 | 0.5% reading ± 3 | |
1uH-10uH | --- | --- | 0.5% reading ± 3 | |
Resistance | 1MΩ-10MΩ | 5% reading ± 3 | 5% reading ± 3 | --- |
1KΩ-1MΩ | 1% reading ± 3 | 0.5% reading ± 3 | 1% reading ± 3 | |
1Ω-1KΩ | 1% reading ± 3 | 0.5% reading ± 3 | 0.5% reading ± 3 | |
10mΩ-1Ω | 2% reading ± 3 | 2% reading ± 3 | 2% reading ± 3 |

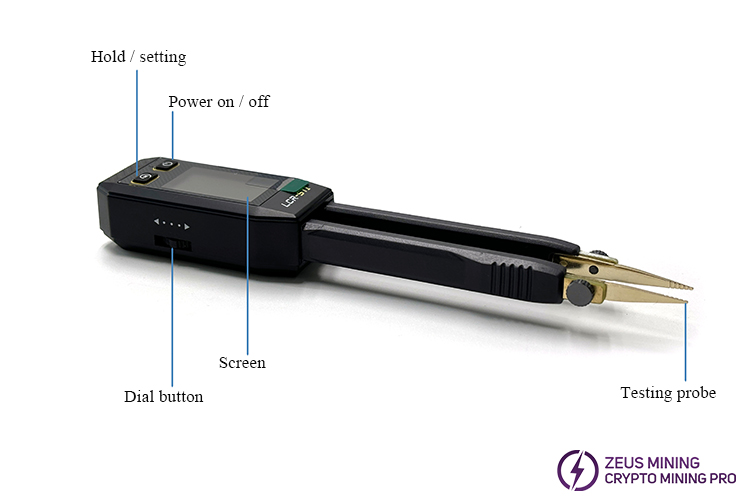

Panel introduction:
Instructions for use:
Please click "What is the usage method of the FNIRSI LCR-ST1 intelligent bridge tweezers?" to view the setup and usage tutorial.

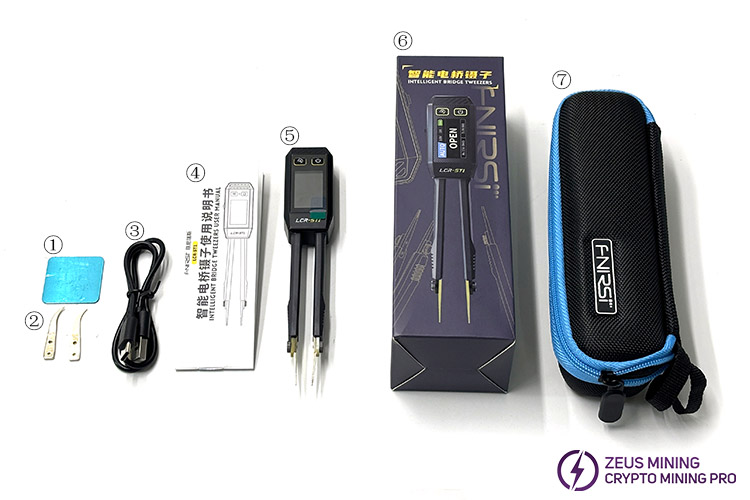

① Magnetic patch (with adhesive backing)
② Hook head (one pair)
③ USB data cable
④ User manual
⑤ LCR-ST1 smart tweezers
⑥ Outer packaging box

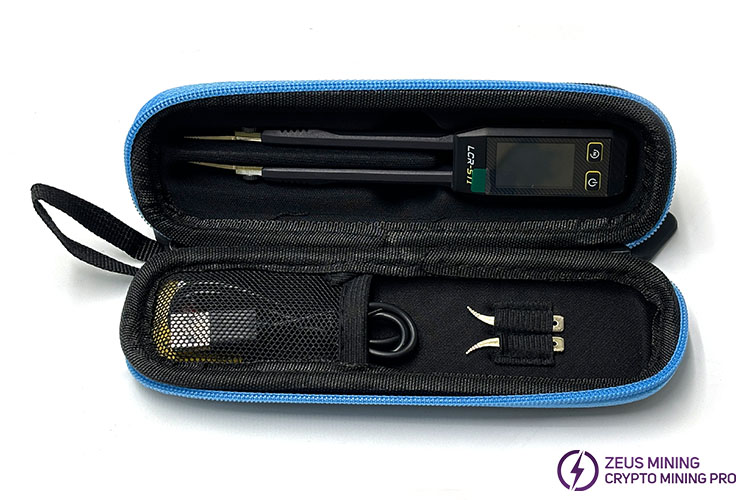

⑦ Portable packaging box
