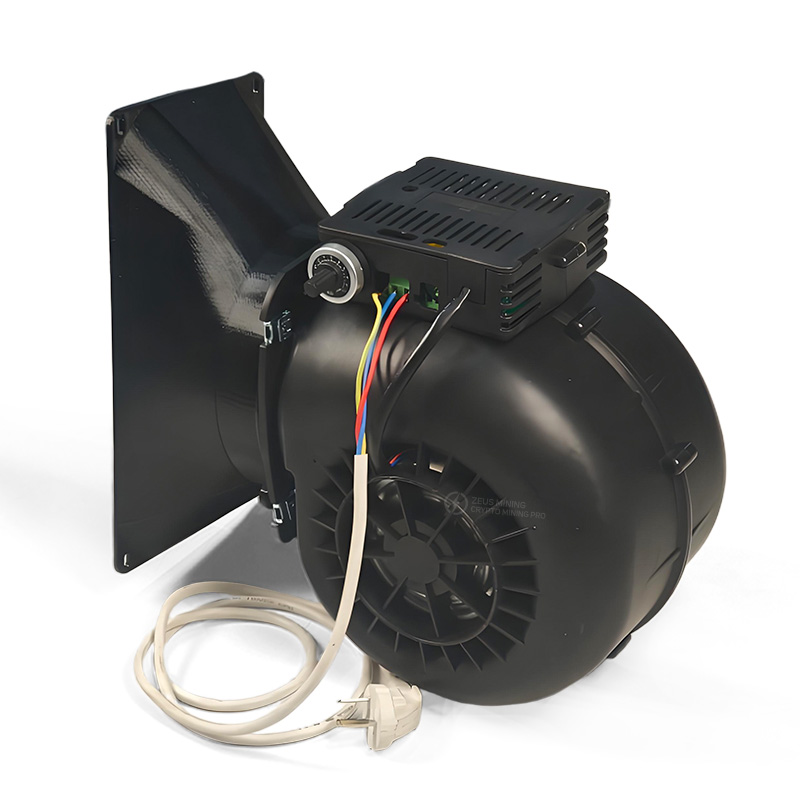

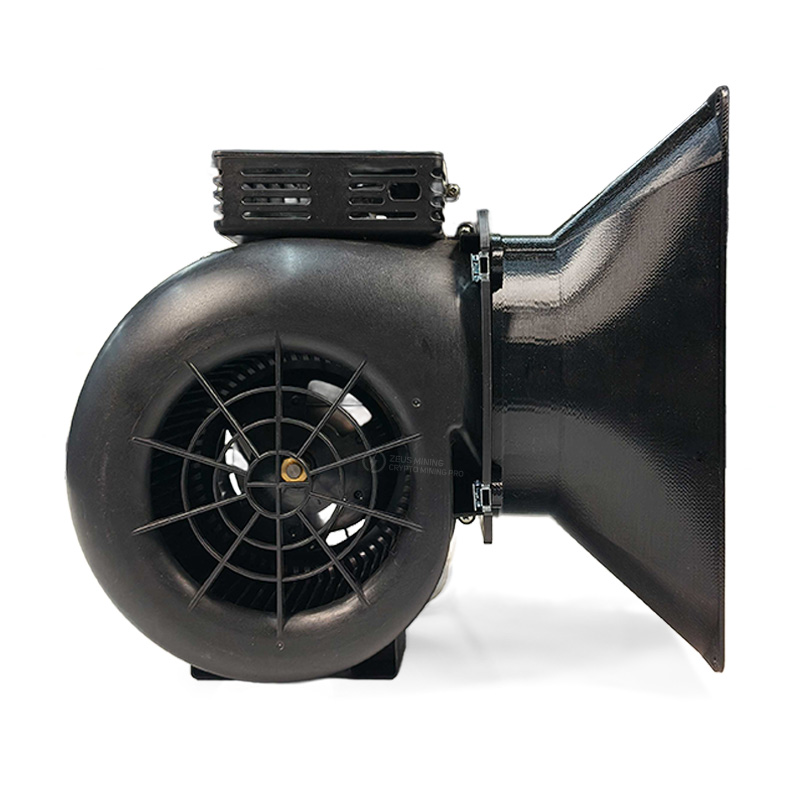

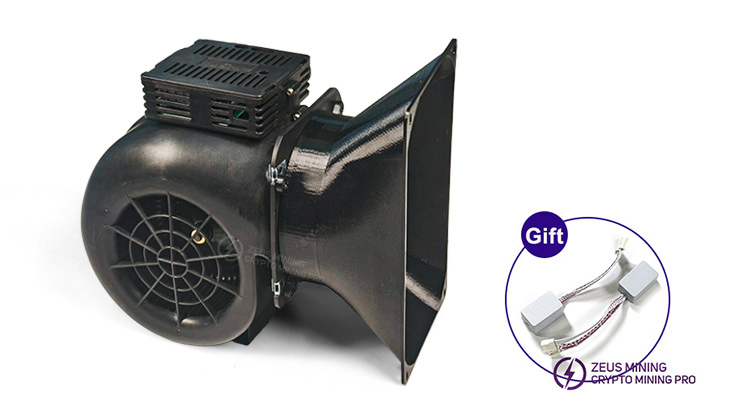

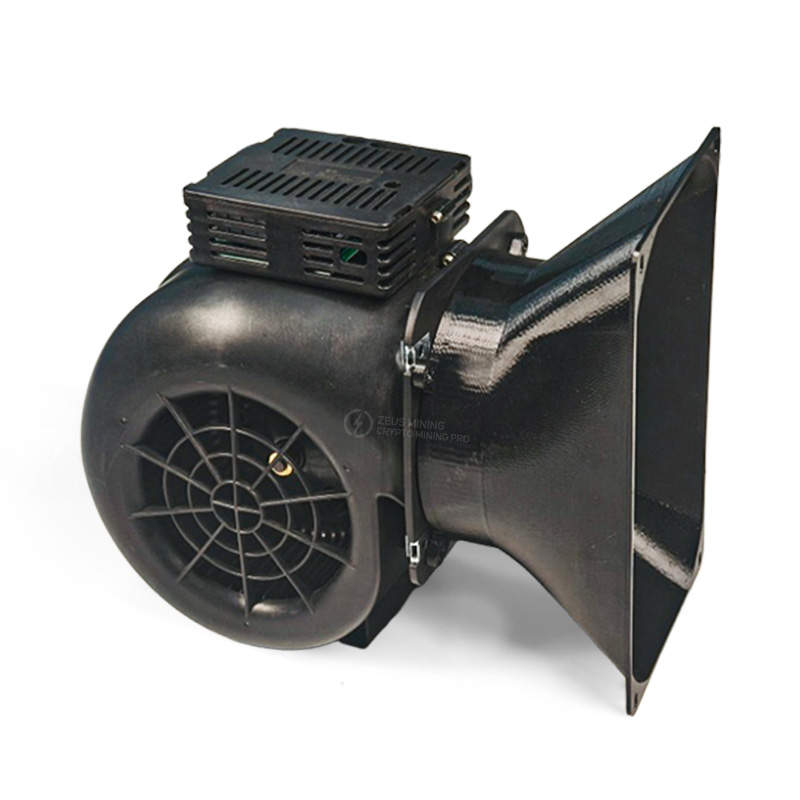

Blower silencer gen2 for ASIC miner

Product description:

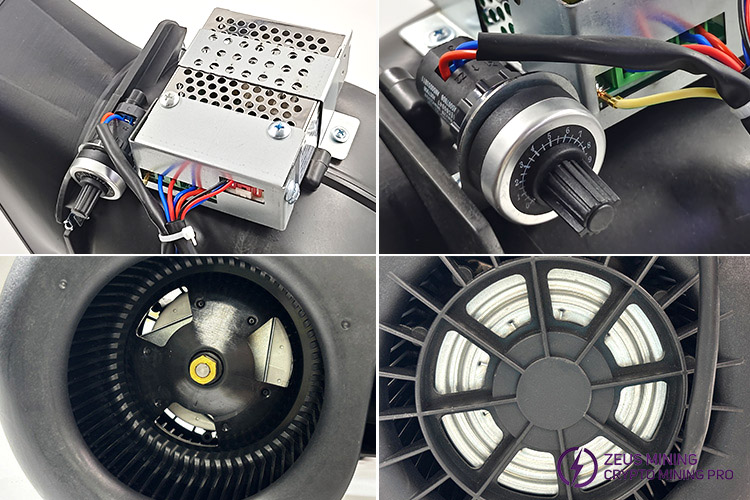

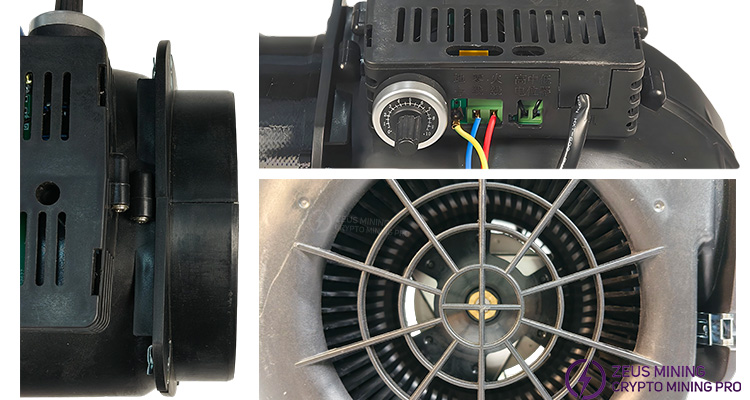

The gen2 ASIC miner blower silencer is a small noise reduction device suitable for Antminer (except S21XP, S21pro, S21+), Whatsminer, Avalon, and Iceriver. The blower shell is made of engineering plastic, which has characteristics such as a small size, energy saving, light weight, and high temperature resistance. The blower features a high-power brushless DC motor and a turbo fan inside, paired with a stepless speed regulation controller. This allows for easy control of the fan speed, effectively reducing the noise of ASIC miners.

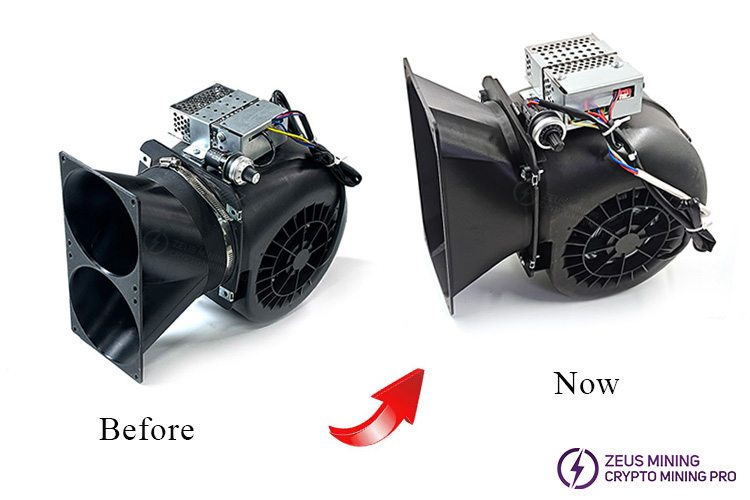

The upgraded blower has been adjusted as follows:

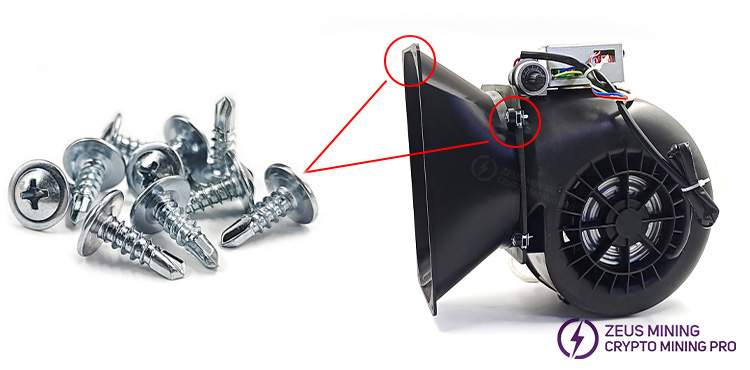

1) The air shroud has been upgraded to screw fixing, no longer requiring clamps and tape, making installation more convenient and beautiful;

2) The air outlet of the shroud has been upgraded to a single outlet, increasing the air volume and reducing wind resistance.

After installing the gen2 blower silencer:

1) The noise emitted by the ASIC miner will change from sharp and harsh to smooth and soft.

2) The overall operating temperature of the miner will be reduced by about 10℃.

Click to view the product manual: ASIC Miner Blower Silencer Gen2 Installation Manual

Or for more detailed review results: ASIC Miner Blower Silencer Gen2 In-depth Review

Applicable miner models include:

Antminer: L9, AL1, AL1pro, T21, S21, S19jXP, KS5, KS5pro, S19kpro, D7, L7, E11, DR7, KA3, KS3, HS3, E9, E9PRO, S19, S19j, S19pro, S19jpro, S19jpro+, S19i, T19, S19aPro, S19a, S19XP, S19L, S19Pro-A, S19jPro-A, S17Pro, T17, S17, S17e, S17+, T17e, T17+, S9, S9i, Z15, Z15pro, L3++, etc.

Avalon: A15XP, A15PRO, A15, A1566, A1446, A1466, A1326, A1366, A1346, A1246, A1166PRO, A1166, A1146PRO, A1146, A1056, A1047, A1066PRO, A1066, A1047, etc.

Iceriver: AL3, KS5M, KS5L, KS3M, KS3L, KS3, KS2, KS1, etc.

Whatsminer: M60S+, M60S, M60, M50S++, M50S+, M50S, M50, M32S, M32, M31S++, M31S+, M31S, M30S++, M30S+, M30S, M20, M20S, M21, M21S, etc.

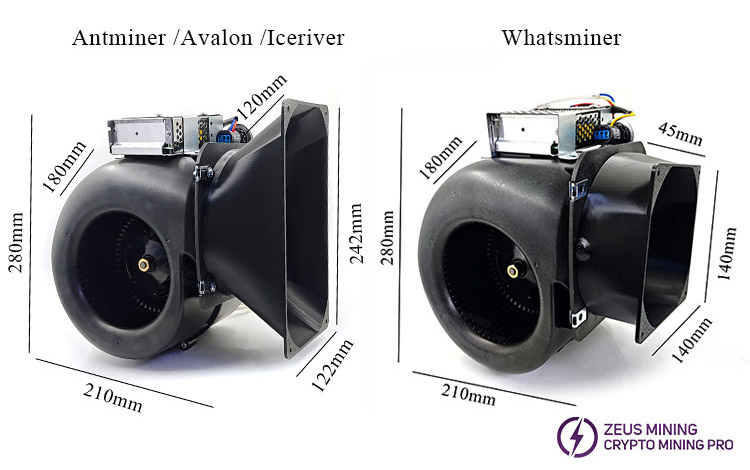

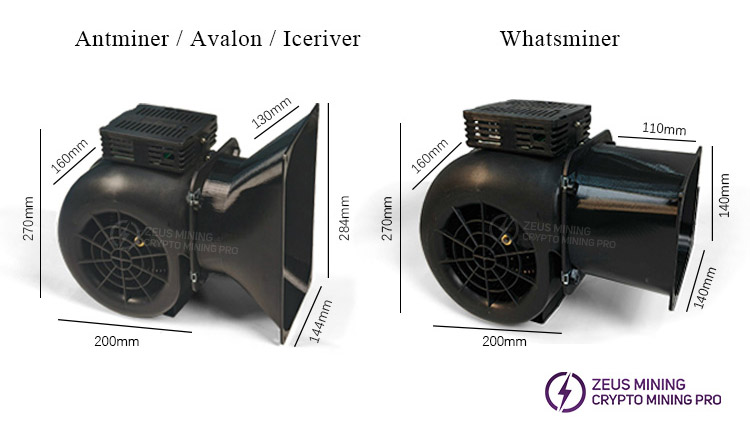

Product parameters:

Outlet outer diameter: 150mm

Package size: 420x320x260mm

Wind speed: about 12m/s

Engine speed: 1800r/min

Air volume: 1300m³/h

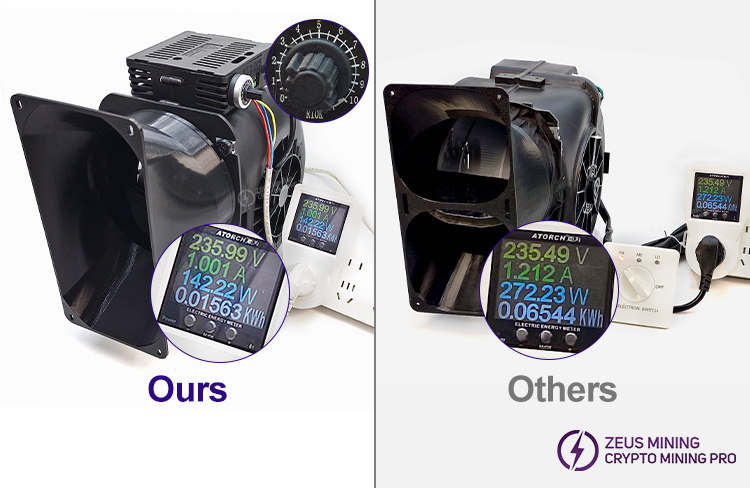

Power consumption: 162W max

Noise: about 78 decibels (determined by environmental factors)

Wind speed: stepless speed regulation

Motor: Brushless DC motor

The cooling effect of the miner after installation: reduced by about 10℃

Product advantages:

1) Small size

The miner silencer blower is smaller in size, has low shipping costs, is convenient to use, and is easy to operate.

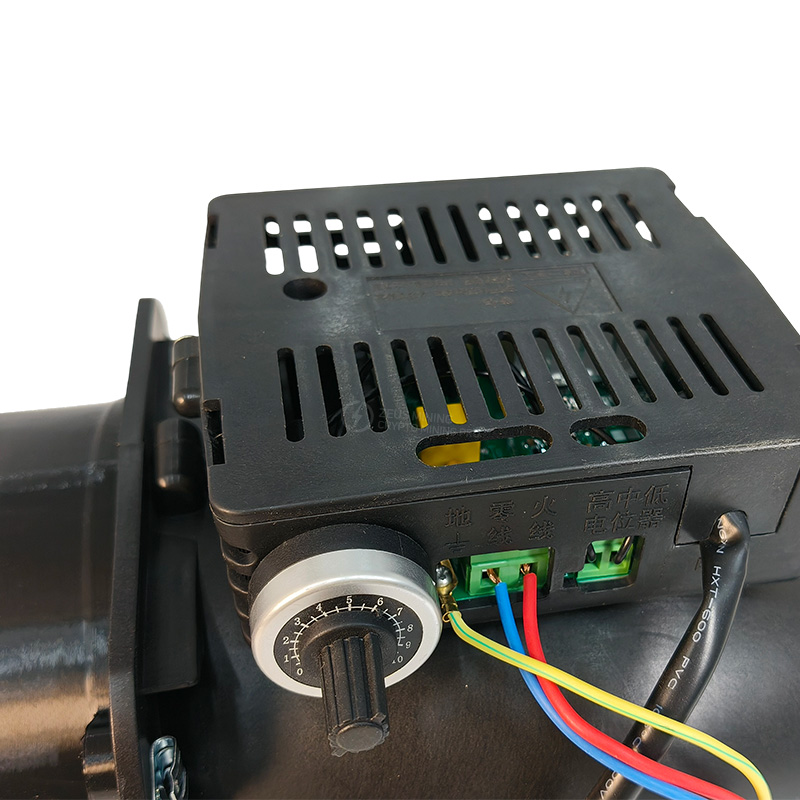

2) Stepless speed switch

The large and comfortable knob saves effort to use. It can flexibly adjust the wind speed according to the ambient temperature, ensuring normal heat dissipation for miners while extending the service life of the machine.

3) Brushless DC motor

Compared with brushless AC motors, brushless DC motors have lower operating power, smaller size, wider speed range, lower operating noise, and more energy savings.

4) Wide range of use

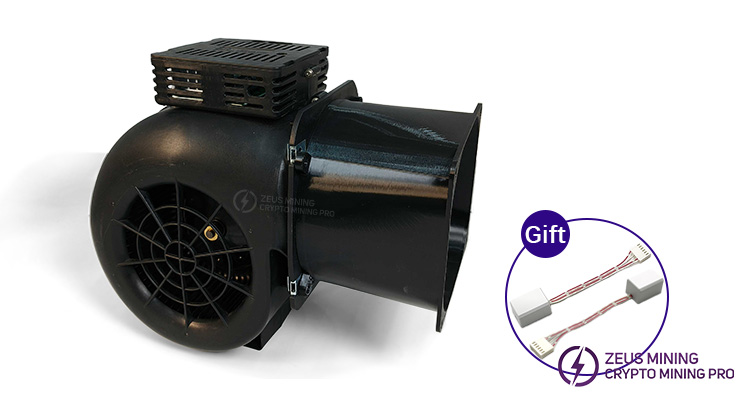

Suitable for miners with dual 120mm fans and a single 140mm fan, such as Antminer (S21pro, S21XP, S21+ except), Whatsminer, Avalon, and Iceriver.

5) Easy to install

After removing the original miner fan and replacing it with a speed simulator, the blower can be connected to operate normally.

6) Low operating noise

Say goodbye to loud, disruptive fan noise, and enjoy quieter, smoother operation with softer, lower-frequency sound.
