ASIC Miner Blower Silencer Gen2 In-depth Review

The asic miner gen2 silencer blower is a compact noise-reduction device with a stepless speed-regulation switch and a brushless DC motor. It is designed explicitly for Antminer (except S21XP S21pro y S21+), Whatsminer, Avalon, and Iceriver series. In the following content, we will conduct a detailed review of this silencer blower to analyze whether it can bring more benefits to ASIC miners.

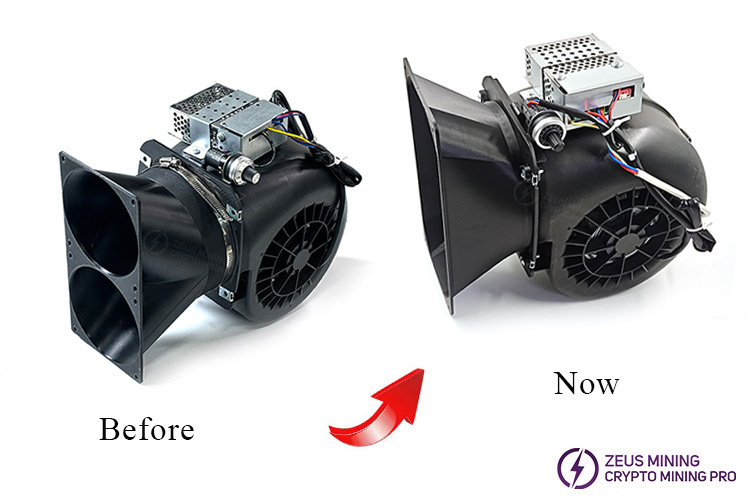

Blower silencer gen2 has been upgraded, this article and linked video can be used as a reference.

I. ASlC miner blower silencer gen2 VS traditional silencer

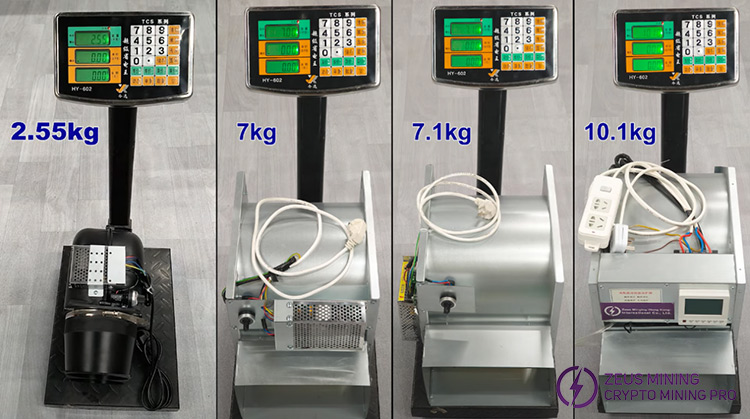

1. The weight is only 2.55kg, while the old version of the silencer is 7kg or more, and the transportation cost will be significantly reduced.

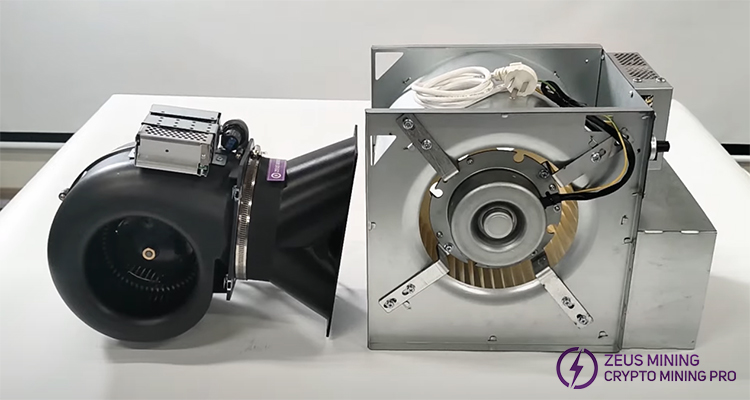

2. The overall size of the blower muffler gen2 is small, light and easy to move.

II. ASlC miner gen2 blower silencer VS other blowers

1. Appearance and detail comparison

a. The asic miner gen2 blower silencer is made of engineering plastic. It features a high-quality black shell with excellent anti-deformation ability. The surface is smooth and shiny.

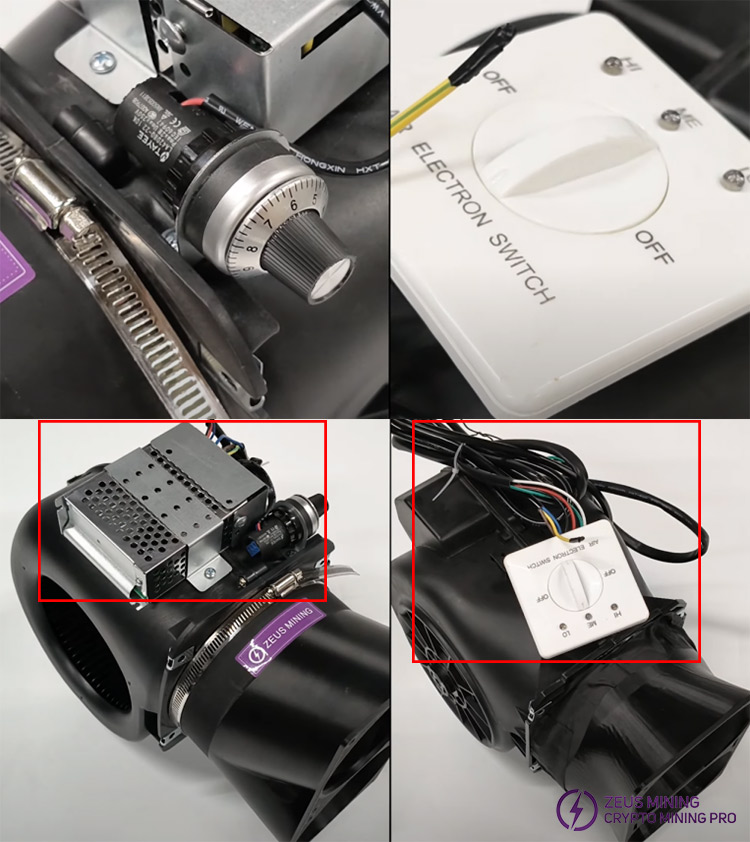

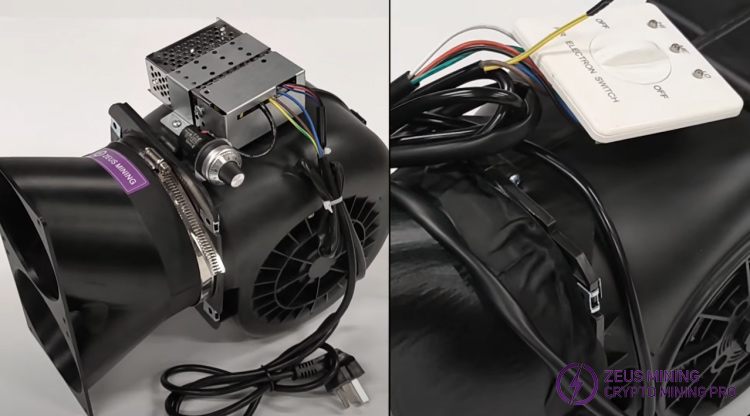

b. The gen2 blower silencer has a stepless speed-regulation controller. The power cord is fixed to the machine body with a special protective shell, meeting electrical safety standards and ensuring user safety.

Other silencer blowers only have 3 a 3-level speed adjustment. The power cords are messy, and the speed controllers are not fixed to the machine body, posing a risk of electric shock.

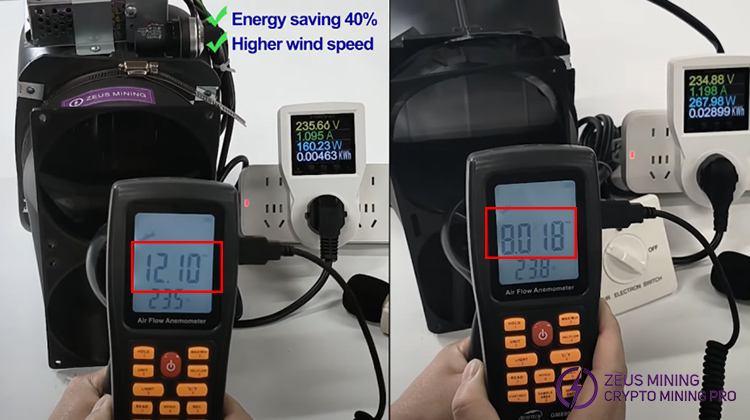

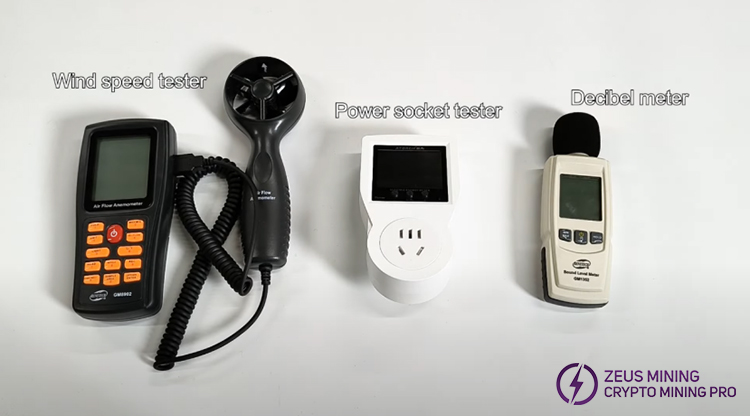

2. We adjusted the gen2 blower silencer and other silencers to the maximum wind speed and conducted comprehensive tests using a wind speed tester, power socket tester, and decibel tester.

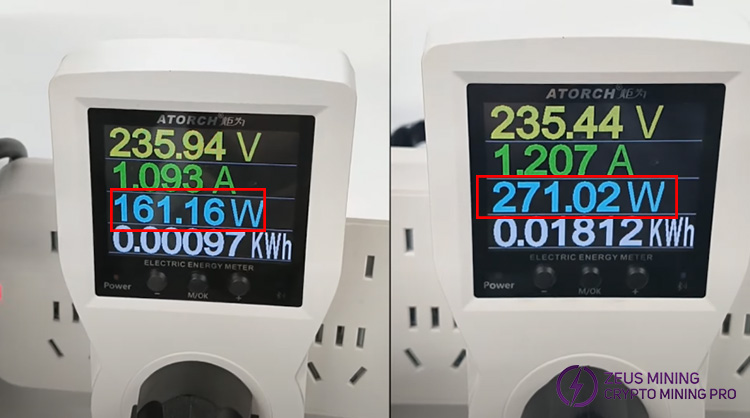

a. The Blower Silencer Gen2 consumes approximately 161W, while the other silencers consume around 271W, representing a 40% energy savings.

Note: The brushless DC motor of the ASIC miner blower silencer gen2 adopts square-wave drive and concentrated winding design, resulting in lower switching losses and copper losses. Combined with efficient magnetic-circuit control, its measured energy efficiency is higher than traditional brushless AC motors, enabling greater energy savings.

b. The two are about 12.1m/s and 8.0m/s, respectively. The ASIC miner Blower Silencer Gen2 has a wind speed of 4.1m/s higher, enabling more efficient heat dissipation.

Note: The stepless speed-regulation of the blower silencer gen2 uses PWM (pulse-width modulation) to continuously adjust the voltage/current, with a response time as short as milliseconds. In contrast, 3 3-level speed-regulation relies on fixed-winding tap switching, which has a mechanical delay (about 0.5-1 second) and fixed-gear intervals. Therefore, the acceleration curve of stepless speed-regulation is smoother, and the instantaneous response is faster, which can quickly and significantly reduce the operating temperature of miners.

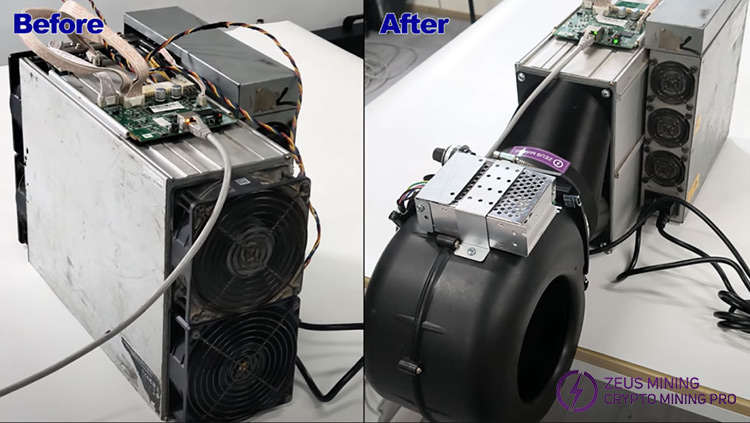

III. Antminer s19 install asic miner blower silencer gen2

1. The Gen2 blower silencer has a quick disassembly and installation design. With the help of supporting tools, it can be installed on the S19 within 5 minutes.

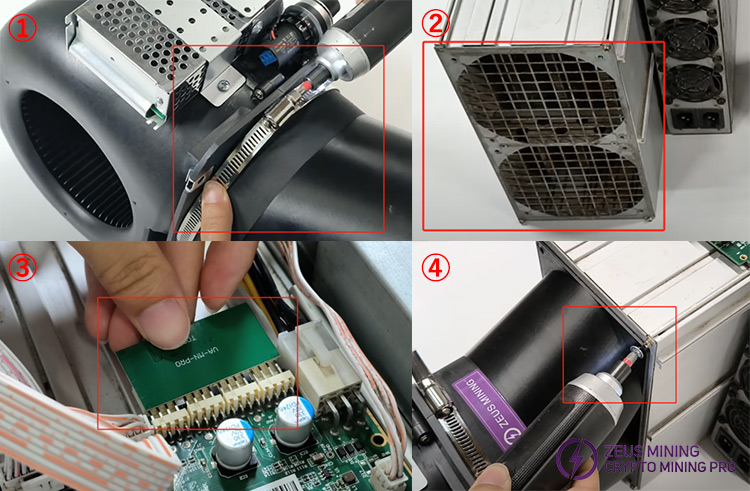

The installation process consists of four steps: Fix the air hood to the blower body with tape and clamps (After the upgrade, the installation steps here are to fix the fan cover to the blower body with screws.) → Remove the original cooling fans of the miner after powering off → Install the PWM speed simulator on the control board → Fix the blower to the air inlet/outlet of the miner with screws.

2. The blower silencer gen2 mainly eliminates the sharp noise of ASIC miners through the principles of "acoustic impedance matching" and "high-frequency energy dissipation." It precisely targets the sharp noise of Antminer S19 at 80-85dB and above and eliminates high-harmonic frequencies (2–8kHz, such as metallic friction sounds, alarm sounds, electric tool noises, and high-frequency mechanical noises). The innovative turbine structure allows it to maintain the air volume while destroying the coherence of high-frequency sound waves through swirling airflow, making the harsh sound comfortable and soft.

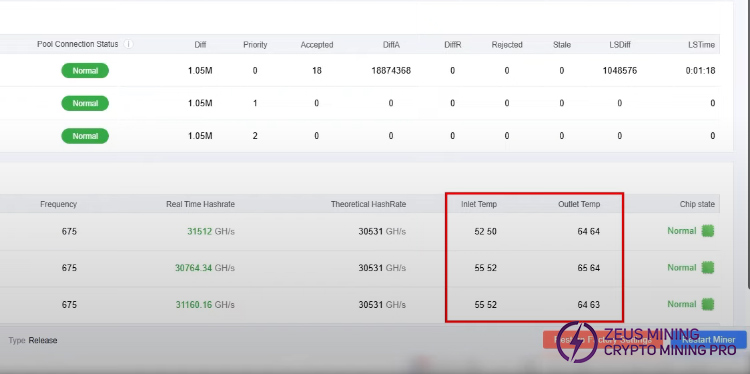

3. The operating temperature of the Antminer S19 has been greatly improved, with the inlet and outlet air temperatures dropping by about 10°C compared to before installation.

Click to view the product manual: ASIC Miner Blower Silencer Gen2 Installation Manual

Conclusion: Why does the asic miner blower silencer gen2 have obvious advantages?

✔ The brushless DC motor provides the best energy-saving performance. Lower power consumption leads to higher energy efficiency, and long-term use can significantly reduce electricity costs.

✔ The step-less speed regulation technology offers excellent heat dissipation performance. It can maintain a higher wind speed and a lower operating temperature, effectively extending miners' service life and performance.

✔ The innovative turbine structure reduces noise and makes it lower-frequency, providing a comfortable operating environment.

✔ Small in volume, weight, and size, it has low transportation costs. It is easy to move and install.

✔ Widely applicable, it suits miners with dual 120mm fans and single 140mm fans, such as Antminer (excluding S21pro and S21+), Whatsminer, Avalon, and Iceriver.

✔ Multi-scenario applicability: It can be used in home environments, offices, noise-sensitive cities, high-density professional mines, and by users who need to extend the equipment's life.

✔ Its performance far exceeds similar products on the market, making it an ideal choice for upgrading the cooling of miners.

Recommendation index: ★★★★★

The ASIC miner blower silencer gen2 adopts an industrial-grade noise reduction and heat dissipation solution. It has significant energy-saving advantages and shows performance beyond expectations through actual testing. Its innovative step-less speed regulation system allows miners to find the perfect balance between silence and heat dissipation. Whether in home mines or professional deployments, this product can significantly improve mining efficiency with lower energy consumption, stronger heat dissipation, and quieter operation.
