The Bitmain Antminer S23 Hyd 580Th is Bitmain's latest high-performance water-cooled ASIC miner and is specifically optimized for mining BTC, BCH, BSV, and other SHA-256 cryptocurrencies. It provides a powerful hash rate of 580Th/s, a power consumption of only 5510W, and an energy efficiency of 9.5J/Th.

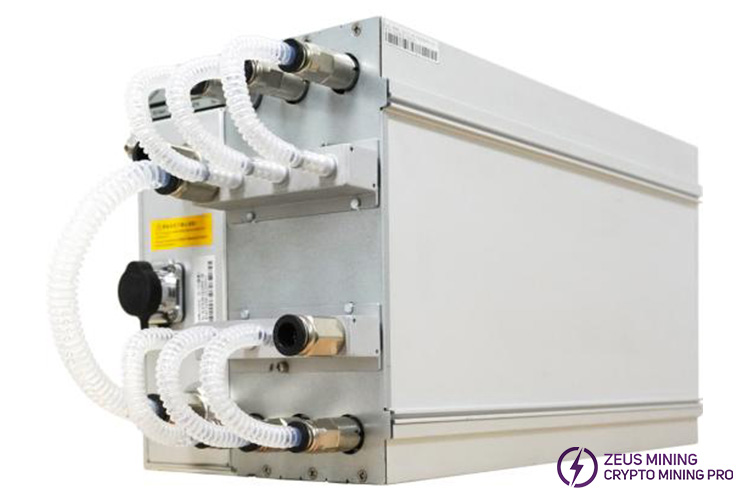

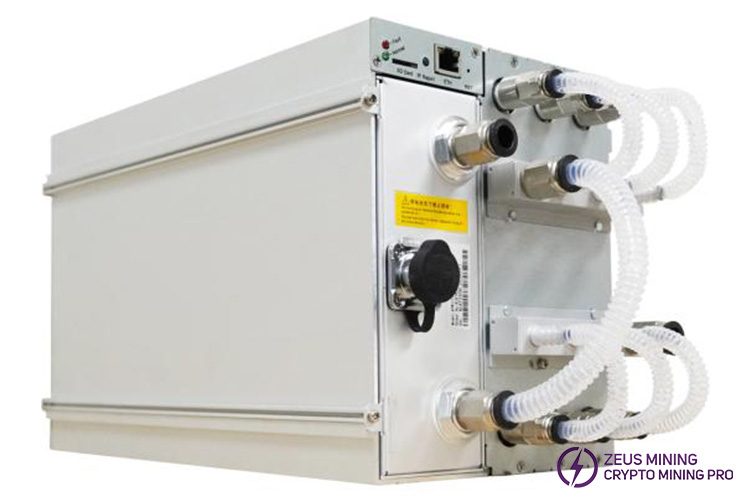

The Antminer S23 Hydro features a closed liquid cooling cycle design, where the water cooling plate directly contacts the ASIC chip, resulting in significantly improved heat exchange efficiency compared to air cooling. The operating noise is less than 65 decibels, equivalent to the sound of an indoor conversation, thereby addressing the pain point of noise pollution in mining farms.
Specifications:
Product Glance | Model | S23 Hyd. |
Sub | 580T | |
Version | 10 | |
Crypto algorithm/coins | SHA256 | BTC/BCH/BSV | |
Typical hashrate | 580TH/s | |
Power on wall @35℃ | 5510W | |
Power efficiency on wall@35℃ | 9.5J/T | |
Power Supply | Phase | 3 |
Input voltage | 380~415V | |
Input frequency range | 50~60Hz | |
Input max current | 12A | |
Hardware Configuration | Networking connection mode | RJ45 Ethernet 10/100M |
Server size (without package) | 410x170x209mm | |
Server size (with package) | 570x316x430mm | |
Net weight | 13.5kg | |
Environment Requirements | Inlet coolant temperature | 20~50℃ |
Coolant flow | 8.0~10.0L/min | |
Coolant pressure | ≤3.5bar | |
Working coolant | Antifreeze / Pure water / Deionized water | |
Coolant PH value | Antifreeze: 7.0~9.0 | |
Diameter of coolant pipe connector | OD10mm | |
Storage temperature | -20~70℃ | |
Operation humidity (non-condensing) | 10~90%RH |
 |
|||
| Quality assurance All products are from official factories |
Fast shipping Shipped within 2-3 working days after accepting the order |
Enhanced packaging New miners use original packaging and strengthen peripheral packaging |
Multiple modes of transportation Support air, ship and designated special line transportation |
