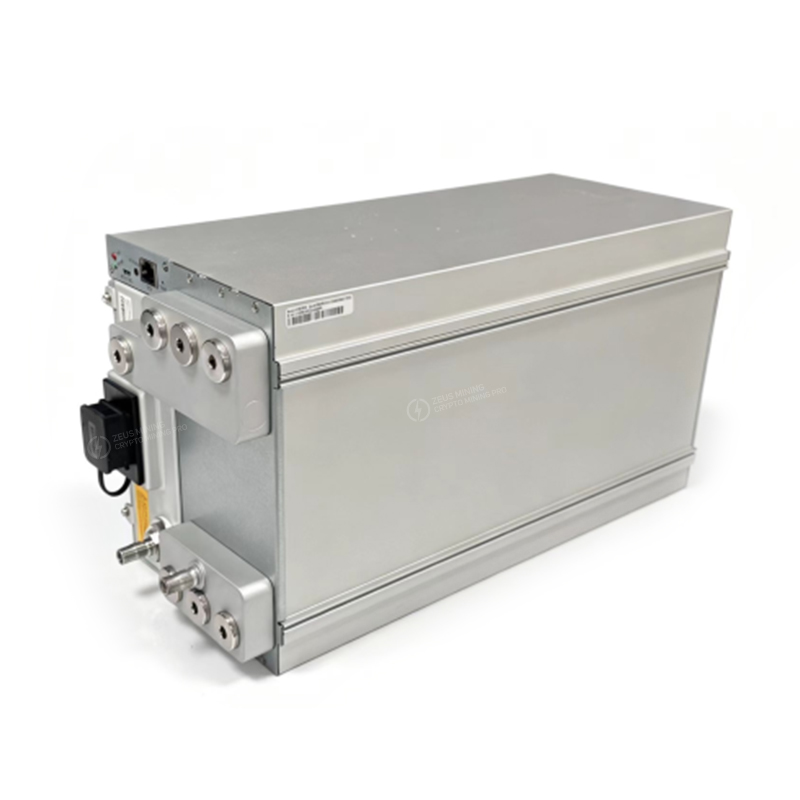

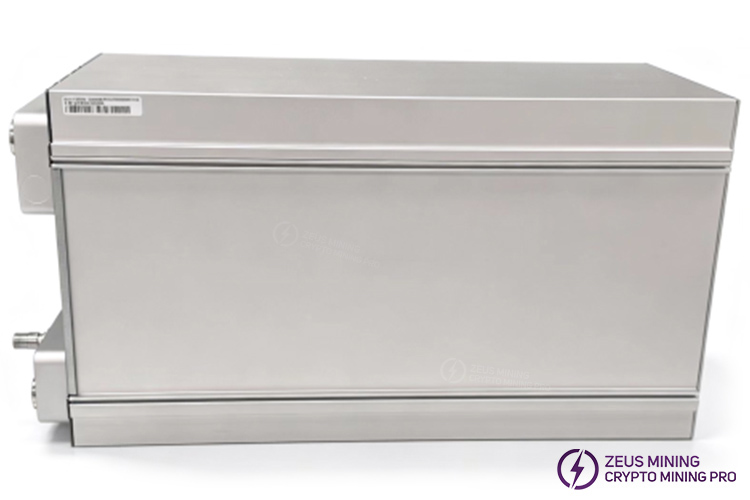

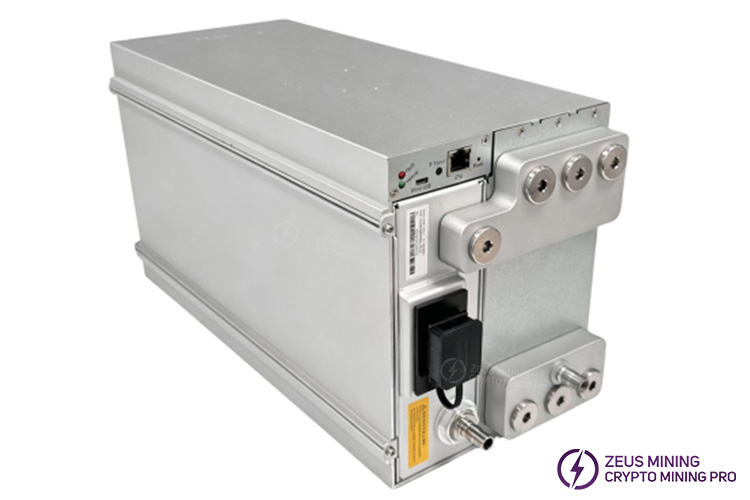

The Bitmain Antminer S23 XP Hyd is Bitmain's new-generation flagship water-cooled SHA-256 ASIC miner, designed specifically for large-scale enterprise mining farms and high-density data center environments. Leveraging upgraded ASIC chip technology and an integrated liquid-cooling architecture, it surpasses the thermal limitations of traditional air-cooled miners to achieve industry-leading energy efficiency of 8.9J/TH. With a rated hash rate of up to 600TH/s and a power consumption of 5,340W, it significantly reduces electricity costs. The water-cooling solution eliminates hot-air recirculation and the high noise levels associated with high-speed fans; it is compatible with closed-loop liquid-cooled data centers, where its superior energy efficiency directly boosts return on investment and ensures greater profitability, particularly in regions with high electricity costs.
Detailed Characteristics | Value | |
Product Glance | Model | S23 XP Hyd. |
Version | 600T-10 | |
Crypto algorithm/coins | SHA256|BTC/BCH/BSV | |
Typical hashrate | 600TH/s | |
Power on wall @35℃ | 5340W | |
Power efficiency on wall@35℃ | 8.9J/T | |
Power Supply | Phase | 3 |
Input voltage | 380~415V | |
Input frequency range | 50~60Hz | |
Input max current | 12A | |
Hardware Configuration | Networking connection mode | RJ45 Ethernet 10/100M |
Server size (length*width*height, w/o package) | 409x176x208mm | |
Server size (length*width*height, with package) | 570x316x430mm | |
Net weight | 15.8kg | |
Gross weight | 17.5kg | |
Environment Requirements | Inlet coolant temperature | 20~50°C |
Coolant flow | 8.0~10.0L/min | |
Coolant pressure | ≤3.5bar | |
Working coolant | Antifreeze/Pure water/Deionized water | |
Coolant pH value | Antifreeze: 7.0~9.0 | |
Diameter of coolant pipe connector | OD10mm | |
Storage temperature | -40~90°C | |
Operation humidity (non-condensing) | 10~90%RH |
