Antminer S19 upgrade water cooling plate set

Product description

Bitcoin Miner Antminer S19 76 chips / 88 chips heatsink tool parts water cooling plate

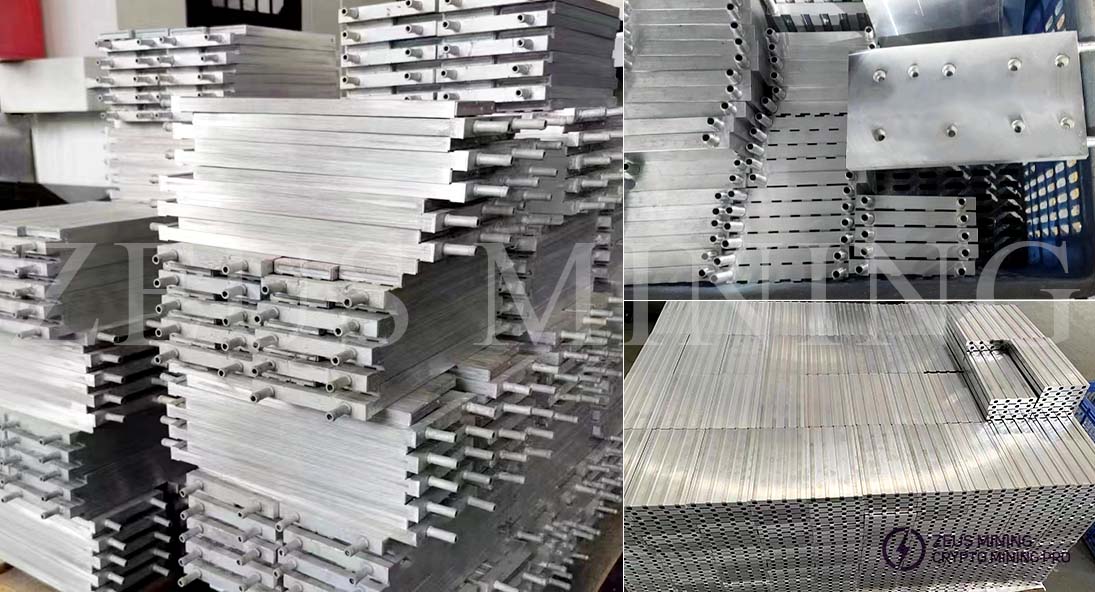

Antminer S19 aluminum water-cooled cooling tool retrofit kit features seamless and tightly integrated welds to rapidly cool the Antminer S19's operating temperature for improved mining performance.

If you don't know your miner model and hash board ASIC chips quantity, please view How to confirm the Antminer hash board version, and tell the sales manager the details to help recommend the correct water cooling board.

Product composition

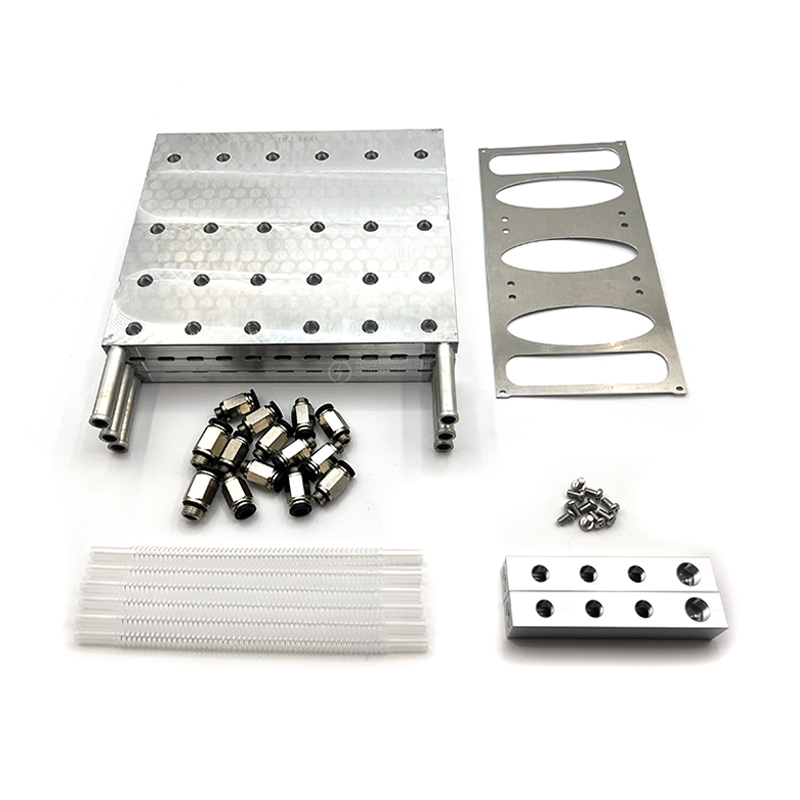

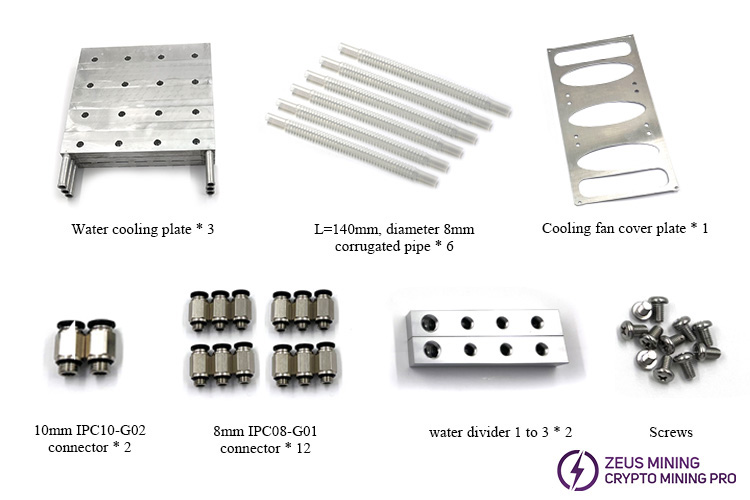

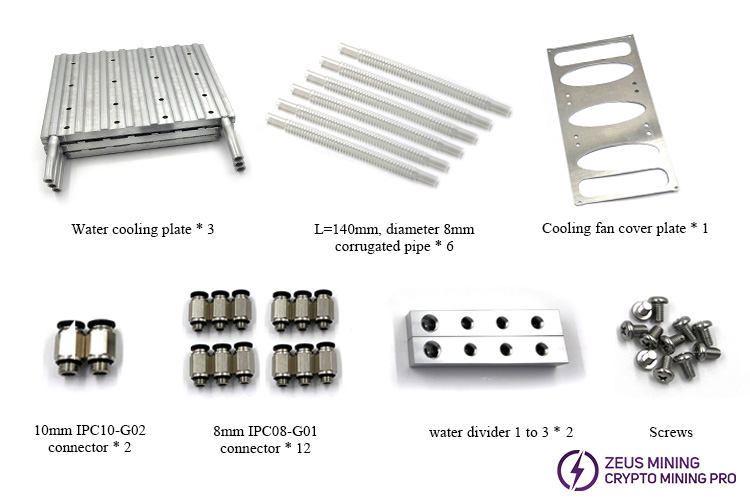

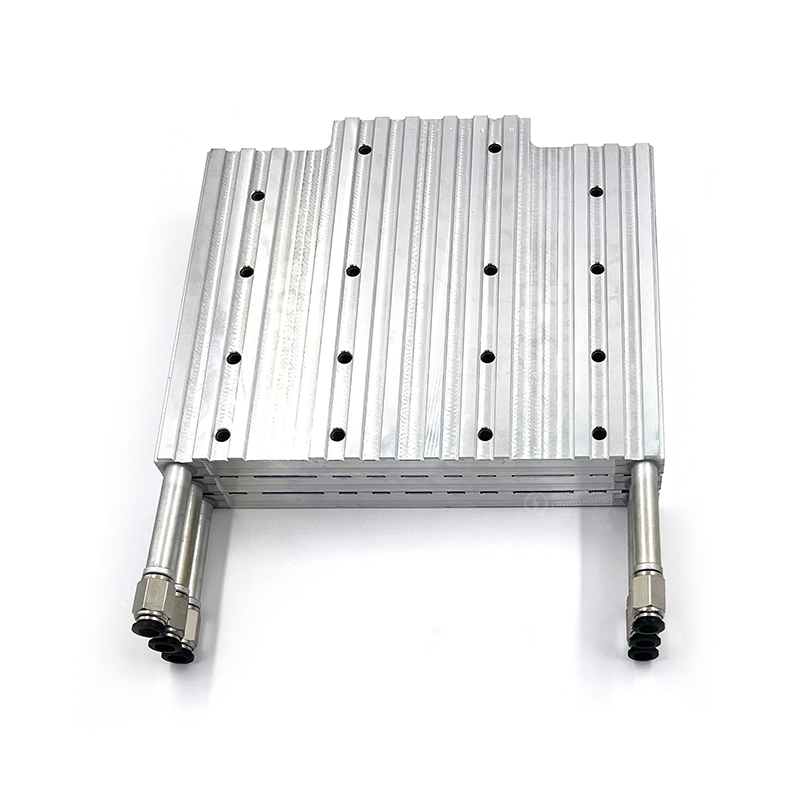

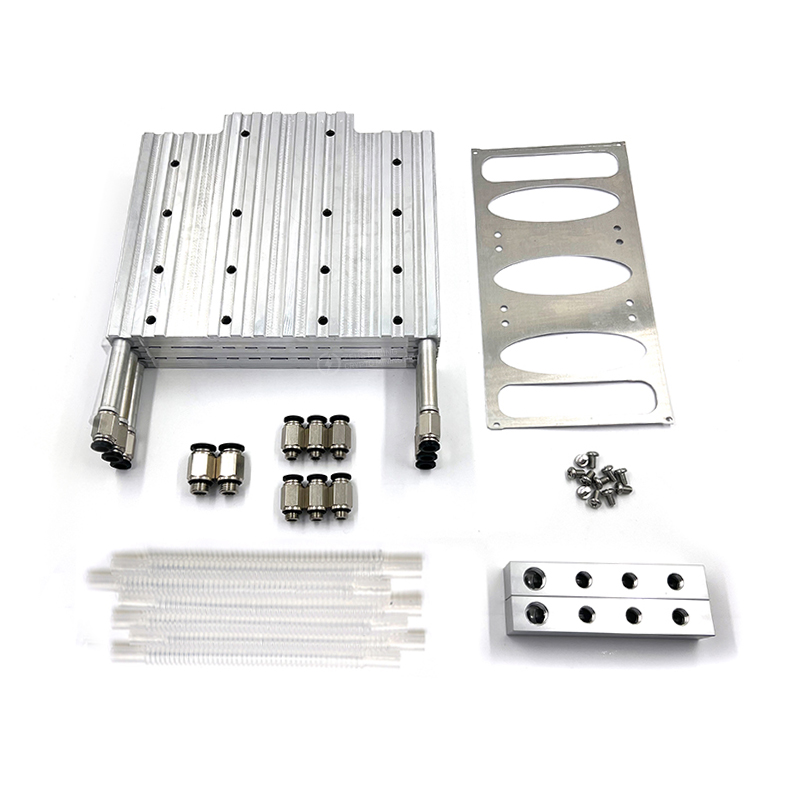

Antminer S19 PCB version water cooling kit:

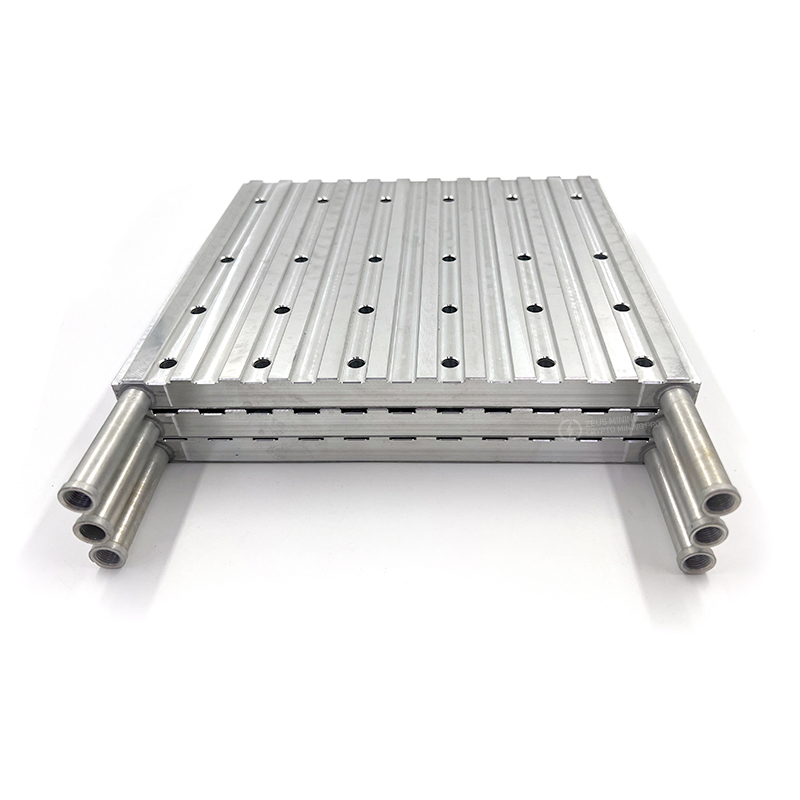

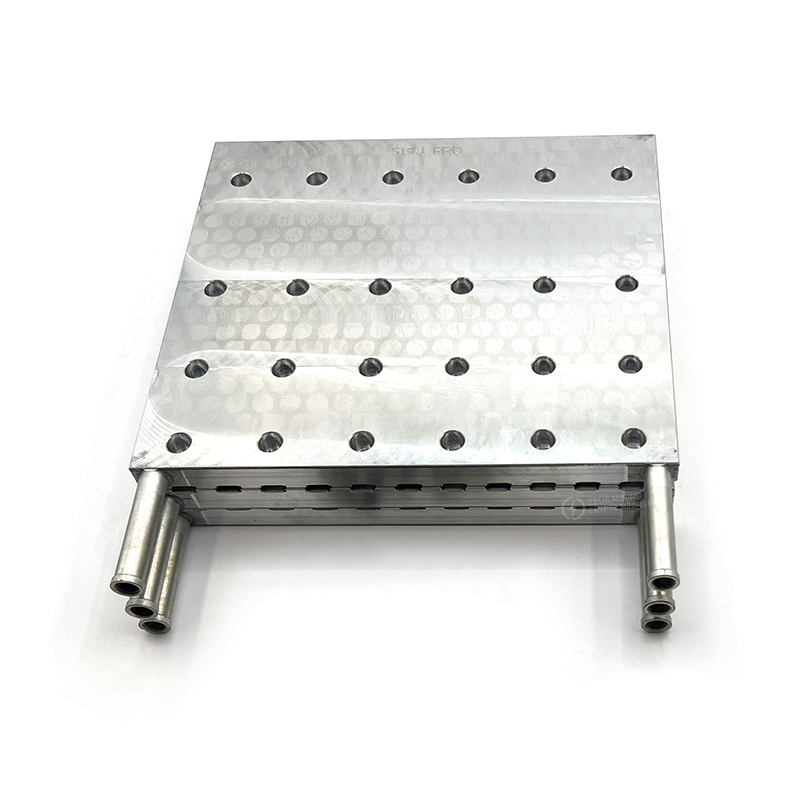

Antminer S19 aluminum board version water cooling block:

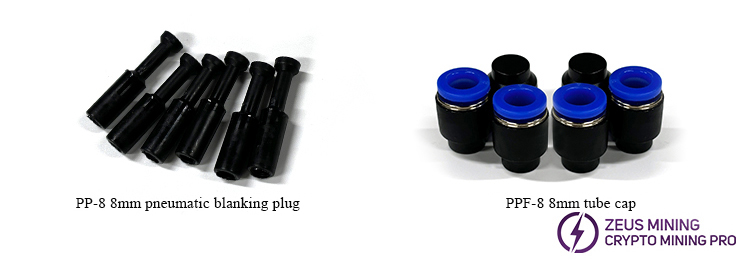

In addition, we will also give away 8mm pneumatic blanking plugs and tube caps; they are used to plug the water cooling plate quick connector or corrugated pipes when replacing the water cooling plate or repairing the hash board to avoid leakage and waste of water cooling liquid.

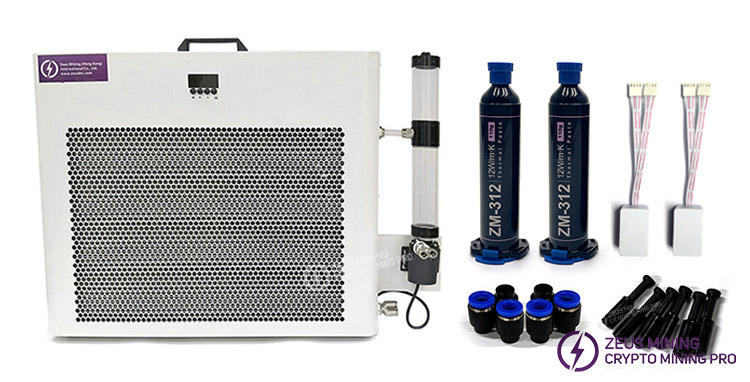

For purchasing the S19 water cooling system retrofit kit (with 12.8KW radiator), you will receive not only the water cooling plate but also the following products:

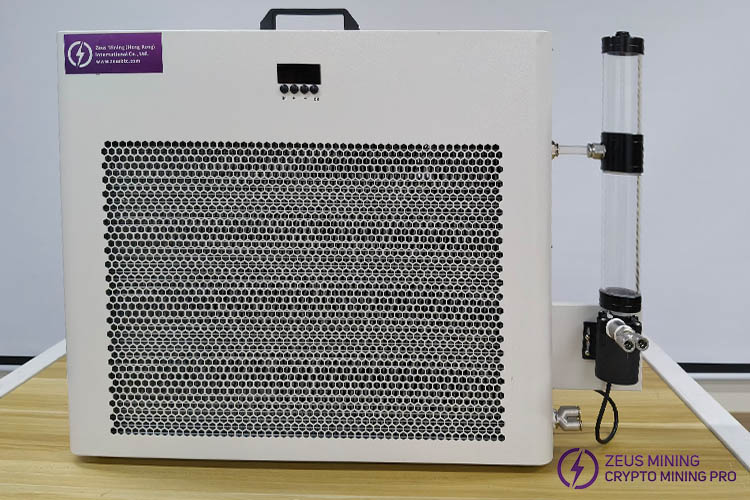

1. 12.8KW water cooling radiator for S19 water cooling retrofit * 1

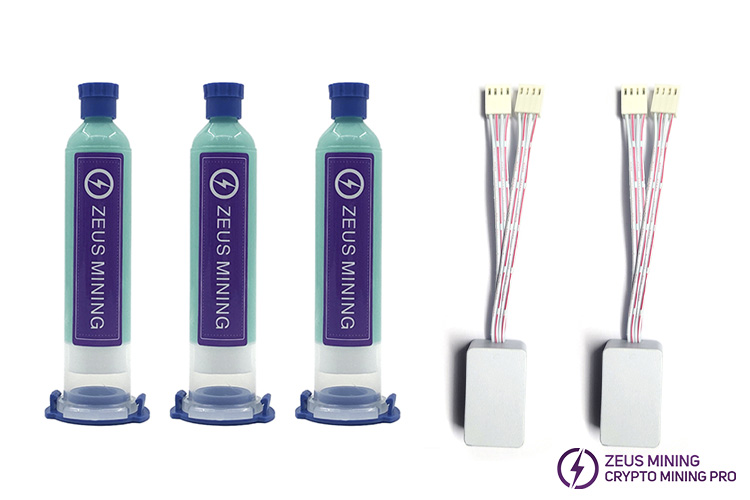

2. Hash board thermal paste 6W/mk 110g for S19 water cooling * 3

3. Antminer fan speed simulator emulator spoofers for S19 water cooling * 2

Due to the paste being a sensitive good and its transportation being restricted, it will be shipped separately using sensitive goods channels, and the delivery time will be slightly longer 8 to 20 working days.

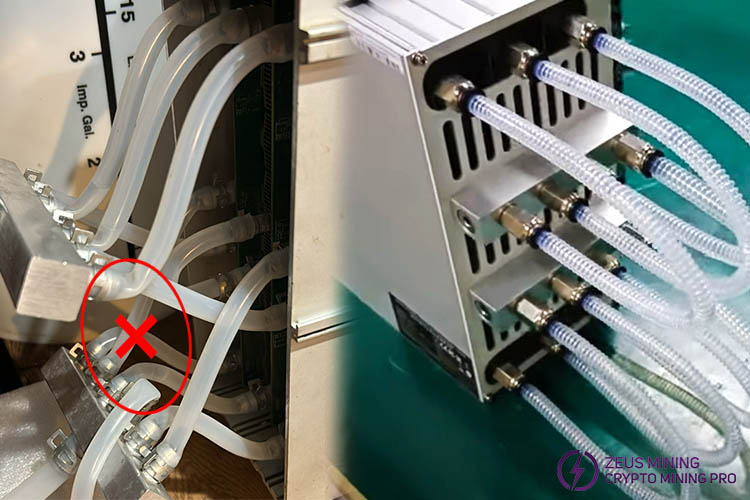

Note: The water cooling plate's water pipes have all been upgraded to PVC corrugated pipes, effectively avoiding bending the pipes and obstructing water flow while helping miners dissipate heat better.

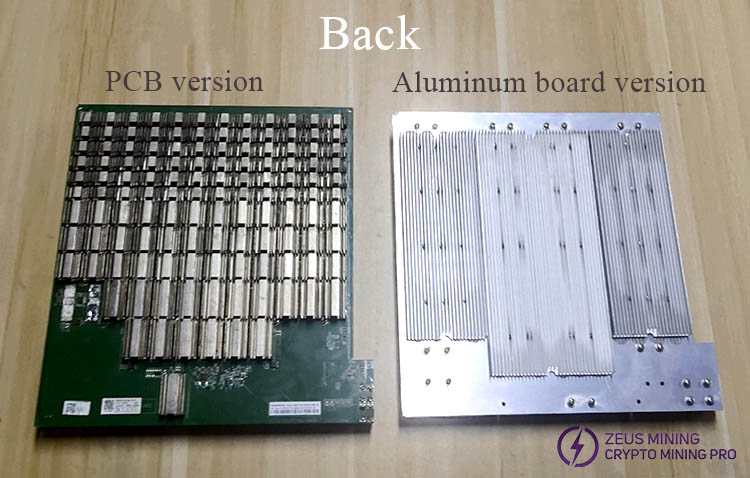

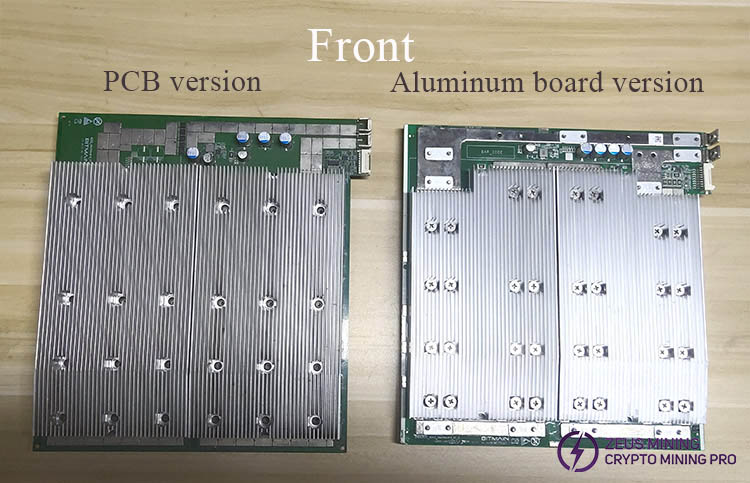

Comparison between Antminer hash board PCB version and Aluninum board version:

S19 water cooling plate modification tutorial installation tutorial:

1. Disassemble the machine; remove the fan of the S19 miner, pull out the hash board cable, remove the fixing nut of the hash board, remove the fan, and then remove the three Hash boards of the S19. If you find a lot of dust on the heat sink, you can first use a brush to remove the excess dust. Then use an electric screwdriver to remove the original screws of the heat sink, remove the heat sink, and clean the residual silicone grease on the surface of the chip.

2. Replace and install the water-cooled heat sink: apply an appropriate amount of thermal conductive gel evenly on the surface of the chip, align the water-cooling plate hole with the heat sink nut hole, and then install the water-cooled plate fixing screws. Reinstall the installed hash board into the chassis, and re-fix the screws of the hash board. Since only one side of the cooling fan can be installed, an additional fan speed simulator needs to be installed.

3. Install the water pipe: according to the needs, cut off the appropriate length of the hose, connect the water pipe, and install the spring clip and the water divider to ensure that the water pipe is firmly installed.

4. Connect the radiator water drain pump: cut off the appropriate length of the water pipe, and connect the water pipe clamp at the same time to ensure that there will be no water leakage. Then connect the fan of the water drain pump and the power supply, and the water level in the water tank can be added until it no longer drops.

5. After the installation, you can connect the miner power supply to run the miner.

We also accept customization of other models of water cooling plates, please contact sales for details.
