| Unit Price: | $ 150 |
The RX-180 is a universal programmer integrating offline programming, online programming, and chip reading/writing for Antminer APW12 and APW17 series power supplies. It emphasizes "independent programming without a computer, multi-chip compatibility, and adaptability to both mass production and repair scenarios," making it a cost-effective tool for ASIC miner repair.
Product advantages:
1. Offline Programming: No computer required. Firmware/configuration is imported via a host computer, and programming is done offline with a single click. Suitable for production lines, field operations, and environments without a computer.
2. Universal Compatibility: Supports the entire PIC series (PIC10/12/16/18/24/32, etc.), some Atmel AVR/ATSAM, Renesas RL78/R7FA, etc., covering mainstream 8/16/32-bit MCUs.
3. Integrated Read/Write Verification: Supports program reading (backup), erasing, programming, verification, and configuration bit (fuse) read/write; supports mainstream firmware formats such as .hex/.bin/.s19.
4. High Stability: Hardware overcurrent/overvoltage protection; fast programming speed; supports batch automatic programming (program upon chip replacement), reducing labor costs.
5. Portable and Easy to Use: Compact body; USB power supply/external power supply dual mode; button + LED status indicator; low learning curve.
6. UART: Independently operating UART; can communicate with PC protocol for automated programming.
7. Adjustable Communication Speed: Up to 20MHz, comparable to LINK-V9.
8. Supports Rich Online Functions: Such as online flash memory read/erase, verification, and online read/write of option bytes.
Function description:
• Supports the vast majority of chips on the market; we will strive to program all chips.
• Supports 128 different programs, selectable via buttons.
• Supports simultaneous firmware burning from multiple images: One image can burn firmware to 10 different addresses at once, effectively eliminating the need for multiple burning attempts.
• Supports specified address burning: Users can add custom data (hardware/software version information, identification information, production date, font library, etc.) as files to the host computer, specify the burning address, and configure it along with the chip's program into the programmer, burning all data to the chip at once.
• Supports multiple erasure methods: chip erase, sector erase, or no erase.
• Supports data verification: Ensures the accuracy of data burned into the chip.
• Supports read protection settings: supports multiple levels.
• Supports automatic read protection removal: Removes read protection from the chip before downloading.
• Supports automatic start/stop burning: Downloads automatically when the offline programmer detects the target chip, and stops automatically after burning is complete.
• Supports manual burning: Press a button to start burning.
• Supports TFT screen/LED/buzzer: Supports multiple display formats for easy customer monitoring of programming progress.
• Supports multiple voltage outputs: Supports 3.3V and 5V outputs.
• Supports an automatic programming interface for automated programming.
• Can limit the number of programming attempts to make program downloads easier to manage.
• Supports HEX, BIN, S19, and other program formats.
• Supports remote firmware upgrades for convenient future version maintenance and updates. The host computer supports the simultaneous display of Chinese and English.
Product parameters:
Product name: Offline Programmer RX-180
Product dimensions: 99mm*70mm*25mm (L*W*H)
Product voltage: DC5V
Product power consumption: 50mA@5V~200mA@5V
Functional parameters:
Interface protocols: JTAG, SWD, SPIIIC, BDMSWIM, ISPICP, CANLIN, and other programming interfaces
Online functions: Supports online read/write (reads work without encryption, not with encryption)
Offline functions: Offline programming, automatic machine interface, serial communication

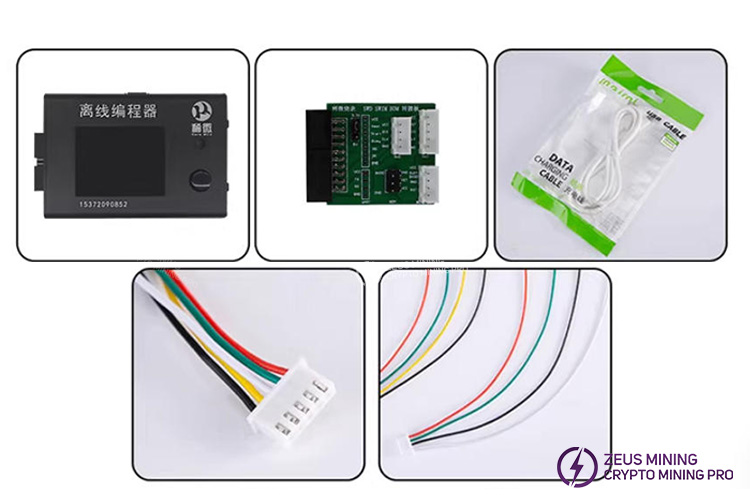

Product structure:

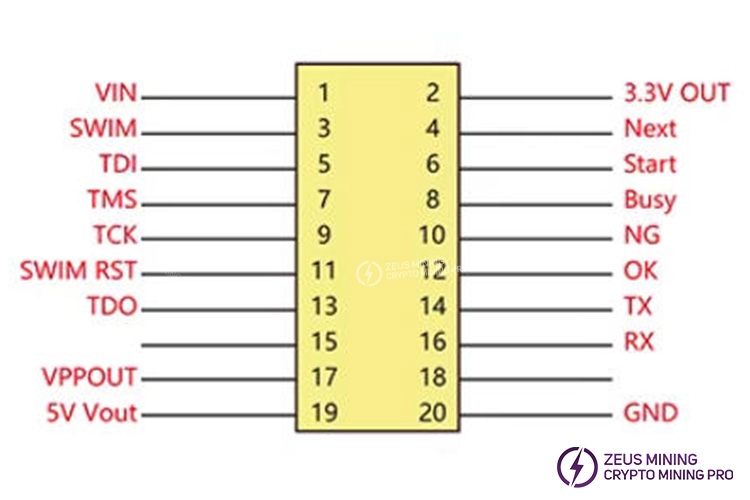

Interface definition description:
Offline programmer *1
Adapter board *1
USB charging cable *1
5-pin ribbon cable *1
4-pin ribbon cable *1
