IPW60R041P6

Product description

IPW60R041P6 600V P6 Power Transistor

IPW60R041P6 is a revolutionary technology for high voltage power MOSFETs, designed according to the super-junction(SJ) principle and pioneered. enables higher system efficiency, especially at light loads, while being easy to design.

IPW60R041P6 combines the experience of the leading SJ MOSFET supplier with high-class innovation. The devices provide all benefits of a fast switching SJ MOSFET while not sacrificing ease of use. Extremely low switching and conduction losses make switching applications even more efficient, more compact, lighter and cooler. Suitable for hard-switching and soft-switching topologies.

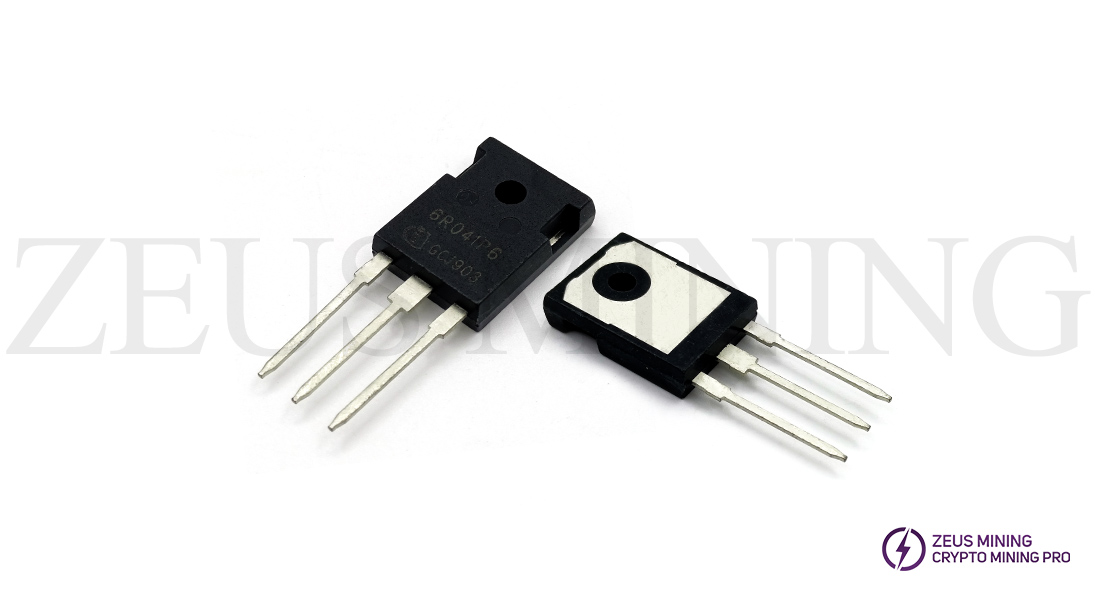

The device is housed in a PG-TO 247 package, marked 6R041P6. Pb-free plating, Halogen-free mold compound.

The IPW60R041P6 600V PFC boost MOSFET serves as the core switch for power correction. Working in conjunction with a boost inductor, it boosts the rectified low-voltage electricity to a stable 400V bus, providing a stable high voltage to subsequent circuits and ensuring that Antminer and Whatsminer ASIC miners can run stably at full load and maximize their hashrate. When the IPW60R041P6 fails, the power supply may blow its input fuse upon power-on, the entire machine may fail to power on, or it may repeatedly start and stop, exhibiting high-frequency abnormal noises. Under full load, it can easily cause overheating and shutdown. Keeping this component on hand can effectively reduce losses from offline mining downtime and the rate of repairs and returns.

This is a brand-new original product, and the price may be more expensive than the substitute product, but the quality is guaranteed; welcome to buy.

IPW60R041P6 600V PFC boost MOSFET features:

Increased MOSFET DV/DT ruggedness

Extremely low losses due to very low FOM R_dson*Q_g and E_oss

Very high commutation ruggedness

Easy to use/drive

Qualified for industrial-grade applications according to JEDEC(J-STD20 and JESD22)

IPW60R041P6 TO-247 applications:

For Antminer power supply chip repair parts.

PFC stages, hard switching PWM stages and resonant switching stages. e.g. PC Silverbox, Adapter, LCD&PDP TV, Lighting, Server, Telecom and UPS.

IPW60R041P6 N-channel power MOSFET parameters:

I_D (@25°C): max 77.5 A

I_D: max 77.5 A

I_Dpuls: max 267 A

Mounting: THT

Operating Temperature: min -55 °C

P_tot: max 481 W

Package: TO-247

Pin Count: 3 Pins

Polarity: N

Q_G (typ @10V): 170nC

Q_G: 170 nC

R_{DS (on)} (@10V): max 41mΩ

R_{DS (on)}: max 41mΩ

R_th: 0.26K/W

R_thJA: max 62K/W

R_thJC: max 0.26 K/W

V_DS: max 600V

V_GS(th): min: 3.5V; max: 4.5V

Product display
