2022 new version Antminer test fixture with touch screen

Product description

2022 New version Test fixture with touch screen for locating the Antminer hash board damaged asic chip and hashrate test

Antminer test fixture offline version is suitable for Antminer S9 T9 Z9 Z9mini Z15 S11 S15 T15 S17 T17 S17Pro T17+ S17+ T17e S17e S19 S19Pro S19i S19+ T19 S19j S19jPro S19a S19XP D7 and Antminer L7 hash board test. does not need to be connected to the computer for complicated settings, you only need to connect the test fixture to the hash board and power supply to complete all the test work.

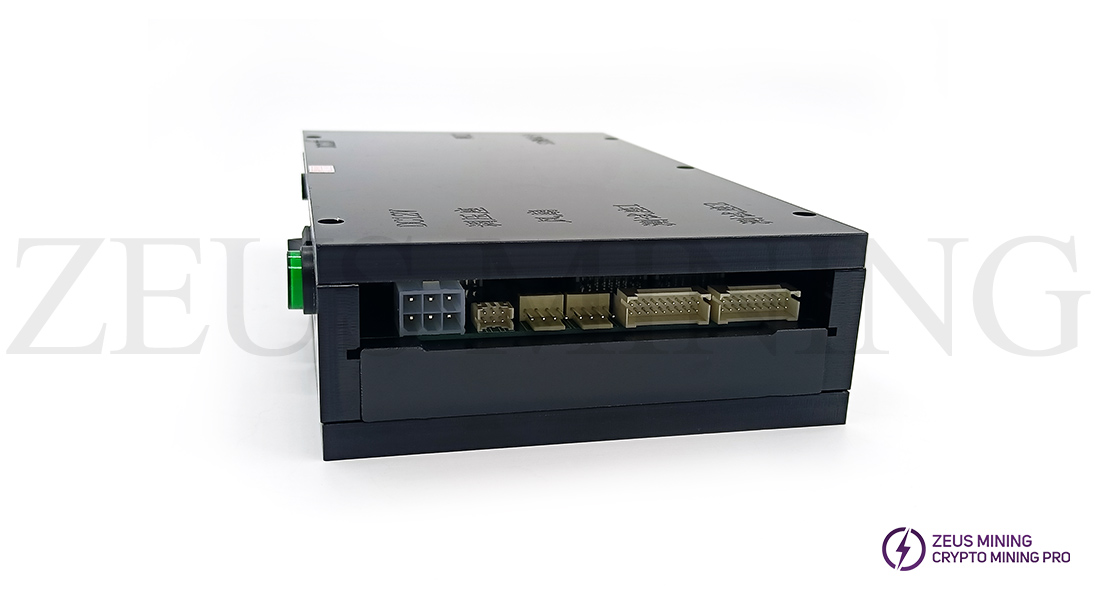

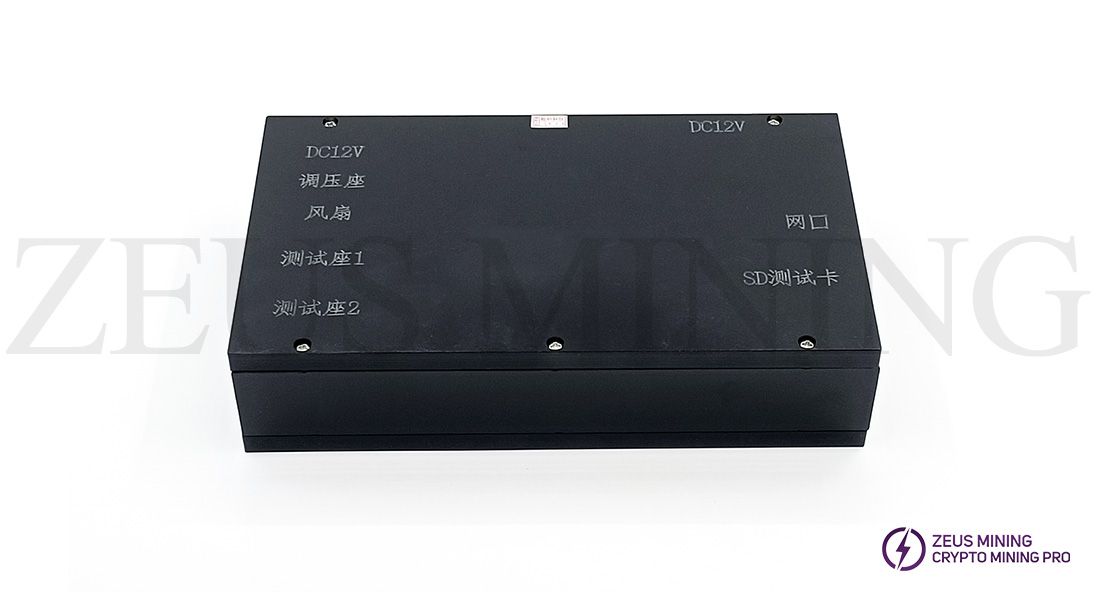

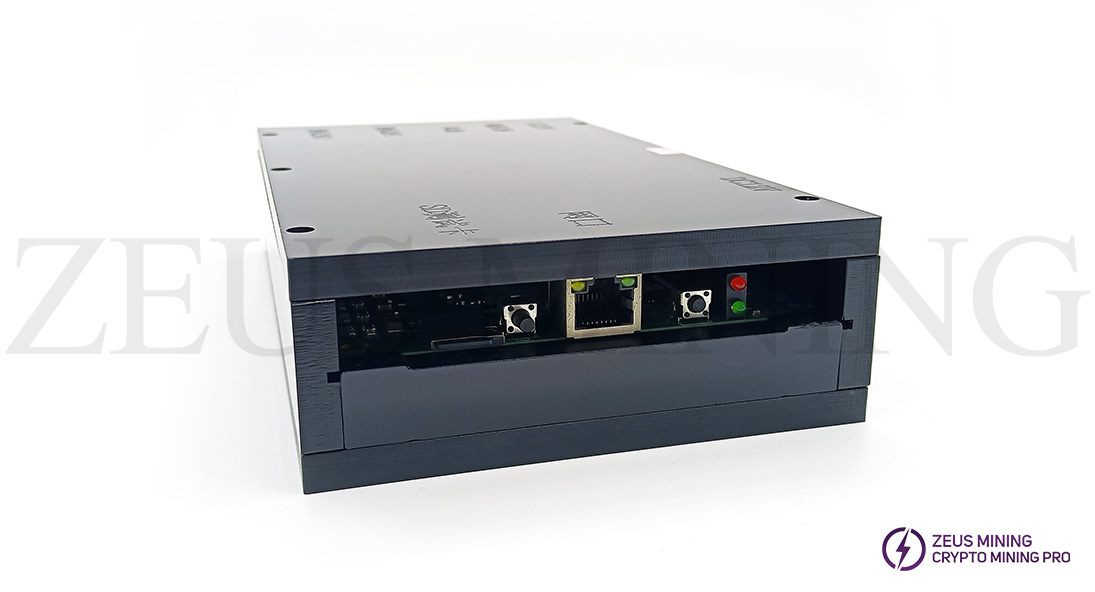

The new Antminer fixture has a 7-inch full-screen touch function. There are two test sockets on the left side of the fixture, a voltage regulator socket and a DC 12V power connection socket. Test all-in-one Antminer needs to be connected to a regulated cable, and only the miner's own power supply can be used.

Notice:

When testing the relevant voltage of the Antminer 19 series hash board, because the time to test the output voltage of the test fixture is only 15 seconds, when the test time is over, you can unplug the hash board's cable, then re-insert it, and then press the test button. The test time can be obtained repeatedly. If the hash board is burned due to wrong operation, our company does not support after-sales processing.

Why choose the new version of the Antminer test fixture?

1. 7-inch display screen, the test results are clearly visible;

2. There is no need to connect a computer during the test, which is convenient and fast;

3. Add full-screen touch function;

4. A 12V DC power supply is added to the top of the test fixture.

Notice: testing different Antminer hash boards requires different models of power supplies:

① Antminer S15, T15 need to configure APW8 (16V) power supply

② Antminer S17, T17, S17 Pro, T17+, S17+, T17e, S17e need to configure APW9 or APW9+ power supply

③ Antminer S19, S19 Pro, T19, S19j, S19j Pro need to configure APW12 power supply

④ Antminer S11 needs to be configured with APW8 (10V) power supply

⑤ When test the combining the miner, you need to connect the 4P voltage stabilizer cable. Both the test fixture and the hash board can only use the miner's own power supply.

Product display

Take Antminer S9 as an example to explain how to use the new version of the test fixture as follows:

Ready to work:

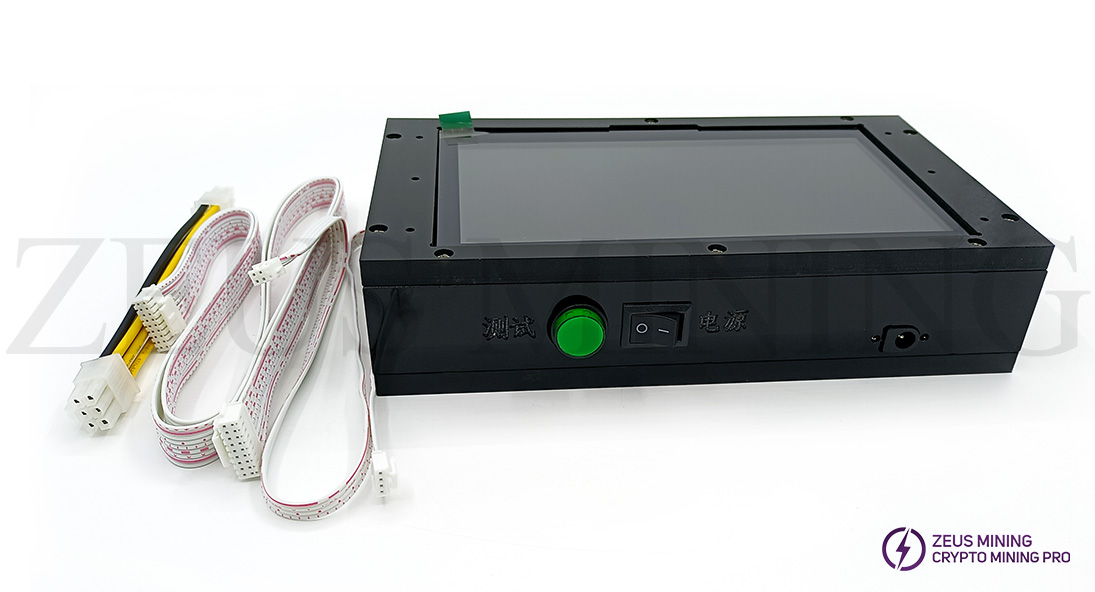

1. A new version of Antminer chip test fixture

2. 12V power adapter (not suitable for combined Antminer test)

3. Test data cable (18P)

4. SD/TF card (4G or 8G)

Note: The memory of the TF card should not be too large or too small, otherwise it may cause program file errors.

Effect display

Steps to use the Hash board tester:

Transform files and test file installation:

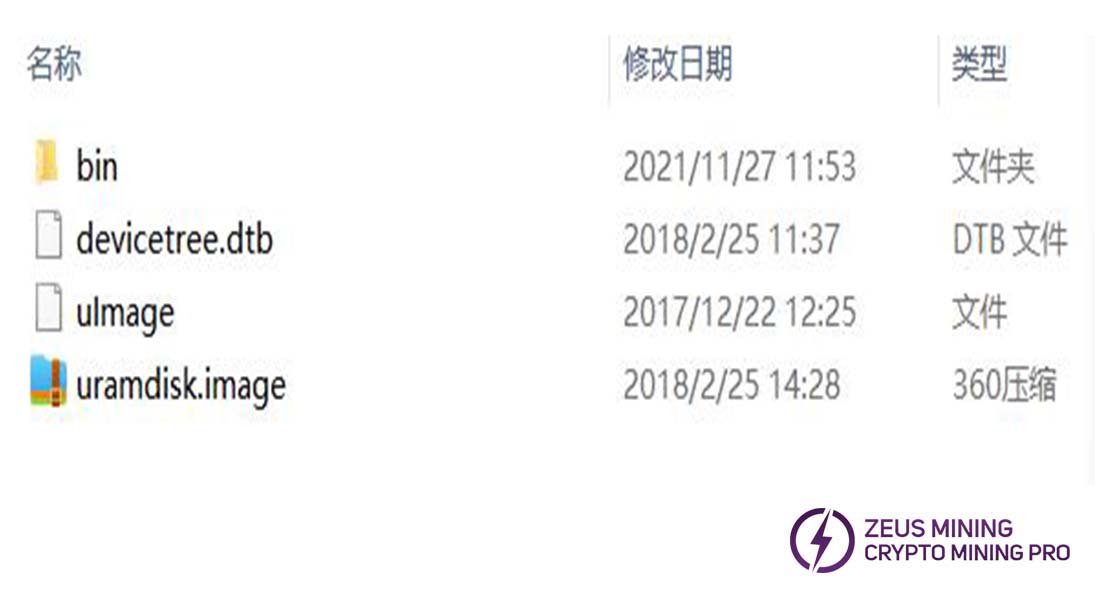

1. Format the TF card and flash the corresponding conversion file

Insert the TF card into the slot of the main control board of the fixture, and power on until the indicator light on the main control board of the fixture flashes continuously for at least 3 times, indicating that your conversion file is installed successfully

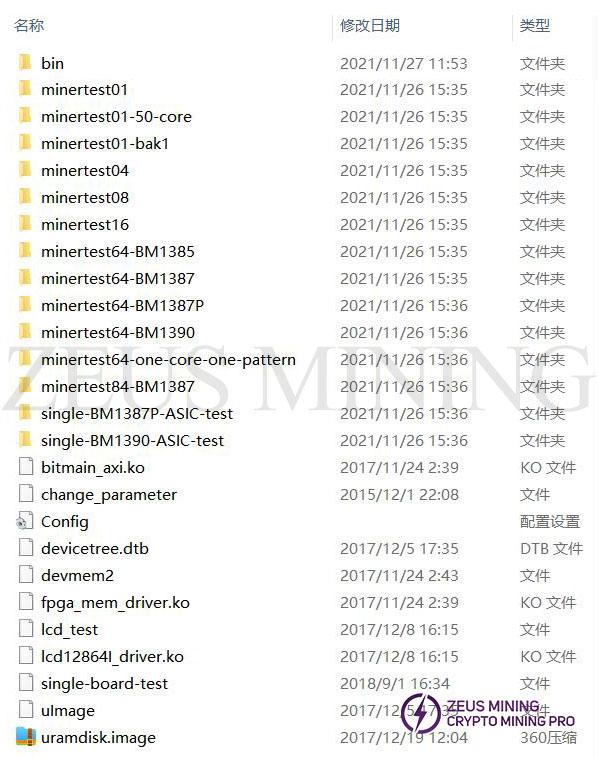

2. Take out the SD/TF card, format and copy the corresponding test file

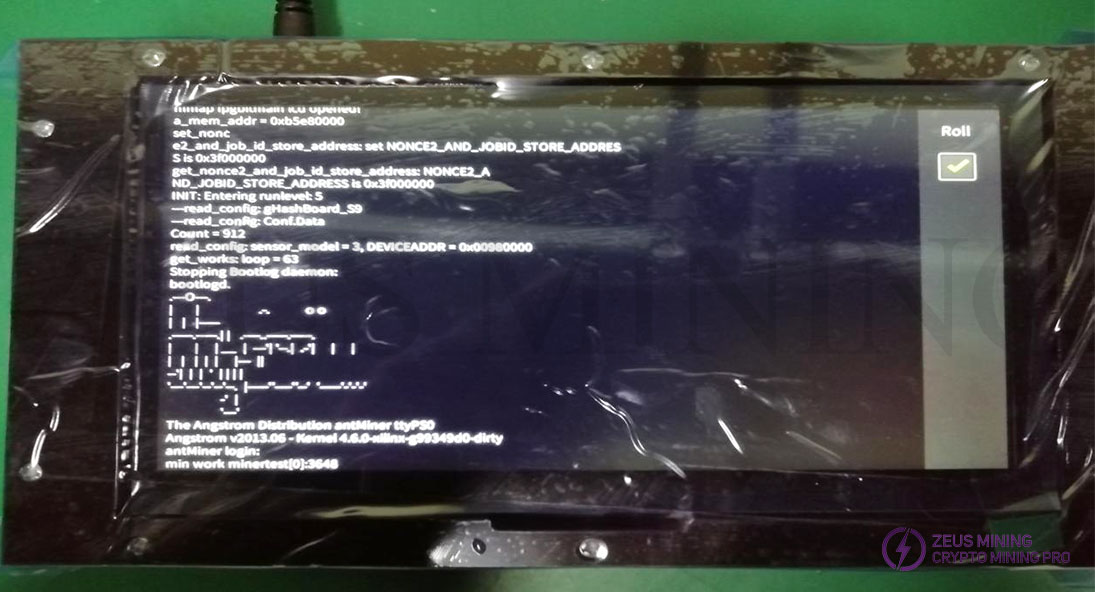

Insert the TF card into the card slot of the main control board of the test jig, and power on until the following display appears on the jig screen, which means that the self-test procedure of the jig has been completed, and your test file has been successfully installed.

3. Start testing:

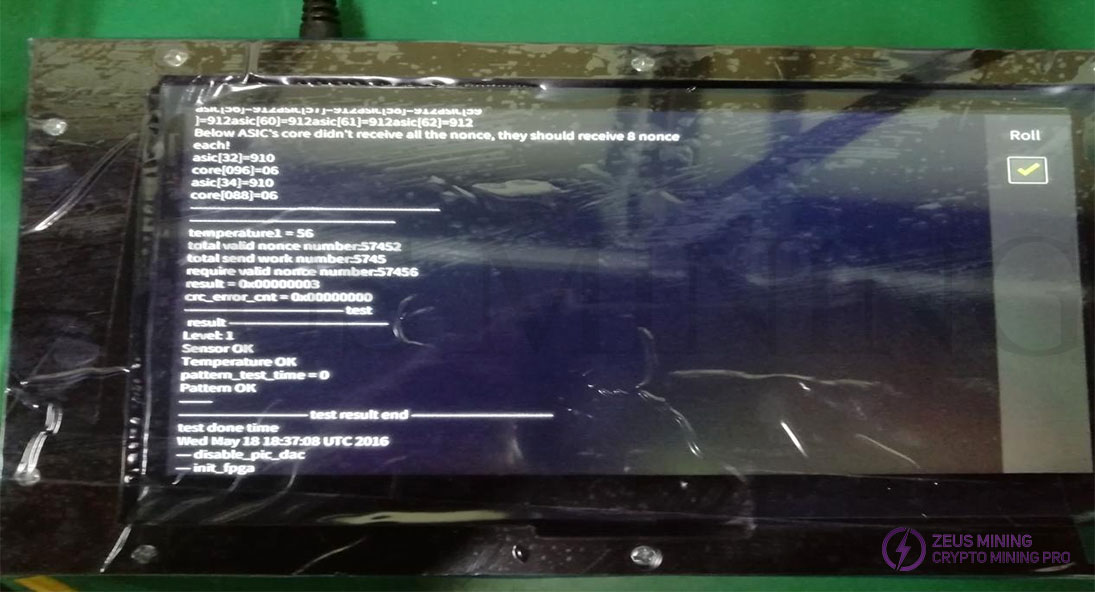

At this time, you need to connect the test fixture and the hash board with a 18P cable, then power on the hash board, and finally press the test button. At this time, the test fixture starts to detect the hash board. When you see the fixture screen as shown below, it means that the detection is completed, and your hash board is good and can work for you.

Notice: When using this test fixture, you must select the corresponding power supply according to the Antminer model. Please turn off the power when not in use, otherwise the main control board of the test fixture may be easily burned.

Please note: the new version test fixture comes with all supported Antminer test fixture TF card programs, including Antminer 17 series test fixture programs, Antminer 19 series test fixture programs, Antminer S9/ T9/ Z9/ Z9mini/ S11/ S15/ T15 test fixture programs. If you need aluminum substrate test files, please contact sales to purchase them separately.

Locate the Antminer S9 faulty chip - new version Antminer test fixture for Antminer S9 hash board:

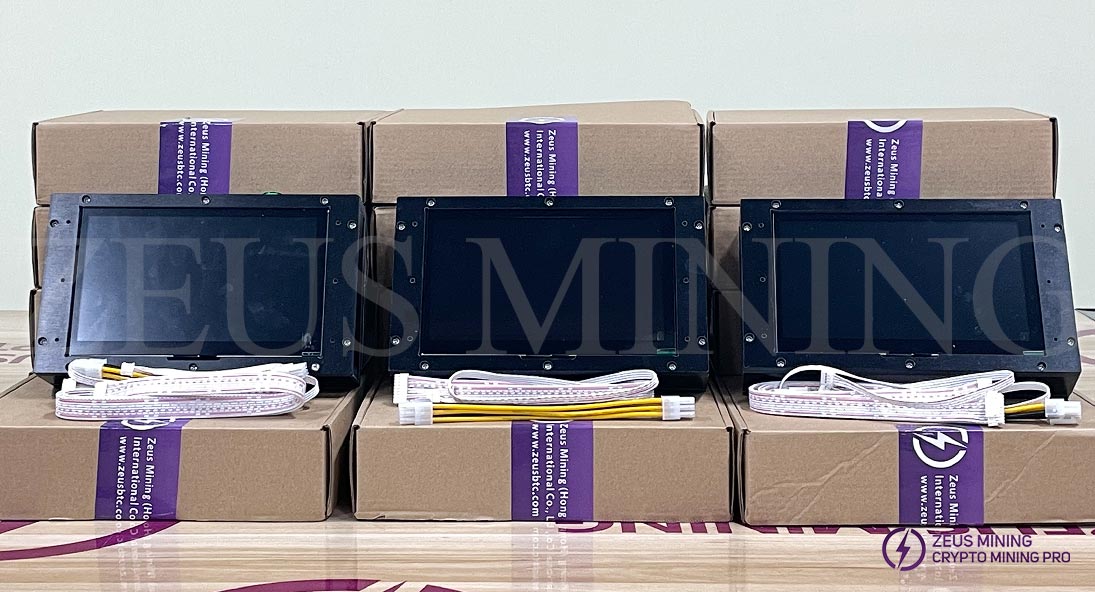

Packaging display

Other test fixture products:

Antminer universal chip fixture test fixture

Test Fixture For Antminer S9 Series

L3+ test fixture
