Antminer Whatsminer ASIC repair and diagnostic tester

Product description

ARC hash board tester for Antminer Whatsminer

The ARC Antminer Whatsminer hashboard tester is a repair and diagnostics tool for miners' ASIC chip repair. It is suitable for more than 50 hashboard models such as Antminer S21, T21, 19 series, 17 series, and S9 series, and 28 hashboard models such as Whatsminer M50, M39, M36S, M34S+, M33, M32, M31SE, M31S. It helps miners flash EEPROM without dismantling the machine, and it can also automatically detect the type of hash board. It is a test instrument that integrates maintenance and diagnosis.

Note: There is a one-month trial period after ordering this ARC fixture. After the trial period expires, you need to renew your subscription on the official website to continue using it. For details, please visit the ARC official website.

Product applicable model:

Antminer: S21e XP Hydro, S21XP, S21+, S21+ Hydro, S21pro, L9, S21 Hydro, KS5, S21, T21, K7, KA3, D7, L7, S19Jpro plus, S19pro hydro, S19XP hydro, S19 hydro, S19Jpro np, S19XP np, S19Jpro xp, S19Apro, S19a, S19Kpro, S19Jpro, T19, S19pro, S19j, S19i, S19+, S19, S19 88, DR5, S17, T17, S17e, T17e, S17+, T17+, S15, T15, Z15, Z15pro, L5, Z11, S11, S9k, S9Se, S9, L3 and more than 50 models.

Whatsminer: M50, M39, M36S, M34S+, M33, M32, M31SE, M31S, M31S+, M31L, M31H, M31, M30S++, M30S+, M30S, M30K, M30L, M30, M29, M21S+, M21S, M21, M20S+, M20S, M20, M12, M11, M1S, and other 28 models.

Product advantages:

1. Wide diagnostic range, diagnose and repair more than 50 Antminer and 28 Whatsminer models.

2. No heat, the motherboard does not emit heat during testing, which means no additional cooling is required. The board can be diagnosed on the desk without spending time and effort installing and removing the board in the miner case.

3. Asic Repair tester accurately locates a chip on the hash board that is not working and how many chip failures have occurred, simplifying the repair process and shortening the repair time by 6 times.

4. The flashing time of EEPROM is less than 30 seconds. It can perform operations without a computer, additional programmer, or a hash board power supply.

Product Features:

1. Accurate chip placement map; the chip map imitates a real miner's hash board, so it helps you accurately find the location of the faulty chip.

2. The web interface displays the historical records of all faulty chips during the test; therefore, you can accurately determine the number of chip faults and review damaged chips; and make maintenance more convenient, intuitive, and reliable.

3. Automatically search for temperature sensors; the ASIC repair tester will not look for temperature sensors in some chips. It scans the entire hash board or gets temperature data from a failed board! The test will automatically shut down if the temperature reaches a critical value.

4. Quick and easy model switching; the model of the hash board can be quickly switched! No need to change SD cards and wait for the tester to load. Just open the selector on the tester or choose the model you need from the corresponding menu.

5. Simple update process; no need to download anything or deal with updated instructions. You can update just by pressing the update button on the page.

6. Hash board EEPROM editor; able to change the EEPROM firmware template saved in the tester to flash multiple devices quickly and easily without using the web interface.

Product display

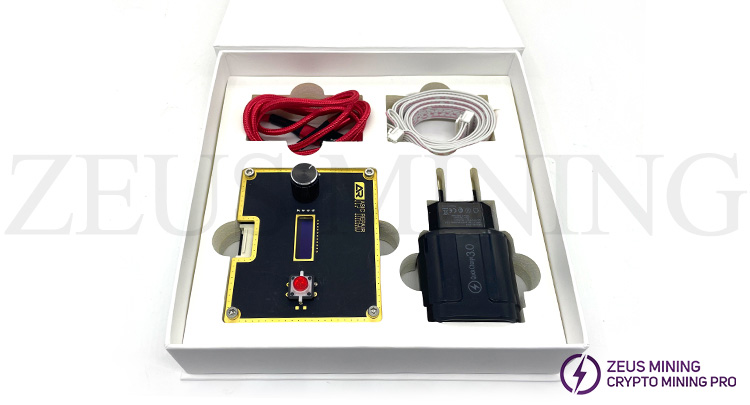

Product composition

Antminer tester part lists:

1. Tester * 1

2. 12V power plug * 1

3. 12V power adapter cable * 1

4. Antminer test fixture cable 18pin * 1

Whatsminer tester part lists:

1. Tester * 1

2. 12V power plug * 1

3. 12V power adapter cable * 1

4. Whatsminer test fixture cable 14pin * 1

In addition, to use this test fixture, we also need to cooperate with the KPS3030D power supply, cooling base 1800RPM, Alligator clip power cable 6mm, and other tools, including:

1. The WANPTEK KPS3030D DC power supply is used to power the Iceriver hash board;

2. The hash board cooling base 1800RPM is used to dissipate heat for the hash board.

3. The Alligator clip power cable 6mm is used to connect the KPS3030D power supply and the hash board.

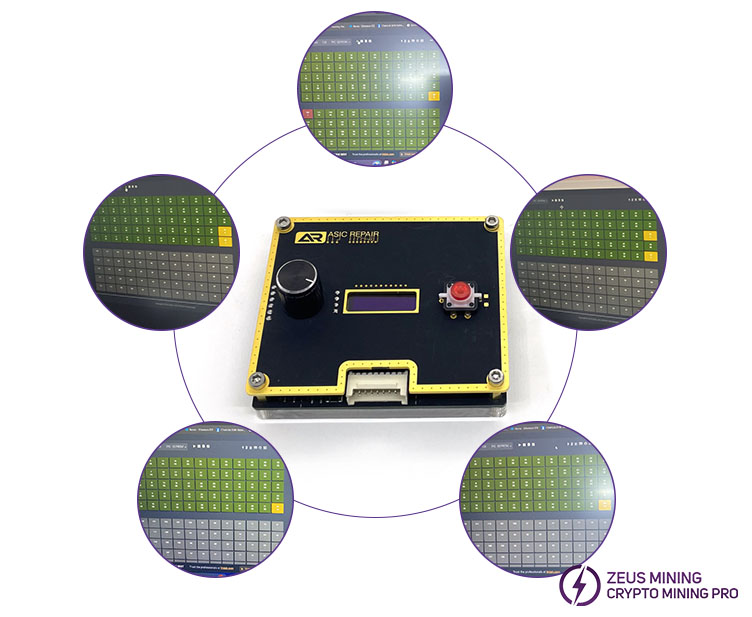

Effect display

Fixture connection instructions:

Antminer:

Whatsminer:

① and ② red and black alligator clip power cable: connect the positive and negative electrodes of the KPS3030D power supply and the hash board respectively;

③ Test fixture cable: connected to the test fixture and hash board;

④ 12V powering interface: connected to the tester and USB cable, use a computer to power the fixture;

⑤ 12V power adapter: connected to the Type C to USB cable and socket, use a socket to power the fixture.

Packaging display
