Whatsminer test fixture for M60 M50 M30 series miners

Product description

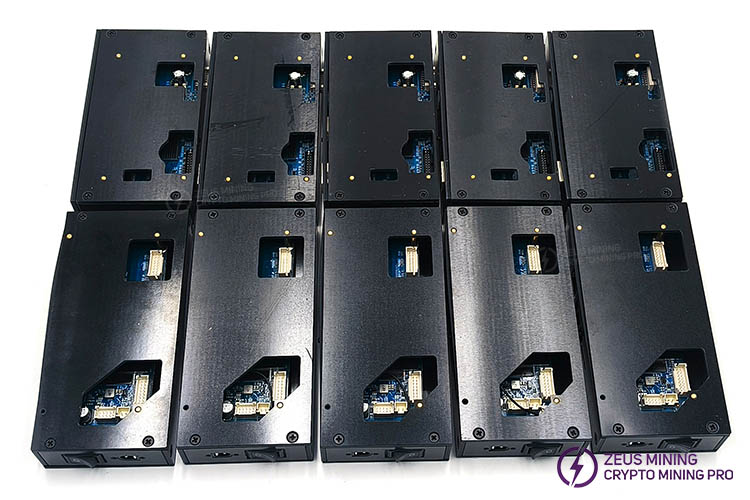

The Whatsminer test fixture is an accurate and efficient ASIC chip tester for quickly detecting faults in the Whatsminer M60, M50 and M30 series hash boards. This powerful test fixture can quickly troubleshoot chip faults, maximize the efficiency of your mining operations, and minimize the failure losses caused by downtime.

Due to different test files and control boards, these testers can be used to test different hash boards:

M60 M50 series hydro miners: M63S+, M63, M63, M53S++, M53, etc., M6x, M5x series miners.

M60 M50 series air-cooled miners: M60S+, M60S, M60, M50S++, M50S+, M50S, M50, etc., M6x, M5x series miners.

M50 M30 series air-cooled miners: M50S++, M50S+, M50S, M50, M32S, M32, M31S+, M31S, M31, M30S++, M30S+, M30S, M30, etc., M5x M3x series miners.

Product advantages:

1) The fixture is independently developed and sold by ZEUS MINING;

2) In addition to troubleshooting ASIC chip failures, the fixture can also be used to troubleshoot reset failures, temperature sensor failures, low hash rate failures, etc.;

3) The fixture is equipped with a high-quality shell, which is drop-proof and bump-proof, fully protecting the internal components of the fixture from collision, dust, short circuit, etc. problems;

4) Connect the fixture and computer via an Internet cable to quickly view the complete fault log.

Product display

Hash board tester interface description:

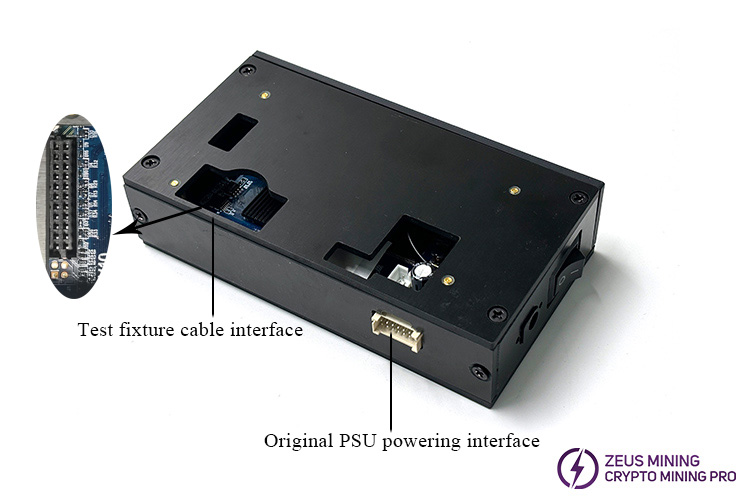

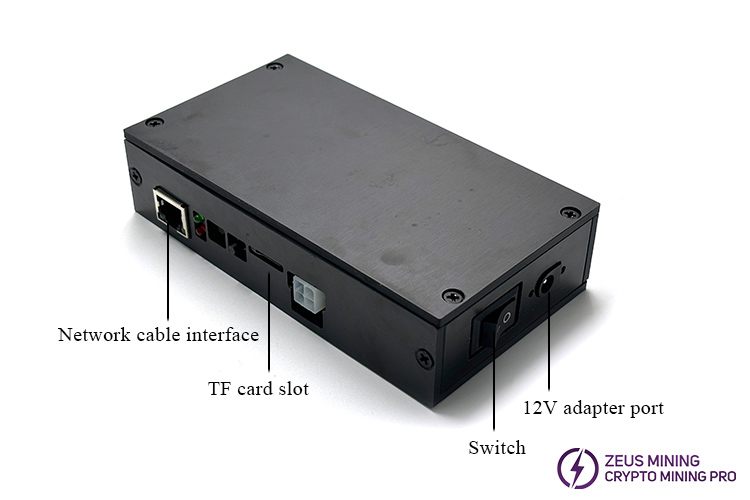

For M60 M50 M30 series air cooling miners:

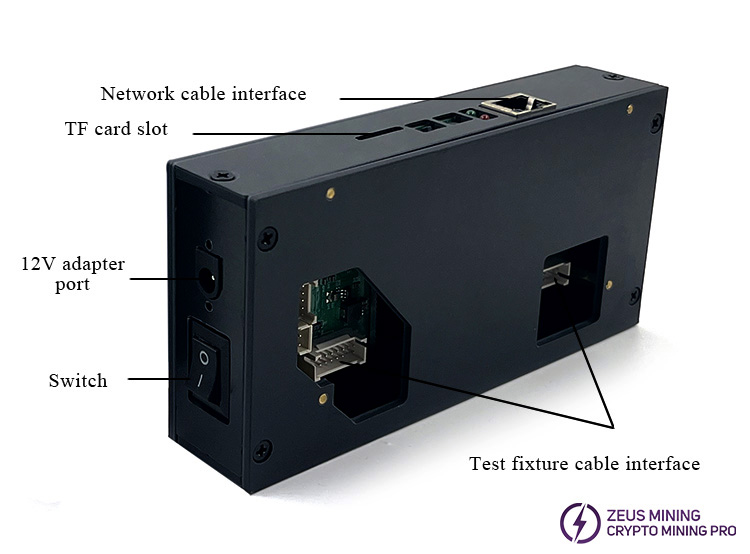

For M60 M50 series Hydro miners:

Product composition

1) Whatsminer M60 M50 series hydro miners tester lists:

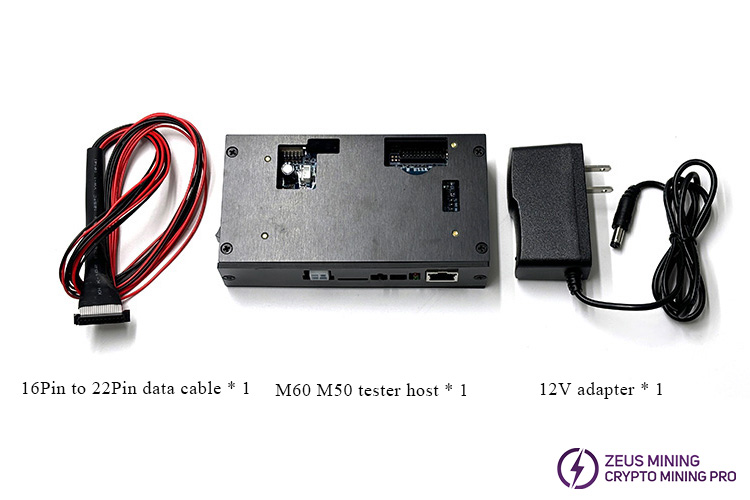

2) Whatsminer M60 M50 series air cooling miners test fixture lists:

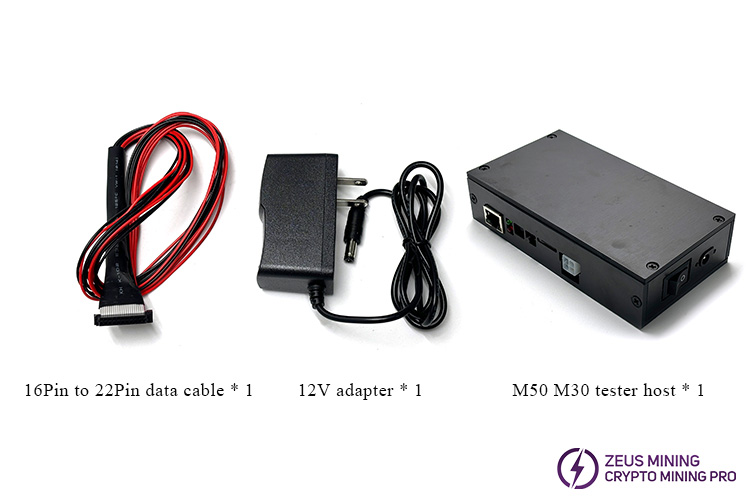

3) Whatsminer M50 M30 series miners hash board test fixture lists:

Effect display

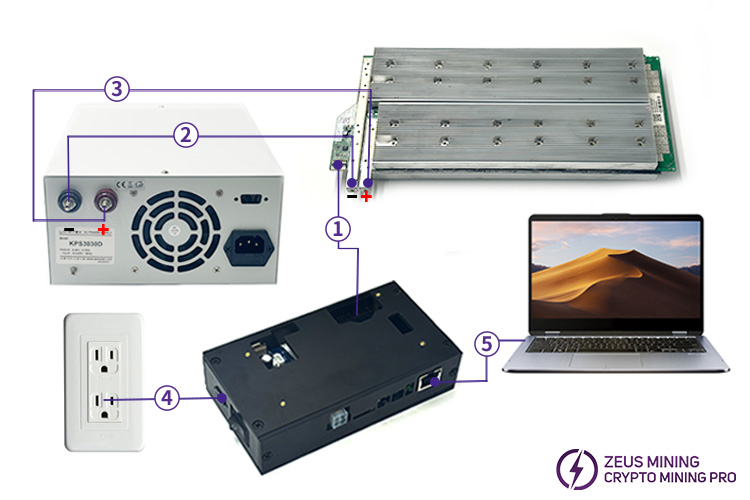

Test fixture connection diagram:

① Test fixture cable interface: connected to the test fixture and hash board;

② and ③ Alligator clip power cable 6mm: connect the positive and negative electrodes of the voltage regulating power supply and the hash board respectively;

④ 12V adapter: provide power to the fixture;

⑤ Network cable: connected to the tester and the computer Network or USB port.

To use this test fixture, we also need to prepare the following additional products:

1) WANPTEK KPS3030D DC power supply, used to power the hash board;

2) Alligator clip power cable 6mm, used to connect the DC power supply and the hash board.

3) Hash board cooling base 1800RPM, used to dissipate heat for the hash board.

4) Category 5e 8-core Gigabit Ethernet cable, used to connect the fixture and computer.

5) If your network cable cannot connect to your computer, you also need a 4 in 1 USB 2.0 to RJ45 Ethernet adapter.

Whatsminer M60 M50 series air cooling miners test fixture usage guide:

For more detailed usage steps of this product, please view "Tutorial on Whatsminer M50 test fixture to test hash board ASIC chip failure".

In addition, we also provide detailed steps for testing fixture card flash test files, please click here to view them.
