| Unit Price: | $ 3.2 |

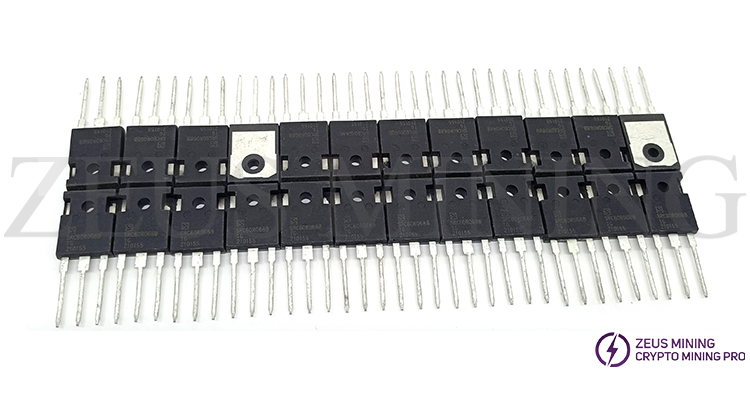

SRC60R068B 68mΩ 600V Super Junction N-Channel Power MOSFET
The SRC60R068B is a high voltage power MOSFET fabricated using advanced super junction technology. The resulting device has extremely low resistance, low gate charge, and fast switching time, making it especially suitable for applications that require superior power density and outstanding efficiency.

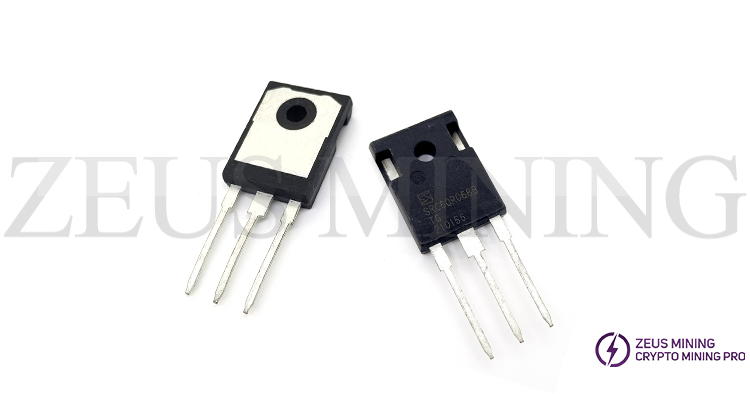

The SRC60R068B is available in the TO-247 package.
The SRC60R068B is a high-voltage switching MOSFET used in the front-end PFC boost/main power side of ASIC miner power supplies. It is responsible for power conversion on the high-voltage bus after AC rectification and is a core power device for power energy conversion. When the SRC60R068B MOSFET fails, it directly damages the miner's PFC boost power circuit, burning out the rectifier bridge and even causing the hash board to burn out. The entire machine will have no output, and will shut down due to overheating after a short period of full-load operation, resulting in a fluctuating hash rate and frequent restarts. If a failure occurs, it is recommended to replace it immediately to minimize unnecessary downtime losses.
This is a brand-new original product, and the price may be more expensive than the substitute product, but the quality is guaranteed; welcome to buy.
Ultra Low RDS(ON) = 68mΩ @ VGS = 10V.
Ultra Low Gate Charge, Qg=182nC typ.
Fast switching capability
Robust design with better EAS performance
EMI Improved
Telecom power
EV charger
High power application
