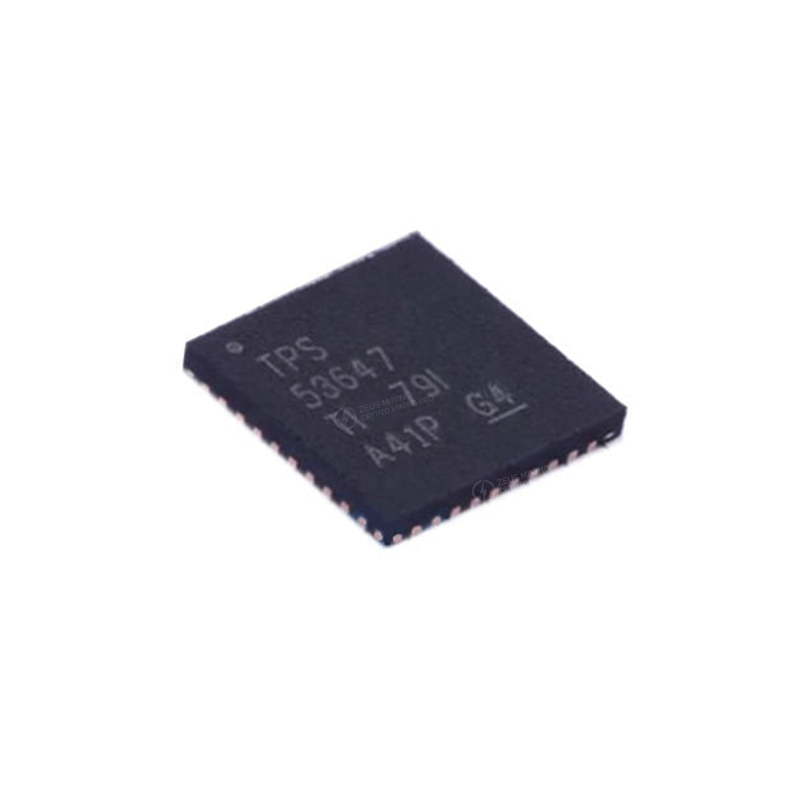

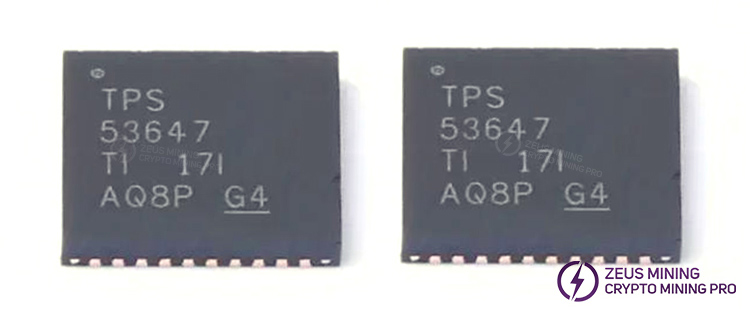

The TPS53647 is a high-current, multiphase step-down controller designed for ASIC miner power supplies. It supports 8-bit BOOT voltage selection, covering an output voltage range of 0.5V to 2.5V with 5mV step resolution, making it ideal for high-current applications requiring precise output voltage settings. Its advanced control features enable fast transient response, minimal output capacitance requirements, and high-efficiency operation. Additionally, the TPS53647 employs innovative phase-interleaving strategies and dynamic phase-shedding technology to enhance efficiency under light-load conditions. The device is housed in a space-saving, thermally efficient 40-pin QFN package and is rated for an operating temperature range of -40°C to 125°C.
• 8 selectable boot voltages, configurable via pin-strapping or NVM: 0.5 V to 2.5 V (steps as fine as 5 mV)
• PMBus™ system interface for telemetry of voltage, current, power, temperature, and fault conditions
• Compatible with 1.8 V and 3.3 V PMBus bias
• Configurable via non-volatile memory (NVM) or resistor pin-strapping
• 16-level programmable overcurrent protection (OCP), configurable via pin-strapping or NVM
• DCAP+™ control for fast transient response
• Optimized efficiency at both light and heavy loads
• Supports pre-biased startup
• Phase current imbalance detection and reporting
• 8-level independent overshoot suppression (OSR) and undershoot suppression (USR)
• Driverless configuration for high-efficiency, high-frequency switching
• Precisely adjustable voltage positioning
• 300 kHz to 1 MHz frequency selection with closed-loop frequency control
• Conversion voltage range: 4.5 V to 17 V
• Small 6 mm × 6 mm, 40-pin QFN package
• ASIC power supplies for communication equipment
• High-density power solutions
• Server power supplies
• Intelligent power systems
