| Unit Price: | $ 235 |

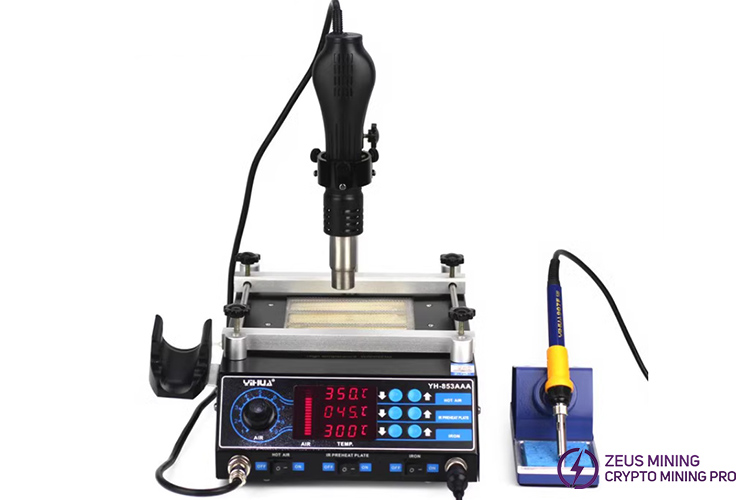

853AAA BGA rework station is equipped with a preheating platform, heat gun, and soldering iron, three functions in one. The structure is more compact, easy to use, and easy to operate. The temperature of the preheating platform is adjustable from 50 to 400°C. Glaze layer with high thermal effect, fast heating, and high efficiency. There are adjustable clamps; the spacing can be adjusted freely. The stainless steel work surface design can be anti-static and constant temperature output, and the control temperature is accurate and stable. The heat gun's temperature is adjustable from 100 to 480°C, and it has manual and automatic modes to choose from, which is more convenient and intelligent. The temperature of the soldering iron is adjustable from 200 to 480°C. Fast heating, stable temperature, and long service life. Anti-static design to prevent static electricity from damaging sensitive SMD parts.
Attention: Please select the power cord plug when purchasing this product. We will give you an International universal socket adapter for free according to your choice.
Some function settings:
1. Fahrenheit / Celsius display temperature function setting method:
When the machine is turned on, press the air gun and preheating table heating buttons for 3 seconds at the same time, the window displays the current temperature mode, press the air gun and preheating table ↑ key to set the Celsius or Fahrenheit display state, set it for 4 seconds, the program automatically memorizes and exits, and the setting is completed.
This function is a temperature display mode designed to meet the market needs of different regions.
2. Correction function setting method:
When the machine is turned on, press the air gun/preheating table cooling button for 3 seconds simultaneously, and the display window parameters all display 00. Press the respective ↑↓ keys to set the corresponding correction parameters. Correction range: ±50℃. After setting for 4 seconds, the program automatically memorizes and exits the display window to display the working temperature, and the setting is completed.
This function determines the deviation between the actual temperature and the displayed temperature of the machine's heating components due to environmental influences or the replacement of accessories. This function can be used to correct.

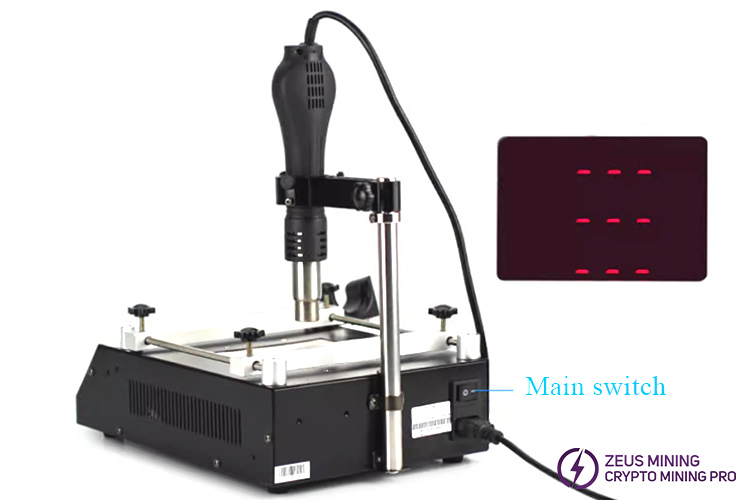

3. A new main switch is added to the rear of the machine:
When all switches on the front panel are turned off, the machine is still powered on and the display panel is still flashing, which reminds the user to turn off this switch, which can completely cut off the power of the machine, effectively extending the service life of the machine, saving electricity and eliminating safety hazards.
Product parameters:
Machine | Type | 3-in-1 hot air desoldering station |
Model | 853AA | |
Power of the whole machine | 1270W | |
Dimensions | 320x220x270mm | |
Weight | 5.6kg | |
Working environment | 0~40℃/32~104℉ | |
Storage environment | -20~80°C/-4~176℉ | |
Storage humidity | 35%~45% | |
Preheating station | Temperature range | 50~400℃ |
Temperature stability | ±2℃ (static) | |
Display form | LED digital display | |
Area | 120x120mm | |
Air gun | Airflow type | Brushless fan soft wind |
Air flow | <120L/min | |
Temperature range | 100℃~480℃ | |
Temperature stability | ±1℃ (static) | |
Display form | LED digital display | |
Handle cable length | >100cm | |
Soldering station | Temperature range | 200℃~480℃ |
Temperature stability | ±1℃ (static) | |
Tip-to-ground voltage | <2mV | |
Tip-to-ground resistance | <2 ohm | |
Display form | LED | |
Heater core type | High-power imported heating core |

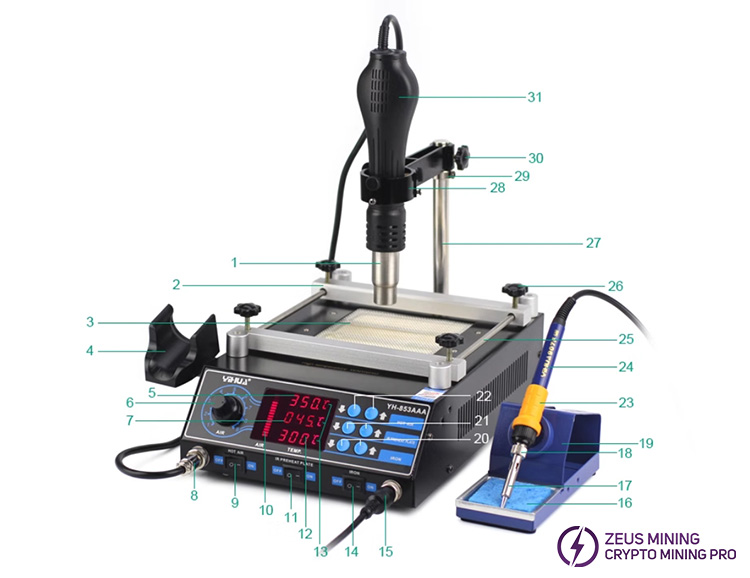

Component description:
1 | Air gun stainless steel cylinder | 17 | Stainless steel cylinder |
2 | Electronic board holder | 18 | Steel cylinder fixing nut |
3 | Heating plate | 19 | Metal soldering iron holder |
4 | Air gun bracket | 20 | Soldering station temperature adjustment button |
5 | Air gun temperature | 21 | Preheating plate temperature adjustment button |
6 | Air gun air volume adjustment knob | 22 | Air gun temperature adjustment button |
7 | Preheating plate temperature | 23 | Soldering iron handle silicone cover |
8 | Air gun socket | 24 | YIHUA 907F soldering iron handle |
9 | Air gun switch | 25 | Clamp slide guide |
10 | Air gun air volume indicator | 26 | Clamp fixing knob |
11 | Preheating plate switch | 27 | Air gun bracket fixing column |
12 | Soldering station temperature | 28 | Air gun bracket |
13 | Celsius temperature indicator | 29 | Air gun bracket fixing bolt |
14 | Soldering station switch | 30 | Air gun bracket fixing knob |
15 | Soldering iron socket | 31 | Air gun handle |
16 | High temperature resistant cleaning sponge |
YIHUA-853AAA host x1
YIHUA-907F soldering iron handle x1
Air gun bracket x1
Fixed bracket x4
Blue iron alloy soldering iron holder x1
High temperature resistant cleaning sponge x1
Air gun nozzle (φ5, φ8, φ10, 13x13) x1
IC extractor x1
Power cord x1
Instruction manual x1
