| Unit Price: | $ 129 |

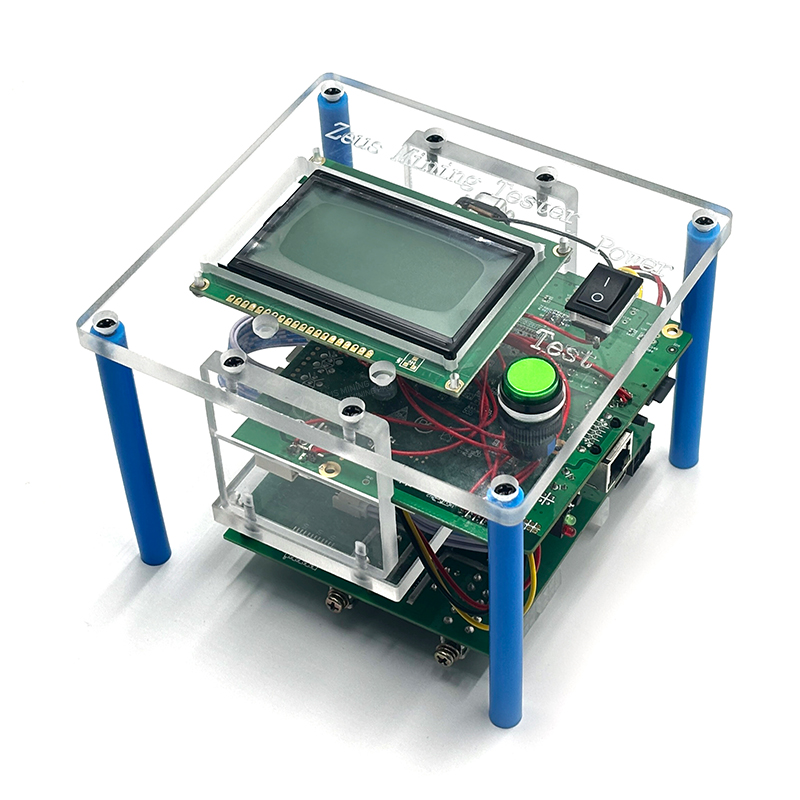

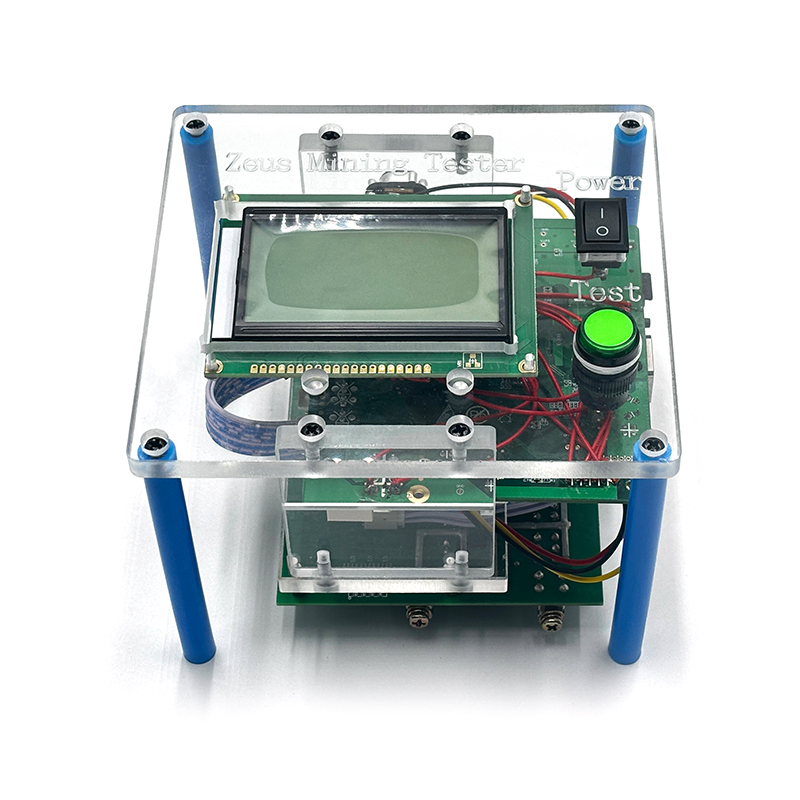

The ZEUS MINING Antminer universal hash board tester test fixture upgraded version features plug-in and unplug control functions, as well as signal power control functions, based on the original Antminer universal chip fixture. It supports repeated testing of Bitmain hash boards, including quickly locating ASIC chips, temperature sensors, LDOs, boost circuits, CRC, etc., faults, thereby improving maintenance efficiency and reducing human error.
Antminer S21e Hydro, S21XP, S21+, S21+ Hydro, L9, S21Pro, S21 Hydro, T21, KS5PRO, KS5, KS3, S19e XP Hydro, S19Pro Hydro, S19Pro+ Hydro, S21, KA3, HS3, K7, D7, L7, S19kpro, S19XP, S19XP Hydro, S19Pro, T19 Hydro, S19 Hydro, S19jpro, S19j, S19+, S19jpro+, T19, S19, S19i, S17+, S17e, S17, S17pro, T17+, T17e, T17, S15, T15, Z15, S11, S9se, S9k, S9j, S9i, T9+, T9, Z9, Z9mini, S9, etc.
Model | Upgraded version | Standard version |
Test model | Compatible with most Antminers | Compatible with most Antminers |
Diagnosis type | ASIC failure, temperature sensor failure, LDO failure, boost circuit failure, CRC error failure, etc. | ASIC failure, temperature sensor failure, LDO failure, boost circuit failure, CRC error failure, etc. |
LED high-definition display to view test results | √ | √ |
View logs (connect to computer) | √ | √ |
Insulation treatment of power part | √ | √ |
ASIC signal voltage test time | Unlimited | Test time ≤10S |
Plug and unplug control function | √ | / |
Signal powering control function | √ | / |
Foot switch (control voltage) | √ | / |
| Chip signal light | √ | / |

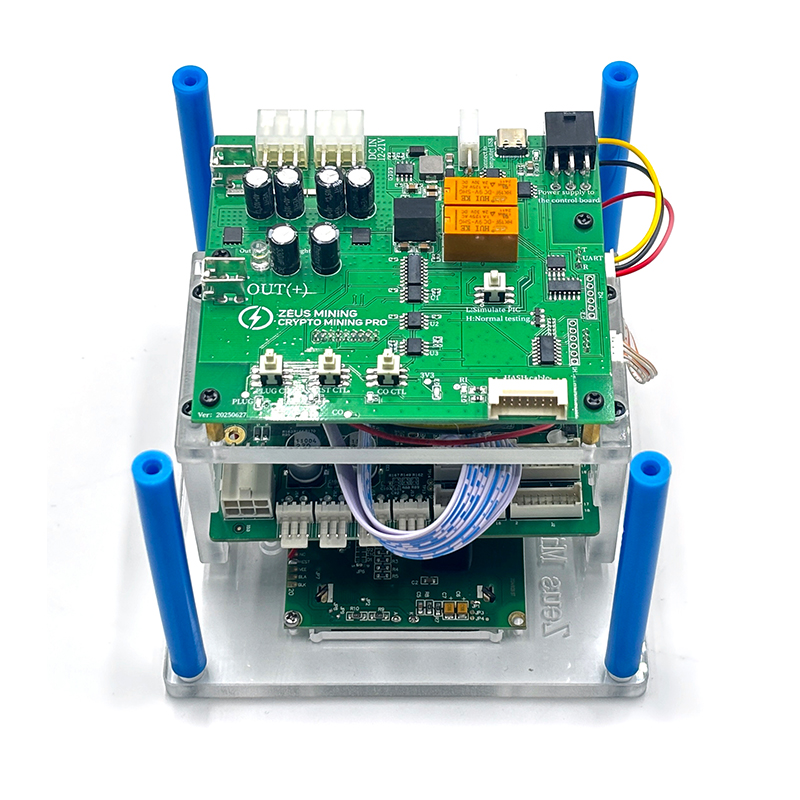

★New★ Plug and unplug control function: When testing the hash board, pressing the PLUG CTL button on the fixture is equivalent to plugging and unplugging the data cable once, which is more convenient for repeated testing. The hash board can be tested repeatedly without closing the fixture, improving maintenance efficiency.
★New★ Signal powering control function: Control the voltage through the foot switch of the test fixture. Press the foot switch to activate power, and then release it to shut off the power. It is very convenient for measuring signal voltage.
Note: Antminer universal test fixture, both standard and upgraded versions, provides convenient services for large mining farms or personal maintenance with 1~2 types of miners. If you are a repair site or have multiple miners that require repair of hash boards, it is recommended to use the PicoBT Multifunctional Hash Board Tester for fault detection and repair.

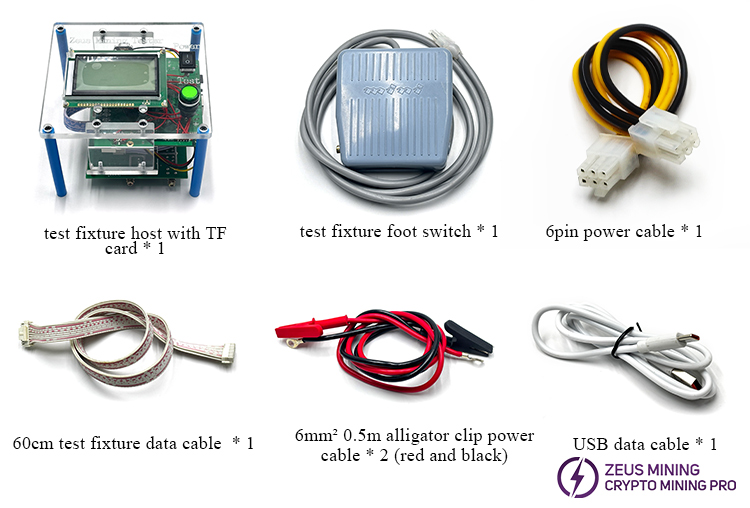

Product list of Antminer universal test fixture upgraded version only:

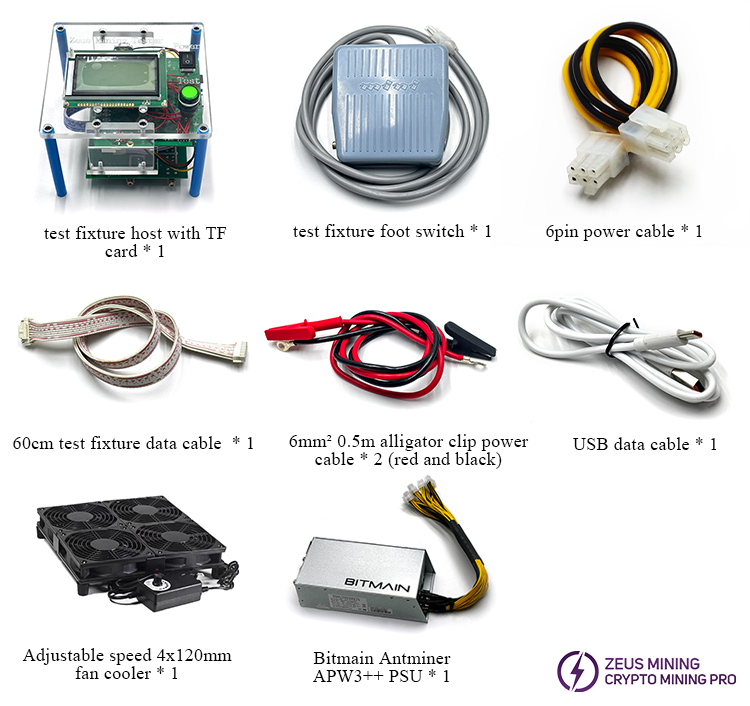

Product list with 4×120mm adjustable speed fan and APW3++ power supply:

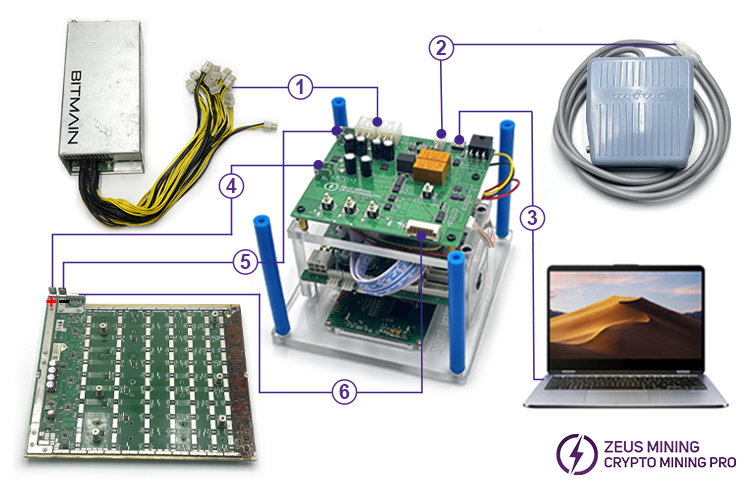

Antminer universal test fixture upgraded version connection diagram description:
① Powering interface: Use APW3++ power supply to power the test fixture;
② Foot switch interface: Connect the foot switch to control the test voltage;
③ USB data cable: Connect the fixture and computer;
④⑤ Alligator clip power supply line: Connect the fixture and the hash board power interface;
⑥ Test fixture cable: Connect the test fixture and hash board data interface.
Antminer universal test fixture upgraded version tutorial:
How the Antminer universal test fixture upgraded version quickly checks hash boards?
